Understanding Your Car's Heater Matrix: Stay Warm!

When the chill sets in, there's nothing quite like the comforting blast of warm air from your car's vents. This essential luxury, often taken for granted, is all thanks to a vital component tucked away behind your dashboard: the heater matrix. Often overlooked until it stops working, this small but mighty radiator is central to your vehicle's heating and demisting system, ensuring both comfort and clear visibility on the road. Understanding how it works and what can go wrong is key to maintaining a pleasant driving experience, especially during the colder months in the UK.

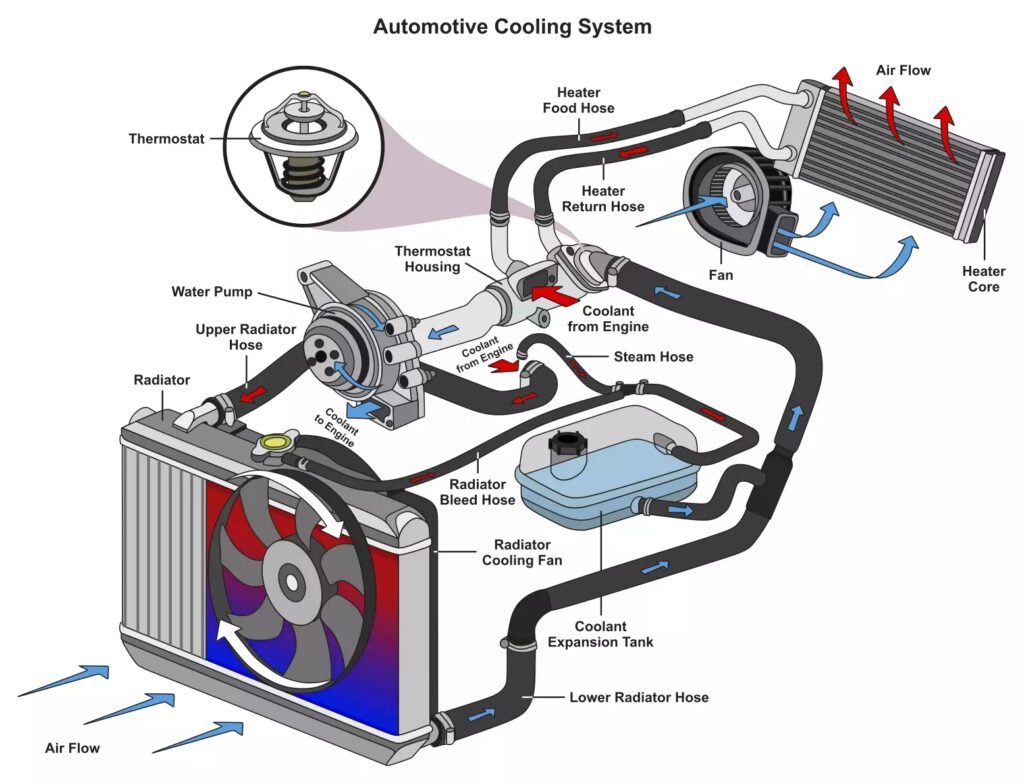

At its core, a heater matrix functions much like a miniature version of your car's main radiator. It's a heat exchanger, intricately designed to transfer heat from the engine's hot coolant into the cabin. As the engine runs, coolant circulates through the engine block, absorbing heat. This hot coolant then flows into the heater matrix. A fan blows air across the matrix's fins, warming the air before it's directed through the vents into the vehicle's interior. If your heater matrix isn't performing optimally, you'll quickly notice a significant reduction in cabin warmth, or perhaps even no heat at all, turning your winter commutes into a rather bracing ordeal.

Common Issues and Symptoms of a Failing Heater Matrix

Just like their larger counterparts, heater matrixes are susceptible to issues that can impede their efficiency. The most prevalent problem is a choked or blocked matrix. Over time, deposits, sediment, and rust from the cooling system can build up within the narrow passages of the matrix. This accumulation restricts the flow of coolant, preventing effective heat transfer. The result? A noticeable decrease in the amount of heat reaching the cabin, or cold air blowing even when the temperature control is set to maximum heat.

Other signs of a failing heater matrix include a sweet, sickly smell inside the car, which indicates a coolant leak. You might also notice a misty film on the inside of your windscreen, or even damp patches on the passenger footwell carpet, as leaked coolant evaporates and condenses on the glass, or drips directly into the cabin. A sudden drop in your coolant level without an obvious external leak can also point to an internal leak from the heater matrix. Ignoring these symptoms can lead to more significant issues, including potential damage to other cooling system components due to insufficient coolant or overheating.

Repairing or Replacing a Heater Matrix

When faced with a malfunctioning heater matrix, there are typically several courses of action, depending on the severity and nature of the problem. Our primary goal is always to provide the most effective and economical solution to restore your vehicle's heating capabilities.

Chemical Descaling

For heater matrixes that are only partially blocked or suffering from early stages of deposit build-up, a chemical descale can be a highly effective first step. This process involves flushing the cooling system with specialized chemical cleaners designed to dissolve rust, scale, and other deposits. By circulating these chemicals through the matrix, blockages can often be cleared, restoring proper coolant flow and heat output. This method is generally less invasive and more cost-effective than a full replacement, making it an attractive option for many drivers. However, it's crucial that this is performed by professionals to ensure the correct chemicals are used and the system is properly flushed afterwards to prevent further damage.

Replacement or Re-coring

If the heater matrix is too severely blocked, corroded, or has developed a leak that cannot be repaired, a full replacement becomes necessary. We stock a wide range of heater matrixes for most makes and models of vehicles. In instances where a specific part isn't immediately available, we can usually source it for next-day delivery, minimising downtime for your vehicle. For those harder-to-get or classic heaters, much like with radiators, we offer specialized services:

• Repair: Minor leaks or damage can sometimes be repaired, often through soldering or patching.
• Re-coring: This involves replacing the internal core (the part responsible for heat exchange) while retaining the original end tanks. This is particularly useful for classic or vintage vehicles where an entirely new unit might be impossible to find or would compromise originality. A new, high-performance core can significantly improve heat output.
• Reconditioning: A comprehensive process that involves cleaning, repairing, and testing the entire unit to restore it to near-new condition.

We even have the capability to copy heaters made from Aluminium, ensuring that even the most obscure or custom requirements can be met with precision and quality.

A Look Back: Classic Heater Designs

The history of automotive heating is rich with innovative designs, particularly from manufacturers like Smiths and Clayton, whose units were prevalent in British cars from the 1940s and 1950s. Understanding these classic designs sheds light on the evolution of heater technology and the challenges faced by owners of vintage vehicles.

Circular Smiths Type Heater

Many iconic cars from the 1940s and early 1950s, including popular models like the Morris, TR3, Austin-Healey, Jaguar XK, and early Land-Rovers, were equipped with circular under-dash heating units. The most widespread of these was the Smiths unit. While groundbreaking for their time, these units had a significant Achilles' heel: the heat exchanger itself. It was typically constructed from 'tinned' steel, a material prone to rust. Over decades, this steel would inevitably corrode and rust away, leading to leaks and complete failure. Unfortunately, there is no satisfactory repair method for these original tinned steel exchangers, often necessitating a complete replacement unit.

Clayton Units: Durability and Longevity

In contrast, similar Clayton units were favoured by manufacturers such as Daimler, Alvis, Lea Francis, Armstrong Siddeley, Rover (including early Land-Rover Series 1), and Jaguar saloons. These units were generally more expensive than their Smiths counterparts, but this higher cost was justified by superior construction. Clayton units utilised all-copper, wire-wound tubes for their heat exchangers. Copper is vastly more resistant to corrosion and less prone to blockage than tinned steel, resulting in a significantly longer service life. This robust design meant Clayton units were far more resistant to both blockages and leaks, earning them a reputation for exceptional durability. Remarkably, these high-quality Clayton heaters are still manufactured today, using the original tooling. They are available with various water pipe configurations, with or without demisting capabilities (Clayton's demisting often involved an additional fan on the back of the heater), and in 6, 12, and 24-volt versions, catering to a wide range of classic vehicle requirements.

Smiths Replacements by Clayton

Recognising the demand and the inherent weakness of the original Smiths units, Clayton manufactures a special range of copper circular heat exchangers specifically designed to fit Smiths heaters as direct replacements. These units offer the superior durability and heat transfer efficiency of copper while seamlessly integrating into the existing Smiths heater housing. Various versions and sizes are available to suit the diverse range of original Smiths units. Furthermore, for purists looking to restore their classic heater to its former glory – or even surpass it – individual components like motors, fans, and backplates are also available. As long as you have a serviceable front plate with doors, a new (and improved!) heater can be meticulously built. The result is virtually indistinguishable from the original, until you experience the superior heat output!

Xeros Heaters: A Modern Alternative

For those less concerned with absolute period correctness and more focused on performance and value, modern compact heaters like the Xeros units offer an excellent alternative. These units typically feature a durable plastic body, multiple fan speeds (often three), and a powerful output. They are designed to provide significantly more heat than many older units, often at a fraction of the cost. This makes them an ideal choice for custom builds, hot rods, or any vehicle where modern heating performance is prioritised over strict originality.

Comparative Table of Heater Types

Frequently Asked Questions about Heater Matrixes

How long does a heater matrix typically last?

The lifespan of a heater matrix can vary significantly depending on the make, model, material, and how well the cooling system is maintained. Original equipment heater matrixes can last anywhere from 10 to 20 years. However, factors like infrequent coolant changes, using incorrect coolant types, or neglecting rust inhibitors can drastically shorten their life by promoting corrosion and deposit build-up.

Can I replace a heater matrix myself?

Replacing a heater matrix is often a complex and time-consuming job, especially in modern vehicles. The matrix is typically located deep within the dashboard, often requiring the removal of the entire dashboard, steering column, and various other components. While it is technically possible for an experienced DIY mechanic with the right tools and knowledge, it's generally recommended to have this job performed by a professional mechanic due to its complexity and the potential for damaging other components.

What are the clearest signs of a blocked heater matrix?

The most common and definitive sign of a blocked heater matrix is a lack of heat from the vents, even when the engine is at operating temperature and the heater controls are set to hot. You might also notice that the heat is inconsistent, perhaps warm on one side of the car and cold on the other, or that the fan blows air but it remains cool. Reduced airflow can also be a symptom, though this is less common for blockages.

Is a leaking heater matrix dangerous?

A leaking heater matrix can be problematic but not immediately dangerous in most cases. The primary concerns are the loss of coolant, which can lead to engine overheating if left unaddressed, and the potential for slippery residue on floor mats or pedals, which could be a safety hazard. The sweet smell and misting windscreen are also clear indicators that should prompt immediate attention. Inhaling coolant vapours over a long period is also not ideal.

Is it always expensive to repair or replace a heater matrix?

The cost varies significantly. A chemical descale is typically the most affordable option. A full replacement can be more costly, primarily due to the labour involved in accessing the unit, which often requires extensive dashboard dismantling. However, investing in a proper repair or replacement ensures your comfort and the longevity of your cooling system. Always get a professional assessment to determine the most cost-effective and appropriate solution for your specific vehicle.
