Heated Rear Window Repair Guide

The defroster lines on your car's rear window are a lifesaver during cold, frosty mornings. They quickly clear away condensation and ice, providing essential visibility. But what happens when these vital heating elements fail? Many car owners wonder if a heated rear window can be repaired, or if a costly replacement is the only option. The good news is that in many cases, yes, a heated rear window can indeed be repaired. This article will delve into the common causes of failure, the methods for diagnosing the problem, and the various repair techniques available, from simple DIY fixes to professional interventions.

Understanding How a Heated Rear Window Works

Before we discuss repairs, it's helpful to understand the basic principle behind a heated rear window. The system consists of a series of thin, conductive lines embedded within the glass itself. These lines are typically made of a metallic paste or a special conductive ink. When you activate the defroster switch, an electric current flows through these lines, generating heat. This heat then warms the glass surface, melting ice and evaporating condensation. The grid pattern is designed to distribute heat evenly across the entire window.

Common Causes of Heated Rear Window Failure

Several factors can lead to a heated rear window ceasing to function correctly. Identifying the root cause is crucial for effective repair.

1. Damaged Conductive Lines

This is by far the most common reason for a failed rear defroster. The thin lines are surprisingly delicate and can be easily damaged during:

• Accidental scraping: Using ice scrapers too aggressively can gouge or completely sever the lines.
• Improper cleaning: Harsh chemicals or abrasive cloths can wear away the conductive material over time.
• Impact: Small stones or debris kicked up by other vehicles can chip or crack the glass, potentially damaging the lines.
• Wear and tear: Over many years, the conductive material can degrade, especially in areas with significant temperature fluctuations.

2. Faulty Electrical Connections

The conductive lines are connected to the vehicle's electrical system at the edges of the window. Issues with these connections can interrupt the flow of electricity:

• Corrosion: The terminals where the wires connect to the glass can corrode due to moisture and salt.
• Loose connections: The wires might become loose or detach from the terminals due to vibration or physical stress.
• Damaged wiring: The wiring leading to the defroster terminals could be damaged by snagging or abrasion.

3. Blown Fuse or Faulty Relay

Like any electrical component, the rear defroster circuit is protected by a fuse. If there's a surge in current, the fuse will blow, breaking the circuit to protect the system. Similarly, a faulty relay can prevent power from reaching the defroster grid. This is usually a more straightforward fix.

4. Issues with the Defroster Switch

The switch itself could be faulty, preventing it from sending the signal to activate the defroster. This is less common than line damage but still a possibility.

Diagnosing a Failed Heated Rear Window

Before attempting any repairs, you need to pinpoint the problem. Here’s how you can diagnose the issue:

1. Visual Inspection

Start with a thorough visual check of the rear window. Look for any obvious signs of damage to the conductive lines, such as:

• Scratches or gouges
• Completely broken lines
• Areas where the conductive material appears to be missing

Also, inspect the electrical terminals at the edges of the window for corrosion or loose wires.

2. Testing for Continuity (The Multimeter Method)

A multimeter is an invaluable tool for diagnosing electrical problems. You can use it to check if the conductive lines are still intact and carrying current.

Steps:

1. Locate the terminals: Identify the two connection points for the defroster grid, usually on the lower corners of the window.
2. Set the multimeter: Set your multimeter to the resistance (Ohms) or continuity setting.
3. Test across the lines: Place one probe of the multimeter on one terminal and the other probe on the corresponding terminal on the other side. If the lines are intact, you should get a very low resistance reading, indicating continuity. If you get an open circuit (OL or infinity), there's a break somewhere in the grid.
4. Isolate breaks: If you find there's a break, you can try to isolate its location. Turn the defroster on and use the multimeter (set to voltage) to check for voltage at different points along the lines, starting from the power source. The point where the voltage drops to zero indicates the location of the break.

3. Checking the Fuse and Relay

Consult your car's owner's manual to find the location of the fuse and relay for the rear defroster. Visually inspect the fuse to see if the metal filament inside is broken. If it is, replace it with a new fuse of the same amperage. You can also test the fuse using the continuity setting on your multimeter. To test the relay, you might need to swap it with an identical relay from a non-essential system (like the horn) to see if the defroster then works. If it does, the original relay is faulty.

4. Testing the Switch

If the fuse, relay, and lines appear to be intact, the issue might be with the switch. You can test the switch's operation with a multimeter, checking for continuity when it's activated.

Repairing a Heated Rear Window

Once you've identified the problem, you can proceed with the repair. The method will depend on the nature of the fault.

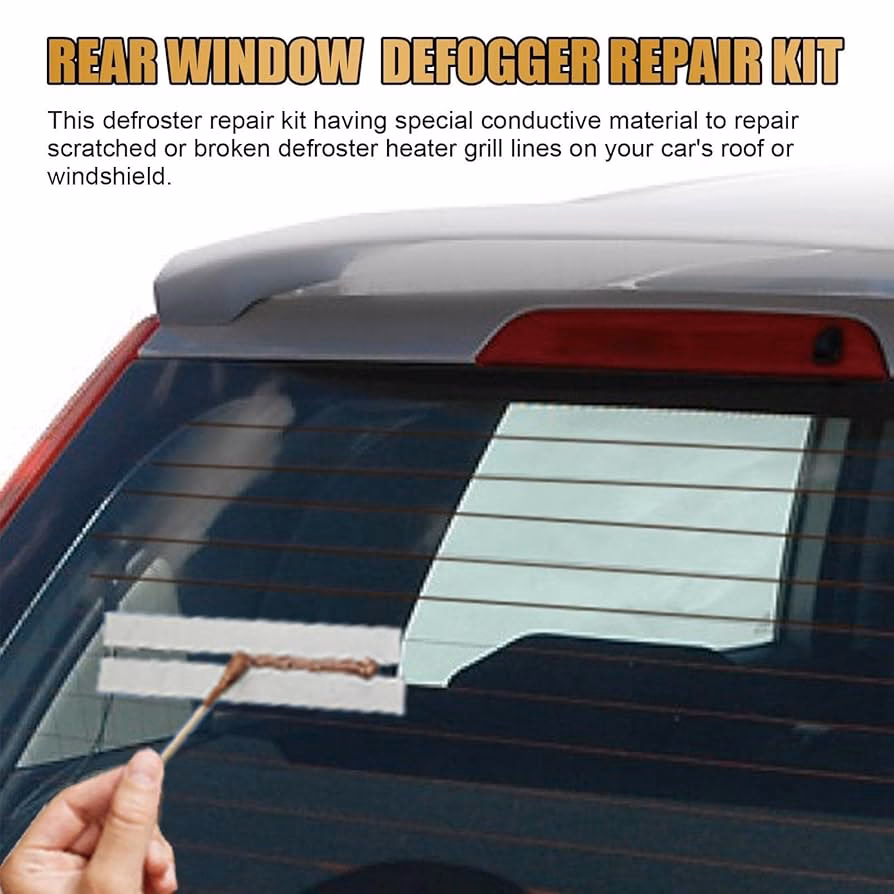

1. Repairing Broken Conductive Lines (DIY Kits)

For minor breaks in the conductive lines, a heated rear window repair kit is often an effective solution. These kits typically contain a conductive paint or epoxy, a small brush or applicator, and sometimes a stencil to help you apply the repair material accurately.

Steps for using a repair kit:

1. Clean the area: Thoroughly clean the damaged area on the glass and the surrounding conductive lines with isopropyl alcohol to remove any dirt or grease.
2. Prepare the line: If there's any debris or loose material from the break, carefully remove it.
3. Apply the conductive material: Using the applicator provided, carefully apply the conductive paint or epoxy over the break. Aim to recreate the line as closely as possible, ensuring good contact on both sides of the break. For best results, apply multiple thin coats rather than one thick one, allowing each coat to dry as per the kit's instructions.
4. Allow to cure: Let the repair material cure completely. This can take several hours, depending on the product and environmental conditions.
5. Test the repair: Once cured, test the defroster to see if the repaired line is now conducting electricity.

Important Considerations for DIY Repairs:

• Patience is key: Take your time to ensure a clean and precise application.
• Amperage: Ensure the conductive material you use has sufficient conductivity to carry the necessary current.
• Multiple breaks: If there are multiple breaks or significant damage, a DIY repair might not be sufficient, and professional help may be needed.

2. Repairing Electrical Connections

If the issue is with the terminals or wiring:

• Clean terminals: Carefully clean any corrosion from the terminals using a fine-grit sandpaper or a pencil eraser.
• Re-secure wires: If a wire has come loose, you might be able to re-attach it using a specialized conductive adhesive or by carefully soldering it if you have the expertise and the correct materials. Some repair kits also include replacement terminals that can be adhered to the glass.
• Repair damaged wiring: If the wiring leading to the terminals is damaged, it will need to be repaired or replaced by a qualified auto electrician.

3. Replacing Fuses and Relays

This is a straightforward electrical repair. Locate the correct fuse and relay in your car's fuse box (refer to your owner's manual). If the fuse is blown, replace it with one of the same rating. If the relay is suspected to be faulty, replace it with a new one.

4. Replacing the Switch

If the switch is the culprit, it will need to be replaced. This usually involves removing dashboard trim panels to access the switch, disconnecting the wiring, and installing the new switch.

When to Call a Professional

While DIY repairs can be effective for minor issues, there are times when professional help is advisable:

• Extensive damage: If multiple lines are broken or the glass itself is cracked, a professional might be able to offer a more robust repair or advise on replacement.
• Lack of confidence: If you're not comfortable working with electrical systems or fine detail repairs, it’s best to leave it to the experts.
• Persistent problems: If you've attempted repairs and the defroster still doesn't work, a professional mechanic or auto glass specialist can perform more advanced diagnostics.
• Complex systems: Modern vehicles often have integrated systems where the rear defroster might be linked to other functions, requiring specialized knowledge.

An auto glass specialist or a reputable car audio/electronics shop are good places to seek professional help for heated rear window repairs.

Can the Glass Be Replaced?

If the damage to the heated rear window is too severe for repair, or if the glass itself is cracked, replacement is the only viable option. Replacing a rear windscreen is a job best left to professional auto glass technicians. They have the specialized tools and adhesives required to ensure a proper, watertight seal, which is crucial for the structural integrity of your vehicle and to prevent leaks.

Frequently Asked Questions

Q1: How much does it cost to repair a heated rear window?

DIY repair kits typically cost between £10 and £30. Professional repairs for minor line breaks can range from £50 to £150, depending on the complexity and location. If the entire window needs replacing, expect costs to be significantly higher, potentially £300-£600 or more, depending on the vehicle model.

Q2: Can I use regular paint to repair the lines?

No, you cannot use regular paint. It needs to be a conductive material that can carry an electric current. Standard paint is an insulator and will not work.

Q3: How long does a repaired line last?

A properly executed repair with a quality kit can last for a considerable time, often several years. However, the longevity depends on the quality of the repair, the materials used, and how carefully the window is treated afterwards.

Q4: Will a repair affect the appearance of my window?

A well-done repair might be slightly visible as a thin line, but it generally doesn't significantly detract from the window's appearance. Poorly done repairs can be more noticeable.

Q5: Is it safe to drive with a non-functional rear defroster?

In icy or foggy conditions, driving with a non-functional rear defroster can severely impair your visibility and is therefore unsafe. It's important to get it repaired as soon as possible if you frequently drive in such weather.

Conclusion

In summary, a heated rear window is often repairable, especially for minor damage to the conductive lines or electrical connections. By understanding how the system works, diagnosing the fault correctly, and using the appropriate repair methods, you can restore functionality and ensure clear visibility during adverse weather. For more significant damage or if you lack the confidence for DIY repairs, seeking professional assistance is always a wise choice. Don't let a faulty defroster compromise your safety on the road.
