Headlight Wiring Harness Replacement Guide

Why Your Car's Headlight Wiring Harness Needs Replacing

Headlights are absolutely crucial for safe driving, especially during the darker hours or in adverse weather conditions. They illuminate the road ahead, allowing you to see potential hazards and making your vehicle visible to other road users. However, like any component in your car, the wiring that powers these essential lights can degrade over time, leading to a variety of issues. A key component responsible for delivering power to your headlights is the headlight wiring harness. If you've noticed your headlights flickering, dimming, or failing to turn on altogether, a faulty wiring harness could be the culprit. Replacing a damaged or corroded headlight wiring harness is a vital maintenance task that can restore proper functionality and significantly enhance your safety on the road. This comprehensive guide will delve into the reasons why you might need to replace your headlight wiring harness, the tools and materials you'll need, a step-by-step replacement process, and important tips to ensure a successful repair.

Reasons to Replace a Headlight Wiring Harness

Several factors can contribute to the failure of a headlight wiring harness, each necessitating a replacement to restore optimal performance. Understanding these common causes will help you identify potential problems early on:

1. Damaged Wiring Causing Headlight Malfunctions

The most common reason for replacing a headlight wiring harness is physical damage to the wires themselves. Over time, wires can become frayed, cut, or pinched due to the vibrations of driving, contact with moving engine parts, or even rodent damage. This damage can disrupt the flow of electricity, leading to a range of malfunctions. You might experience:

• Flickering Headlights: Intermittent power supply due to a loose or damaged connection.
• Dim Headlights: Poor electrical conductivity caused by corroded or damaged wires, reducing the voltage reaching the bulb.
• Headlights Not Turning On: A complete break in the wiring harness will prevent power from reaching the headlight assembly.
• One Headlight Out: If the damage is localised to a specific branch of the harness.

Addressing damaged wiring promptly is essential to prevent further issues and ensure you have adequate illumination for safe driving.

2. Corroded Connectors Affecting Headlight Performance

The connectors within the wiring harness are particularly susceptible to corrosion, especially in environments where moisture and road salt are prevalent. The terminals within the headlight socket and along the harness can oxidise, creating a barrier to electrical flow. This corrosion can manifest as:

• Reduced Brightness: The corroded connection impedes the flow of electricity, resulting in dimmer headlights.
• Intermittent Operation: The connection might be poor enough to work sometimes but fail at others.
• Overheating: Increased resistance at the corroded junction can generate heat, potentially melting the plastic housing of the connector.

Replacing a harness with corroded connectors is often the most effective solution, as cleaning severely corroded terminals can be a temporary fix at best.

3. Upgrading to Aftermarket Headlights

If you're looking to enhance your vehicle's appearance or lighting performance with aftermarket headlights, you'll often need a compatible wiring harness. Aftermarket headlights, particularly those with different bulb types (like LEDs or HIDs) or unique designs, may have different power requirements or connector types than your original factory headlights. Using a wiring harness specifically designed for your chosen aftermarket lights ensures:

• Proper Fitment: The connectors will seamlessly integrate with the new headlight assemblies.
• Correct Power Delivery: The harness will be designed to handle the specific voltage and amperage requirements of the aftermarket lights, preventing damage.
• Optimised Performance: Ensures the new lights function at their intended brightness and efficiency.

It’s generally recommended to replace the wiring harness when installing aftermarket headlights to guarantee compatibility and prevent potential electrical issues.

4. General Wear and Tear

Automotive components are subjected to constant stress from vibrations, temperature fluctuations, and exposure to the elements. The insulation on wires can become brittle and crack, and the metal conductors can fatigue over time. Even without obvious physical damage, a wiring harness can simply reach the end of its lifespan, leading to unpredictable electrical faults.

Tools and Materials Needed for Replacement

Before embarking on the replacement process, ensure you have the necessary tools and materials readily available. This will make the job smoother and more efficient:

Step-By-Step Guide to Replacing Your Headlight Wiring Harness

Replacing a headlight wiring harness is a manageable DIY task. Always prioritise safety by disconnecting the battery before beginning any electrical work. Here’s a general outline of the process:

Step 1: Safety First – Disconnect the Battery

Open your vehicle's bonnet and locate the battery. Using a suitable wrench (usually 10mm), loosen the nut on the negative (-) terminal clamp and carefully remove the cable from the battery post. Tuck the cable away so it cannot accidentally make contact with the terminal.

Step 2: Access the Headlight Assembly and Wiring Harness

This step can vary significantly depending on your vehicle's make and model. You may need to:

• Remove the front bumper cover.
• Remove the grille.
• Unclip or unscrew the headlight bezels or housings.
• Consult your vehicle's owner's manual or a reliable online tutorial specific to your car for detailed instructions on accessing the headlight assembly.

Step 3: Inspect the Existing Wiring Harness

Once you have access, carefully examine the existing wiring harness. Look for obvious signs of damage such as:

• Frayed or broken wires.
• Melted or discoloured insulation (often a sign of overheating).
• Corrosion on the connectors or terminals.
• Loose connections.

Step 4: Disconnect the Old Harness

Locate the main connector that plugs into the back of the headlight bulb or the headlight assembly. There is usually a locking tab that needs to be pressed or lifted to release the connector. Gently pull the connector apart. If the harness is integrated into other vehicle systems, you may need to carefully unclip it from mounting points along its length.

Step 5: Remove the Old Harness

Trace the old wiring harness from the headlight connector back towards the engine bay or fuse box. Carefully unclip it from any retaining clips or loom guides. In some cases, the harness might be integrated with other wiring looms; in such instances, you might only need to replace the affected section (pigtail) if the rest of the loom is in good condition.

Step 6: Connect the New Wiring Harness

Take your new headlight wiring harness. If you are replacing the entire harness, route it along the same path as the old one, securing it with new clips or zip ties where necessary. If you are replacing only a section (e.g., a pigtail connector), you will need to splice it into the existing harness.

For splicing:

• Match Wires: Carefully match the colour-coded wires of the new harness to the corresponding wires of the vehicle's existing wiring. Refer to the instructions that came with the new harness or your vehicle's wiring diagram if colours don't match perfectly.
• Strip Wires: Using wire strippers, carefully remove about 1/2 inch (1.5 cm) of insulation from the end of each wire you need to connect.
• Make Connections: There are several methods for connecting wires:
• Solder and Heat Shrink: This is the most durable and reliable method. Twist the exposed ends of the corresponding wires together, slide a solder sleeve connector over the joint, and then use a heat gun to melt the solder and seal the connection.
• Crimp Connectors: Use butt connectors or spade connectors designed for automotive use. Crimp them securely onto the wires using a crimping tool.
• Twist and Tape (Less Recommended): While possible, simply twisting wires together and wrapping them with electrical tape is the least reliable method and prone to failure over time. Avoid this if possible.
• Insulate: Ensure all connections are thoroughly insulated with electrical tape or heat shrink tubing to prevent short circuits and protect against moisture.

Connect the main connector of the new harness to the headlight bulb or assembly. Ensure it clicks securely into place.

Step 7: Reinstall Components

Once the new harness is connected and secured, carefully reassemble any components you removed, such as the headlight housing, bezels, grille, or bumper cover. Ensure all screws and clips are properly tightened or secured.

Step 8: Reconnect the Battery and Test

Reconnect the negative battery terminal and tighten the clamp. Turn on your vehicle's ignition and test the headlights. Check both low beam and high beam functions. Also, test any other lights that might be integrated into the same harness (e.g., daytime running lights, turn signals).

Tips and Precautions for a Smooth Replacement

To ensure a successful and safe replacement, keep these tips and precautions in mind:

• Consult Your Owner's Manual: Always refer to your vehicle's specific owner's manual for detailed instructions on removing body panels and accessing the headlight assembly.
• Take Photos: Before disconnecting anything, take clear photos of the existing wiring and how it's routed. This will be invaluable during reassembly.
• Work in a Well-Lit Area: Adequate lighting is essential for working with small electrical components and identifying wires correctly.
• Handle with Care: Be gentle when disconnecting connectors and manipulating wires to avoid causing further damage.
• Use Quality Parts: Invest in a high-quality replacement wiring harness from a reputable manufacturer. Cheap, poorly made harnesses can fail prematurely.
• Double-Check Connections: Before reconnecting the battery, double-check all your wire connections to ensure they are secure, correctly matched, and properly insulated.
• Test Before Final Assembly: It's always a good idea to test the lights after connecting the new harness but before fully reassembling everything. This allows for easy correction if something isn't working.
• Consider a Pigtail Replacement: If only the connector at the headlight bulb is damaged (melted or corroded), you might only need to replace the connector itself (a pigtail). This is a less involved repair than replacing the entire harness.

Frequently Asked Questions About Headlight Wiring

Here are answers to some common questions regarding headlight wiring issues:

How Much Does It Cost to Fix Headlight Wiring?

The cost to fix headlight wiring can vary significantly. For a simple connector replacement or a minor splice repair performed by a DIYer, the cost might only be for the parts, typically ranging from £10 to £50. If you take your vehicle to a professional mechanic, expect to pay between £100 to £300 for parts and labour, depending on the complexity of the repair and your vehicle's make and model. Replacing the entire wiring harness can be more expensive.

How Do You Fix a Headlight Connector?

To fix a damaged or corroded headlight connector (often referred to as a pigtail replacement):

1. Disconnect the battery negative terminal.
2. Inspect the connector for signs of melting, corrosion, or physical damage.
3. If damaged, obtain a replacement pigtail connector that matches your vehicle and headlight bulb.
4. Carefully cut the old connector off the existing wiring harness, leaving enough wire to make a new connection.
5. Strip the ends of the wires on both the vehicle's harness and the new pigtail connector.
6. Connect the wires using either solder and heat shrink tubing (preferred) or quality crimp connectors. Match wire colours carefully (e.g., positive to positive, ground to ground).
7. Ensure all connections are well-insulated.
8. Reconnect the battery and test the headlight.
9. Secure the new connector to the headlight bulb.

If you're not comfortable with splicing wires, it's best to seek professional help.

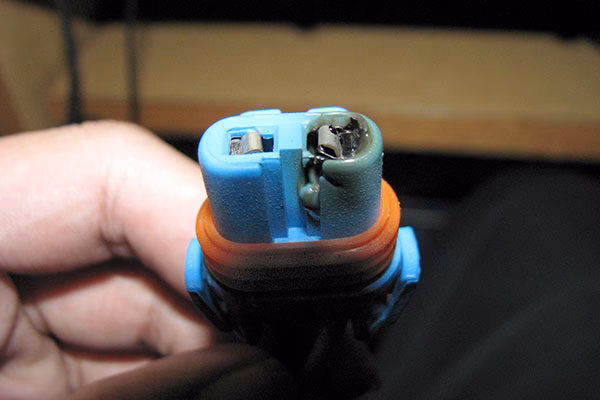

Why Does My Headlight Wiring Harness Keep Melting?

A headlight wiring harness might melt due to a few primary reasons:

• Over-Wattage Bulbs: Installing headlight bulbs with a higher wattage than the wiring harness is designed for can cause it to overheat and melt. Always use bulbs with the correct specifications.
• Poor Connections/High Resistance: Corroded or loose connections create higher electrical resistance. This resistance generates heat, which can melt the plastic insulation and connectors.
• Short Circuits: If wires touch where they shouldn't, it can create a short circuit, drawing excessive current and generating significant heat.
• Inferior Quality Harness: A low-quality replacement harness may use thinner gauge wires or less heat-resistant insulation, making it more prone to melting even under normal operating conditions.

If your harness is melting, it's a critical issue that needs immediate attention. You may need to replace the harness and ensure the correct wattage bulbs are used.

What Does a Headlight Wire Harness Do?

An automotive headlight wire harness is essentially a bundle of wires, connectors, and protective sheathing that acts as the electrical pathway for your headlights. It serves to safely deliver electrical power from the vehicle's battery and electrical system (via fuses and relays) to the headlight bulbs or HID ballasts. It ensures that each headlight receives the correct voltage and current to operate at its optimal brightness and efficiency. The harness also incorporates connectors that allow for easy installation and removal of headlight bulbs and assemblies, and it protects the wiring from damage, heat, and moisture within the engine bay and chassis.

How Do You Fix a Corroded Headlight Socket?

Fixing a corroded headlight socket typically involves cleaning or replacing the socket and its associated wiring. Here's a common approach:

1. Disconnect the battery negative terminal for safety.
2. Access the headlight socket. This may involve removing the headlight assembly.
3. Inspect the socket and wiring carefully for signs of corrosion (a green or white powdery substance) or melting.
4. If the corrosion is light, you can try cleaning the terminals within the socket using a small wire brush, electrical contact cleaner, and a lint-free cloth. Ensure all corrosion is removed.
5. If the socket is heavily corroded or melted, it's best to replace the entire socket. You can purchase a replacement headlight socket or pigtail connector.
6. To replace the socket: Follow the steps for a pigtail replacement described in the FAQ above – cut off the old socket, strip the wires, and connect the new socket using solder and heat shrink or crimp connectors.
7. Reassemble the headlight assembly and reconnect the battery.
8. Test the headlights to confirm the repair was successful.

Conclusion

A functional headlight wiring harness is paramount for your safety and the safety of others on the road. Whether it's due to wear and tear, corrosion, or damage, replacing a faulty harness is a critical maintenance task. By understanding the signs of a failing harness and following the steps outlined in this guide, you can confidently tackle this repair yourself, restoring your headlights to their full glory and ensuring clear visibility during all your journeys.

Don't let a dim or flickering headlight compromise your ability to see and be seen. Take proactive steps to maintain your vehicle's lighting system, and enjoy the peace of mind that comes with knowing your headlights are working reliably.
