Glove Box Repair: A DIY Guide

It's a common annoyance for car owners: the glove box, that seemingly simple compartment, decides to play hard to get, refusing to open, or worse, its handle decides to make a bid for freedom. If you've found yourself in this predicament, staring at a stubborn glove box with a detached handle, you're not alone. The thought of a hefty bill from the dealership for what appears to be a minor issue can be disheartening. However, with a bit of patience and the right approach, you can often tackle this repair yourself. This guide will walk you through the process, from identifying the problem to successfully repairing your glove box, potentially saving you a significant amount of money.

Understanding the Glove Box Mechanism

Before diving into the repair, it's helpful to understand how your glove box operates. Typically, a glove box is hinged at the bottom and secured at the top by a latch mechanism. When you operate the handle, it engages with a lever or rod system that retracts the locking pins, allowing the door to swing open. The handle itself is usually attached to a rotating peg or pin that pivots within the door, engaging the latching components. Issues often arise from broken plastic parts, worn-out springs, or a missing pivot pin for the handle.

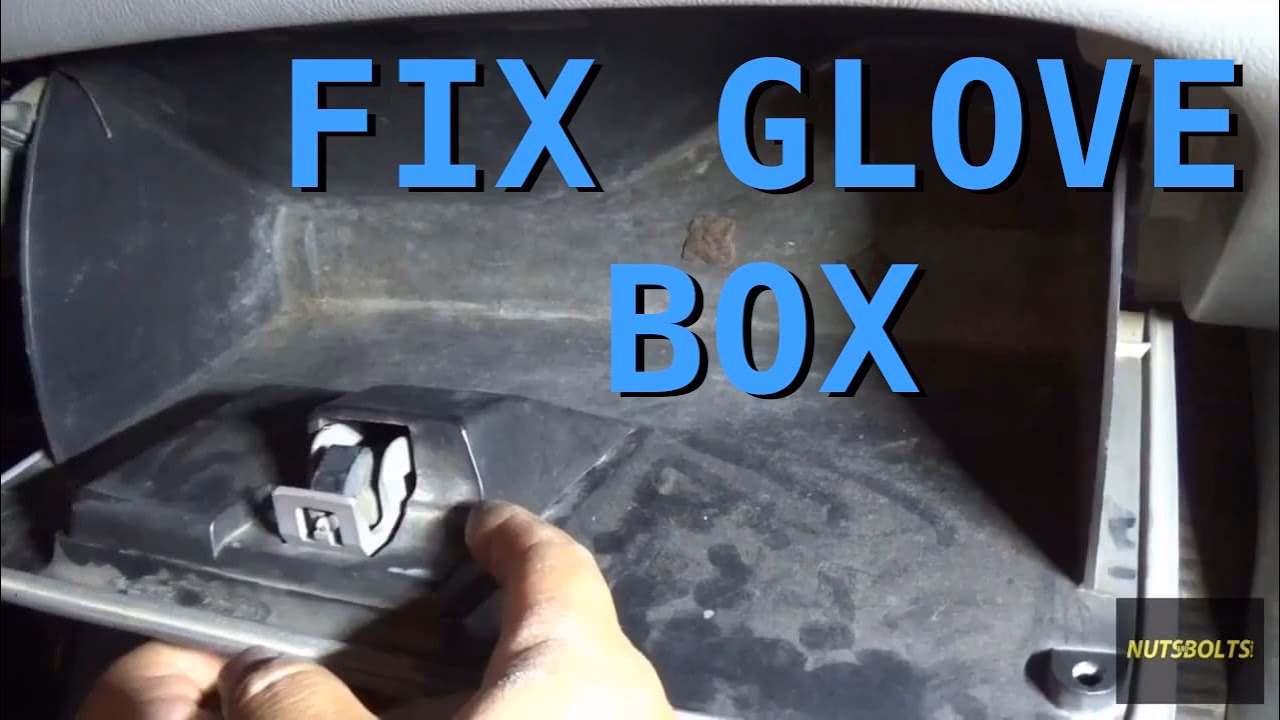

Tools You'll Need

Fortunately, fixing a broken glove box doesn't usually require a specialised mechanic's toolkit. Most of the necessary items are common household tools or readily available at any hardware store. Here's what you'll likely need:

• Flat-head screwdriver: Essential for prying and manipulating small parts.
• Needle-nose pliers: Useful for grasping and manipulating small components, especially springs and pins.
• Damp cloth or sponge: For cleaning any dust or debris.
• Clamps: May be needed to hold pieces together while adhesive cures.
• Gorilla Glue or a strong plastic adhesive: For reattaching broken plastic components.
• A suitable replacement pin: If a pivot pin for the handle is missing (a 6D nail can be a surprisingly effective substitute, as discovered by one resourceful owner).
• Flashlight: Crucial for illuminating the often-dark recesses of the glove box mechanism.

Step-by-Step Glove Box Removal

The first step in any repair is to gain access to the faulty component. Removing the glove box can vary slightly depending on your car model, but the general principles are similar. Follow these steps:

1. Open the Glove Box: If your glove box is stuck, you might need to gently coax it open first. If the handle is detached, you may need to use a screwdriver to manually disengage the latch.
2. Press the Sides: With the glove box open, you'll often find that the top edges can be pressed inwards to release clips or tabs that hold it in place.
3. Remove Hinge Pins: Look at the bottom of the glove box where it hinges. There are usually pins that secure the door to the car's frame. You may need to use your needle-nose pliers or a small screwdriver to gently push these pins out. Be careful not to force them, as they can be made of plastic and are prone to breaking.
4. Slide Off the Hinge: On one side (often the right side), the glove box door will likely slide off a specific pin or mounting point on the car's body. Gently manoeuvre the door to detach it from this point.

Once removed, place the glove box on a clean surface, perhaps between your feet and a pair of comfortable shoes, to get a better look at the damage.

Diagnosing the Problem

With the glove box removed, you can now get a clear view of what's gone wrong. Common issues include:

• Detached Handle: The handle itself might have come loose from its pivot point.
• Broken Latch Mechanism: The internal plastic components that operate the latch might be fractured or worn.
• Missing Pivot Pin: As experienced by one owner, a crucial pin that allows the handle to rotate and engage the latch can go missing. This is a frequent cause for the handle detaching on one side.
• Stuck Latch: Dirt, debris, or a misaligned mechanism can cause the latch to seize.

Take your time to examine the handle and the surrounding latch mechanism. Look for any obvious signs of damage, such as cracked plastic or missing pieces. In the case of a detached handle, pay close attention to the small, often half-moon shaped, peg at the back of the handle. This peg typically rotates to push a lever, which in turn retracts the locking arms. Note how many pivot points or pins there are for the handle – often, there should be one on each side, but sometimes only one is present.

The Hyundai Glove Box Conundrum: A Case Study

One common challenge reported by owners of certain vehicle models, like some Hyundais, is that the glove box is not designed for easy disassembly. Manufacturers may glue the front and back sections of the glove box together, with no screws or clips to allow for simple separation. This means that if an internal component breaks, the manufacturer often expects you to purchase an entirely new glove box unit, which can be prohibitively expensive.

However, resourceful DIYers have found ways around this. By carefully using a flat-head screwdriver, you can gently pry apart the glued seams. Start at a corner and slowly work your way around, using the screwdriver to break the adhesive bond. It might make a loud cracking noise as the glue gives way, but as long as you're gentle and don't force it excessively, you can often separate the two halves without causing further damage. This allows access to the internal mechanism for repair.

Repairing the Latch Handle

Let's assume the primary issue is a detached or broken latch handle. Here's how you might fix it:

1. Identify the Missing Pin: If the handle is loose on one side, check if a pivot pin is missing. The factory pin often has a roughened or textured end to prevent it from sliding out.
2. Find a Replacement: If a pin is missing, you'll need to find a suitable replacement. As mentioned, a 6D nail can be a perfect fit, providing the necessary diameter and length. You might need to trim it to size.
3. Re-insert the Handle: Carefully position the handle back into its housing on the glove box door.
4. Insert the New Pin: Slide the replacement pin through the handle and the corresponding holes in the glove box door. Ensure it's snug and prevents the handle from wobbling.
5. Secure the Pin: If the pin is slightly loose, you might use a small dab of superglue or carefully roughen the end of the pin (if it's a metal nail) to create friction and prevent it from backing out.

Reattaching the Glove Box

Once the internal repairs are complete, it's time to reassemble the glove box and put it back into your car.

1. Re-glue if Necessary: If you had to separate the front and back of the glove box, ensure all internal components are correctly positioned before re-applying the adhesive. Use clamps to hold the pieces together firmly while the glue cures according to the manufacturer's instructions.
2. Re-attach the Hinge: Carefully align the glove box door with its mounting points. Slide the door back onto the pin on the side of the car.
3. Re-insert Hinge Pins: Gently push the hinge pins back into their holes at the bottom of the glove box. Ensure they are fully seated.
4. Test the Mechanism: Before closing the glove box completely, test the handle and the latch mechanism. Ensure the handle operates smoothly and the latch engages and disengages correctly.

Troubleshooting and Common Pitfalls

Even with the best intentions, you might encounter a few hurdles:

• Broken Plastic Tabs: The clips that hold the glove box in place can be brittle. If they break, you might need to use a small amount of adhesive or even small screws to secure the glove box once it's reinstalled.
• Springs Flying Out: Be prepared for springs to launch themselves across the garage when you're not expecting it. Keep your workspace tidy and be mindful of where springs are located.
• Misalignment: If the glove box doesn't close properly after reinstallation, it might be a sign of misalignment. Double-check that all pins and hinges are correctly seated.

Frequently Asked Questions

Q1: Can I really fix my glove box without buying a new one?

A1: In most cases, yes. The handle detachment or minor latch issues are often repairable with common tools and adhesives. If the entire glove box housing is cracked or severely damaged, replacement might be necessary, but try to repair internal mechanisms first.

Q2: How do I know if my glove box is glued or screwed together?

A2: Inspect the edges where the front and back of the glove box meet. If you see no visible screws or clips, it's likely glued. You might also find faint seam lines indicating an adhesive bond.

Q3: What if the handle itself is broken, not just detached?

A3: If the plastic handle is cracked or snapped, you'll need to use a strong plastic adhesive to repair it. For significant breaks, you might need to source a replacement handle, though this can be difficult if it's part of an integrated unit.

Q4: My glove box is stuck shut, what's the first thing I should try?

A4: Before attempting to force it, try to identify the cause. Shine a flashlight into any gaps to see if the latch mechanism is obstructed. Gently wiggle the handle while applying slight pressure to open. If that fails, you may need to remove the glove box unit to access the latch from behind.

Q5: Where can I get a replacement pin if mine is missing?

A5: As demonstrated, a piece of metal rod or even a nail of the correct diameter can serve as a replacement. Check specialist car parts suppliers, but be aware that individual pins are rarely sold separately. Sometimes, salvaging a pin from a used glove box at a scrapyard is an option.

Conclusion

Repairing a broken glove box might seem daunting, especially when faced with manufacturer designs that favour replacement over repair. However, by understanding the mechanism, gathering the right tools, and approaching the task with patience, you can successfully restore your glove box to full working order. This not only saves you money but also provides the satisfaction of a job well done. So, next time your glove box acts up, consider rolling up your sleeves and giving this DIY fix a try!
