Clear Your Scuttle: Prevent Car Water Leaks

As you drive your car across the UK's varied landscapes, it inevitably collects dirt and debris in all sorts of nooks and crannies. While a bit of grime usually only affects your vehicle's aesthetic appeal, in certain critical areas, this accumulation can hinder essential functions. One common yet often overlooked issue arises from inadequate water drainage, particularly in wet weather conditions. A prime example is the drainage system located just under your car's windscreen – the scuttle area.

The windscreen scuttle, sometimes referred to as the cowl, is a plastic or metal panel at the base of your windscreen, designed to channel rainwater away from critical engine components and the passenger compartment. It's a vital part of your car's water management system, equipped with drain holes that, when clear, efficiently direct water harmlessly away. However, these drains are highly susceptible to becoming blocked, leading to a cascade of potential problems.

How Windscreen Scuttle Drains Become Blocked

The primary culprits behind blocked scuttle drains are everyday environmental elements. Dirt, such as sand and grit from the road, combined with decomposing leaves, pine needles, and other organic matter, can accumulate within the scuttle area. Over time, this debris forms a sludge that eventually clogs the narrow drain holes. If you frequently park your car under trees, especially during autumn, the likelihood of these drains becoming obstructed increases significantly as decomposing leaves are left to gather for days.

When these drain holes are blocked, water can no longer clear effectively from the plastic windscreen scuttle. Instead, it pools. If, in addition to this pooling, the seals around the scuttle area or the windscreen itself are compromised or simply not in good condition, water can then find its way into the passenger compartment. This often manifests as dampness or visible puddles in the footwell, creating an unpleasant musty odour and, more critically, risking damage to the car's interior and electrical systems. If not addressed promptly, this constant exposure to moisture can lead to significant corrosion of underlying metal components, resulting in far more extensive and expensive repairs down the line. It's a classic case of a small, preventable issue escalating into a major headache.

Recognising the Signs of a Clogged Scuttle Drain

Identifying a blocked scuttle drain early can save you a lot of trouble and expense. Beyond the obvious standing water in the scuttle area itself, here are some key indicators:

• Damp Carpets or Puddles: The most common sign is water ingress into the passenger footwell, especially after rain.
• Musty Odour: Stagnant water and damp carpets lead to a distinct, unpleasant musty smell inside the car.
• Sloshing Sounds: You might hear water sloshing around in the dashboard or scuttle area when driving or braking.
• Condensation on Windows: Excess moisture inside the car can lead to persistent fogging of windows, even when the heating is on.
• Electrical Issues: In severe cases, water can affect electrical components located near the scuttle, leading to erratic behaviour of wipers, heating, or other dashboard electronics.

Preventing Scuttle Drain Clogs: Simple Proactive Steps

Thankfully, preventing these drains from clogging up is remarkably simple and requires nothing more than your hands and a commitment to regular maintenance. The key is to ensure the scuttle area is kept clear of leaves and sludge whenever possible. This significantly reduces the chance of a drain becoming obstructed. It's important to remember that water drains are not typically cleaned as part of a standard car service. While you should certainly raise this with your mechanic at your next service to ensure they clear any accumulated dirt and debris, proactive self-maintenance is your best defence.

Make it a habit to regularly clean the scuttle of leaves and dirt yourself, especially daily during the rainy seasons or if you frequently park under trees. A quick wipe-down with a cloth or a leaf blower can make a huge difference in preventing debris from entering the drain holes.

DIY Guide: Cleaning Clogged Scuttle Water Drains

Should you find yourself unlucky enough to already have a blocked drain hole, or if you've noticed water leaking inside the car on the passenger side, don't despair. Cleaning the drains is a manageable task for most DIY enthusiasts. Here’s how to approach it:

1. Preparation and Safety

• Park Safely: Ensure your car is on level ground, ideally under cover if the weather is poor.
• Gather Your Tools: You'll typically need a pair of gloves, a torch (flashlight) for better visibility, a flexible wire (such as a strimmer line, a length of stiff electrical wire, or even a plumber's snake), warm water, a bucket, and possibly a basic tool set (spanner/socket set, pry bar) if wiper or scuttle removal is necessary.
• Consult Your Owner's Manual: This is crucial. Every car model is slightly different, and your manual will provide specific instructions for accessing components in the scuttle area.

2. Accessing the Drain Holes (Potentially Removing the Plastic Scuttle)

Accessing the drain holes is often the trickiest part, as it varies significantly between car models. In some cases, the drain holes are easily visible and accessible by simply opening the bonnet. However, for many vehicles, particularly those with a full-width plastic scuttle panel, you may need to remove certain components to gain proper access.

For some car models, you may need to open the bonnet of the car to access the screws or clips needed to open or lift the plastic scuttle and access the drain hole(s) beneath. These are usually located at the ends of the scuttle, near the wing panels, or sometimes along the base of the windscreen.

In other instances, particularly if the scuttle panel extends under the windscreen wipers, you might have to remove the windscreen wipers first. To do this:

1. Mark Wiper Blade Position: Before removal, it's a good idea to mark the resting position of your wiper blades on the windscreen with tape. This ensures correct reinstallation.
2. Remove Wiper Arm Caps: Most wiper arms have a small plastic cap covering the retaining nut. Gently pry these off.
3. Unscrew Wiper Arm Nuts: Use a suitable spanner or socket to undo the nuts holding the wiper arms to their spindles.
4. Remove Wiper Arms: The wiper arms can sometimes be seized onto the tapered spindles. You may need a wiper arm puller tool, or in a pinch, a pry bar can be used carefully to lever them off the mechanism. Be extremely careful not to damage the windscreen while doing this! Apply gentle, even pressure.
5. Remove the Scuttle Panel: Once the wipers are off, you can usually see the retaining clips or screws holding the plastic scuttle panel in place. Carefully release these clips or unscrew the fasteners. Some scuttle panels are in multiple sections. Gently lift or remove the panel to expose the drain channels and holes underneath. Take note of how it's fitted so you can reassemble it correctly.

3. Cleaning the Drains

Once you've gained access to a drain hole, the cleaning process is relatively straightforward:

• Clear Visible Debris: Start by manually removing any large pieces of leaves, twigs, or sludge you can see. A small vacuum cleaner can also be useful here.
• Insert Flexible Wire: Carefully insert your flexible wire (e.g., strimmer line) into the drain hole. Gently push and twist it down the drain, breaking up and dislodging any blockages. You might feel resistance as you hit the clog. Work the wire back and forth until it moves freely.
• Flush with Warm Water: Once you feel the drain is clear, pour warm (not boiling) water into the scuttle channel and directly into the drain hole. This will help flush out any remaining smaller debris and confirm that the water is now draining freely. You should see the water draining quickly beneath the car.
• Repeat if Necessary: If the water still pools or drains slowly, repeat the wire and flush process.
• Alternative Tools: Some DIYers might use a thin wire brush or a small plumber's snake for stubborn blockages. However, always exercise caution to avoid damaging the plastic drain pipes or surrounding components.

4. Reassembly and Testing

Once you are satisfied the drains are clear, reverse the steps to reassemble your scuttle panel and wiper arms. Ensure all clips and screws are securely fastened, and the wiper arms are correctly positioned back on their marks before tightening. Finally, pour a generous amount of water onto the windscreen and into the scuttle channel to confirm proper drainage. Check inside the car for any signs of new leaks.

When to Seek Professional Advice

While DIY cleaning can resolve most scuttle drain issues, there are times when seeking professional advice is highly recommended:

• Persistent Leaks: If, after cleaning, you still find that water does not drain correctly or continues to leak into the passenger compartment, there might be a more complex issue at play, such as compromised seals, a crack in the scuttle, or a blockage further down the drainage system that you cannot reach.
• Water Seepage into Other Areas: If you notice water has seeped through to other areas beyond the footwell, risking corrosion of underlying components or affecting delicate electronics, a mechanic should investigate immediately.
• Uncertainty About the Cause: Water leaks around the windscreen are not always solely down to clogged drain holes. They could be due to a faulty windscreen seal, a crack in the windscreen, or issues with the bodywork. A professional can accurately diagnose the root cause.
• Complexity of Scuttle Removal: Some vehicles have very complex scuttle designs, or the windscreen itself might be bonded in a way that makes scuttle access difficult without specialist knowledge and tools.

It's important to remember that every car is a little different and might need a different approach to unclog the drain holes than the one presented here. If you're not confident in undertaking the task yourself, or if the problem persists, a qualified mechanic can accurately identify and fix the problem for you.

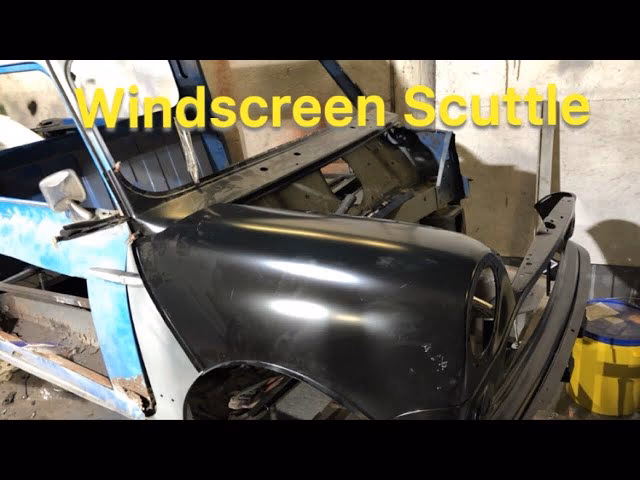

Understanding Scuttle Panel Replacement

The information provided above primarily focuses on cleaning existing scuttle drains. However, in some severe cases, particularly if extensive corrosion has occurred due to long-term water ingress, a full scuttle panel replacement might be necessary. This is a significantly more involved and complex job than simply cleaning the drains or removing the plastic scuttle for access.

For a full scuttle panel replacement, especially on older vehicles where rot has taken hold of lower panels, there's often no easy or quick way to go about it. Firstly, you will need a suitable undercover workspace. Critically, the windscreen often needs to be removed – a process that requires specialist tools (like a cheese wire kit for bonded screens) and considerable care to avoid damage. If the car has suffered from severe water ingress, it's highly likely that once the top scuttle is removed, you'll discover significant rot in the lower panels beneath. This will necessitate cutting out and replacing corroded metal, which is a job best suited for an experienced fabricator or someone prepared to learn welding and metalwork skills. Replacement panels for older or facelift models can be notoriously difficult to source.

This level of repair is not a typical DIY task for someone without prior experience in welding and bodywork. It requires significant research, practice, and the right equipment. If you are considering such a major undertaking, it's advisable to consult websites or forums dedicated to your specific car model, as they often feature detailed restoration logs with pictures illustrating the extent of scuttle rot and the repair processes involved. Always take plenty of photos if you undertake such work, as this can serve as proof of a proper repair, significantly adding to the car's future value.

DIY vs. Professional Drain Cleaning & Repair

Here's a quick comparison to help you decide on the best course of action:

Frequently Asked Questions (FAQs)

Are scuttle drains cleaned during a regular car service?

Typically, no. Scuttle drain cleaning is not a standard part of routine car servicing. You would need to specifically request it, or your mechanic might only clear visible debris if they notice a problem during inspection.

How often should I clean my scuttle drains?

It depends on your driving and parking environment. If you park under trees frequently, or live in an area with a lot of debris, aim for a monthly check and clean. Otherwise, a thorough clean every 3-6 months should suffice, especially before and after autumn.

Can I use a pressure washer to clear the drains?

It's generally not recommended. While a pressure washer might clear some debris, the high pressure could potentially damage delicate seals, electrical components, or force water into areas it shouldn't go, exacerbating the problem. Stick to a flexible wire and warm water.

What happens if I ignore a blocked scuttle drain?

Ignoring it can lead to water ingress into the passenger compartment, causing damp carpets, musty smells, potential damage to the car's electronics, and most critically, significant rust and corrosion to the underlying metal bodywork. This can lead to very expensive and extensive repairs.

My car's windscreen appears bonded. Does this make scuttle removal impossible for DIY?

If your windscreen is bonded (glued in), a full scuttle panel replacement becomes a much more involved job, as the windscreen often needs to be professionally removed first. For simply accessing drains underneath a plastic scuttle panel, you might still be able to remove the plastic panel without disturbing the bonded windscreen, but this varies by model. Always consult your car's manual and proceed with caution.

Proactive maintenance of your car's windscreen scuttle drains is a simple yet incredibly effective way to prevent costly water damage and maintain the integrity of your vehicle. A few minutes of your time can save you from significant headaches and expenses down the line. Keep those drains clear, and your car will thank you for it!
