Frame Straightening: Your Guide

When a vehicle sustains damage, particularly from an accident, the integrity of its frame can be compromised. This is a critical issue, as the frame, or chassis, is the very foundation upon which the entire vehicle is built. It supports the engine, suspension, body, and all other components. Repairing frame damage is a complex and specialised task that requires specific knowledge, skills, and, crucially, the right equipment. If your automotive workshop is looking to rectify issues with a vehicle's frame or chassis, understanding the process and having access to the correct tools is paramount. This is where a dedicated supplier of automotive repair equipment can make all the difference.

Understanding Vehicle Frame Damage

Vehicle frame damage can occur due to various reasons, most commonly from collisions. Even a seemingly minor impact can cause subtle distortions to the frame, which, if left unaddressed, can lead to significant problems down the line. These can include uneven tyre wear, poor alignment, compromised handling, and a reduced overall safety of the vehicle. In severe cases, the structural integrity of the entire car can be jeopardised.

The frame of a vehicle acts as its skeleton. It's designed to absorb and distribute the forces generated during driving and in the event of a crash. When this structure is bent, twisted, or otherwise deformed, its ability to perform these functions is severely impaired. Identifying frame damage often requires a keen eye and specialised diagnostic tools. Technicians will typically look for signs of buckling, shearing, or bending in the frame rails, crossmembers, and other structural components.

The Importance of Specialised Equipment

Attempting to repair frame damage without the appropriate equipment is not only ineffective but can also be dangerous. Modern vehicles often have complex unibody constructions or robust ladder frames that require precise force to realign. This is where specialised automotive frame straightening equipment comes into play. These tools are designed to apply controlled, powerful forces to specific points on the frame, allowing technicians to meticulously pull and push the metal back into its original, factory specifications.

The core of frame straightening technology lies in systems that can anchor securely to the damaged vehicle and then exert immense pulling power. These systems often involve:

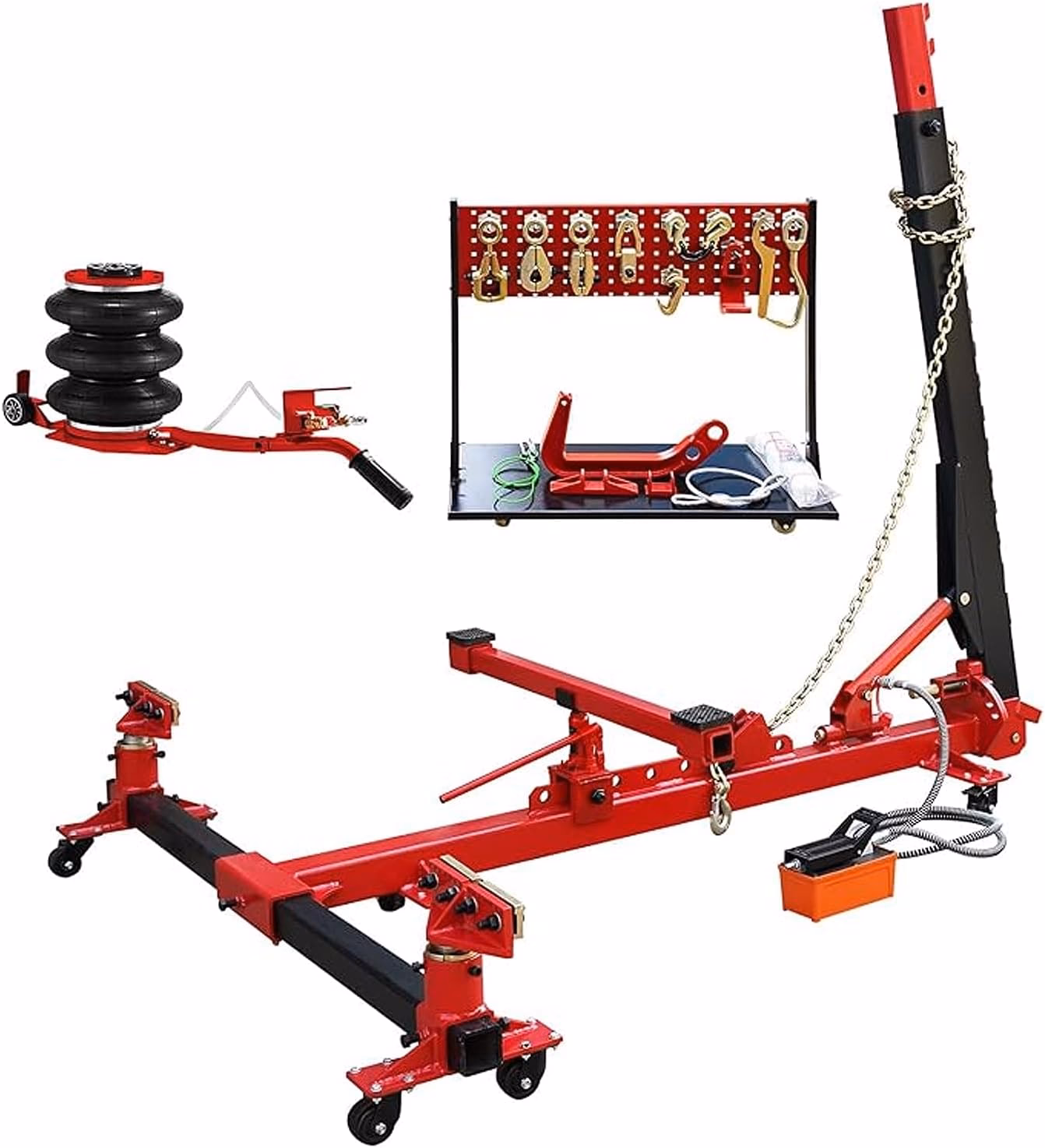

• Frame Machines/Racks: These are the central pieces of equipment, essentially powerful hydraulic systems mounted on a sturdy platform or rack. They are designed to pull the vehicle's frame from multiple angles simultaneously.
• Clamps: High-strength clamps are used to grip the damaged areas of the frame securely, providing a solid point of attachment for the pulling mechanisms. The quality and design of these clamps are crucial for a safe and effective pull.
• Chains and Cables: Heavy-duty chains and cables connect the clamps to the pulling towers or hydraulic rams of the frame machine. Their strength and durability are essential to withstand the immense forces involved.
• Hooks and Binders: These are used in conjunction with chains to provide additional grip and to tension the pulling system.
• Measuring Systems: Precise measuring tools, often computer-aided, are vital to ensure that the frame is returned to its exact original dimensions. Even slight deviations can affect the vehicle's handling and safety.

Auto Body Toolmart: Your Solution for Frame Straightening

For workshops seeking to equip themselves with the necessary tools for frame repair, Auto Body Toolmart offers a comprehensive selection of high-quality automotive frame straightening equipment. They understand the challenges involved in this precise work and provide solutions from reputable and trusted brands within the industry. This ensures that body shops can invest in equipment that is both reliable and effective.

Auto Body Toolmart stocks a full line of essential tools, including:

• Clamps: A variety of robust clamps designed for secure and effective gripping of frame structures.
• Chains: Durable, high-strength chains capable of handling the significant forces required for frame pulling.
• Hooks and Binders: Essential accessories for creating secure anchoring points and managing tension during the straightening process.
• Complete Flat Rack Floor Systems: These integrated systems provide a stable and precise platform for conducting frame straightening operations, often offering multiple pulling capabilities.
• Frame Pulling Kits: Comprehensive kits that bundle together the necessary components for efficient and effective frame pulling, offering a convenient solution for workshops.

The commitment to quality is evident in the brands they partner with, such as Champ, Steck, and Mo-Clamp. These are names that are well-known and respected in the automotive repair industry for their performance and durability. Investing in products from such brands ensures that your workshop is using equipment that will provide accurate results and withstand the rigours of daily use.

The Champ Advantage: In-House Manufacturing and Quality Control

A particularly noteworthy aspect of Auto Body Toolmart's offering is the Champ brand. Auto Body Toolmart takes pride in manufacturing the Champ brand in-house. This allows for a unique level of control over the production process and a deep-seated commitment to making it the best in the business. The company states that Champ products are far superior to many other brands of body shop equipment and are proudly made in the U.S.A.

This dedication to quality is not just a marketing claim; Auto Body Toolmart is stringent on quality control for all Champ products. They emphasise that no expense has been spared and no corners have been cut in the manufacturing of these tools. When a workshop chooses Champ products, they can be confident that they are receiving equipment built to the highest standards, designed for precision, strength, and longevity. This focus on quality assurance is vital when dealing with the critical task of frame repair, where precision directly impacts vehicle safety and customer satisfaction.

Key Components of a Frame Straightening Operation

To successfully repair frame damage, a systematic approach is required, utilising the equipment mentioned. The process typically involves:

1. Assessment and Measurement

Before any pulling begins, a thorough assessment of the damage is conducted. This involves using measuring systems to determine the extent and nature of the deformation. Digital measuring systems can create a 3D model of the vehicle and compare it to unibody specifications, identifying precise points of deviation.

2. Anchoring the Vehicle

Once the damage is understood, the vehicle is secured to the frame machine. This is achieved using specialised clamps that attach to strong points on the vehicle's frame or chassis. The quality of these clamps is crucial to prevent slippage during the pulling process.

3. Applying Pulling Force

Hydraulic rams, powered by a pump, exert controlled force through chains and hooks attached to the clamps. Technicians carefully apply pressure, often from multiple angles simultaneously, to gradually realign the damaged sections of the frame. This is a delicate operation that requires constant monitoring of measurements.

4. Verification and Refinement

As the frame is pulled, measurements are continuously taken to ensure that the vehicle is returning to its original specifications. The process may involve multiple pulls and adjustments from different directions to achieve the desired result. Once the frame is within acceptable tolerances, the equipment is removed.

5. Post-Repair Inspection

After the frame straightening is complete, a thorough inspection is carried out. This includes checking all repaired areas, ensuring that welds are sound (if any were necessary), and confirming that all suspension and steering components can be correctly aligned. The vehicle's handling and safety are then verified.

Choosing the Right Equipment: A Comparison

When selecting frame straightening equipment, several factors should be considered. The type of vehicles your shop typically works on, the severity of damage you commonly encounter, and your budget will all play a role. Here's a brief comparison of factors to consider:

Investing in equipment from reputable suppliers like Auto Body Toolmart, particularly their Champ brand, ensures that your workshop is equipped to handle frame damage effectively and safely. The commitment to quality manufacturing and robust design means less downtime and more accurate repairs.

Frequently Asked Questions

Can any mechanic repair frame damage?

While many mechanics are skilled in general automotive repair, frame straightening is a specialised field. It requires specific training and, more importantly, the specialised equipment discussed above. Not all mechanics have access to or expertise with frame machines.

How do I know if my car has frame damage?

Signs of frame damage can include uneven tyre wear, the car pulling to one side, doors that don't align or close properly, or visible distortions in the frame structure. A professional inspection by a qualified body shop is the most reliable way to confirm frame damage.

Is frame repair always possible?

In most cases, frame damage can be repaired if the technician has the right equipment and expertise. However, in extremely severe cases where the frame is irreparably compromised, it may be deemed uneconomical or unsafe to repair, and the vehicle might be declared a total loss.

What is the difference between a unibody and a body-on-frame vehicle?

Body-on-frame vehicles (often trucks and SUVs) have a separate chassis frame onto which the body is mounted. Unibody vehicles (most modern cars and crossovers) have the body and frame integrated into a single structure. Both can suffer from structural damage, but the repair approaches can differ.

Why is frame straightening so important?

A straight and true frame is essential for vehicle safety, handling, and the proper functioning of suspension and steering systems. Improperly repaired frames can lead to alignment issues, poor driving dynamics, and compromised crash protection.

In conclusion, addressing vehicle frame damage is a critical aspect of automotive repair that demands precision, expertise, and the right tools. Auto Body Toolmart provides a vital resource for body shops looking to invest in high-quality frame straightening equipment, ensuring they can undertake these complex repairs with confidence and achieve professional results. The focus on trusted brands and the exceptional quality of their in-house Champ line underscores their commitment to supporting the automotive repair industry.
