Fixing Your Car's Flex Pipe: A Comprehensive Guide

Understanding the Flex Pipe: Your Exhaust System's Flexible Friend

When you cast your gaze along the entirety of your vehicle's exhaust system, you'll notice specific sections that stand out. These aren't your typical rigid pipes; instead, they present a woven, almost braided appearance, crafted from multiple layers of flexible materials. Typically ranging from 4 to 16 inches in length, these flex pipe sections are engineered with two to three layers, the outermost often being braided steel. The inner layers might mirror this construction or feature a corrugated design. These vital components are either welded or bolted into the exhaust system at crucial junctures, most commonly situated near the exhaust manifolds. This strategic placement is designed to absorb the inherent movement of the engine, preventing stress fractures or cracks that could plague a rigid pipe. For vehicles with more intricate exhaust configurations or multi-bank engines, you might encounter two or even more flex pipe sections working in tandem.

Beyond their primary role in mitigating damage from engine movement during driving or idling, flex pipes also serve to protect the exhaust system from the stresses of thermal expansion and contraction. Furthermore, they play a significant part in isolating and reducing noise transfer, contributing to a quieter driving experience. Essentially, the flex pipe acts as a crucial shock absorber for your exhaust, ensuring its longevity and your comfort.

When Flex Pipes Go Rogue: Identifying the Signs of Failure

Like any component exposed to the rigours of the road and the relentless cycle of engine operation, flex pipes can and do fail over time. Several factors can contribute to their demise:

• Loss of Flexibility: Over time, internal or external obstructions, such as carbon deposits or dirt, can clog the corrugated or braided materials. This impedes their ability to flex freely, increasing the likelihood of fracture due to accumulated stress.
• Extreme Temperatures: The constant, rapid fluctuations in temperature – from the heat of operation to the cooling when the engine is shut off – can lead to metal fatigue. This is particularly exacerbated by engine issues like misfires, which can cause internal temperatures to soar, effectively burning out the flex pipe from the inside.
• Mechanical Stresses: Problems with components like worn or damaged motor mounts can increase the strain on the flex pipe. As the engine shifts and moves more than it should, it exerts undue pressure on the flex pipe, potentially leading to breakage.
• External Forces: Being an exposed component beneath the vehicle, the flex pipe is susceptible to impacts from road debris. Its less robust construction compared to solid exhaust piping makes it vulnerable to punctures and damage from such encounters.
• Corrosion: The very nature of exhaust gases is corrosive. Over extended periods, this corrosive environment can cause the flex pipe to rust through, ultimately leading to an exhaust leak.

Spotting a Failing Flex Pipe: The Tell-Tale Symptoms

When your flex pipe begins to fail, the symptoms are usually quite noticeable, making it difficult to ignore:

• Loud Exhaust Noises: You might hear sounds akin to a faulty muffler, but the source of the noise will be closer to the engine bay, a distinct indicator of a flex pipe issue.
• Exhaust Gas Smells: A common and concerning symptom is the smell of exhaust fumes emanating from the engine bay. These fumes can also find their way into the passenger cabin, posing a health risk.
• Reduced Engine Performance: A compromised flex pipe can lead to a decrease in the exhaust system's backpressure. This imbalance can result in a noticeable drop in your engine's overall performance and power delivery.
• Check Engine Light: If a hole in the flex pipe allows air to be drawn into the exhaust stream, it can interfere with the readings of your oxygen (O2) sensors. This inaccurate data can trigger the dreaded Check Engine light on your dashboard.

Temporary Fixes: When You Need a Quick Solution

Discovering a damaged, burned-through, or corroded flex pipe means it's unsafe to continue driving your vehicle as is. Exhaust fumes infiltrating the cabin can lead to sickness, making a prompt resolution essential. If an immediate replacement isn't feasible, a temporary repair can buy you valuable time. Crucially, always allow the exhaust system to cool down completely before attempting any work to prevent severe burns.

Here’s a basic approach for a temporary repair:

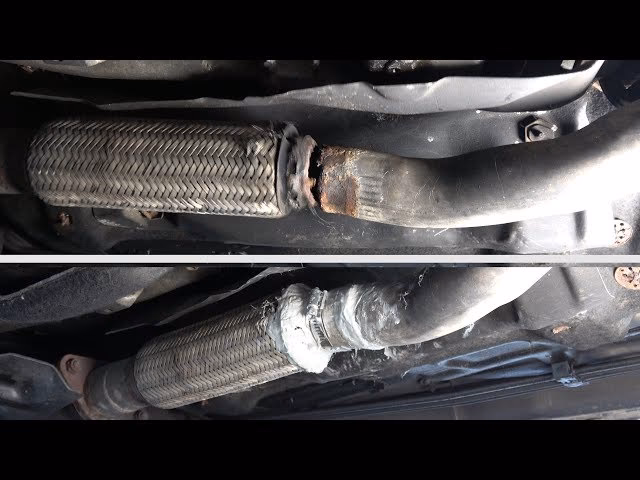

How to Temporarily Repair a Flex Pipe

1. Assess the Damage: Thoroughly inspect the flex pipe to identify the exact location and extent of any holes or cracks. The goal is to completely seal the affected area.
2. Select Appropriate Materials: For very small holes, specialized muffler tape might suffice. However, for larger fractures or more significant breaches, you'll likely need an exhaust repair patch kit. AutoZone and other auto parts retailers offer a range of exhaust repair supplies suitable for both scenarios.
3. Apply the Repair: Carefully apply your chosen material – be it muffler tape or an exhaust patch – to the flex pipe. Ensure that the material completely covers the damaged area and extends slightly beyond its edges for a secure seal. Remember, this is a temporary measure designed to stop leaks and prevent further damage, giving you time to arrange for a permanent fix.

The Permanent Solution: Replacing Your Flex Pipe

While temporary repairs can be a lifesaver, replacing a damaged flex pipe is the only long-term solution to ensure the integrity and safety of your exhaust system. The process can vary depending on your vehicle and the type of flex pipe fitted.

How to Replace a Flex Pipe

1. Source the Correct Flex Pipe: The first step is to identify and acquire the correct replacement flex pipe for your specific vehicle. Some flex pipes are designed for particular makes and models, while others are universal. Pay close attention to the connection type (bolt-on, clamp-on, or weld-on), the length of the flexible section, and the diameter of the pipe to ensure a proper fit.
2. Remove the Old Flex Pipe:
   • For Bolted Sections: If your flex pipe is secured with bolts, liberally spray the fasteners with a penetrating fluid like WD-40. Allow it a few minutes to work its magic before attempting to remove the bolts with the appropriate wrench or socket.
   • For Welded Sections: If the flex pipe is welded into place, you'll typically need tools such as a reciprocating saw or an angle grinder to cut it free. Aim to cut the pipe on either side of the flex section, preserving as much of the original exhaust pipe material as possible on the vehicle for easier installation of the new part.
3. Install the New Flex Pipe:
   • For Clamp-On or Bolt-On: Slide the new flex pipe into position, connecting it to the existing exhaust pipes. Secure it using new exhaust clamps or new bolts, ensuring a tight and leak-free seal.
   • For Weld-On: Flex pipes that require welding necessitate a higher level of skill and specialized equipment. If you are not experienced with welding exhaust components, it is strongly recommended to seek assistance from a qualified professional mechanic. They will have the expertise to ensure a strong, durable, and leak-proof weld.

Whether you're looking for the right materials to attempt a temporary repair or in need of a brand-new flex pipe, AutoZone offers a comprehensive selection of high-quality parts from leading brands. Equipping yourself with the correct components can make the job significantly easier and ensure a swift return to the road.

Frequently Asked Questions (FAQ)

Q1: How long does a flex pipe typically last?
The lifespan of a flex pipe can vary significantly depending on driving conditions, vehicle maintenance, and the quality of the part. However, many flex pipes are expected to last anywhere from 5 to 10 years or around 60,000 to 100,000 miles.

Q2: Can I drive with a broken flex pipe?
While you might be able to drive short distances, it is not recommended. A broken flex pipe can lead to dangerous exhaust leaks, potentially allowing toxic fumes into the cabin. It can also affect engine performance and may cause your Check Engine light to illuminate.

Q3: Is replacing a flex pipe an expensive repair?
The cost of replacing a flex pipe can range from moderate to expensive. It depends on the vehicle, the cost of the part itself, and whether the labour involves welding or simple bolt-on connections. A bolt-on replacement is generally less expensive than a weld-on replacement.

Q4: What are the main functions of a flex pipe in a car's exhaust system?
The primary functions are to absorb engine vibrations and movement, preventing stress on other exhaust components, and to accommodate the expansion and contraction of the exhaust system due to temperature changes. It also helps to reduce noise transfer.

Q5: Are universal flex pipes a good option?
Universal flex pipes can be a viable option, especially for older or less common vehicles where specific parts might be hard to find. However, it's crucial to ensure the universal pipe matches the diameter and connection type of your existing system for a proper fit and function.
