Fixing Lower Fender Rust Holes: No Weld Method

Rust on the lower sections of your car's fenders is a common adversary for any vehicle owner, particularly in regions where road salt is prevalent during winter months. These lower areas are particularly susceptible due to their proximity to road spray, mud, and de-icing chemicals. While a full fender replacement might seem like the only option, especially if you lack welding equipment, there's a highly effective DIY method that utilises fibreglass cloth and body filler. This technique, popularised by automotive restoration enthusiasts and showcased by professionals like @lakesideautobody, offers a durable and aesthetically pleasing solution without requiring any welding. Let's delve into the process of how to repair a rust hole in a lower fender using this accessible approach.

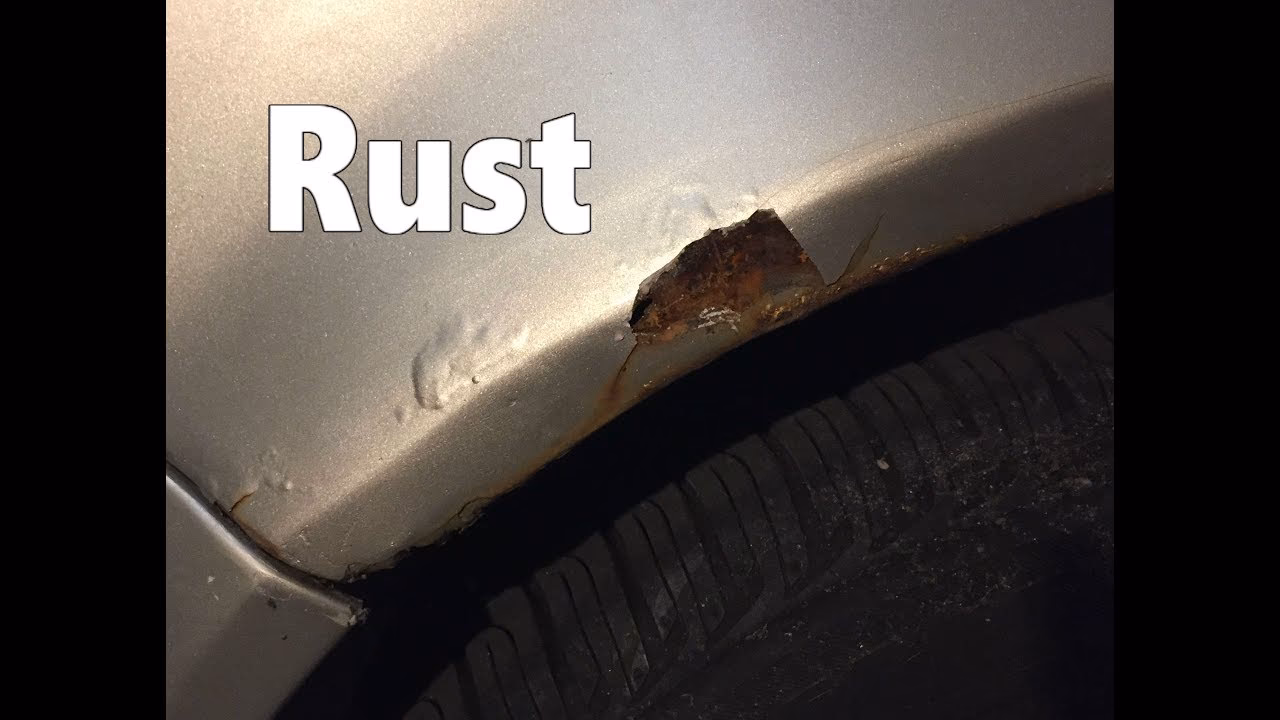

Understanding the Problem: Why Lower Fenders Rust

The lower portion of a car fender is a magnet for corrosive elements. It's constantly exposed to water, dirt, and, crucially, road salt. This combination creates a harsh environment where metal can quickly degrade. The rust doesn't just eat away at the surface; it can create perforations, forming those dreaded holes. Addressing this promptly is key to preventing further spread and more extensive damage to the vehicle's bodywork.

The No-Weld Solution: Fibreglass and Body Filler

This method bypasses the need for a welder by creating a strong backing and filling material from fibreglass. Fibreglass is known for its strength, durability, and resistance to corrosion, making it an ideal candidate for reinforcing weakened metal and filling gaps left by rust. Body filler, often referred to as 'Bondo' (a popular brand name), is then used to shape and smooth the repaired area to match the surrounding bodywork.

Materials You'll Need

Before you begin, gather the following supplies:

• Safety Gear: Safety glasses, gloves, and a respirator mask are essential when working with fibreglass and body filler.
• Rust Removal Tools: Wire brush (manual or drill attachment), sandpaper (various grits: 80, 120, 220, 320), orbital sander (optional but recommended).
• Fibreglass Repair Kit: This typically includes fibreglass resin, hardener, and fibreglass cloth or mat.
• Body Filler: A good quality automotive body filler (Bondo or similar) and its associated cream hardener.
• Applicators: Spreader knives for the body filler.
• Masking: Masking tape and paper to protect surrounding areas.
• Cleaning Supplies: Degreaser, wax and grease remover, clean rags.
• Primer and Paint: Automotive primer and paint matched to your vehicle's colour.
• Clear Coat: For a professional finish.

Step-by-Step Guide to Repairing a Rust Hole

Step 1: Assess and Prepare the Area

Begin by thoroughly inspecting the rusted area. Identify the full extent of the damage, both visible and hidden. It's crucial to remove all rust, as any remaining rust will continue to degrade the metal and compromise the repair.

Step 2: Remove the Rust

Using a wire brush or an orbital sander with an 80-grit disc, aggressively remove all loose rust and paint from the affected area. Continue sanding until you reach clean, bare metal. For deeper rust, you might need to drill or cut away the heavily corroded material. The goal is to expose healthy metal around the hole. Once the bulk of the rust is gone, use finer grit sandpaper (e.g., 120-grit) to smooth the edges of the hole and the surrounding area.

Step 3: Clean the Area

Thoroughly clean the prepared area with a degreaser and then a wax and grease remover. This ensures that the fibreglass resin and body filler will adhere properly. Mask off the surrounding areas with masking tape and paper to protect them from the repair materials.

Step 4: Apply Fibreglass Resin

Follow the instructions on your fibreglass repair kit carefully. Mix the resin and hardener in the correct proportions. Apply a thin layer of the mixed resin to the underside of the fender, around the edges of the rust hole. This layer will act as a base for the fibreglass cloth.

Step 5: Apply Fibreglass Cloth

Cut a piece of fibreglass cloth or mat that is slightly larger than the rust hole. Lay the fibreglass cloth over the resin-coated area, ensuring it conforms to the shape of the fender. Then, saturate the cloth with more resin using a brush. Work the resin into the fibreglass weave to eliminate any air bubbles. For larger holes, you may need to apply multiple layers of fibreglass cloth, allowing each layer to partially cure before applying the next. This builds up a strong, rigid patch.

Step 6: Allow to Cure

Let the fibreglass resin cure completely according to the manufacturer's instructions. This typically takes several hours, depending on the temperature and humidity. Once cured, the fibreglass patch will be hard and solid.

Step 7: Trim and Sand the Fibreglass

Once the fibreglass is fully cured, use a coarse sandpaper (e.g., 80-grit) to trim any excess fibreglass that extends beyond the repair area. Then, begin sanding the fibreglass patch down, feathering the edges into the surrounding metal. The aim is to create a smooth, level surface that is flush with the original fender.

Step 8: Apply Body Filler

Now it's time for the body filler. Mix a small amount of body filler with its hardener according to the product's instructions. Apply a thin, even layer of body filler over the fibreglass patch and any low spots using a spreader. It's better to apply multiple thin layers than one thick one. Work quickly, as body filler cures relatively fast.

Step 9: Shape and Sand the Body Filler

Once the body filler has cured, use a sanding block with 120-grit sandpaper to shape it. Continue sanding and feathering the edges until the repaired area is smooth and seamlessly blended with the surrounding fender. Switch to finer grits of sandpaper (220-grit, then 320-grit) to achieve a smooth finish ready for priming.

Step 10: Prime the Repaired Area

Clean the entire area thoroughly to remove any dust from sanding. Apply a few coats of automotive primer, allowing adequate drying time between coats. The primer will highlight any imperfections that may still need attention. Lightly sand the primed area with fine-grit sandpaper (e.g., 400-grit) to create a smooth surface for painting.

Step 11: Paint and Clear Coat

Apply your colour-matched automotive paint in several thin coats, following the paint manufacturer's instructions. Once the paint has dried, apply a clear coat to protect the paint and provide a glossy finish. Allow the clear coat to cure fully.

Step 12: Final Polish

After the clear coat has cured, you can lightly wet-sand with very fine grit sandpaper (e.g., 2000-grit) if needed, and then polish the area to a mirror shine, blending it with the rest of the fender.

Common Issues and Tips

• Over-Sanding: Be careful not to sand through the fibreglass or into the surrounding good metal.
• Thin Layers: Apply body filler and paint in thin, even layers for the best results.
• Curing Times: Always adhere to the recommended curing times for resin and filler. Rushing this process can lead to a weak or poorly bonded repair.
• Temperature: Ensure you are working in a well-ventilated area within the recommended temperature range for the products you are using.
• Patience: This is a process that requires patience. Take your time at each step for a professional-looking outcome.

Frequently Asked Questions

Q1: Can I use just body filler to fix a rust hole?

No, body filler alone is not strong enough to bridge a hole. It's designed to fill minor imperfections and smooth surfaces. You need a reinforcing material like fibreglass for structural integrity.

Q2: How long will a fibreglass repair last?

When done correctly with proper preparation and materials, a fibreglass repair can last for many years, offering excellent durability and resistance to corrosion.

Q3: Do I need to remove the fender to make this repair?

While it can be easier to access the underside of the fender if it's removed, many lower fender rust repairs can be performed with the fender still attached to the vehicle, especially if the rust is limited to the outer skin.

Q4: What grit sandpaper should I use for feathering the edges?

Start with a coarser grit like 80 or 120 to blend the fibreglass, then move to 220 and 320 for the body filler, and finally 400-grit after priming for a smooth paint surface.

Q5: Is this repair suitable for large holes?

Yes, this method is effective for both small and moderately sized rust holes. For very large or structural rust damage, professional assessment and potentially welding or replacement might be necessary.

Repairing rust holes in your lower fenders using fibreglass cloth and body filler is a viable and cost-effective DIY solution for those without welding equipment. By following these steps carefully and using the right materials, you can successfully restore your vehicle's appearance and prevent further rust damage, keeping your car in great condition for years to come.
