Wiring Woes: Tapping into Your Car's Loom Safely

For many car enthusiasts, the thought of delving into automotive wiring can trigger a significant amount of anxiety and frustration. It's a precise art, and one wrong move can lead to headaches, or worse, potential hazards. While experienced hands might navigate the labyrinth of wires with ease, there's one task that consistently makes even seasoned mechanics pause: tapping into a perfectly good wiring harness to introduce a new circuit or accessory. And the idea of cutting factory connectors to install aftermarket components, like a new stereo, often feels like sacrilege.

Yet, whether we like it or not, tapping into an existing circuit is often a fundamental necessity. Consider the practical scenarios: perhaps you need to connect a new gauge pod and want it to share your dashboard's dimming function, requiring a tap into the instrument lighting. Or, for those towing, a trailer brake controller frequently needs to piggy-back off the brake light circuit. Installing an aftermarket back-up camera? That often demands a connection to the reverse light circuit. These are just a few legitimate reasons to splice into a harness, whether it's to share a function, pick up a signal, or add vital new capabilities. The challenge, however, lies in the countless ways one can do it incorrectly, leading to unreliable connections or even fire risks.

The Perils of Outdated Tapping Methods

Historically, the most common approach to adding a circuit was alarmingly rudimentary: simply cutting the feed wire and twisting its new ends together with the additional one. Depending on how this 'joint' was then secured, you could inadvertently create anything from an intermittently failing circuit to a full-blown fire hazard. Methods like twist-on wire nuts, basic crimp connectors, rough soldering, or merely wrapping in electrical tape, often fail to provide a truly reliable connection once the main circuit has been severed. They lack the structural integrity and environmental sealing needed for a long-lasting automotive application.

For years, a seemingly better alternative emerged in the form of 3M’s Scotchlok™ connectors. These insulated crimp-ons were designed to form a metal 'bridge' between the supply wire and the new circuit, theoretically simplifying the process. However, in practice, these 'insulation displacement connectors' (IDCs), including similar T-taps, frequently fall short. Their primary flaw is an inconsistent ability to bite effectively through either wire’s insulation, resulting in poor or intermittent contact. While they do offer the advantage of keeping the original circuit intact, they often add considerable bulk to the wiring harness, which can be problematic in tight spaces.

Superior Methods for Secure Wire Tapping

Fortunately, advancements and refined techniques offer more robust ways to tap into a wiring harness without compromising its original integrity. Here are three methods that provide a better blend of reliability, reversibility, and minimal impact on your vehicle's electrical system.

1. The Basic Twist and Wrap

This method is straightforward and simple, offering a decent connection if executed correctly, though it's not the most robust solution available. The key is to avoid cutting the main wire. Instead, you carefully strip about an inch of insulation from the wire you intend to tap into, exposing the bare strands without severing the conductor. Next, take the add-on wire and strip an inch of insulation from the end you're connecting. Tightly twist the exposed strands of the add-on wire to form a cohesive bunch. Then, wrap this twisted end firmly and neatly around the exposed feed wire. Once the mechanical connection is made, wrap the entire splice thoroughly with high-quality electrical tape, starting at one end of the joint and ensuring the new wire is completely enclosed with the original.

This joint, if done meticulously, should be sufficiently reliable and flexible enough to be routed through the vehicle with minimal additional bulk. While soldering the joint before taping it closed would undoubtedly make it more robust and reliable, it would also render the connection significantly more rigid and bulkier, which can be undesirable in certain applications. Furthermore, this method is less easily reversible should you decide to remove or change the add-on circuit in the future.

2. The Split and Twist Method

A more secure variation on the basic twist, the split-and-twist method also aims to keep the original feed wire intact. Again, you'll carefully strip back an inch or so of insulation from both the feed wire and the add-on wire without cutting the main feed wire. The crucial difference here is the next step: you'll carefully split the strands of the feed wire, creating a small opening or 'eye' in the middle of the exposed section. Similarly, before twisting the end of the add-on wire, you'll split its strands as well.

Next, feed the split end of the new wire through the opening you've created in the feed wire. Once it's through, twist the feed wire opening closed firmly around the new wire. Then, take each of the split ends of the new wire and wrap them tightly around the main feed wire in opposite directions, creating a secure, interlocked twist. After forming a good, tight connection, lay the new wire neatly against the feed wire and wrap the entire joint thoroughly with electrical tape, ensuring full insulation. As with the basic twist, soldering this joint would enhance its durability but at the expense of increased rigidity and added bulk.

3. Tap-it Connectors: A Modern Evolution

A relatively recent innovation in the world of wire tapping, Tap-it connectors represent a significant evolution of the old Scotchlok design, addressing many of its inherent flaws. Instead of attempting to bridge two wires by biting into the edge of their insulation, Tap-it connectors employ a precision-engineered threaded pin. This pin is designed to pierce directly through the centre of the supply wire's insulation, creating a solid, direct electrical connection with the conductor. The add-on wire is then simply fed into the other end of the connector, where it makes robust contact with the central post.

The advantages of Tap-it connectors are numerous. Not only are they incredibly quick and virtually painless to install, but they are also fully reversible. Should you need to remove the added circuit, disconnecting it leaves the original wiring intact with little more than a tiny pinhole in the insulation, which can often be sealed. This preserves the original harness's integrity to a remarkable degree. If there's a downside to these clever connectors, it's typically the perpendicular connection they create. Depending on the installation location and available space, this added bulk and angle might occasionally be an issue. Regardless, for their ease of use, reliability, and minimal impact on the original wiring, they are exceptionally hard to beat on almost every count.

Comparison of Wire Tapping Methods

Frequently Asked Questions About Automotive Wiring

Is it really necessary to tap into my car's wiring?

Often, yes. While direct plug-and-play solutions are ideal, many aftermarket accessories or specific functional needs require integrating with an existing circuit. Examples include linking new gauges to dashboard illumination, connecting trailer brake controllers to brake lights, or installing reverse cameras to the reverse light circuit. The key is to do it correctly to avoid issues.

What's the best method for tapping a wire?

The 'best' method often depends on your skill level, the specific application, and the desired outcome. For simplicity and reversibility with minimal impact, Tap-it connectors are an excellent modern choice. For a strong, permanent mechanical connection without cutting the main wire, the 'split and twist' method is highly effective, though it requires more careful execution.

Can I reverse a wire tap?

The reversibility of a wire tap depends heavily on the method used. Methods that involve cutting the original wire (like traditional cut-and-twist) are difficult to reverse without leaving permanent damage. Methods that strip insulation (basic twist, split and twist) are reversible, but the wire will remain stripped. Tap-it connectors are designed for easy and clean removal, leaving only a small, easily sealable pinhole in the insulation, making them highly reversible.

Why is my car wiring stranded?

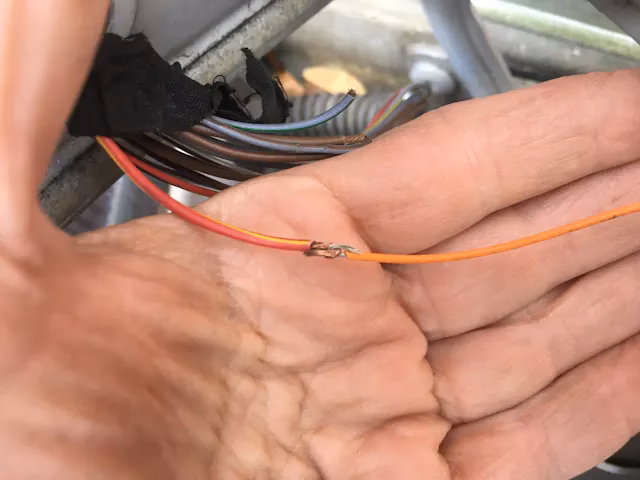

Automotive wiring is almost universally stranded rather than solid for several critical reasons. Firstly, stranded wire is far more flexible, which is essential in a vehicle where wires are routed through tight spaces, around corners, and need to withstand constant motion and vibration. Solid wire would be prone to fatigue and breaking under such conditions. Secondly, the multiple strands allow for better resistance to vibration, which is a constant factor in a moving vehicle. Each strand can flex independently, distributing stress and preventing the entire conductor from fracturing. Finally, stranded wire is generally more resistant to corrosion and offers better current carrying capacity for its gauge in dynamic environments compared to a solid wire of the same diameter, although solid wire often has lower resistance per unit length in static applications.

How can I test my wire connection after tapping?

After making any tap, it's crucial to test the connection. Use a multimeter to check for continuity and correct voltage. Ensure the new accessory functions as expected (e.g., turns on/off with the correct trigger). For lighting circuits, check for proper dimming if applicable. Always perform a thorough test before fully reassembling any trim panels.

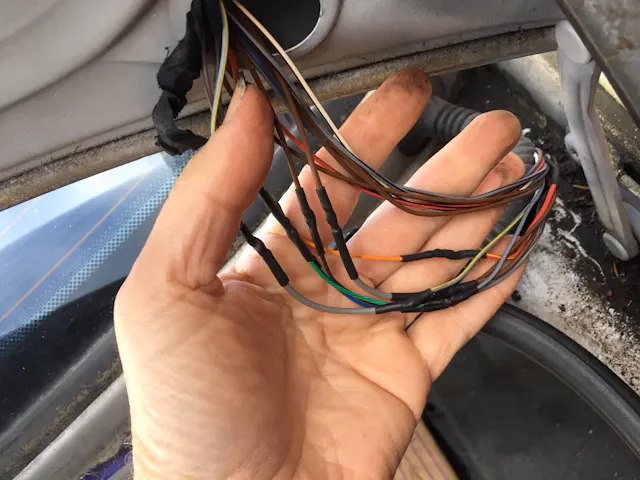

Ensuring Long-Term Reliability

Proper automotive wiring is more than just making a connection; it's about ensuring that connection endures the harsh automotive environment. Factors like temperature fluctuations, moisture, vibration, and chemical exposure can all degrade a poorly made splice. Regardless of the method you choose, always use high-quality materials – good electrical tape designed for automotive use, appropriate connectors, and correctly gauged wire for your application. Consider adding heat shrink tubing over electrical tape for an even more durable and weather-resistant seal, especially in areas exposed to the elements.

Ultimately, while tapping into your car's wiring harness might seem daunting, it doesn't have to be a source of anxiety. By understanding the pitfalls of outdated methods and embracing more secure, modern techniques like the split and twist or the innovative Tap-it connectors, you can confidently add new functionalities to your vehicle. Always prioritise the long-term reliability and safety of your electrical system. A little patience and the right method can save you a lot of frustration down the road, ensuring your vehicle's electrical system remains sound and performs flawlessly.
