Understanding ECU Repair Training Courses

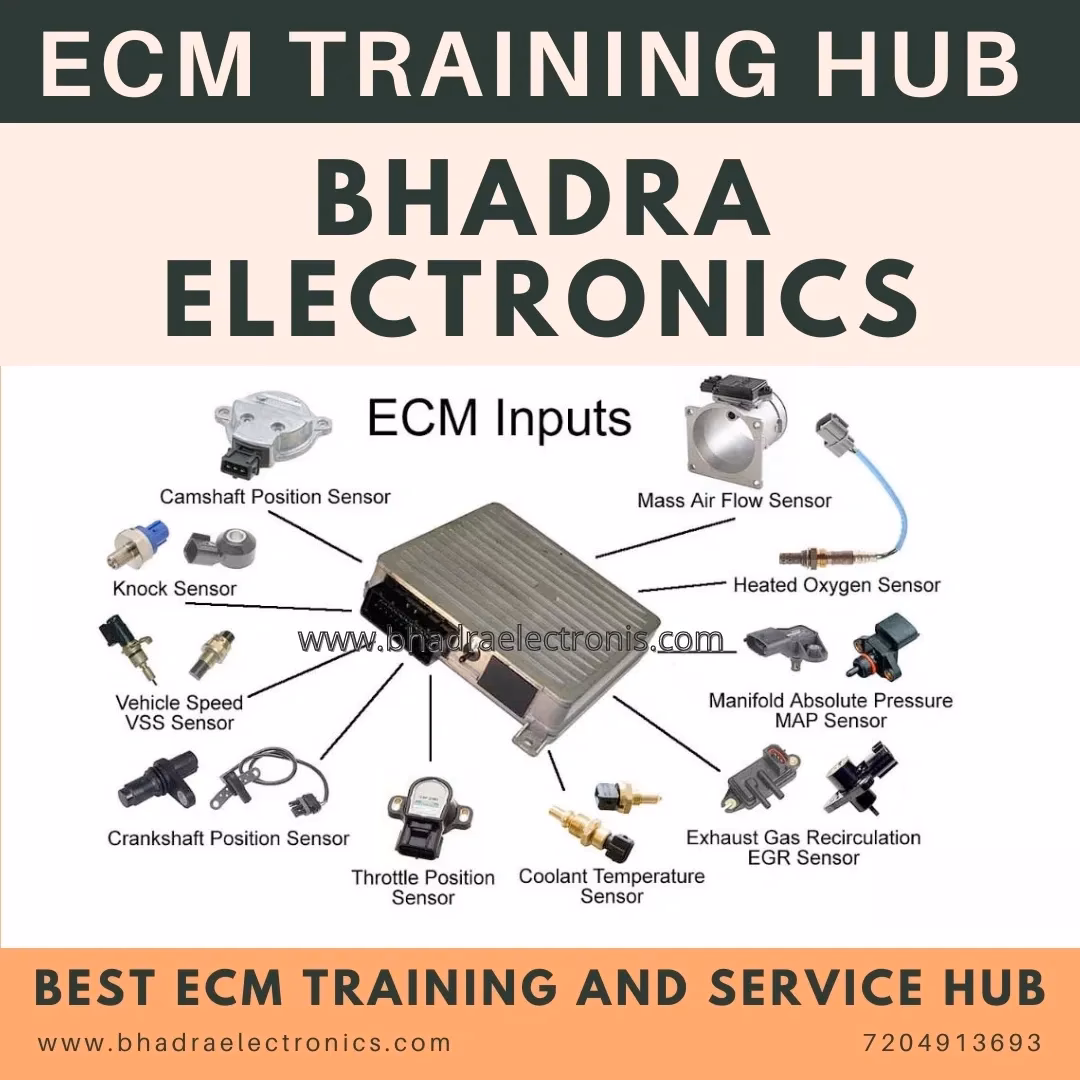

In the ever-evolving world of automotive technology, the Engine Control Unit (ECU), often referred to as the Engine Control Module (ECM), stands as the central nervous system of a modern vehicle. It dictates everything from fuel injection and ignition timing to emissions control and transmission engagement. When this vital component malfunctions, it can lead to a cascade of performance issues, from poor fuel economy and rough idling to complete vehicle failure. For automotive technicians, a deep understanding of ECU repair and service is not just beneficial; it's an absolute necessity to keep pace with technological advancements and provide effective solutions to customers. This is where specialised ECU repair training courses come into play, equipping technicians with the knowledge and practical skills required to diagnose, repair, and validate these complex electronic modules.
These training courses are designed to demystify the intricate workings of ECUs, providing a comprehensive education that covers the theoretical underpinnings and practical applications of their repair. A well-structured training program will delve into the fundamental principles of electronics, microcontrollers, and automotive communication protocols, such as CAN (Controller Area Network) and LIN (Local Interconnect Network). Participants will learn to interpret circuit diagrams, understand the function of various electronic components, and identify common failure points within an ECU. Furthermore, the courses often focus on the sophisticated diagnostic tools and techniques used to pinpoint the root cause of ECU malfunctions, ensuring that repairs are accurate and effective.
What Does an ECU Repair Training Course Entail?
A comprehensive ECU repair training course typically covers a broad spectrum of topics, ensuring that technicians are well-rounded in their ability to handle these sophisticated modules. Here's a breakdown of what you can expect:
- Fundamentals of Automotive Electronics: Understanding basic electronic principles, including Ohm's law, Kirchhoff's laws, and the behaviour of resistors, capacitors, inductors, and semiconductors.
- ECU Architecture and Functionality: Learning about the internal structure of ECUs, the role of microprocessors, memory (RAM, ROM, EEPROM), input/output (I/O) interfaces, and power supply management.
- Diagnostic Tools and Techniques: Proficiency in using advanced diagnostic equipment such as oscilloscopes, multimeters, logic analysers, and specialized ECU programmers. This includes understanding how to interpret diagnostic trouble codes (DTCs) and live data streams.
- Common ECU Failure Modes: Identifying prevalent issues like power supply failures, internal component damage due to voltage spikes, environmental factors (heat, moisture), and manufacturing defects.
- Component-Level Repair: Gaining the skills to desolder and replace individual electronic components on the ECU's circuit board, such as transistors, diodes, capacitors, and integrated circuits (ICs).
- Software and Programming: Understanding how to read, write, and flash ECU software (firmware) to the correct specifications, including immobiliser programming and key coding.
- Communication Protocols: In-depth knowledge of vehicle communication networks like CAN, LIN, and FlexRay, and how to diagnose communication errors between ECUs.
- Testing and Validation: Learning to simulate real-world operating conditions to thoroughly test and validate the repaired ECU, ensuring it functions correctly before reinstallation.
- Safety Procedures: Adhering to strict safety protocols when working with automotive electronics, including proper handling of electrostatic discharge (ESD) sensitive components.
The ECU Repair Process: A Detailed Look
The process of repairing an ECU is a meticulous undertaking that requires precision, expertise, and a systematic approach. While specific procedures may vary depending with the manufacturer and the nature of the fault, a general outline of the repair process can be described:
- Initial Diagnosis and Assessment: The process begins with a thorough diagnostic assessment of the vehicle to confirm that the ECU is indeed the source of the problem. This often involves using scan tools to retrieve DTCs and analyse live data.
- ECU Removal: Once confirmed, the ECU is carefully removed from the vehicle. This usually involves disconnecting the battery, locating the ECU (often in the engine bay or under the dashboard), and disconnecting its wiring harness connectors.
- Disassembly: The ECU unit is then carefully disassembled. This involves opening the protective casing to expose the internal circuit board. Care is taken to avoid damaging delicate connectors and seals.
- Visual Inspection: A detailed visual inspection of the circuit board is conducted. Technicians look for obvious signs of damage, such as burnt components, cracked solder joints, corrosion, or physical damage to the board itself.
- Component-Level Testing: Using specialized tools like multimeters and oscilloscopes, individual components on the circuit board are tested to identify faulty parts. This might involve testing power supply regulators, sensor input circuits, output drivers, and communication interfaces.
- Repair and Component Replacement: Once faulty components are identified, they are carefully desoldered and replaced with new, high-quality parts. This is a critical stage that requires precision soldering skills to ensure reliable connections. For example, if a power transistor fails, it's replaced. If a capacitor shows signs of leakage or swelling, it's also replaced.
- Cleaning: The ECU housing and circuit board are cleaned to remove any dirt, debris, or residue that could interfere with performance or cause future issues.
- Reassembly: The ECU is meticulously reassembled, ensuring that all seals are properly seated and the casing is secured.
- Testing and Validation: This is a crucial step to verify the repair. The repaired ECU is often placed on a specialised test bench that simulates the operating conditions of the vehicle. This bench allows for comprehensive testing of all ECU functions, including sensor inputs, actuator outputs, and communication protocols. Fault simulation might also be used to confirm that the repaired circuits function correctly under various scenarios. For ECUs that support advanced diagnostics, technicians can read, clear, and simulate fault codes. If the ECU communicates via CAN networks, the repair process includes validating network communications and checking related device diagnostics.
- Programming/Flashing (if necessary): In some cases, after a repair, the ECU may need to be reprogrammed with the correct software or calibration data to match the specific vehicle application. This ensures optimal performance and compatibility.
- Reinstallation and Final Testing: The repaired and validated ECU is then reinstalled in the vehicle. A final round of testing is performed using a scan tool to ensure all systems are functioning correctly and no new fault codes have appeared.
The Importance of Specialised Training
The complexity of modern ECUs means that standard automotive training may not be sufficient. Specialised ECU repair training courses offer several key advantages:
- Access to Proprietary Information: Companies like Titan, through partnerships such as the one with CNH Industrial Reman, gain access to proprietary drawings and specifications directly from the original equipment manufacturer (OEM). This invaluable data allows for the development of highly specific and effective repair strategies.
- Development of Custom Test Systems: With 35+ years of experience working with equipment from brands like CNH, and over 20 years of testing and programming ECUs, specialists can design and build ECU-specific functional test systems. These systems are tailored to accurately simulate an operational vehicle, exercising not only the repaired circuits but all functions of the controller.
- Component-Level Expertise: Training focuses on repairing electronics at the component level, meaning technicians can fix the root cause of the failure rather than simply replacing the entire module. This is often more cost-effective for the customer and reduces electronic waste.
- Advanced Diagnostic Capabilities: Courses equip technicians with the ability to read, clear, and simulate fault codes, as well as validate complex communication protocols like CAN networks, which are essential for diagnosing interconnected system failures.
- Quality Assurance: The rigorous testing and validation processes learned in these courses ensure that repaired ECUs meet or exceed original manufacturer specifications, providing customers with confidence in the longevity of the repair.
Common ECU Failures and Symptoms
Understanding the common failure points and the symptoms they present can help in diagnosing ECU issues:
| Common Failure Type | Typical Symptoms |
|---|---|
| Power Supply Circuit Failure | No start, intermittent power to sensors, warning lights staying on or off. |
| Internal Microprocessor Damage | Erratic engine behaviour, inability to communicate with scan tools, random system shutdowns. |
| Sensor Input Circuit Failure | Incorrect fuel/air mixture, poor acceleration, check engine light illuminated with sensor-specific codes. |
| Actuator Output Circuit Failure | Misfires, poor engine performance, failure of specific systems like EGR or throttle control. |
| CAN Communication Error | Multiple warning lights illuminated, loss of communication with other modules (e.g., ABS, transmission), erratic behaviour across various systems. |
Frequently Asked Questions (FAQs)
Q1: Can an ECU be repaired, or does it always need to be replaced?
In many cases, an ECU can be successfully repaired, especially when the failure is due to a specific component on the circuit board. Component-level repair is often more cost-effective than replacing the entire unit. However, if the internal microprocessor or critical board traces are severely damaged, replacement might be the only viable option.
Q2: How long does an ECU repair typically take?
The time taken for an ECU repair can vary significantly depending on the complexity of the fault, the availability of parts, and the workload of the repair facility. A typical repair might take anywhere from a few hours to a few days.
Q3: What is the warranty on a repaired ECU?
Reputable ECU repair services usually offer a warranty on their work. This warranty period can range from six months to a lifetime, depending on the provider and the nature of the repair. It's always advisable to check the warranty terms before engaging a service.
Q4: How do I know if my ECU needs repair?
Symptoms such as the check engine light illuminating, poor engine performance, starting issues, intermittent stalling, or communication errors with diagnostic tools can indicate an ECU problem. A proper diagnosis by a qualified technician is essential to confirm the issue.
Q5: Is ECU programming different from ECU repair?
Yes, ECU programming (also known as flashing or remapping) involves updating or modifying the software within the ECU. ECU repair, on the other hand, involves fixing hardware faults at the component level. Sometimes, a repair may necessitate reprogramming to ensure correct functionality.
In conclusion, the field of ECU repair is a highly specialised area within automotive mechanics. Investing in comprehensive training courses is paramount for technicians looking to excel in diagnosing and rectifying issues with these critical vehicle components. By understanding the intricacies of ECU repair, the diagnostic processes, and the importance of specialised knowledge, technicians can provide reliable and efficient services to their clients, ensuring vehicles operate at their peak performance.
