How Car Brakes Work: A Comprehensive Guide

You may never have really considered how your brakes work, other than knowing that pressing the middle pedal makes the car come to a halt. But it's always worth understanding how they actually function, so we look at the component parts and how they work together to ensure your safety on the road. When you press down on the brake pedal, a complex yet highly effective system springs into action. This intricate dance of mechanics and hydraulics is designed to slow your vehicle down reliably, even in demanding situations. Understanding these components can also help you recognise when something might not be quite right, allowing for prompt maintenance and preventing potentially serious issues.

The Core Components of Your Braking System

At its heart, a car's braking system relies on the conversion of kinetic energy (the energy of motion) into heat energy, which is then dissipated into the atmosphere. This is achieved through friction. Several key components work in harmony to achieve this:

Brake Discs (Rotors)

These are the rotating metal discs that are bolted securely between the wheel and the hub. Their primary function is to provide a smooth, hard surface for the brake pads to press against. You'll find that brake discs aren't all the same; they can be either solid or vented. * Solid Discs: These are a single, solid piece of metal. They are typically found on the rear wheels of vehicles or on lighter, less powerful cars where the braking demands are lower. * Vented Discs: These are effectively two discs joined by a series of internal veins or fins. This design is crucial for cooling. During heavy braking, discs can get extremely hot. The veins allow air to circulate between the two surfaces, drawing heat away and preventing the brakes from overheating (a phenomenon known as brake fade). Vented discs are most commonly used on the front wheels of cars because this is where the majority of the braking force is applied, and consequently, where the most heat is generated. The increased surface area and airflow of vented discs make them far more effective at managing high temperatures.

Brake Pads

Fitted in pairs to each brake disc, the brake pads are the components that actually create the friction. They are made from a very hard-wearing compound, carefully chosen for its ability to withstand high temperatures and to provide a high level of friction against the brake disc. When you press the brake pedal, these pads are forced against the spinning disc, creating the resistance that slows the wheel. Over time, the friction material on brake pads wears down. This is a normal part of their function, but it means they need to be replaced periodically. You might notice a squealing or grinding noise when your brake pads are worn out, which is often an indicator that they need attention.

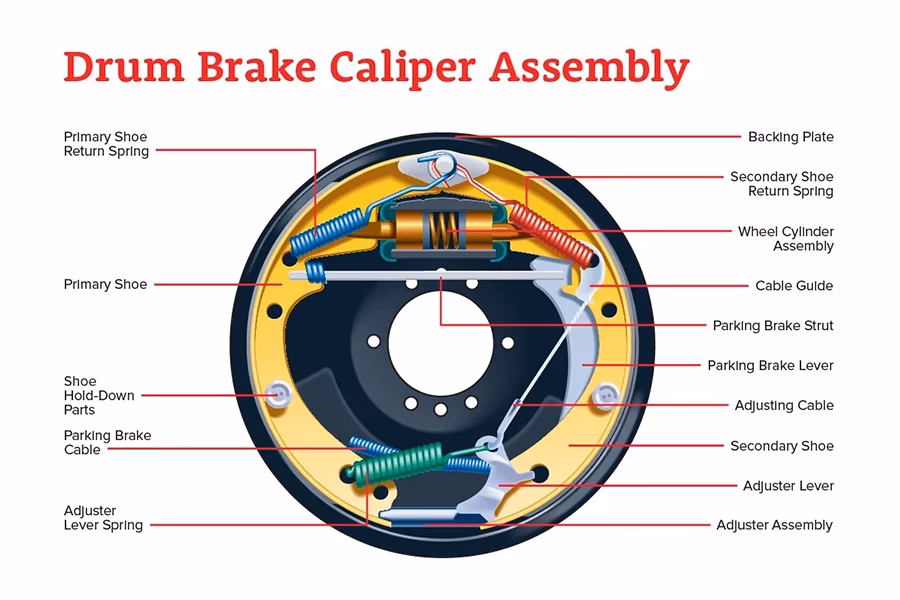

Brake Drums

While less common on modern cars, brake drums are still fitted to the rear wheels of some smaller and lower-powered vehicles. In this system, the brake mechanism is housed within a drum. Instead of pads pressing against an external disc, brake shoes (which are curved and function similarly to pads) are forced outwards against the inner surface of the rotating drum. This outward pressure creates friction, slowing the vehicle down. Drum brakes are generally less effective at dissipating heat compared to disc brakes, which is why they are typically found on less demanding applications.

Brake Caliper

The brake caliper is a crucial part of the disc braking system. It's essentially a clamp that houses the brake pads and the pistons. When hydraulic pressure is applied, the pistons are pushed outwards, forcing the brake pads into contact with the brake disc. Calipers come in various designs and sizes, and their performance is often related to the number of pistons they contain: * Single Piston Calipers: These are common on many vehicles, especially for rear brakes or less performance-oriented front brakes. * Multi-Piston Calipers: These calipers have two, four, or even more pistons. The advantage of more pistons is that the braking force is distributed more evenly across the entire surface of the brake pad. This leads to more consistent braking, better heat management, and often allows for larger brake pads, which in turn means greater stopping power. The caliper is mounted to the vehicle's suspension and remains stationary while the disc rotates within it.

Brake Servo (Brake Booster)

This component is vital for making your brakes feel responsive and easy to operate. The brake servo, or booster, works in conjunction with the master cylinder to multiply the force you apply to the brake pedal. It typically uses either vacuum from the engine (or a dedicated vacuum pump on diesel engines) or a hydraulic pump to provide this assistance. Without a functioning servo, the brake pedal would feel very hard, and you would need significantly more physical effort to slow or stop the car. It's important to note that the servo only operates when the engine is running, as it relies on the engine's vacuum or a pump driven by the engine.

Master Cylinder

The master cylinder is the interface between your foot on the brake pedal and the hydraulic system. It's responsible for converting the mechanical force of your leg pressing the pedal into hydraulic pressure. Inside the master cylinder are pistons that move when the pedal is depressed. This movement pressurises the brake fluid, forcing it through the network of brake lines. The brake fluid reservoir, which holds the crucial brake fluid, is usually attached to the top of the master cylinder.

Brake Pipes, Lines, and Hoses

These are the arteries of the braking system, forming a network of conduits that carry the pressurised brake fluid from the master cylinder to the calipers (or wheel cylinders in drum brake systems). The majority of these are rigid metal pipes, often made of copper or steel, for durability. However, at points where movement is required – such as where the lines connect to the calipers or where the axle moves relative to the chassis – flexible rubber or braided hoses are used. These flexible hoses allow for the necessary articulation without kinking or breaking, ensuring that the brakes continue to function even as the wheels turn and the suspension moves.

ABS Pump (Anti-lock Braking System)

Modern vehicles are almost universally equipped with an Anti-lock Braking System (ABS). ABS is a safety feature designed to prevent the wheels from locking up (stopping their rotation completely) during heavy braking. If a wheel locks up, the driver loses steering control. ABS works by using wheel speed sensors to detect when a wheel is about to lock. If it detects this, the ABS pump and control module rapidly pulse the brake pressure to that specific wheel – applying and releasing the brake many times per second. This allows the wheel to continue rotating slightly, maintaining traction and enabling the driver to retain steering control. You can often feel the ABS system working as a rapid pulsing or vibration through the brake pedal.

The Braking Process: Step-by-Step

So, what exactly happens when you press that brake pedal? 1. Pedal Application: You press the brake pedal. The force from your leg is amplified by mechanical leverage within the pedal assembly. 2. Servo Assistance: This amplified force is then further boosted by the brake servo (booster), making it much easier for you to apply significant pressure. 3. Hydraulic Conversion: The mechanical force, now greatly increased, is transmitted to the master cylinder. Here, it acts on pistons that pressurise the brake fluid. 4. Fluid Transmission: The pressurised brake fluid is forced through the brake lines and hoses, travelling to each wheel's braking mechanism (calipers or wheel cylinders). 5. Actuation: In a disc brake system, the fluid pressure pushes the pistons within the brake caliper. These pistons, in turn, force the brake pads to clamp down onto the rotating brake discs. 6. Friction and Deceleration: The intense friction generated between the brake pads and the discs converts the car's kinetic energy into heat, slowing the rotation of the wheels and thus slowing down the vehicle. 7. ABS Intervention (if applicable): If the ABS system detects a wheel is about to lock, it intervenes by rapidly modulating the brake pressure to that wheel, preventing a lock-up and maintaining steering control.

Frequently Asked Questions about Car Brakes

Q1: How often should I check my brake pads?A1: It's recommended to have your brake pads inspected at every service. Many modern brake pads have a wear indicator that will make a squealing noise when they are getting low. A visual inspection is the best way to determine their condition. Q2: What does it mean if my brake pedal feels soft or spongy?A2: A soft or spongy brake pedal often indicates that there is air in the brake lines. Air is compressible, unlike brake fluid. This requires the brake system to be bled to remove the air. Q3: Why do my brakes sometimes make a grinding noise?A3: A grinding noise can be a sign of severely worn brake pads, where the metal backing plate of the pad is grinding against the metal brake disc. It can also indicate issues with the caliper or other components. It's crucial to get this checked immediately. Q4: Can I drive with worn brake pads?A4: While you might still be able to stop the car, driving with worn brake pads significantly reduces your stopping power and can damage the brake discs, leading to more expensive repairs. It's also a serious safety risk. Always replace worn brake pads promptly. Q5: What is brake fade?A5: Brake fade is a dangerous condition where the brakes lose effectiveness, usually due to overheating. This can happen during prolonged heavy braking, such as going down a steep hill. The increased heat causes the brake pads and fluid to operate less efficiently. Using vented discs and ensuring the brake system is in good condition helps prevent brake fade. Understanding how your car's brakes work is fundamental to safe driving. By recognising the role of each component, you can better appreciate the engineering involved and the importance of regular maintenance to keep this vital safety system in optimal condition.
