Door Check Strap Replacement Guide

Understanding and Replacing Your Car's Door Check Strap

The door check strap, often an unsung hero of your vehicle's everyday functionality, plays a crucial role in controlling the movement of your car doors. It's that seemingly simple piece of hardware that prevents your door from swinging open too wide, potentially causing damage to the door, the bodywork, or even other vehicles parked nearby. It also allows you to hold the door open at specific angles, which is incredibly useful in various situations, from loading groceries to providing access for passengers. When these straps begin to wear out or fail, you'll notice a distinct lack of resistance when opening the door, or it might simply refuse to stay open at all, sagging downwards. This can be frustrating and, in some cases, even a safety hazard. Fortunately, replacing a door check strap is a task that many DIY enthusiasts can tackle with the right guidance and tools.

What is a Door Check Strap?

At its core, a door check strap is a mechanical device designed to limit the range of motion of a vehicle's door. It's typically made of sturdy metal, often with a series of notches or a specific design that interacts with other components to create resistance. This resistance is what holds the door in place once it's opened to a certain point. Think of it as a gatekeeper for your car door, ensuring it opens smoothly, stops at designated points, and doesn't go rogue.

Signs of a Failing Door Check Strap

Recognising the symptoms of a worn-out door check strap is the first step towards a successful repair. The most common indicators include:

• Door Sagging: When you open the door, it doesn't stay put. Instead, it tends to drop or sag downwards, often requiring you to prop it open.
• Lack of Resistance: You'll feel a noticeable absence of the 'click' or resistance that usually accompanies opening the door to specific positions. The door will swing freely without stopping.
• Door Slamming Shut: In severe cases, the lack of resistance can cause the door to swing shut unexpectedly, especially on inclines or in windy conditions.
• Straining Hinges: A door that sags puts extra stress on the door hinges, which can lead to further, more expensive damage if left unaddressed.

Can You Repair a Door Check Strap? (Addressing the Dremel Idea)

A question has arisen about whether one could modify the existing door check strap by grinding down the notches. While the ingenuity is commendable, this is generally not a recommended or effective solution for a few key reasons:

• Wear Pattern: The reason the strap isn't holding is usually due to wear on the internal mechanism that engages with the notches, not just the notches themselves. Grinding the notches might alter the shape, but it won't fix the underlying issue of worn-out internal components.
• Material Hardness: Door check straps are typically made of hardened steel. Attempting to grind these notches down, especially with a Dremel, can be a difficult and time-consuming process. You risk overheating the metal, which can weaken it, or creating uneven surfaces that won't engage properly.
• Safety and Reliability: The purpose of the check strap is to reliably hold the door open. A makeshift repair is unlikely to provide the same level of safety and reliability. Imagine the door unexpectedly swinging shut while you're leaning out of it!
• Cost-Effectiveness: New door check straps are relatively inexpensive. The time, effort, and potential for further damage involved in trying to repair a worn-out one often outweigh the cost of a new part.

Therefore, while the idea of a quick fix is appealing, the most reliable and safe approach is to replace the faulty door check strap with a new one.

Tools and Materials You'll Need

Before you start, gather the necessary tools and materials:

• New door check strap (ensure it's the correct part for your vehicle's make, model, and year)
• Socket set or wrenches (common sizes like 10mm, 12mm, 13mm, 14mm are often used)
• Screwdriver set (Phillips and flathead)
• Pry tools or trim removal tools
• Penetrating oil (like WD-40)
• Gloves
• Safety glasses
• A helper (highly recommended, especially for heavier doors)

Step-by-Step Door Check Strap Replacement

The exact procedure can vary slightly depending on your vehicle, but the general steps are as follows:

1. Prepare the Door

Open the door to a comfortable working position. If the door is sagging significantly, you might need to support it with a block of wood or have your helper hold it steady to prevent it from falling completely or straining the hinges.

2. Access the Check Strap

This is often the most involved part, as the check strap is usually hidden behind the interior door panel or a metal access cover.

• Remove the Interior Door Panel: This typically involves removing screws hidden behind trim pieces, door handle surrounds, and armrests. Use your pry tools to carefully unclip the panel. Be gentle to avoid breaking plastic clips.

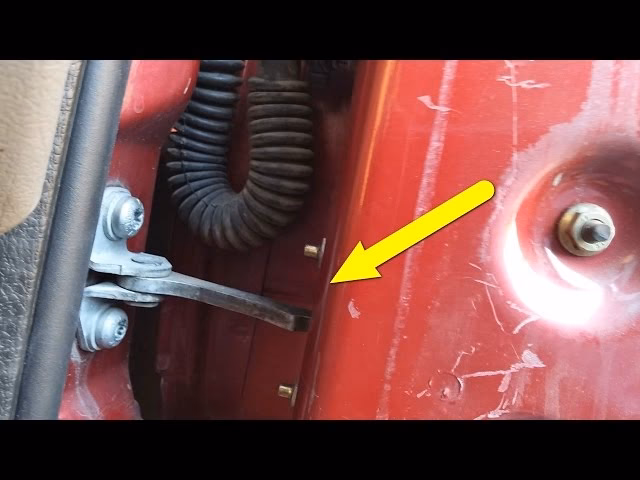

• Locate the Check Strap: Once the panel is off, you should be able to see the door check strap. It's a metal arm connecting the door edge to the car's body or A-pillar.
• Identify Fasteners: The check strap will be held in place by bolts or nuts. There will be one end attached to the door frame (often near the hinges) and another end attached to the door itself.

3. Loosen and Remove the Old Check Strap

Before you remove the bolts holding the check strap, it's a good idea to apply some penetrating oil to them, especially if they appear rusty. Let it sit for a few minutes.

• Support the Door: Ensure the door is adequately supported. If you're working alone, try to wedge something under the door to take its weight. A helper is ideal here to manage the door's movement.
• Remove the Bolts: Using the appropriate socket or wrench, carefully loosen and remove the bolts securing the check strap. There might be two or three bolts. It's often easier to remove the bolts attaching the strap to the door first, then the ones attaching it to the body.
• Remove the Old Strap: Once all fasteners are removed, carefully manoeuvre the old check strap out. You may need to slightly pivot the door or the strap to get it free.

4. Install the New Door Check Strap

This is the reverse of the removal process.

• Position the New Strap: Align the new check strap with the mounting points on the door and the body.
• Install Fasteners: Start by hand-tightening all the bolts to ensure they are properly seated and cross-threaded.
• Tighten Bolts: Once all bolts are in place, use your socket or wrench to tighten them securely. It's crucial to tighten them to the manufacturer's specified torque if possible, to ensure they don't come loose over time. If torque specs aren't readily available, tighten them firmly but avoid over-tightening, which could strip the threads or crack the mounting points.

5. Test the Door Operation

Before reassembling the door panel, open and close the door several times. Check that it stays open at different positions and that the resistance feels correct. Ensure it doesn't sag or swing shut unexpectedly.

6. Reassemble the Door Panel

Once you're satisfied with the door's operation, carefully reattach the interior door panel. Make sure all clips are engaged and screws are replaced in their original locations.

Preventative Maintenance and Tips

While door check straps are generally durable, there are a few things you can do to prolong their life:

• Avoid Slamming Doors: Forcefully slamming doors can put undue stress on the check straps and hinges.
• Gentle Opening: Open doors smoothly and avoid forcing them past their natural stopping points.
• Lubrication: Periodically applying a good quality lubricant to the door hinges can help the entire door mechanism operate more smoothly, reducing strain on the check strap.

Comparison: Old vs. New Check Strap

Here's a simple comparison to highlight the difference:

Frequently Asked Questions (FAQs)

Q1: How long does it take to replace a door check strap?

For most vehicles, it typically takes between 30 minutes to 1.5 hours per door, depending on the complexity of the door panel removal and your familiarity with the process.

Q2: Can I drive my car with a broken door check strap?

While you *can* drive, it's not recommended. A failing check strap can lead to door sag, which puts stress on hinges and can eventually cause more significant damage. It also poses a safety risk if the door swings open unexpectedly.

Q3: Do all car doors have check straps?

Most modern cars do have door check straps or a similar mechanism to control door opening. Older vehicles or certain specialized vehicles might have different designs, but the principle of limiting door movement is common.

Q4: Where can I buy a replacement door check strap?

You can purchase them from your vehicle manufacturer's dealership, reputable auto parts stores (both online and brick-and-mortar), or specialist automotive suppliers. Ensure you get the correct part number for your specific car.

Conclusion

A functioning door check strap is essential for the convenience and safety of your vehicle. While the idea of a quick fix might be tempting, replacing a worn-out strap with a new, quality part is the most effective and reliable solution. By following these steps, you can successfully restore your car doors to their intended functionality, ensuring they open smoothly, stay open securely, and protect your vehicle from damage.
