PDR Reflector Boards Explained

Paintless Dent Repair (PDR) is a highly skilled craft that relies on precision, patience, and the right tools. Among the most crucial pieces of equipment for any PDR technician is the dent reading or reflector board. These seemingly simple yet incredibly effective tools are the eyes of the technician, allowing them to visualise and meticulously work on even the most subtle imperfections in a vehicle's bodywork. Without a good quality reflector board, achieving a flawless finish would be a near-impossible task.

What Exactly is a PDR Reflector Board?

At its core, a PDR reflector board is a specialised tool designed to highlight and magnify the contours and distortions of a dent. It's essentially a visual aid that, when placed against the damaged panel, reflects light in a way that makes the dent's shape and depth immediately apparent. The board typically features a pattern of lines or dots, which, when viewed in the reflection on the car's surface, become warped and distorted by the dent. By observing how these lines or dots are bent or broken, a technician can accurately assess the extent of the damage and plan their repair strategy.

The Two Main Types: Solid vs. Translucent

When it comes to PDR reflector boards, there are two primary categories that technicians often choose from: solid and translucent (often referred to as back-lit). Both serve the same fundamental purpose, but they achieve it through slightly different means and can be more effective in varying lighting conditions.

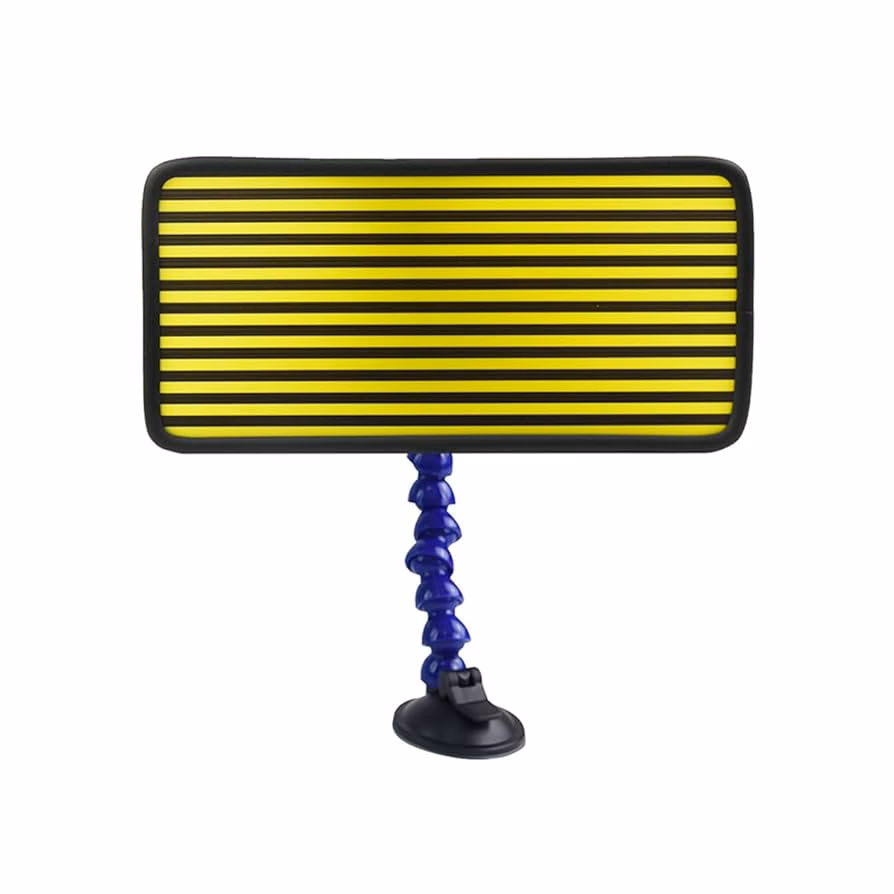

Solid Reflector Boards

Solid reflector boards, often made from rigid plastic or metal, typically feature a printed pattern of lines or dots. The technician holds this board at an angle to the damaged panel. The ambient light reflects off the board and onto the car's surface. The dent then distorts this reflection, making it visible. These are generally robust and can be very effective in good lighting conditions. However, on overcast days or in poorly lit workshops, the reflection might not be as clear, making it harder to "read" the dent precisely.

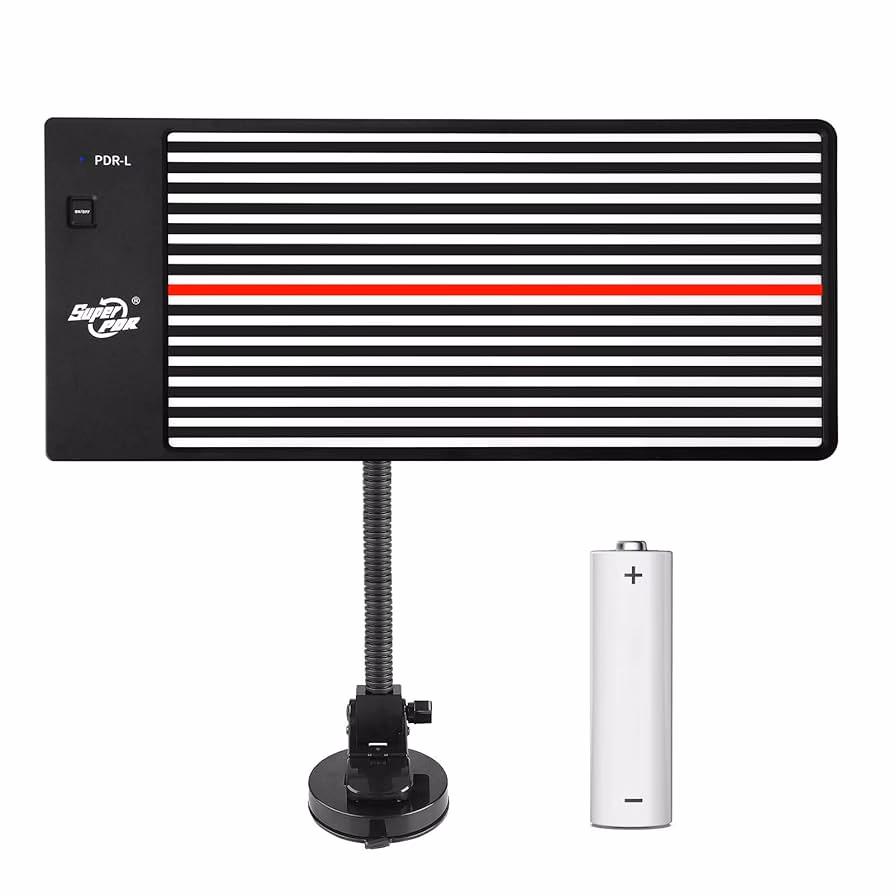

Translucent/Back-Lit Reflector Boards

Translucent reflector boards, also known as back-lit boards, are designed to be illuminated from behind. This is often achieved using LED lights integrated into the board itself or by placing a separate light source behind a translucent panel. The light shines through the translucent material and projects the pattern onto the dented surface. This method offers a significant advantage: it creates a brighter, more defined reflection, even in low-light or challenging conditions. The integrated LEDs mean the technician has a self-contained unit that provides its own illumination, greatly enhancing visibility. These boards are manufactured using the same high-quality plastics found in modern LED display boards, ensuring excellent durability and clarity.

A Brief History and Evolution

It's important to note that the concept of back-lit PDR boards isn't a recent innovation. Manufacturers have been producing and selling translucent/back-lit PDR reflector boards for many years, with some companies having a decade-long history of offering these advanced tools. While some may now refer to them as a "new design" or "back-lit" type, these technologies have been a staple in the PDR industry for a considerable time. The advancements in LED technology have certainly improved the quality and brightness of these boards, making them even more effective, but the fundamental principle remains the same. The industry continuously strives for higher quality, and the PDR reflector boards available today are often described as "HD quality," ensuring that the fine details of the dent are rendered with exceptional clarity.

Why are PDR Reflector Boards So Important?

The importance of a PDR reflector board cannot be overstated. Here's why:

• Dent Visualization: They are the primary tool for visualising the precise shape, depth, and edges of a dent.
• Accuracy: By observing the distortion of the reflection pattern, technicians can pinpoint the exact location of the high and low points of the dent.
• Repair Planning: Understanding the dent's characteristics allows for a more effective repair strategy, determining the correct tools and techniques to use.
• Quality Control: During the repair process, the board is used repeatedly to check the progress and ensure the panel is being returned to its original factory finish.
• Efficiency: A good reflector board speeds up the assessment and repair process, leading to greater efficiency and productivity.

Choosing the Right Board: Factors to Consider

When selecting a PDR reflector board, several factors should influence your decision:

• Lighting Conditions: If you frequently work in variable or low-light conditions, a back-lit or LED-equipped board is highly recommended.
• Pattern Type: Some boards have lines, others dots, and some a combination. Experiment to see which pattern you find easiest to read.
• Size and Portability: Consider the size of the board and how easy it is to manoeuvre around different vehicles. Some technicians prefer smaller, more agile boards, while others opt for larger ones for broader coverage.
• Build Quality: Opt for boards made from durable materials that won't easily scratch or break. High-definition quality ensures the clearest possible reflection.
• Ergonomics: The board should be comfortable to hold and position for extended periods.

Table: Solid vs. Translucent Reflector Boards

Here's a quick comparison to help you decide:

Tips for Using Your PDR Reflector Board Effectively

To get the most out of your PDR reflector board:

• Experiment with Angles: Different angles will highlight different aspects of the dent. Find the angle that best reveals the distortion.
• Use in Conjunction with Lights: Even with a solid board, a good auxiliary light can significantly improve visibility. For back-lit boards, ensure your LEDs are bright and evenly distributed.
• Keep it Clean: A dirty or smudged board will degrade the quality of the reflection. Clean it regularly with a suitable cleaner.
• Practice Patience: Reading a dent takes practice. Spend time observing the reflections and correlating them with the actual shape of the panel.
• Understand the Limitations: On extremely overcast days with very little ambient light, even the best solid boards can be difficult to use. This is where a back-lit board truly shines.

Frequently Asked Questions (FAQs)

Q1: Can I use a regular mirror as a PDR reflector board?

While a mirror can show a reflection, it lacks the crucial patterned lines or dots that PDR technicians use to precisely map the distortion of a dent. A regular mirror won't provide the necessary detail for accurate PDR work.

Q2: What is the best pattern for a PDR reflector board?

The "best" pattern is often subjective and depends on the technician's preference. Lines are common for showing the elongation of the dent, while dots can be useful for visualising pressure points. Many technicians find a combination or a high-density pattern to be most effective.

Q3: How do I clean my PDR reflector board?

Use a soft, lint-free cloth and a mild glass cleaner or an electronics screen cleaner. Avoid abrasive materials that could scratch the surface.

Q4: Do I really need a back-lit board?

If you plan to do PDR professionally or frequently, a back-lit board is a significant investment that will improve your efficiency and accuracy, especially in challenging lighting conditions. However, for occasional use in very well-lit environments, a good quality solid board might suffice.

Q5: How do I know if my PDR board is "HD quality"?

HD quality typically refers to the clarity and sharpness of the printed or projected pattern. The lines or dots should be crisp and well-defined, with no blurring or distortion inherent to the board itself. High-quality materials and manufacturing processes contribute to this clarity.

In conclusion, the PDR reflector board is an indispensable tool for any technician serious about achieving professional results in paintless dent repair. Whether you opt for a traditional solid board or a more advanced back-lit version, understanding their function and choosing a high-quality product will undoubtedly enhance your ability to master the art of dent removal.
