Battery Terminals: The Root of Starting Woes

It's a familiar, frustrating scenario: you turn the ignition key, expecting the satisfying rumble of your engine, but instead, you're met with a disheartening click, a slow crank, or even a complete absence of life. While many motorists immediately suspect a dead battery or a faulty starter motor, the humble battery terminal often goes overlooked as a primary culprit for starting problems. These seemingly minor components are, in fact, the critical bridge between your car's powerful battery and its entire electrical system. When this bridge is compromised, even the healthiest battery can't deliver the necessary power to get your vehicle moving. Understanding the role of battery terminals and how they can fail is essential for any car owner looking to keep their vehicle in reliable working order.

What Exactly is a Battery Terminal?

Simply put, a battery terminal is the point of connection where the car's electrical system interfaces with the battery. Think of them as the electrical handshake that allows power to flow from the battery to the starter motor, alternator, and all other electrical components. Most car batteries have two terminals: a positive (+) terminal and a negative (-) terminal. These terminals are typically made of lead or a lead alloy and are designed to provide a secure and conductive pathway for electricity. Attached to these terminals are the battery cables, which are crucial for transmitting the battery's energy throughout the vehicle.

The Common Culprits: Corrosion and Loose Connections

The most prevalent issues that plague battery terminals are corrosion and loose connections. Let's delve into each:

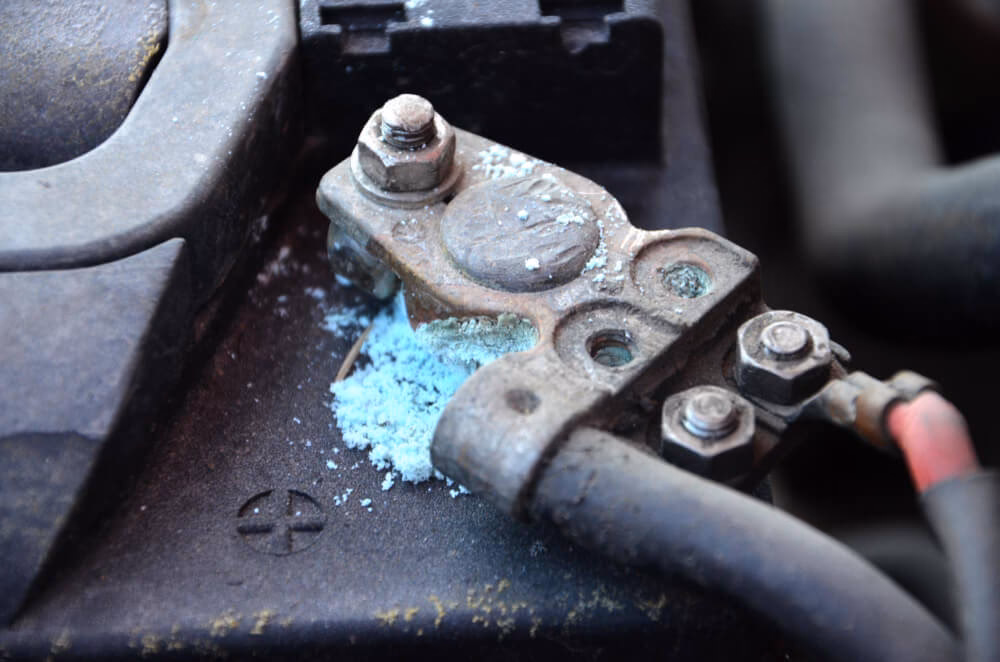

Battery Terminal Corrosion

Over time, the chemical reactions within a battery can lead to the formation of a powdery, crystalline substance, most commonly a blue or greenish-white deposit, around the battery terminals and cable clamps. This is known as battery terminal corrosion. It's essentially a byproduct of the battery's normal operation and can be exacerbated by age, heat, and minor leaks of battery acid.

Why is corrosion so problematic? Corrosion acts as an insulator. It creates a barrier that impedes the free flow of electricity. Even a thin layer of corrosion can significantly increase the resistance between the terminal and the cable clamp. When you try to start your car, the starter motor demands a massive surge of electrical current. If the corrosion is substantial enough, it can prevent this high-current flow, resulting in a no-start condition or a very weak crank. It's akin to trying to drink a thick milkshake through a very narrow straw – the flow is severely restricted.

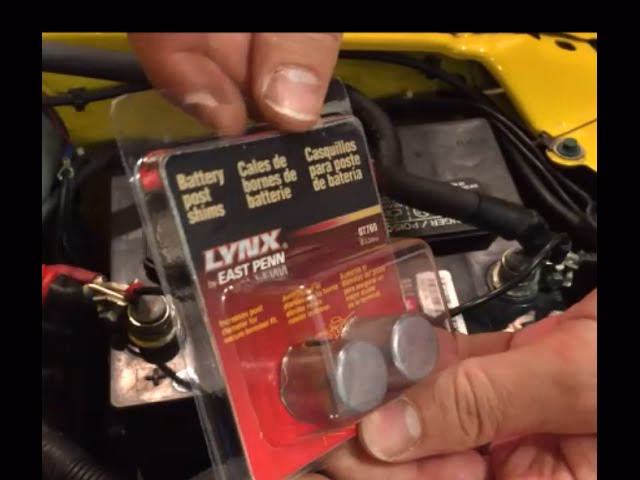

Loose Battery Terminals

Equally detrimental to starting is a loose battery terminal connection. This can occur for several reasons:

• Improper Installation: If the cable clamps were not tightened sufficiently during a battery replacement or a previous repair, they can become loose over time due to vibrations from driving.
• Vibration: The constant jostling and vibration a car endures can gradually loosen even properly tightened clamps.
• Corrosion Buildup: Sometimes, the buildup of corrosion itself can prevent the cable clamp from making solid, direct contact with the terminal, effectively creating a loose connection despite the clamp appearing snug.

A loose terminal means intermittent contact. This can lead to all sorts of electrical gremlins, including starting problems, flickering dashboard lights, or the car cutting out unexpectedly. When the connection is poor, the electrical signal is unreliable, and the starter motor may not receive enough consistent power to engage and turn the engine over.

Recognising the Signs of Bad Battery Terminals

Fortunately, there are several tell-tale signs that your battery terminals might be the source of your starting woes:

• Visible Corrosion: As mentioned, the presence of that distinctive powdery residue around the terminals is a clear indicator.
• Difficulty Starting: The most obvious sign is when your car struggles to start. This might manifest as a slow cranking sound, a rapid clicking noise (often the starter solenoid engaging but not having enough power to turn the starter motor), or no sound at all when you turn the key.
• Intermittent Electrical Issues: If your dashboard lights flicker, your headlights dim when you apply the brakes, or your radio cuts out unexpectedly, a poor connection at the battery terminals could be the cause.
• Smell of Sulphur: While this can also indicate a leaking battery, a strong smell of rotten eggs or sulphur around the battery area can sometimes be linked to excessive corrosion or a failing connection.
• Loose Cables: A simple visual inspection can reveal if the battery cables are wobbly or easily moved on the terminals.

Can Bad Battery Terminals Cause Starting Problems? The Verdict

Absolutely, yes. Bad battery terminals, whether due to corrosion or looseness, are a very common and often overlooked cause of starting problems. They create resistance or intermittent contact, preventing the battery from delivering the necessary amperage to the starter motor. It's crucial to remember that the battery itself might be perfectly healthy, but if the pathway for its power is blocked or unreliable, the car simply won't start.

Troubleshooting and Maintenance: A DIY Guide

Fortunately, addressing battery terminal issues is often a straightforward DIY task. Here's how you can check and clean them:

What You'll Need:

• Safety glasses
• Gloves
• A wire brush or battery terminal cleaning tool
• Baking soda
• Water
• A clean cloth or paper towels
• A battery terminal protector spray or dielectric grease
• A wrench (usually 10mm or 13mm)

Step-by-Step Cleaning Process:

1. Safety First: Always wear safety glasses and gloves. Work in a well-ventilated area.
2. Disconnect the Battery: It is absolutely critical to disconnect the battery before cleaning. Always disconnect the negative (-) terminal first, followed by the positive (+) terminal. This prevents accidental short circuits.
3. Inspect the Terminals and Cables: Look for any signs of corrosion or damage. Check that the cable clamps are securely fastened to the terminals.
4. Prepare the Cleaning Solution: Mix a tablespoon of baking soda with a cup of water. This solution will help neutralize the acid from the corrosion.
5. Clean the Terminals: Apply the baking soda solution to the corroded terminals. Use a wire brush or a dedicated battery terminal cleaning tool to scrub away the corrosion. You can also use the brush to clean the inside of the cable clamps.
6. Rinse and Dry: Rinse the terminals and clamps with clean water (a spray bottle is useful here) and then dry them thoroughly with a clean cloth or paper towels. Ensure there is no residual moisture.
7. Apply Protection: Once clean and dry, apply a thin layer of battery terminal protector spray or dielectric grease to the terminals and the inside of the cable clamps. This will help prevent future corrosion.
8. Reconnect the Battery: Reconnect the positive (+) terminal first, followed by the negative (-) terminal. Ensure the clamps are tightened securely onto the terminals. You don't want them to spin freely.
9. Test: Try starting your car.

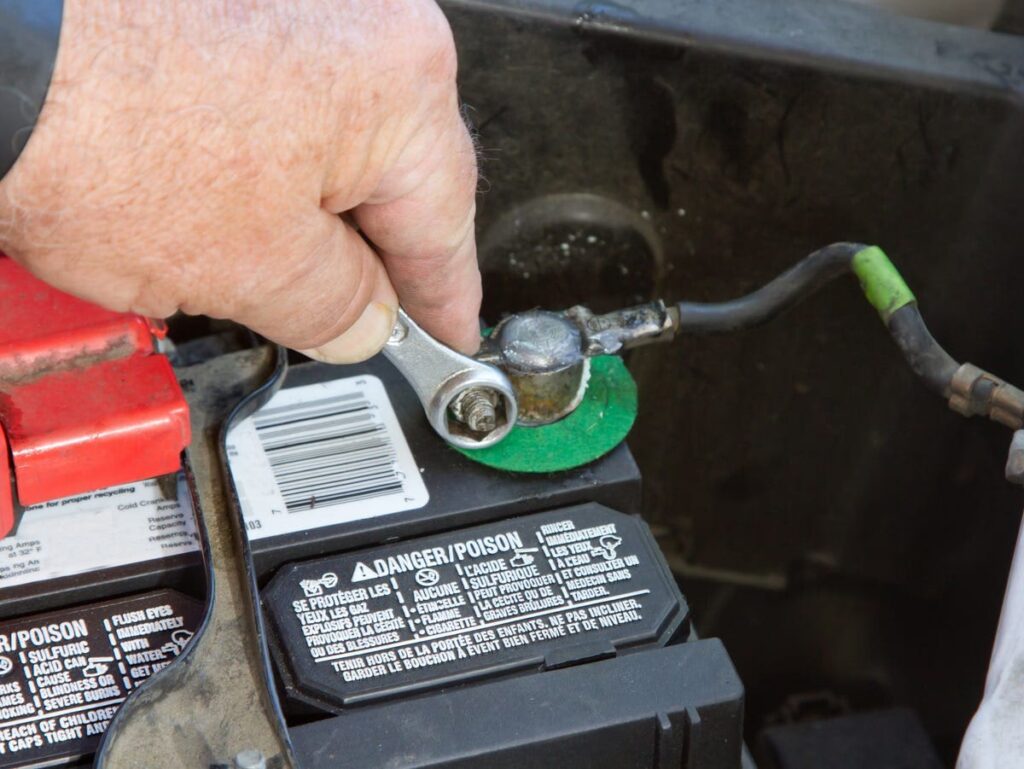

Tightening the Terminals:

If the terminals feel loose, use the appropriate size wrench to tighten the nuts on the cable clamps. Ensure they are snug but avoid overtightening, which could damage the terminals or the battery casing.

When to Call a Professional

While cleaning and tightening battery terminals is a common DIY task, there are instances where professional help is recommended:

• Damaged Terminals: If the battery terminals themselves are physically broken or heavily corroded to the point of disintegration, they may need to be replaced, which can be a more involved process.
• Damaged Cables: If the battery cables are frayed, melted, or show signs of internal damage, they will need to be replaced.
• Persistent Problems: If you clean and tighten the terminals, and your car still experiences starting issues, the problem likely lies elsewhere, such as with the battery itself, the starter motor, the alternator, or ignition system components.
• Uncertainty: If you're not comfortable working with car batteries or are unsure about any step, it's always best to seek assistance from a qualified mechanic.

Preventative Maintenance is Key

Regularly inspecting your battery terminals for corrosion and ensuring they are tight can save you a lot of hassle and prevent unexpected breakdowns. Make it a part of your routine vehicle checks, perhaps when you check your oil or tyre pressures. A quick visual inspection can often catch a developing problem before it leaves you stranded.

Conclusion

The connection between your car's battery and its electrical system is only as strong as its weakest link. In many cases, that weak link can be the battery terminals. By understanding what they are, how they fail, and how to maintain them, you can significantly improve your car's starting reliability and avoid the frustration of a vehicle that won't turn over. Don't underestimate the power of clean, tight battery terminals – they are fundamental to your car's ability to come to life.

Frequently Asked Questions (FAQs)

Q1: How often should I check my battery terminals?

It's a good idea to check them at least twice a year, perhaps during seasonal tyre changes, or any time you notice signs of starting trouble or electrical gremlins.

Q2: Can I use a wire brush on the battery terminals?

Yes, a wire brush is effective for removing corrosion, but ensure you use a dedicated battery terminal cleaning tool for a more thorough job on both the terminals and the inside of the cable clamps. Always disconnect the battery first.

Q3: What happens if I reconnect the battery cables in the wrong order?

Connecting the positive terminal first after disconnecting the negative can cause a short circuit if your wrench touches any metal part of the car while still connected to the positive terminal. This can damage the electrical system or the battery.

Q4: Is a little bit of corrosion on the battery terminals normal?

A very small amount of light white or grey residue might be considered minor. However, any significant buildup of blue, green, or white powdery substance should be cleaned promptly to prevent starting issues.

Q5: My car still won't start after cleaning the terminals. What else could it be?

If cleaning the terminals doesn't solve the problem, the issue could be a dead battery, a faulty starter motor, a bad alternator, ignition problems, or issues with the fuel system or immobiliser. It would be advisable to have a mechanic diagnose the problem further.
