Car Battery Charger: 12V & 24V Explained

In recent times, particularly with changes in work patterns and lifestyle, many of us have found our cars sitting idle for longer periods. What was once a daily commute has become an occasional, short trip to the shops or a weekend excursion. While this might seem harmless, it poses a significant threat to your vehicle's battery, especially if you own a modern car with a diesel engine or an advanced start-stop system. The energy required to crank a high-compression diesel engine is substantial, and short journeys often don't provide enough time for the alternator to fully replenish the energy expended. Compounded by parasitic drains from active alarm systems, immobilisers, or infotainment systems, your battery can quickly become chronically low, leading to frustrating non-starts. This is where a versatile 12V/24V car battery charger becomes an indispensable tool, capable of not only reviving deeply discharged batteries but also maintaining them in optimal health.

What is a 12V/24V Car Battery Charger?

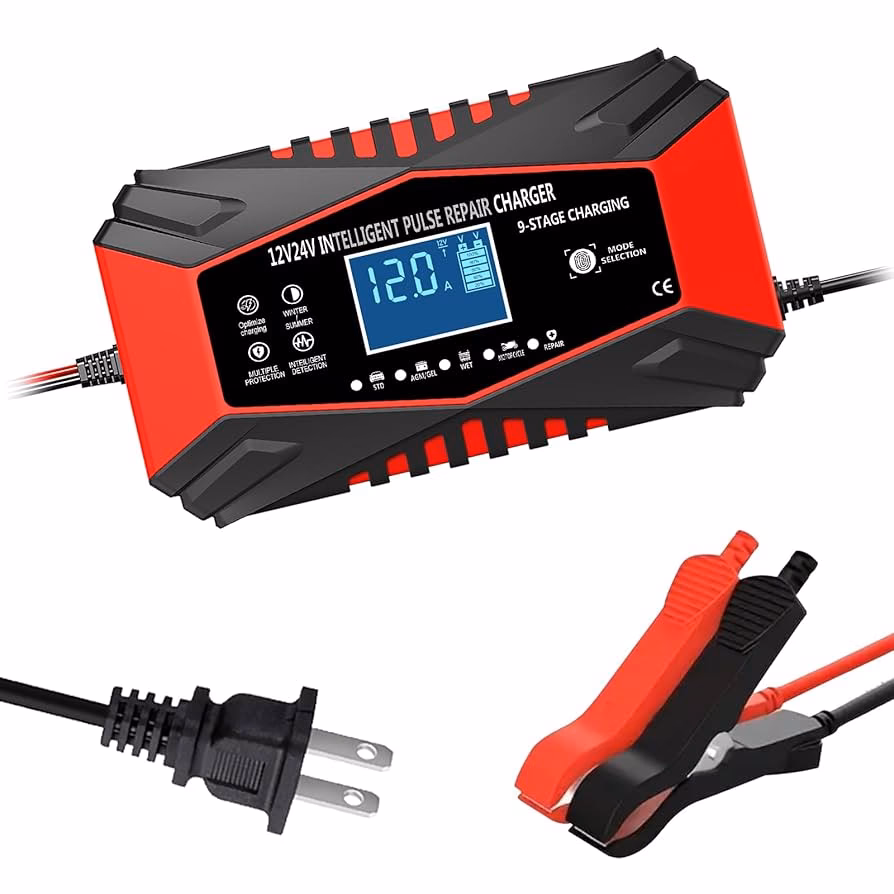

A 12V/24V car battery charger is a sophisticated device designed to charge and maintain lead-acid batteries, specifically those found in cars, vans, and even larger vehicles. The '12V/24V' designation indicates its ability to automatically detect and charge both 12-volt (standard for most cars) and 24-volt (common for lorries and some heavy machinery) battery systems. Unlike older, simpler chargers that merely pump a constant current into the battery, modern smart charger models employ a multi-stage charging process. This intelligent approach ensures the battery is charged safely, efficiently, and to its maximum capacity, significantly extending its lifespan and preventing damage from overcharging or undercharging.

The Perils of Infrequent Car Use and Battery Degradation

The scenario of a car sitting unused for weeks, only to be taken for a brief spin, is a recipe for battery trouble. Diesel engines, known for their high compression ratios, demand a considerable surge of current (high Cold Cranking Amps or CCA) to start. This initial burst drains a significant amount of energy from the battery. For the alternator to fully recharge the battery, the vehicle typically needs to be driven for a sustained period at a reasonable speed – far longer than a quick run to the local supermarket. When this replenishment doesn't happen, the battery operates in a perpetually undercharged state.

Furthermore, modern vehicles are laden with electronics that draw power even when the engine is off. Systems like ultrasonic alarms, remote central locking, infotainment memory, and ECU (Engine Control Unit) retention all contribute to what are known as parasitic drains. While individually small, these continuous draws can deplete a battery over days or weeks. For diesel owners, this chronic undercharging can also inadvertently impact other systems, such as the Diesel Particulate Filter (DPF), which relies on specific engine operating conditions (often linked to battery health and longer runs) to regenerate effectively.

Over time, a consistently undercharged battery can suffer from sulphation, where lead sulphate crystals accumulate on the battery plates, reducing its capacity and ability to hold a charge. This process is highly detrimental and is a primary cause of battery failure.

Understanding How a Smart Charger Works: The Multi-Stage Process

A modern smart charger doesn't just 'charge' a battery; it orchestrates a carefully managed sequence of charging phases, each designed to optimise battery health and performance. This multi-stage process is key to their effectiveness and ability to restore even deeply discharged batteries.

Stage 1: Desulphation

This is often the first stage for a highly discharged or neglected battery. When a lead-acid battery is left in a discharged state for too long, lead sulphate crystals can form on the battery plates, hardening and reducing the battery's capacity. The desulphation stage involves applying high-frequency pulses of current and voltage to break down these crystals, converting them back into active material. This can significantly improve the battery's ability to accept and hold a charge, sometimes bringing seemingly dead batteries back to life.

Stage 2: Soft Start

If the battery is severely discharged (below a certain voltage threshold), the charger will initiate a 'soft start' or 'gentle charge' phase. During this stage, a low, controlled current is applied to gradually raise the battery voltage. This prevents overheating or damage that could occur if a high current were applied directly to a deeply discharged battery, ensuring a safe and stable recovery.

Stage 3: Bulk Charge

Once the battery's voltage has risen above the soft start threshold, the charger enters the bulk charge phase. This is where the majority of the charging takes place. The charger delivers its maximum rated current until the battery reaches approximately 80% of its capacity. The voltage will steadily rise during this phase, indicating the battery is accepting the charge efficiently.

Stage 4: Absorption Charge

After the bulk charge, the charger transitions to the absorption phase. Here, the voltage is held constant at a slightly higher level (e.g., 14.4V for a 12V battery), while the current gradually decreases. This stage is crucial for topping off the battery to 100% capacity without overcharging it. As the battery approaches full charge, it naturally draws less current, and the charger intelligently reduces its output accordingly.

Stage 5: Analysis/Testing

Following the absorption charge, many smart chargers will enter an analysis or test phase. During this stage, the charger momentarily stops charging and monitors the battery's voltage to assess its ability to hold a charge. This helps determine the overall health and capacity of the battery. If the battery voltage drops too quickly, it might indicate an internal fault or that the battery is nearing the end of its life.

Stage 6: Float/Trickle Charge

The final and perhaps most crucial stage for long-term battery health is the float mode or trickle charge. Once the battery is fully charged, the charger reduces the voltage to a very low, constant level (e.g., 13.2V to 13.8V for a 12V battery). This provides a minimal current, just enough to counteract the battery's natural self-discharge rate and any minor parasitic drains from the vehicle. This stage ensures the battery remains at 100% charge indefinitely without overcharging or causing damage, making it ideal for maintaining batteries in vehicles stored for extended periods.

Why Your Modern Car Needs a Smart Charger

Modern vehicles, particularly those equipped with start-stop technology, often utilise Enhanced Flooded Batteries (EFB) or Absorbent Glass Mat (AGM) batteries. These advanced battery types are designed to handle the frequent engine starts and stops and deeper discharge cycles inherent in such systems. However, they also have specific charging requirements. A basic, unregulated charger can damage these sensitive batteries by overcharging or providing incorrect voltage. A smart charger is specifically designed to recognise and correctly charge EFB and AGM batteries, delivering the precise voltage and current required for their optimal performance and longevity.

For diesel vehicles, the high CCA demands mean the battery is subjected to significant stress during starting. Regular top-ups with a smart charger, especially during periods of infrequent use, are vital to prevent the battery from falling into a chronically low state. This proactive maintenance helps avoid the deep and damaging discharge cycles that drastically shorten battery life, saving you the cost and inconvenience of premature battery replacement.

Connecting Your Charger: A Step-by-Step Guide for Safety and Efficiency

Proper connection of your battery charger is paramount for both safety and effective charging. Always refer to your charger's specific manual, but here are the general steps:

Preparation and Safety First

Ensure you are in a well-ventilated area, especially if charging an older, conventional lead-acid battery, as they can release hydrogen gas during charging (though modern sealed batteries are less prone to this). Check that the charger, cables, and battery are free from damage. Wear appropriate safety gear, such as eye protection and gloves.

Connecting to the Battery

1. Connect the positive (red) clamp: Attach the red clamp from the charger to the positive (+) terminal of the battery. Ensure a firm, clean connection.
2. Connect the negative (black) clamp: Attach the black clamp from the charger to the negative (-) terminal of the battery, or to a good, unpainted metal ground point on the vehicle chassis, away from the battery and fuel lines. This is particularly important for modern vehicles to prevent damage to sensitive electronics.
3. Verify connections: Double-check that both clamps are securely attached and not touching any other metal parts of the vehicle. The charger's display may 'spring to life' at this point, indicating it has detected the battery, but it will not yet be charging.

Powering Up the Charger

1. Plug into mains: Only after the clamps are securely attached to the battery should you plug the charger into a mains power outlet.
2. Initiate charging: The charger will typically automatically begin its charging cycle, detecting the battery's voltage (12V or 24V) and current state. The LCD display will usually provide real-time information on the charging process, such as current voltage, charging stage, and progress.
3. Monitor and wait: Allow the charger to complete its cycle. The LCD will typically indicate when charging is complete, often showing 'FULL' or a similar message.

The Benefits of Proactive Battery Maintenance

The experience of successfully restoring an EFB battery from a critical state multiple times highlights the effectiveness of these chargers. However, the true power lies in proactive maintenance. Instead of waiting for the battery to be critically low, regularly applying a trickle charge can prevent deep discharge altogether. For instance, leaving the charger on float mode once a week or so, weather permitting, ensures the battery never drops below its optimal charge level. This consistent maintenance not only extends the battery's life but also ensures your vehicle is always ready to start, reducing wear on the starter motor and preventing the inconvenience of a flat battery.

This method significantly reduces the stress on the battery, preventing the damaging effects of deep cycling and sulphation. It's a small investment of time that pays dividends in reliability and extended battery life, avoiding the need for costly replacements.

Troubleshooting Common Charger and Battery Issues

While modern smart chargers are largely intuitive, some issues can arise, often due to user error or underlying battery problems. It's crucial to consult your charger's manual, as 'reading is not for chumps, ya know.'

• Charger not 'springing to life': If the charger doesn't light up after connecting to the battery, first check the connections. Ensure they are clean and secure. If connections are good, the battery might be too deeply discharged (below the charger's minimum voltage threshold) or completely dead. Some advanced chargers have a 'force charge' or 'repair' mode for very low batteries, but not all do.
• Charger not starting charge after mains connection: Verify the mains plug is fully inserted and the power outlet is active. Check the charger's display for error codes.
• Slow charging or never reaching 'FULL': The battery might be significantly sulphated or faulty. While the desulphation mode can help, some batteries are beyond recovery. Extremely cold temperatures can also slow down charging.
• Overheating: Ensure adequate ventilation around both the charger and the battery. Blocked vents or operating in a confined space can cause overheating.
• Incorrect voltage detection: While rare for smart chargers, ensure the charger has correctly identified whether it's connected to a 12V or 24V system.
• Failing battery: Sometimes, the issue isn't the charger but the battery itself. If a battery doesn't hold a charge for long after being fully charged, or repeatedly requires a jump start, it's likely time for a replacement.

Charger Compatibility: Matching the Right Charger to Your Battery Type

Understanding battery types is essential for optimal charging. While a 12V/24V smart charger is highly versatile, knowing what battery you have ensures you get the most out of your charging efforts.

Frequently Asked Questions (FAQs)

Can I leave a smart charger connected to my car battery indefinitely?

Yes, if it's a modern smart charger with a float mode or maintenance mode. These chargers automatically switch to a trickle charge once the battery is full, preventing overcharging and keeping the battery topped up without damage. It's ideal for vehicles stored for extended periods.

How long does it take to fully charge a car battery?

The charging time depends on several factors: the battery's capacity (Ah), its state of discharge, and the charger's output current (Amps). A deeply discharged 70Ah battery might take 10-15 hours with a 5A charger, while a smaller battery needing a top-up could be done in a few hours. Your charger's LCD display will usually indicate progress.

What are the signs of a failing car battery?

Common signs include slow engine cranking, dim headlights when starting, the check engine light or battery warning light illuminating, or the battery failing to hold a charge after being fully charged. Modern cars might also show erratic electronic behaviour.

Is it safe to charge a car battery while it's still connected in the car?

Yes, for most modern vehicles and smart chargers, it is generally safe. However, always ensure proper ventilation and good, clean connections. For peace of mind, or if you have an older vehicle, disconnecting the battery's negative terminal before charging can eliminate any risk to vehicle electronics, but it may reset some vehicle settings.

What's the difference between 12V and 24V charging?

12V is the standard voltage for most passenger cars, light commercial vehicles, and leisure batteries. 24V systems are typically found in larger commercial vehicles like lorries, buses, and some heavy machinery, which use two 12V batteries connected in series. A 12V/24V charger can automatically detect and switch between these two voltage requirements.

Why is ventilation important during charging?

During the charging process, especially with older lead-acid batteries, hydrogen gas can be produced. This gas is highly flammable. Good ventilation dissipates these gases, preventing their accumulation and reducing the risk of explosion, especially from sparks during connection or disconnection.

Ultimately, investing in a quality 12V/24V smart charger is a wise decision for any car owner, particularly those experiencing the challenges of infrequent vehicle use. It's not just about reviving a dead battery; it's about proactive maintenance, extending battery life, and ensuring reliable starts, thereby saving you time, money, and frustration in the long run.
