For many Vauxhall and Opel owners, the desire to understand and maintain their vehicle's health often leads to exploring diagnostic tools. Among the most popular and accessible for these marques is the OP-COM diagnostic interface. This powerful yet user-friendly system allows enthusiasts and DIY mechanics alike to delve into the inner workings of their cars, reading fault codes, monitoring live data, and even performing basic programming functions. This article will provide a comprehensive overview of what OP-COM is, how it operates, its various functionalities, and help you determine the best version for your specific needs.
What Exactly is OP-COM?
OP-COM is a sophisticated Windows-based diagnostic software package specifically designed for Vauxhall and Opel vehicles. It acts as a bridge between your car's Electronic Control Units (ECUs) and your computer, enabling you to communicate with the vehicle's systems. The software package boasts extensive coverage, supporting a wide array of models manufactured between 1990 and 2017, with ongoing updates often including newer models. It's a versatile tool for anyone looking to go beyond basic OBD-II scanning.
Core Functionalities of OP-COM
The true strength of OP-COM lies in its diverse range of functions. These include:
- Read and Clear Fault Codes: This is the primary function for many users. OP-COM can identify diagnostic trouble codes (DTCs) stored within various ECUs, providing detailed descriptions to help pinpoint issues. Crucially, it also allows you to clear these codes once a fault has been rectified.
- Display Live Data: Monitor real-time data streams from sensors and ECUs. This can include engine RPM, coolant temperature, throttle position, oxygen sensor readings, and much more. Analysing this live data is invaluable for diagnosing performance issues and identifying intermittent faults.
- Perform Output Tests: OP-COM can activate various components and systems within the vehicle to test their functionality. This could involve testing fans, solenoids, injectors, or warning lights, helping to isolate faulty parts.
- Immobiliser Support: For models equipped with an immobiliser system, OP-COM can assist with programming new keys or immobiliser components, provided you have the necessary security codes (often found on the CAR-PASS).
- Remote Key Fob Programming: Easily program new remote key fobs for central locking and other functions.
- Change Variant Coding: Modify the coding of various control units to change vehicle features or adapt new modules. For instance, you might change the coding of the instrument cluster or climate control unit.
Supported Control Units and Vehicle Models
OP-COM is designed to communicate with a vast number of control units commonly found in Vauxhall/Opel vehicles. These include, but are not limited to:
Commonly Supported ECUs:
- Engine Control Module (ECM)
- Transmission Control Module (TCM)
- Anti-lock Braking System (ABS) / Electronic Stability Programme (ESP)
- Airbag Control Module
- Instrument Cluster (IC)
- Radio and Display Units
- Climate Control Units
- Body Control Unit (BCU)
OP-COM Basic Version Model Support:
The OP-COM system is often available in different 'Basic' versions, each tailored to specific model ranges. This segmentation allows for a more cost-effective solution for users who primarily work on a particular set of vehicles. Here's a breakdown of the common Basic versions:
| Basic Version | Primary Focus | Supported Models |
|---|---|---|
| Basic-A (Astra) | Astra and related models | Kadett-E, Astra-F, Astra-G, Astra-H, Astra-J, Zafira-A, Zafira-B, Zafira-C, Cascada |
| Basic-B (Vectra) | Vectra and related executive models | Vectra-A, Vectra-B, Vectra-C, Signum, Omega-A, Omega-B, Calibra, Insignia, Speedster / VX220, GT |
| Basic-C (Corsa) | Corsa and smaller models | Corsa-A, Corsa-B, Corsa-C, Corsa-D, Tigra-A, Tigra-B, Meriva, Meriva-B, Agila, Agila-B, ADAM |
| Basic-D (LCVs/SUVs) | Light Commercial Vehicles and SUVs | Vivaro, Movano, Antara, Captiva, Frontera, Frontera-B, Speedster / VX220, GT, Mokka |
| Basic-E (CAN Diagnostic) | Models primarily utilising CAN-BUS | Vectra-C, Signum, Insignia, Astra-H, Astra-J, Cascada, Meriva-B, Corsa-D, ADAM, Antara, Captiva, GT, Mokka |
It's important to note that while these are common categorisations, the exact model support can vary slightly between different software versions and hardware clones. Always verify the specific model compatibility before purchasing.
How Does OP-COM Work?

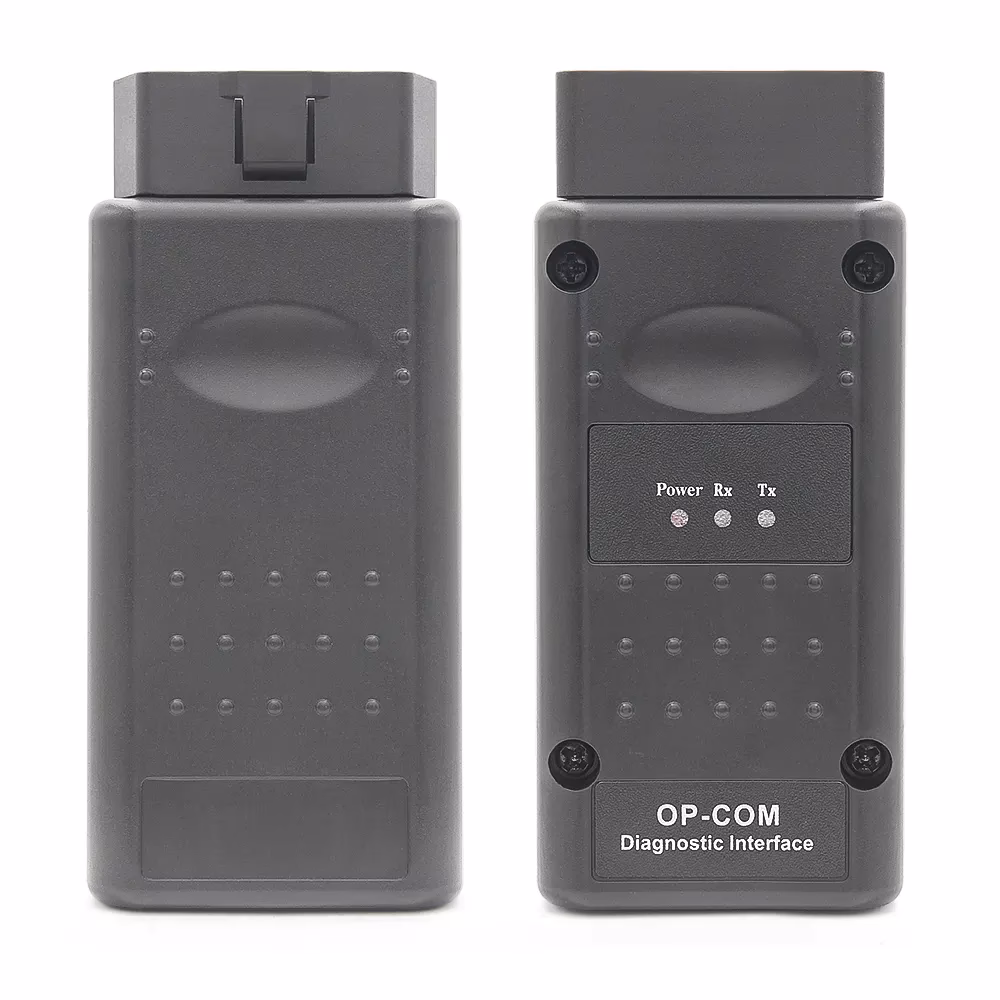

OP-COM utilises a USB-based diagnostic interface that connects to your computer. This interface plugs into the vehicle's OBD-II (On-Board Diagnostics) port, typically located under the dashboard. The software then communicates with the vehicle's ECUs using various communication protocols, including ISO9141, KW81, KW82, KWP2000, and importantly, CAN-BUS (Controller Area Network). The interface acts as a multiplexer, intelligently selecting the correct pins on the OBD connector for the specific communication protocol required by the target ECU. For CAN-BUS systems, which operate at high speeds (up to 500kbps), the USB-based interface ensures sufficient bandwidth for reliable communication, unlike older serial port interfaces.
OP-COM Versions: Basic, Professional, and Advanced
The OP-COM system is generally offered in three main tiers:
- OP-COM Basic: As detailed above, these versions are tailored for specific model ranges and are the most affordable option for hobbyists and DIY users. They offer the core diagnostic functionalities without the breadth of model support found in higher tiers.
- OP-COM Professional: This version offers broader model coverage compared to the Basic versions, encompassing a wider array of Vauxhall/Opel vehicles. It typically includes all the functionalities of the Basic versions but with expanded compatibility.
- OP-COM Advanced: This is the most comprehensive version, offering the widest model support and potentially advanced features or access to more complex modules.
It's worth noting that the distinction between 'Basic' and 'Professional' often lies primarily in the number of supported models, rather than a limitation in core features. The pricing reflects this difference, with Basic versions being significantly more affordable.
OP-COM vs. OBD-II Scanners
While a standard OBD-II scanner can read generic engine fault codes (P0xxx codes), OP-COM offers a much deeper level of access. It can communicate with virtually all ECUs in the vehicle, not just the engine control module. This means you can diagnose issues with the ABS, Airbag, Transmission, Body Control Module, and more. Furthermore, OP-COM's ability to perform output tests, adapt components, and program keys sets it apart from basic OBD-II readers.
| Feature | Standard OBD-II Scanner | OP-COM |
|---|---|---|
| ECU Access | Primarily Engine ECU | Engine, ABS, Airbag, Transmission, Body, etc. |
| Fault Code Details | Generic codes (P0xxx) | Manufacturer-specific codes, descriptions, status |
| Live Data | Limited powertrain data | Extensive data from various ECUs |
| Output Tests | No | Yes |
| Adaptations/Programming | No | Yes (Immobiliser, keys, service reset, etc.) |
| Vehicle Coverage | Most vehicles post-1996 | Primarily Vauxhall/Opel (1990-2017+) |
Important Considerations and Compatibility
When purchasing and using OP-COM, keep the following in mind:
- Software Versions: Be aware of the software version you are using (e.g., 2014.02, 2012, 201008). Older software versions may not support newer vehicle models or CAN-BUS systems effectively. For instance, the 201008 software generally supports models up to 2010, while later versions extend this. Languages may also vary; older versions often have more language options, while newer ones might be English-only.
- Firmware Versions: The interface hardware also has firmware. Some firmware versions (like V1.70) are updateable, while others (like V1.99) are fixed. Attempting to flash incompatible firmware can render the interface unusable.
- Operating System: OP-COM software is designed for Windows. It is highly recommended to use older Windows versions like Windows XP (32-bit) or Windows 7 (32-bit) for the best compatibility and ease of installation. Newer 64-bit operating systems or later Windows versions can sometimes present driver installation or software stability issues.
- Hardware Clones: Be aware that many OP-COM interfaces available on the market are clones of the original hardware. While often much cheaper, their reliability and compatibility can vary. Ensure you purchase from a reputable seller who provides support and guarantees the functionality of their product. Some clones may use different microcontrollers (e.g., PIC18F458) which can affect performance and compatibility with certain software versions.
- Driver Installation: Proper installation of the USB drivers is crucial for the interface to be recognised by the software. Follow the provided instructions carefully, and if you encounter issues, consult installation guides or video tutorials.
Frequently Asked Questions (FAQ)
Q1: Can OP-COM be used on non-Vauxhall/Opel vehicles?
No, OP-COM is specifically developed for Vauxhall and Opel vehicles and will not reliably diagnose or function with other car manufacturers.
Q2: Which version of Windows is best for OP-COM?
Windows XP (32-bit) or Windows 7 (32-bit) are generally recommended for optimal compatibility and ease of driver installation.
Q3: Can OP-COM program ECUs?
OP-COM can perform certain programming and adaptation functions, such as key programming, service interval resets, and variant coding. However, it is not a replacement for dealer-level programming tools for more complex ECU flashing or software updates.
Q4: My OP-COM interface is not detected by the software. What should I do?
Ensure the USB drivers are correctly installed. Try a different USB port on your computer. Verify that you are using a compatible version of the OP-COM software and Windows OS. Check the connection to the vehicle's OBD port.
Q5: Can I use OP-COM to update my car's software?
OP-COM is primarily a diagnostic tool. While it can change variant coding, it is not designed for flashing or updating the core firmware of ECUs in the same way official dealer tools can.
Conclusion
OP-COM represents an accessible and powerful diagnostic solution for Vauxhall and Opel owners. Its ability to read and clear fault codes, display live data, and perform various adaptations makes it an indispensable tool for troubleshooting and maintenance. By understanding the different versions, supported models, and operational requirements, you can confidently use OP-COM to keep your Vauxhall or Opel running smoothly and efficiently, saving time and money on garage visits.
