Connecting BMW Rheingold ISTA with a K+DCAN Cable: A Comprehensive Guide

For many BMW enthusiasts and independent mechanics, accessing the diagnostic and programming capabilities of BMW Rheingold ISTA is a highly sought-after skill. While many guides focus on using the more professional ICOM interfaces, a significant number of users prefer the cost-effectiveness and accessibility of the K+DCAN USB interface. This article provides a step-by-step walkthrough on how to successfully configure your PC to work with BMW Rheingold ISTA using a K+DCAN cable, specifically focusing on setting up a COM port, which is crucial for establishing communication between your vehicle and diagnostic software.

Understanding the K+DCAN Cable and ISTA

The K+DCAN cable is a popular aftermarket diagnostic tool that allows for bidirectional communication with BMW vehicles. It translates the proprietary protocols used by BMW's ECUs into a format that your PC can understand. BMW Rheingold ISTA (Integrated Service Technical Application) is the official diagnostic software suite used by BMW dealerships. It encompasses ISTA/D (for diagnostics and troubleshooting) and ISTA/P (for programming and coding). By successfully connecting ISTA to your vehicle via a K+DCAN cable, you gain access to a powerful suite of tools for diagnosing faults, performing maintenance tasks, and even coding new features.

Essential Preparations: What You'll Need

Before you begin the connection process, ensure you have the following:

• BMW Rheingold ISTA Software: You'll need the latest compatible version. As of recent updates, versions like 2024.08 BMW Rheingold ISTA+ 4.48.40, 4.23.14 ISTA-P 3.71 are readily available. Ensure you have a reliable source for the software and its associated installation files.
• K+DCAN USB Cable: A functional K+DCAN cable is paramount. For FTDI-based cables, it's advisable to use the latest available drivers to ensure optimal performance and compatibility.
• A Laptop or PC: Running a compatible version of Windows (typically Windows 7, 8, or 10, 32-bit or 64-bit).
• BMW Vehicle: With the OBD-II port accessible.
• Administrative Privileges: On your PC for driver installations and software configuration.

Step-by-Step Connection Procedure

Follow these steps meticulously to establish a connection between your PC and your BMW using the K+DCAN cable and ISTA:

Step 1: Install K+DCAN Cable Drivers

Begin by plugging your K+DCAN cable into a USB port on your PC. If the drivers are not automatically recognized, you will need to install them manually. For FTDI-based cables, which are very common, download and install the latest drivers from the FTDI website or your cable manufacturer's recommended source. Ensure the installation completes without errors.

Step 2: Configure the COM Port

This is a critical step for establishing communication. ISTA relies on specific COM port settings. We will configure the USB-to-serial port created by your K+DCAN cable to COM9 with a latency timer of 1.

1. Open the Device Manager on your PC. You can do this by right-clicking the Start button and selecting "Device Manager" or by searching for it in the Windows search bar.
2. Locate "Ports (COM & LPT)" in the Device Manager list and expand it.
3. You should see an entry for your K+DCAN cable, likely listed as "USB Serial Port" or similar. Right-click on this port and select "Properties".
4. Navigate to the "Port Settings" tab.
5. Click on the "Advanced..." button.
6. In the "Advanced Port Configuration" window, find the "COM Port Number" dropdown menu. Select COM9. If COM9 is already in use, you may need to choose another available COM port, but COM9 is commonly recommended.
7. Locate the "Latency Timer" setting and change its value to 1 (milliseconds). This setting is crucial for real-time data transfer.
8. Click "OK" on the "Advanced Port Configuration" window, and then "OK" again on the "USB Serial Port Properties" window.

Step 3: Configure Ediabas.ini

Ediabas is a middleware layer that ISTA uses to communicate with vehicle hardware. You need to configure its settings to recognize your K+DCAN cable and COM port.

1. Navigate to the Ediabas installation directory. This is typically located at C:\EDIABAS\BIN\.
2. Open the file named EDIABAS.INI using Notepad. To do this, right-click the file and select "Open with..." -> "Notepad".
3. Within the EDIABAS.INI file, locate the [Interface] section. Ensure the line reads: Interface = STD:OBD. This specifies the standard OBD communication protocol.
4. Under the [TCP] settings (if present, or add them if not), ensure the line reads: Port = 6801. This is the default port for Ediabas communication.
5. Save the changes to EDIABAS.INI and close Notepad.

Step 4: Configure Obd.ini

The Obd.ini file further refines the communication parameters.

1. Still within the C:\EDIABAS\BIN\ directory, open the file named OBD.INI using Notepad.
2. Ensure that the line specifying the COM port is set correctly. It should read: Port=Com9. Make sure this matches the COM port you configured in Device Manager.
3. Save the changes to OBD.INI and close Notepad.

Step 5: Connect to the Vehicle

With your PC configured, it's time to connect to the car:

1. Ensure your BMW vehicle is present and the ignition is turned to the ON position (but the engine does not necessarily need to be running, though it's often recommended for certain tasks).
2. Connect the K+DCAN cable to your PC's USB port and then plug the OBD-II connector into your BMW's OBD-II port, usually located under the dashboard near the steering column.

Step 6: Launch and Configure ISTA

Now you can launch the ISTA software and perform the internal configuration.

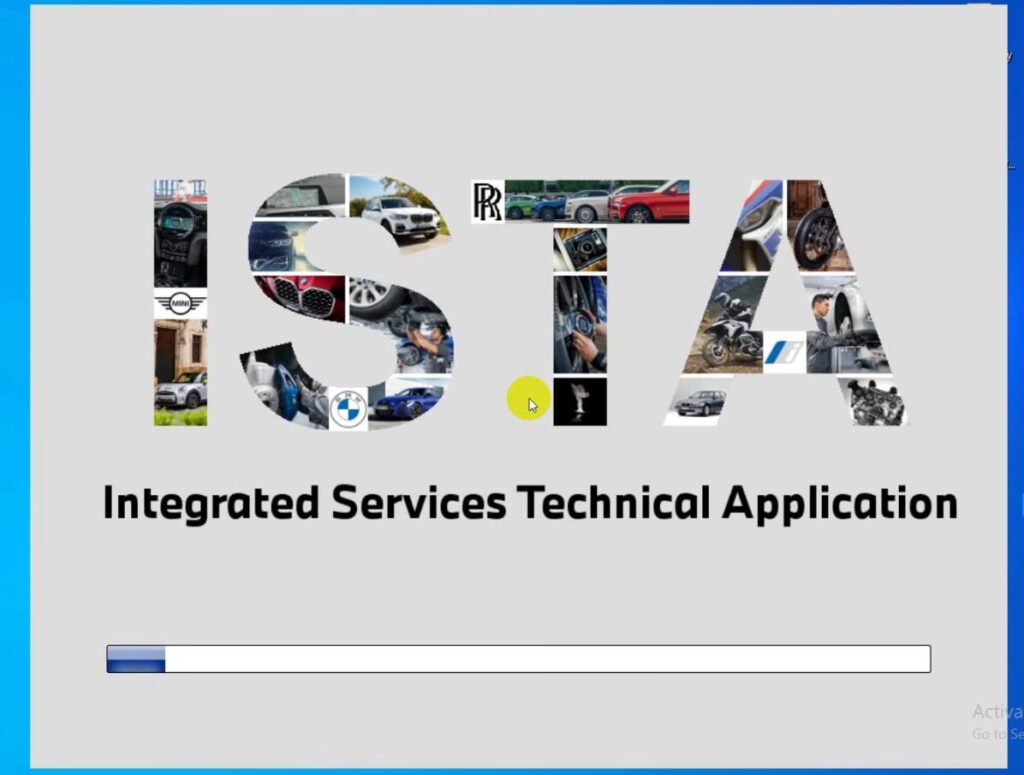

1. Locate the ISTA shortcut on your desktop or in your Start menu and launch BMW Rheingold ISTA. Allow the software to fully boot up, which may take a few minutes depending on your system's performance.
2. Once ISTA has loaded, click on the settings button. This is typically represented by a gear icon or found within a "Settings" or "Configuration" menu.
3. Navigate to the "VCI Config" tab.
4. Select "Ediabas standard settings (ediabas.ini)" from the available options. This tells ISTA to use the configuration you've just set up in the Ediabas files.
5. Click "OK" to confirm the VCI configuration. ISTA may prompt you to restart or re-initialize the connection.

Step 7: Read Vehicle Data

With the connection established and configured, you can now attempt to read vehicle data.

1. Go to the "Operations" menu within ISTA.
2. Select "Read Out Vehicle Data".
3. Choose "Complete Identification". ISTA will attempt to communicate with the vehicle's ECUs to gather information about its configuration, VIN, and installed modules. If successful, you will see a detailed vehicle identification report.

Troubleshooting Common Issues

Connecting diagnostic software can sometimes be a bit tricky. Here are some common issues and their potential solutions:

Alternative Installation and Configuration Notes

While this guide focuses on the K+DCAN connection, it's worth noting the broader context of ISTA installation. Comprehensive installation guides often include steps like:

• Running unblock.reg: This registry file helps unblock downloaded files, preventing potential issues during extraction and execution. It's crucial to reboot your PC after running this.
• Installing Prerequisites: Ensure that necessary components like Visual C++ Redistributable Packages (for various versions, especially 2013) and .NET Framework (e.g., 4.6) are installed. These are foundational for many applications, including ISTA.
• Extracting with 7-Zip ONLY: ISTA's core files are often compressed in a 7z archive. Using 7-Zip is highly recommended, as it's known to handle these archives correctly, even with administrator privileges. Extracting to the root of a drive (like C:\ or D:\) can sometimes avoid permission issues.
• Registry Fixes: Specific registry files (like Ista-prog-x64.reg and Ista-prog-x86.reg) are often provided to ensure ISTA integrates correctly with your operating system.
• Running as Administrator: Always launch ISTA's executable (ISTAGUI.exe) with administrator privileges. This is essential for the software to access necessary system resources and communicate effectively.
• License and Dealer ID: During the initial launch, ISTA will likely prompt for a license key (found in a provided text file) and a dealer ID (often "1" is sufficient for basic operation).

Frequently Asked Questions (FAQ)

Q1: Can I use any USB to OBDII cable with ISTA?

A1: While many generic OBDII cables exist, for BMW ISTA, a K+DCAN cable specifically designed for BMW vehicles is highly recommended. These cables are built to handle the specific communication protocols used by BMW.

Q2: What is the significance of setting the latency timer to 1?

A2: The latency timer dictates how often the PC's USB driver checks for activity on the serial port. Setting it to the lowest value (1ms) ensures the quickest response time, which is vital for real-time diagnostic data and control operations in ISTA.

Q3: My K+DCAN cable has a switch. How should I set it?

A3: Most K+DCAN cables have a switch to toggle between different communication modes (e.g., for older E-series vs. newer F-series cars). For most modern diagnostics and coding with ISTA, the switch should typically be set to the position that enables both DCAN (for K-line) and PT-CAN (for CAN bus) communication. Consult your cable's documentation for specifics, but generally, having both active is preferred.

Q4: What if COM9 is already in use?

A4: If COM9 is occupied, you can choose another available COM port number (e.g., COM3, COM4, COM5, COM7, COM8, COM10). However, you MUST update the COM port number in both the Device Manager settings AND the C:\EDIABAS\BIN\OBD.INI file to match your chosen port.

Q5: Do I need to install ISTA/P separately?

A5: BMW Rheingold typically includes both ISTA/D (for diagnostics) and ISTA/P (for programming). The installation process usually covers both components. However, ensure your downloaded package is a complete suite.

Conclusion

Successfully connecting BMW Rheingold ISTA to your PC using a K+DCAN cable is an achievable task with careful attention to detail. By correctly installing drivers, configuring COM ports, and setting up the Ediabas configuration files, you unlock a powerful diagnostic toolset for your BMW. Remember to always work methodically, double-check your settings, and consult specific documentation for your ISTA version and K+DCAN cable. With this setup, you're well on your way to performing advanced diagnostics, coding, and maintenance on your BMW.
