DIY Alternator Replacement Guide

The alternator is a vital component of your car's electrical system, responsible for recharging the battery and powering all the electrical accessories while the engine is running. When it starts to fail, you might notice dimming headlights, a battery warning light on the dashboard, or a dead battery. Fortunately, changing an alternator is a manageable DIY task for many car owners with the right tools and a bit of patience. This guide will walk you through the process, ensuring you save your car's electronic memory and successfully replace your alternator.

Understanding the Alternator's Role

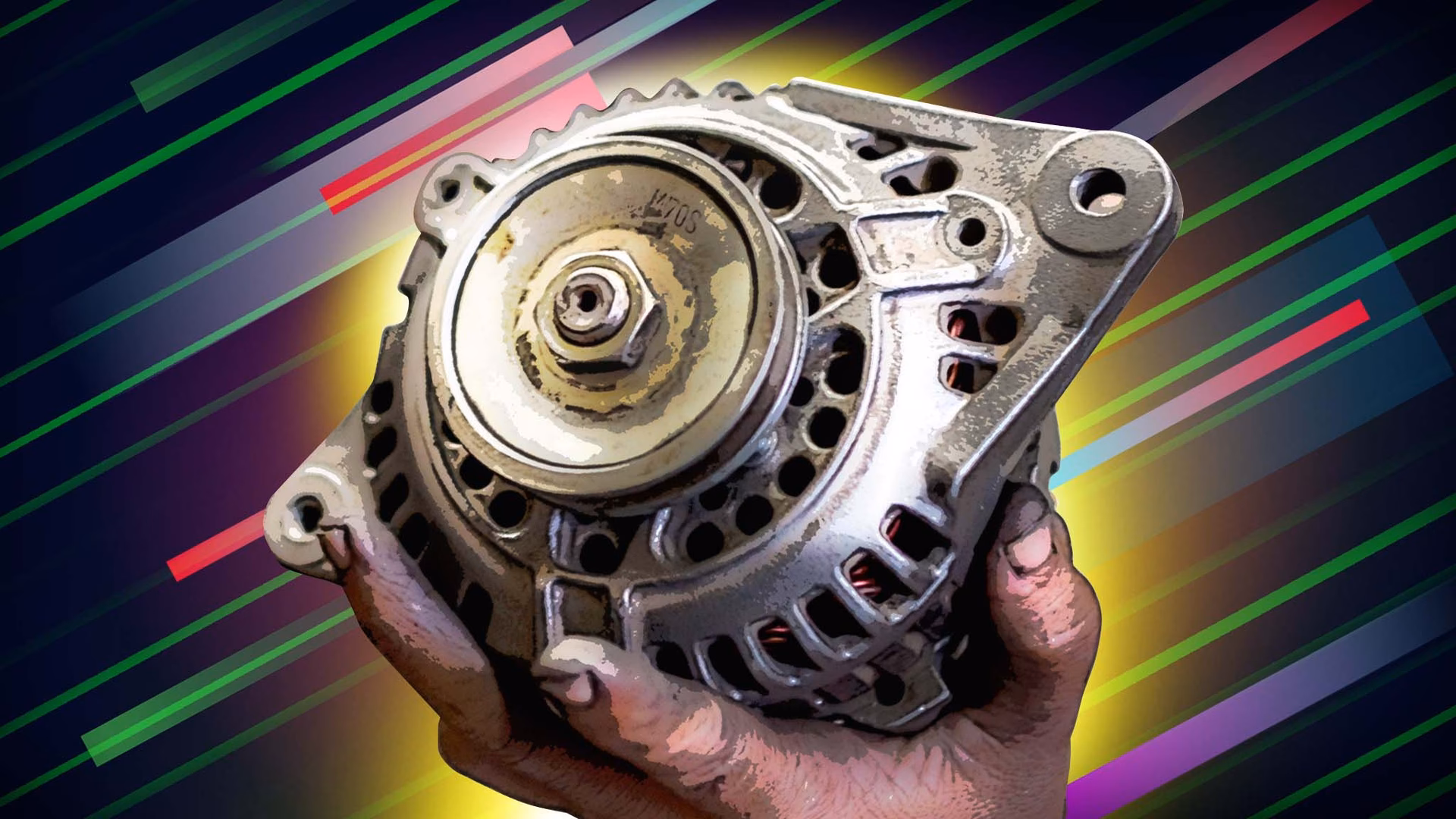

Before diving into the replacement, it's crucial to understand what the alternator does. It's essentially a small generator driven by the engine's serpentine belt. As the engine turns, the alternator converts mechanical energy into electrical energy. This electricity is then used to power your car's systems (like the radio, lights, and air conditioning) and, most importantly, to recharge the battery. Without a functioning alternator, your car will eventually run out of power and stop.

Symptoms of a Failing Alternator

Recognising the signs of a failing alternator can save you from being stranded. Common symptoms include:

• Battery Warning Light: This is often the first indicator. It might look like a battery symbol on your dashboard.
• Dimming or Flickering Lights: Headlights, interior lights, and dashboard lights may become noticeably dimmer or flicker, especially when you accelerate or decelerate.
• Strange Noises: A whining or grinding noise coming from the front of the engine could indicate a worn alternator bearing.
• Electrical Issues: Power windows operating slowly, a malfunctioning radio, or other electrical accessories not working correctly can also point to an alternator problem.
• A Dead Battery: While a dead battery can have many causes, if your battery keeps dying even after being jumped, the alternator might not be recharging it.

Tools and Materials You'll Need

To successfully replace your alternator, ensure you have the following tools and materials:

• New Alternator: Ensure it's the correct part for your car's make, model, and year.
• Memory Saver: This is crucial for preserving your car's electronic settings, such as radio presets, clock, and ECU data.
• Socket Set and Wrenches: Various sizes will be needed for bolts and nuts.
• Serpentine Belt Tool: This is often necessary to release tension on the serpentine belt.
• Pry Bar or Long Screwdriver: For leverage to manoeuvre the alternator.
• Safety Glasses: To protect your eyes from debris.
• Gloves: To keep your hands clean and protected.
• Work Light: For better visibility.
• Torque Wrench: For tightening bolts to the manufacturer's specifications.

Step-by-Step Alternator Replacement Procedure

Step 1: Save Your Car's Electronic Memory

This is a critical first step. Before disconnecting the battery, connect a memory saver device. This device plugs into your car's OBD-II port or directly to the battery terminals (using appropriate adapters) and provides a continuous low-level power supply. This ensures that your car's computer, radio presets, clock, and other essential electronic data remain intact while the battery is disconnected. Without a memory saver, you'll likely have to reset all your electronic settings after the replacement.

Step 2: Disconnect the Battery

Safety first! Locate your car's battery. Using a wrench, loosen the nut on the negative (black) battery terminal clamp. Once loose, twist and pull the cable off the terminal. Tuck it away so it cannot accidentally touch the terminal. Then, do the same for the positive (red) terminal. It's good practice to disconnect the negative terminal first and reconnect it last.

Step 3: Locate and Access the Alternator

The alternator is typically located at the front of the engine, often driven by the serpentine belt. You may need to remove other components, such as the fan shroud, air intake system, or even a motor mount, to gain proper access. Consult your car's service manual for specific locations and any parts that need to be removed.

Step 4: Release the Serpentine Belt Tension

The serpentine belt drives the alternator and other accessories. You'll need to release the tension on the belt to remove it. Most modern cars have an automatic tensioner. Locate the tensioner pulley – it's usually a spring-loaded pulley. Using a serpentine belt tool or a socket wrench on the designated bolt on the tensioner, rotate it to release the belt tension. Once the tension is off, slip the belt off the alternator pulley.

Step 5: Disconnect Electrical Connections

With the serpentine belt removed, you can now disconnect the electrical connections to the alternator. There will typically be a main power wire (usually a thick cable connected with a nut) and one or more electrical connectors or plugs. Carefully disconnect these. Sometimes, these connectors can be stiff, so a gentle wiggle or a small flathead screwdriver might be needed to release them. Ensure the battery is fully disconnected before touching these wires.

Step 6: Remove the Alternator Mounting Bolts

The alternator is usually held in place by two or three mounting bolts. These bolts might be different lengths or require specific socket sizes. Use your socket set and wrenches to loosen and remove these bolts. One of the bolts might also act as an adjustment or pivot point for belt tension. Once all bolts are removed, the old alternator should be free.

Step 7: Remove the Old Alternator

Carefully manoeuvre the old alternator out of its mounting bracket. It might be a tight fit, and you might need to use a pry bar or a long screwdriver to gently loosen it from its position. Be careful not to damage any surrounding components.

Step 8: Install the New Alternator

Position the new alternator in the mounting bracket. Align the bolt holes carefully. You may need to adjust the position of the new alternator to get the bolts to line up. Once aligned, insert and hand-tighten the mounting bolts.

Step 9: Reconnect Electrical Connections

Reconnect the electrical wires and connectors to the new alternator. Ensure they are securely fastened. Double-check that the main power wire is tightened properly with its nut.

Step 10: Reinstall the Serpentine Belt

Route the serpentine belt around all the pulleys, including the new alternator pulley. Use the serpentine belt tool to apply tension to the tensioner pulley again, and slip the belt onto the alternator pulley. Slowly release the tensioner to allow it to put the correct tension on the belt. Ensure the belt is seated correctly on all pulleys.

Step 11: Reconnect the Battery

Reconnect the battery terminals. Remember to connect the positive (red) terminal first, then the negative (black) terminal. Tighten the clamps securely.

Step 12: Start the Engine and Test

Start your car's engine. Check your dashboard for any warning lights. The battery warning light should be off. Observe the headlights and other electrical components to ensure they are operating normally. You can also use a multimeter to check the voltage output of the alternator while the engine is running. It should typically be between 13.5 and 14.5 volts.

Troubleshooting Common Issues

If the battery warning light remains on after the replacement, or if you encounter other issues, consider these possibilities:

• Loose Connections: Double-check all electrical connections and battery terminals for tightness.
• Faulty New Alternator: Although rare, the new alternator could be defective.
• Belt Slipping: Ensure the serpentine belt is correctly tensioned and not slipping.
• Wiring Problems: There might be a break or short in the wiring harness between the alternator and the battery.
• Incorrect Installation: Revisit the steps to ensure everything was installed correctly.

Comparing Alternator Types (Optional but informative)

While most modern cars use internally regulated alternators, older vehicles might have external voltage regulators. The replacement process might differ slightly for these. It's always best to refer to your vehicle's specific service manual.

Frequently Asked Questions

Q1: How long does it take to change an alternator?

For an experienced DIYer, it can take anywhere from 1 to 3 hours. For a first-timer, it might take longer, possibly 3 to 5 hours, depending on the vehicle's complexity and accessibility of the alternator.

Q2: Can I drive my car with a bad alternator?

You can drive for a short period as the car runs off the battery's stored power. However, once the battery is depleted, the car will stop running, and you'll be stranded. It's best to address the issue as soon as possible.

Q3: Do I really need a memory saver?

While not strictly mandatory for the car to function, a memory saver is highly recommended to avoid the hassle of resetting your car's electronics. It preserves your radio presets, clock, and vital computer data.

Q4: What happens if I don't disconnect the battery?

If you don't disconnect the battery, you risk short-circuiting the system when you disconnect the alternator wires, potentially damaging the new alternator, other electrical components, or even causing a fire.

Q5: Where can I find a memory saver?

Memory savers are available at most automotive parts stores, online retailers, and some electronics stores.

Changing your car's alternator is a rewarding DIY project that can save you money on labour costs. By following these steps carefully, using the right tools, and paying attention to detail, you can successfully get your vehicle's electrical system back in working order. Remember to always prioritise safety and consult your car's specific service manual if you encounter any difficulties.
