Unravelling the Automotive Air Con Machine

In the modern automotive landscape, an effective air conditioning system is no longer a luxury but a fundamental component for both driver comfort and safety. It keeps us cool on scorching summer days and crucially helps to demist windscreens in damp, chilly weather. But behind the scenes, ensuring this comfort and functionality is a sophisticated piece of garage equipment: the automotive air conditioning machine, often referred to as a Refrigerant Management Station (RMS). These machines are the unsung heroes in vehicle workshops, meticulously managing the lifeblood of your car's AC system – the refrigerant. Understanding how these intricate devices work is crucial for any mechanic or workshop manager keen on providing top-tier service and maintaining compliance.

The Heart of Automotive Climate Control: The Refrigerant Management Station (RMS)

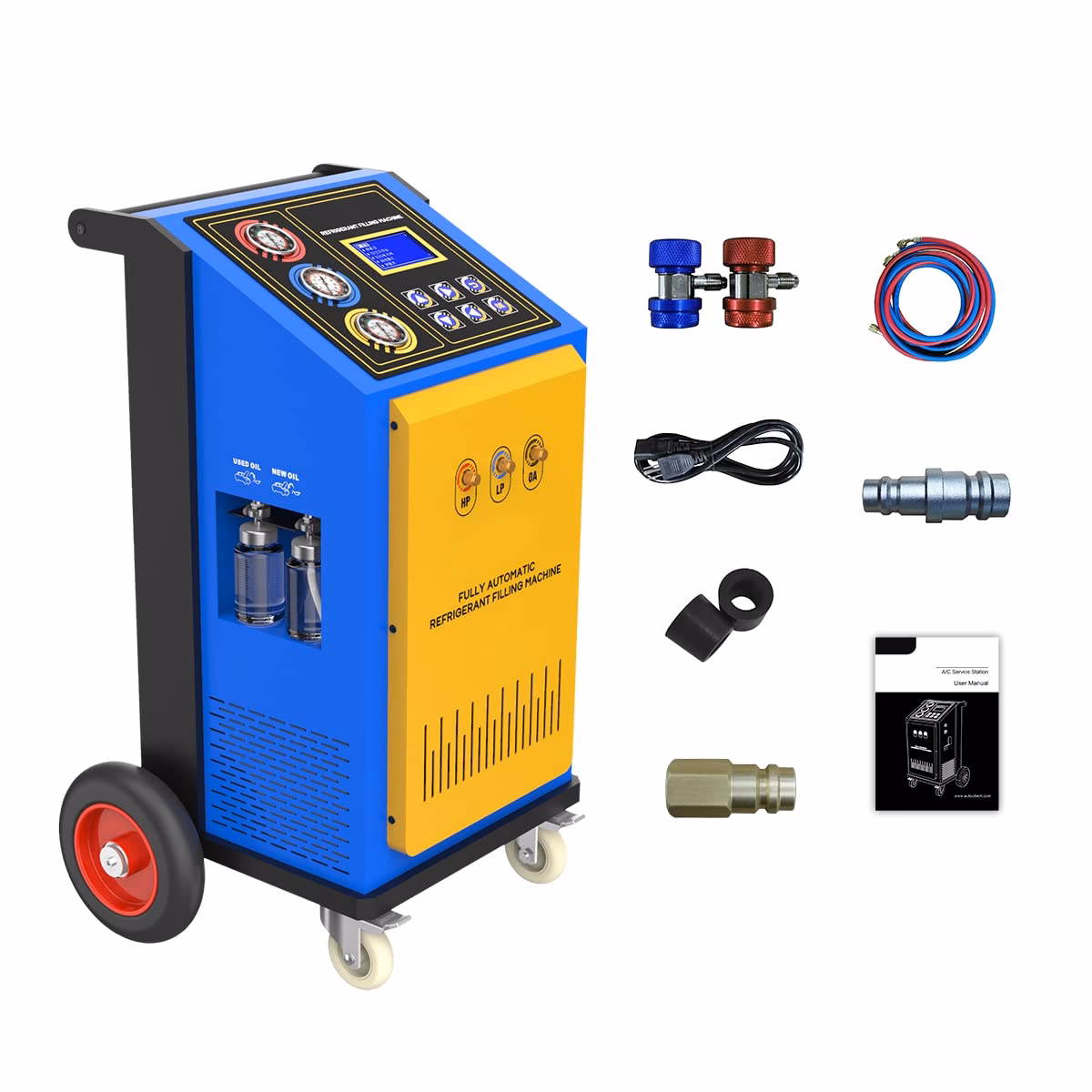

At its core, an automotive air conditioning machine, or Refrigerant Management Station, is a specialised piece of equipment designed to accurately recover, recycle, vacuum, leak test, and recharge the refrigerant in a vehicle's AC system. It's far more than just a simple pump; it's a precision instrument essential for the delicate balance of the refrigeration cycle that occurs within your vehicle. This cycle fundamentally involves the transfer of heat, moving it from inside the car to the outside atmosphere, and the RMS facilitates the handling of the critical medium that enables this transfer: the refrigerant.

The machine essentially acts as a closed-loop system for the refrigerant, ensuring environmental protection by preventing its release into the atmosphere and optimising the vehicle's AC performance by precisely controlling the amount and purity of the gas. Without a properly functioning and calibrated RMS, technicians would struggle to perform accurate and compliant AC system services, leading to inefficient cooling, potential system damage, and even environmental harm.

Deconstructing the Air Con Machine: Key Components

To truly grasp how an RMS operates, it's helpful to break down its primary components and understand their individual roles in the overall process:

• Recovery System: This is the initial stage where old, contaminated refrigerant and lubricant oil are safely extracted from the vehicle's AC system. The machine processes this recovered refrigerant, separating the oil and filtering out impurities, making it ready for reintroduction or proper disposal. This step is critical for environmental protection and cost-effectiveness.
• Vacuum Pump: Once the old refrigerant is recovered, the vacuum pump kicks in. Its purpose is to create a deep vacuum within the vehicle's AC system. This process is paramount as it removes any residual moisture and non-condensable gases (like air). Moisture is particularly detrimental as it can mix with refrigerant to form corrosive acids, leading to system damage, and air reduces the efficiency of the cooling process.
• Refrigerant Storage Tank: This internal tank holds the new, clean refrigerant ready for charging. Modern machines often have separate tanks for different refrigerant types (e.g., R134a and R1234yf).
• Charging Scale: Precision is key in AC servicing. The charging scale ensures that the exact, manufacturer-specified amount of refrigerant is injected back into the vehicle. Too little or too much can lead to poor performance or even damage.
• Manifold Gauges & Hoses: These provide real-time pressure readings from the vehicle's high and low-pressure sides, allowing the technician to monitor the system's status during recovery, vacuuming, and recharging. High-quality, robust hoses ensure safe transfer of refrigerant.
• Oil Injector: As old oil is recovered, new compressor oil (typically PAG or POE oil, depending on the refrigerant and vehicle) must be injected back into the system. The machine accurately measures and injects the correct type and quantity of oil to lubricate the compressor and other components.
• Internal Diagnostics & Software: Modern RMS units are equipped with sophisticated software that guides the technician through each step, performs automatic leak tests, and often stores service data, enhancing efficiency and accuracy.

The Operational Cycle: A Step-by-Step Guide

The process an automotive air conditioning machine undertakes is a carefully choreographed sequence, ensuring optimal performance and safety:

1. Step 1: Refrigerant Recovery: The machine is connected to the vehicle's high and low-pressure service ports. It then activates its internal pump to draw out the existing refrigerant and oil. This recovered refrigerant is routed through filters to remove contaminants and then stored in the internal tank. The old oil is collected in a separate waste oil container. This recovery process is crucial not only for environmental reasons but also to ensure that the system is free of old, potentially contaminated refrigerant before fresh gas is introduced.
2. Step 2: Vacuuming and Dehydration: Once the old refrigerant is recovered, the RMS initiates a vacuum cycle. The powerful vacuum pump evacuates the system, pulling out all air and, critically, any moisture. Water molecules, when exposed to refrigerant, can form corrosive acids over time, leading to component failure. The vacuum also helps to identify major leaks before new refrigerant is introduced. A deep, sustained vacuum indicates a leak-free system.
3. Step 3: Leak Testing: After the vacuum cycle, many modern RMS units perform an automatic leak test. The machine monitors the vacuum level for a specified period. If the vacuum holds steady, it indicates a sealed system. A drop in vacuum suggests a leak, prompting the technician to investigate and repair before proceeding. This prevents the costly waste of new refrigerant on a leaking system.
4. Step 4: Oil Injection: With the system clean and vacuumed, the RMS precisely injects the correct amount and type of fresh compressor oil. This oil is essential for lubricating the compressor, which is the heart of the AC system, and ensuring its longevity and efficient operation. Different refrigerants and vehicle manufacturers specify different types of oil, and the RMS ensures the correct one is used.
5. Step 5: Refrigerant Recharging: Finally, the machine draws new, clean refrigerant from its internal tank and accurately measures the precise amount required by the vehicle manufacturer. This exact quantity is then injected into the vehicle's AC system. The machine monitors pressures throughout this process, ensuring a smooth and controlled recharge. Once complete, the system is ready to deliver optimal cooling performance.

Refrigerant Types: R134a vs. R1234yf

Over the years, the automotive industry has evolved its choice of refrigerants, primarily driven by environmental concerns. The two most common types encountered today are R134a and R1234yf. Workshops must be equipped with machines compatible with both, or dedicated machines for each, as mixing them is not permissible and can cause significant damage.

Here's a comparative overview:

Due to the environmental regulations, particularly within the EU, R1234yf has become the standard for new vehicles since around 2017. This shift necessitates that workshops invest in compliant equipment and ensure their technicians are trained to handle both types of refrigerants safely and effectively. Many modern RMS units are now designed as dual-gas machines, capable of servicing both types, providing versatility for busy garages.

The Imperative of Professional Maintenance: Beyond Just Functionality

While understanding how an aircon machine works is vital, comprehending the critical importance of its maintenance is equally, if not more, essential for any professional workshop. An RMS is a high-precision tool that experiences significant wear and tear, and its accuracy directly impacts the quality of service provided to customers and compliance with legal standards.

• Safety & Efficiency: Regular servicing ensures that all components, from hoses and filters to the vacuum pump and internal sensors, are operating correctly. This prevents potential refrigerant leaks, ensures accurate measurements, and maintains the machine's overall efficiency, saving both time and money.
• Compliance & Legislation: This is a non-negotiable aspect. The Provision and Use of Work Equipment Regulations 1998 (PUWER) mandate that all equipment must be safe to use and maintained regularly. Furthermore, many insurers and dealership auditors insist on annual servicing and calibration of workshop RMS units to comply with dealer standards and broader legislation. A certified calibration ensures the machine's measurements are accurate and traceable to national standards, providing irrefutable proof of compliance. Workshops also need to ensure their technicians hold valid F-gas certification, such as the Level 3 City & Guilds Automotive 7543 F-Gas qualification, demonstrating their competency in handling refrigerants.
• Longevity of Equipment: Like any complex machinery, an RMS benefits immensely from preventative maintenance. Regular checks, filter replacements, and calibration prevent minor issues from escalating into costly breakdowns, extending the lifespan of a significant workshop investment.
• Customer Confidence: A workshop that visibly invests in maintaining its equipment, complete with up-to-date calibration certificates, instils confidence in its customers. It signals a commitment to quality, safety, and professional standards.

Who Keeps These Machines Running? The Role of Specialists

Given the complexity and regulatory demands surrounding automotive air conditioning machines, their maintenance and repair are best left to seasoned specialists. Companies like Automotive Services UK (ASUK), with over 30 years of dedicated automotive air conditioning experience, exemplify the expertise required in this niche industry. They understand that an RMS is not just a piece of equipment but a crucial asset for vehicle workshops and accident repair centres.

Specialist providers offer a comprehensive suite of services, going beyond simple repairs:

• Unparalleled Experience: With decades in the field, they possess a wealth of technical knowledge to diagnose and resolve any fault an RMS might develop. Their long-standing customer relationships, some dating back to 2003, speak volumes about their reliability and trustworthiness.
• Extensive Brand Coverage: These specialists are equipped to service and repair most leading makes of machine, including those approved by major manufacturers like BMW and Mercedes Benz, as well as popular brands such as Waeco, Texa, Robinair, Autoclimate, Bosch, SnapOn, Beissbarth, Brainbee, Hella Gutmann, Spin, Ecotechnics, Four Seasons, and Euromax. This broad capability ensures that most workshops can rely on a single provider for their diverse equipment needs.
• Technical Support & OEM Parts: Reputable providers offer free technical support for most leading makes of Refrigerant Management Stations, a valuable resource for workshops facing immediate operational queries. They also stock a wide range of OEM (Original Equipment Manufacturer) parts, ensuring that repairs are conducted with components designed specifically for the machine, maintaining its integrity and performance.
• F-Gas Training & Certification: Beyond machine maintenance, specialists like ASUK are instrumental in ensuring technicians are compliant. They offer F-gas certification, such as the Level 3 City & Guilds Automotive 7543 F-Gas qualification. The convenience of completing this certification within just a few hours, often without the need for off-site training or home study, is a significant benefit for busy workshops, allowing technicians to return to work quickly. Their impressive pass rate, often in excess of 99%, highlights the quality of their training.
• Calibration & Compliance: A key service offered is the annual calibration of RMS units. Specialists provide free calibration certificates upon completion of service, which are traceable to national standards and comply with all vehicle manufacturer-approved standards. They can even provide PAT Testing, further ensuring workshop safety and compliance.
• Diverse Customer Base: Their services cater to a wide array of clients, including car, truck, bus, agricultural, and plant equipment workshops, automotive development companies, Accident Repair Centres, MOD and aviation sites, Motor Sport teams, and Specialist Vehicle Workshops. This breadth of experience means they understand the unique demands of different operational environments.
• Leasing Options: Recognising the significant investment an RMS represents, some providers, like Automotech (established in 1972) and ASUK, offer innovative leasing solutions specific to the garage equipment market. This can make acquiring or upgrading essential equipment more financially accessible for workshops.

Navigating the World of RMS Servicing: What to Look For

When selecting a partner for your automotive air conditioning machine's maintenance, consider the following:

• Proven Experience: Look for companies with a long track record and deep expertise in automotive AC equipment. Decades of experience, like Automotech's nearly half-century or ASUK's 30+ years, are strong indicators of reliability.
• Comprehensive Service: Ensure they offer not just repairs but also annual servicing, calibration with traceable certificates, and technical support.
• Parts Availability: A good provider will stock OEM parts to ensure quality repairs and minimise downtime.
• Training & Compliance Support: If you need F-gas training for your technicians, choose a provider that offers convenient and certified courses.
• Customer Service Ethos: Prioritise companies known for their honesty, reliability, and good old-fashioned customer service, ensuring a partnership you can trust for years to come.

Frequently Asked Questions (FAQs)

How often should my automotive aircon machine be serviced?

For optimal performance, safety, and compliance with regulations such as PUWER, your automotive aircon machine (RMS) should be serviced and calibrated annually. Many insurers and dealership auditors specifically require annual servicing to maintain standards and legislative compliance.

What is F-gas certification and why is it important for technicians?

F-gas certification, such as the Level 3 City & Guilds Automotive 7543 F-Gas qualification, is a legal requirement for technicians handling fluorinated greenhouse gases (F-gases), which include refrigerants like R134a and R1234yf. It demonstrates that the technician has the necessary skills and knowledge to safely and legally work with these substances, preventing leaks and protecting the environment. Without this certification, technicians are not permitted to work on vehicle AC systems.

Why is annual calibration of an RMS necessary?

Annual calibration is crucial because it ensures the accuracy of your aircon machine's measurements, particularly for refrigerant recovery and charging. Over time, sensors and scales can drift, leading to incorrect refrigerant amounts being added to vehicles, which can result in inefficient cooling, system damage, or even a system that doesn't work at all. Calibration certificates traceable to national standards also provide vital proof of compliance for audits and legal requirements.

Can I use one aircon machine for both R134a and R1234yf refrigerants?

You can, but only if it's a dedicated 'dual-gas' machine designed for both refrigerants. It is absolutely critical not to mix refrigerants, as this can severely damage both the vehicle's AC system and the RMS itself. Dual-gas machines have separate internal tanks, hoses, and recovery systems for each refrigerant type to prevent cross-contamination.

What are the signs that my aircon machine needs maintenance?

Common signs that your RMS may require maintenance include inaccurate charging amounts (vehicle AC not cooling effectively after service), slow recovery or vacuum cycles, error messages on the display, unusual noises during operation, or visible leaks around hoses or connections. If your machine fails its annual calibration, that's also a clear indicator that maintenance or repair is needed. Proactive maintenance is always better than reactive repairs.
