Fix Your Car's AC Line with a Splice Kit

There's nothing quite like the relief of a blast of cold air from your car's air conditioning on a sweltering summer day. Conversely, there's little more frustrating than turning on the AC only to be met with warm, stale air. A common culprit for this discomfort is a leak in the AC lines. While a trip to the garage for a full line replacement can be an expensive affair, many motorists wonder if there’s a more budget-friendly, DIY solution. The good news is, for certain types of damage, a simple AC line splice kit can indeed offer a cost-effective repair, allowing you to restore your vehicle's cool comfort without breaking the bank.

Understanding Your Car's AC System

Before diving into repairs, it's crucial to understand the basic components of your car's air conditioning system. It's a closed loop that circulates refrigerant, typically R-134a or, in newer vehicles, R-1234yf, through various components: the compressor, condenser, expansion valve (or orifice tube), and evaporator. The AC lines are the arteries of this system, carrying the refrigerant between these components. They are typically made of aluminium or rubber, sometimes a combination, and are designed to withstand significant pressure and temperature fluctuations.

Over time, these lines can suffer wear and tear. Common causes of damage include:

• Vibration and Abrasion: Lines rubbing against other engine components.
• Corrosion: Exposure to road salt, moisture, and chemicals.
• Impact Damage: Stones or road debris hitting the lines.
• Ageing and Material Fatigue: Rubber hoses can crack, and aluminium lines can develop pinholes.

Even a tiny pinhole leak can lead to a complete loss of refrigerant, rendering your AC system ineffective. Identifying and repairing these leaks promptly is key to maintaining your vehicle's cooling performance.

What is an AC Line Splice Kit?

An AC line splice kit is a repair solution designed to mend small holes, cracks, or punctures in existing AC lines without requiring a full line replacement. These kits typically consist of a coupling or union that creates a secure, leak-proof connection over the damaged section of the line. They usually come in various sizes to match different line diameters and can be made for both aluminium and rubber lines.

Common types of splice kits include:

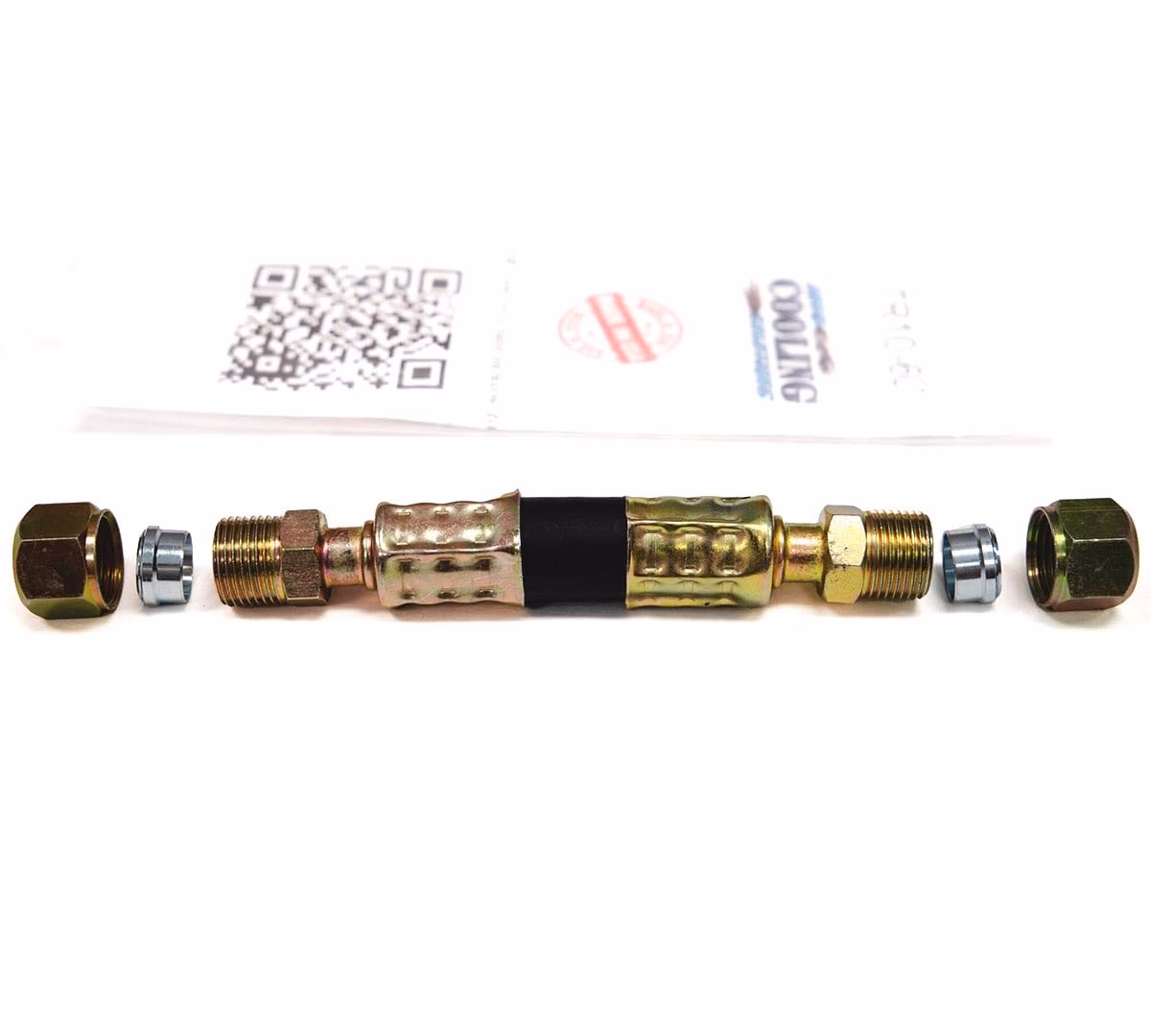

• Compression Fittings: These use a ferrule and nut to create a tight seal.
• Push-Connect Fittings: Designed for quicker installation, these often use O-rings and retainers.
• Barb Fittings (for rubber hose): Used with hose clamps to secure a rubber hose.

The principle behind them is straightforward: cut out the damaged section of the line and insert the splice, effectively creating a new, sealed segment.

Can You Really Repair an AC Line with a Splice Kit?

The definitive answer is yes, you absolutely can repair certain types of AC line damage using a splice kit. For minor leaks, such as a small pinhole, a single crack, or a section that has been chafed, a splice kit can provide a reliable and lasting repair. Many experienced mechanics, including those with decades of hands-on experience, advocate for splice kits as a practical DIY solution that saves both time and money compared to sourcing and fitting an entirely new line.

However, it's crucial to understand that a splice kit is not a universal fix. Its effectiveness depends heavily on the nature and location of the damage. For instance, a small perforation in a straight section of an aluminium line is a prime candidate for a splice, whereas a large rupture near a bend or a fitting might necessitate a more comprehensive repair or replacement.

When is a Splice Kit the Right Solution?

A splice kit is an excellent choice for:

• Small Pinhole Leaks: Ideal for tiny perforations caused by corrosion or minor impact.
• Straight Line Sections: Works best on straight, easily accessible parts of the line where there's enough room to cut and install the splice.
• Minor Cracks: Short, hairline cracks that haven't compromised the line's structural integrity too severely.
• Rubber Hose Damage: Splice kits designed for rubber hoses can effectively repair tears or cuts.

If the damage is isolated and the surrounding material of the line is in good condition, a splice kit can offer a semi-permanent repair, restoring system integrity and preventing further refrigerant loss.

When is a Splice Kit NOT the Right Solution?

While versatile, splice kits have limitations. They are generally unsuitable for:

• Large Ruptures or Severed Lines: If a significant portion of the line is missing or heavily damaged, a splice kit won't provide adequate structural integrity.
• Damage Near Fittings or Bends: It's often impossible to get a clean cut and secure seal near a factory crimp, a sensor, or a tight bend.
• High-Pressure Discharge Lines: While some kits are rated for high pressure, repairing the discharge line (from the compressor to the condenser) often carries higher risks due to the extreme pressures involved. Some experts prefer a full replacement in these areas for maximum safety.
• Heavily Corroded or Deteriorated Lines: If the line material itself is extensively corroded and weakened beyond the immediate leak point, a splice will likely fail quickly as new leaks develop nearby.
• Multiple Leaks: If there are several leaks along the line, it indicates widespread deterioration, making a full replacement more sensible.

Always assess the damage carefully. If in doubt, seeking professional advice is always recommended.

Tools and Materials You'll Need

Before you begin, gather the following:

• AC Line Splice Kit (correct size and type for your line)
• Safety Glasses and Gloves
• Hose Cutter or Fine-Tooth Saw (for clean cuts)
• Deburring Tool or Fine-Grit Sandpaper
• Refrigerant Recovery Machine (critical for safety and legality)
• Vacuum Pump (for evacuating the system)
• Manifold Gauge Set
• Refrigerant (R-134a or R-1234yf, as per your vehicle's specification)
• Leak Detector (UV dye kit or electronic sniffer)
• Wrenches (if using compression fittings)
• Marker
• Clean Rags

Step-by-Step Guide to Repairing an AC Line with a Splice Kit

1. Safety First!

Automotive AC systems contain refrigerants under pressure, which can cause frostbite if they come into contact with skin or eyes. Always wear safety glasses and gloves. Also, releasing refrigerants into the atmosphere is harmful to the environment and illegal in many regions, including the UK. You must recover the refrigerant before working on the system.

2. Locate the Leak

If you haven't already, pinpoint the exact location of the leak. This can be done using:

• UV Dye: Add UV dye to the system, run the AC, then use a UV light to spot the glowing leak.
• Electronic Leak Detector: A sniffer tool that detects refrigerant gas.
• Soapy Water: Spray a solution of soapy water on suspected areas; bubbles will form where gas is escaping.

3. Discharge and Recover the System

This step is non-negotiable. Connect your manifold gauge set and refrigerant recovery machine to the high and low-pressure service ports. Follow the machine's instructions to safely recover all refrigerant from the system. Once recovered, the gauges should read zero psi.

4. Prepare the Line

• Cut Out the Damaged Section: Using a sharp hose cutter or a fine-tooth saw, make clean, straight cuts on either side of the damaged area. Ensure the cuts are perpendicular to the line. You need to remove enough material to leave clean, healthy line on both ends for the splice.
• Measure and Mark: Measure the length of the splice fitting. Mark the line precisely where the ends of the splice will sit to ensure it covers the cut area adequately.
• Deburr the Ends: After cutting, use a deburring tool or fine-grit sandpaper to smooth the inside and outside edges of the cut line. This prevents damage to O-rings and ensures a proper seal. Clean away any debris.

5. Install the Splice Kit

Follow the specific instructions provided with your splice kit, as designs vary. Generally:

• For Compression Fittings: Slide the nut and then the ferrule onto each end of the line. Insert the fitting body into the line ends. Hand-tighten the nuts, then use wrenches to tighten them further, ensuring a snug, leak-proof seal. Do not overtighten.
• For Push-Connect Fittings: Lubricate the O-rings on the fitting with a small amount of PAG oil (compatible with your AC system). Push the prepared line ends firmly into the fitting until they click or are fully seated. Ensure the retaining clips are secure.
• For Rubber Hose Kits: Slide the clamps onto the hose ends. Insert the barb fitting fully into each hose end. Secure with the hose clamps, ensuring they are tight but don't cut into the hose.

Ensure the splice is firmly seated and feels robust. Give it a gentle tug to confirm it won't pull apart.

6. Evacuate the System

Once the splice is installed, you need to remove all air and moisture from the system. Air contains moisture, which can mix with refrigerant to form corrosive acids, damaging components. Connect your vacuum pump to the manifold gauge set. Open the low and high-side valves on the manifold gauges and start the vacuum pump. Pull a deep vacuum (typically -29 to -30 inHg or -100 kPa) for at least 30-60 minutes, or longer for systems exposed to atmosphere for extended periods. This boils off moisture and removes non-condensable gases.

7. Recharge the System

After evacuating, close the manifold gauge valves and shut off the vacuum pump. Observe the gauges for 15-30 minutes; if the vacuum holds, the system is leak-free (at least at atmospheric pressure). If the vacuum drops, you still have a leak. Once confirmed, disconnect the vacuum pump and connect your refrigerant can or cylinder. Introduce the correct amount and type of refrigerant according to your car's specifications (usually found on a sticker under the bonnet or in the owner's manual). Recharge slowly, primarily through the low-pressure side, with the engine running and AC on full blast, until the correct pressure and charge amount are achieved.

8. Leak Test Again

After recharging, run the AC for a few minutes, then re-check the spliced area and other connections with your leak detector or soapy water. Confirm there are no new leaks. Feel the air coming from the vents; it should be cold.

Pros and Cons of Using a Splice Kit

Professional Repair vs. DIY Splice Kit

Deciding between a DIY splice kit and a professional repair often comes down to cost, complexity, and confidence.

For those with the right tools, some mechanical aptitude, and a commitment to following safety procedures, a DIY splice kit can be a highly rewarding and economical choice. However, if you're unsure, lack the necessary equipment, or the damage is extensive, a professional repair is the safer and more reliable option.

Common Mistakes to Avoid

• Not Recovering Refrigerant: Illegal and dangerous. Always use a recovery machine.
• Improper Cuts: Jagged or angled cuts will prevent a good seal. Ensure they are clean and straight.
• Not Deburring: Sharp edges can cut O-rings, leading to immediate leaks.
• Using the Wrong Size Kit: Measure your line diameter precisely.
• Not Evacuating Properly: Leaving air and moisture in the system will lead to premature component failure.
• Over or Undercharging: Incorrect refrigerant levels will hinder AC performance and can damage the compressor. Always use the specified amount.
• Ignoring Other Leaks: Repairing one leak won't help if there are others. Always perform a thorough leak check.

Maintaining Your AC System After Repair

Once your AC line is repaired and the system is functioning again, a little ongoing care can help prolong its life:

• Regular Use: Run your AC for at least 10 minutes once a week, even in winter. This keeps the seals lubricated and prevents refrigerant from settling.
• Keep it Clean: Periodically clean the condenser (the radiator-like component at the front of the car) to ensure good airflow.
• Monitor Performance: If the air doesn't feel as cold as it should, or you hear unusual noises, get it checked. Early detection of issues can prevent costly repairs.

Frequently Asked Questions (FAQs)

How long does a splice kit repair last?

If installed correctly on suitable damage, a splice kit repair can last for many years, often for the remaining life of the vehicle. Its longevity depends on the quality of the kit, the precision of the installation, and the surrounding condition of the AC line. It's not necessarily a temporary fix, but its durability can vary more than a full line replacement.

Is it safe to repair AC lines myself?

Yes, it can be safe if you follow proper procedures, especially regarding refrigerant handling. The biggest risks are exposure to high-pressure refrigerant (leading to frostbite or chemical burns) and releasing harmful gases into the atmosphere. Using the correct tools, wearing personal protective equipment, and understanding how to safely recover and recharge the system are paramount.

Do I need special tools to evacuate and recharge?

Absolutely. You will need a refrigerant recovery machine (often rented from auto parts stores or specialist tool hire companies), a vacuum pump, and a manifold gauge set. Attempting to "vent" refrigerant to the atmosphere is illegal and environmentally damaging.

Can I use a splice kit on any AC line?

No. Splice kits are typically designed for specific line materials (aluminium or rubber) and diameters. They are also best suited for straight sections of line with minor, isolated damage. They are generally not recommended for areas near bends, fittings, or for lines that are extensively corroded or damaged.

What type of refrigerant do I need for my car?

Most vehicles manufactured before 2017 use R-134a refrigerant. Newer vehicles (post-2017 in the EU/UK) are increasingly using R-1234yf, which is more environmentally friendly but often requires different charging equipment. Always check the sticker under your bonnet (usually near the AC components) or your owner's manual to confirm the correct refrigerant type and capacity for your specific vehicle.

Conclusion

Repairing a car AC line with a splice kit is a viable and often highly effective solution for many common leaks. It offers a significant cost saving over full line replacement and, for the competent DIY mechanic, can be a rewarding project. By understanding the limitations of splice kits, preparing properly, using the right tools, and meticulously following each step – especially those related to refrigerant handling and system evacuation – you can confidently restore your vehicle's air conditioning, ensuring cool, comfortable journeys ahead. Always prioritise safety and environmental responsibility throughout the repair process.
