Fix Your Car Heater Blower: A UK Guide

There’s nothing quite like a blast of warm air on a chilly British morning, or a refreshing cool breeze on a rare scorching summer’s day. Your car’s heating, ventilation, and air conditioning (HVAC) system is crucial for comfort and demisting, but what happens when the fan only works on one speed, or not at all? Fear not, as many common issues with your car’s heater blower can be diagnosed and repaired right in your driveway. Drawing on decades of experience from seasoned automotive technicians, this comprehensive guide will walk you through the intricacies of your blower system, identifying common faults and providing step-by-step instructions for getting your vehicle’s climate control back in full working order.

Understanding Your Car's Heater Fan System

At the heart of your car’s climate control system is the heater fan, often referred to as the blower motor. Its primary function is to draw air from outside or recirculate interior air, pushing it through the heater core for warmth or the AC evaporator coil for cooling, before distributing it through your vehicle’s vents. The operation of this fan is surprisingly straightforward yet relies on a few key components working in harmony.

Power, in the form of voltage, is supplied to the blower motor from the vehicle’s electrical system, typically originating from the battery via the ignition switch or a junction block. This power then travels through a dedicated fuse – a critical safety component – before reaching the multi-speed fan switch located on your dashboard. This switch is where you, the driver, select your desired fan speed, usually offering four distinct settings, from a gentle waft to a powerful gust.

The magic behind these varying speeds lies with the blower motor resistor module. Rather than directly controlling voltage, the fan switch directs the voltage to this resistor module. Depending on your chosen fan speed setting, the resistor module cleverly manipulates the electrical current being sent to the blower motor. By increasing or decreasing this current, the motor’s rotational speed is adjusted, resulting in the desired airflow. A low current means a soft breeze, perfect for a subtle circulation, while a high current delivers a driving wind, ideal for rapid heating or cooling. This intricate dance of components ensures your comfort, whether you’re battling the winter chill or seeking refuge from the summer heat.

Why Is My Car Heater Fan Only Working on One Speed?

This is arguably one of the most common complaints regarding vehicle climate control systems, and it almost always points to a specific culprit. If your car heater fan is only operating at its highest speed, and perhaps not at any other setting, the most likely cause is a defective resistor within the blower motor circuit. While it's always prudent to “always check the fuses first,” as advised by ASE Master Technician Bill Kirkpatrick, a faulty resistor is far more probable.

Most car manufacturers employ a series of different rated resistors to allow for the various fan speeds. These resistors are connected in a series, much like old-fashioned Christmas tree lights. In such a setup, if one bulb burns out, the entire string can go dark. Similarly, if one or more of these resistors in your car's system fail or burn out, it disrupts the circuit for the lower speeds. The reason you’re typically left with only the high-speed setting is that the higher current required for maximum blower motor speed is often supplied through a separate, heavy-duty leg of the circuit, usually bypassing the main resistor pack and controlled by a robust relay. This separate pathway ensures that even if the resistors for lower speeds fail, the critical high-speed function (often vital for demisting) remains operational, albeit as your only option.

While less common, Bill Kirkpatrick also notes that “a defective [fan speed] switch or related wiring could cause only one speed.” However, the resistor module remains the primary suspect in most cases of single-speed operation.

What is a Blower Motor Resistor Module?

As the name suggests, resistors are components designed to resist the flow of electrons, thereby controlling the amount of current in an electrical circuit. In the context of your car’s blower fan, the blower motor resistor module plays a pivotal role in regulating the fan’s speed. As Joe Simes, an ASE and Toyota Master Technician, explains, “Depending on the blower motor fan speed switch position, the blower motor resistor module uses internal resistors that increase or decrease the amount of current (flow of electrons) to the blower motor.”

Historically, in older vehicles, blower motor resistor modules achieved this current control using different diameters and lengths of coiled wire. These wires, when current passed through them, would generate heat (which is why the module is often placed in the airflow) and effectively reduce the current reaching the motor. Newer vehicles, however, have evolved. Modern resistor modules typically utilise transistors to control current flow. While the technology differs, the underlying concept remains the same: transistors allow for a more precise and often smoother variation in fan speeds compared to the stepped resistance of coiled wires.

A further development, as noted by Simes, is that “Modern/automatic car climate control systems having digital displays may have the blower resistors (transistors) integrated into the blower switch.” These more complex, integrated systems often require specialised diagnostic tools and expertise, making them a job best left to professional technicians.

Here’s a quick comparison of common blower system issues:

DIY Repair: Replacing the Blower Motor Resistor Module

For many vehicles, replacing the blower motor resistor module is a relatively straightforward repair that can be completed by a competent DIY mechanic. The module itself is often inexpensive, though prices can vary significantly between models, ranging from around £20 to over £200. Before you begin, ensure you have the correct replacement part for your specific make, model, and year of vehicle.

Locating the Resistor Module

The blower motor resistor module is typically installed within the heater ductwork. Its placement is strategic: close to the fan so that air moving across it helps dissipate the heat generated by the resistors, preventing them from overheating. You’ll commonly find it under the dashboard, often on the passenger side, or sometimes under the bonnet near the blower motor itself. It’s usually a square or rectangular component with a wiring harness containing multiple wires connected to it, typically secured by two or three small screws or a spring retaining clip. If you struggle to locate it, consulting your vehicle’s service manual is highly recommended.

Step-by-Step Replacement

1. Safety First: Always begin by disconnecting the negative (-) battery cable. This crucial step prevents accidental shorts and protects your vehicle’s electrical system and yourself from injury during the repair.
2. Inspect and Disconnect Wiring: Carefully examine the wiring harness connected to the old module. As Joe Simes advises, “Check that the wiring close. Many (defective blower motor resistor modules) will have burned up wiring to the resistor.” Look for any signs of discolouration, melting, or corrosion. If the wiring is damaged, you may need to replace the connector or even a section of the harness. Some new resistor modules come with a new wiring harness; if so, ensure you install it exactly as the manufacturer recommends. Release the safety tab on the connector and carefully pull it away from the module.
3. Remove the Old Module: Once the wiring is disconnected, remove the module’s mounting screws (usually Phillips head or Torx) or release the spring retaining clip that holds it in place.
4. Slide Out: Gently slide the old module out of its position within the ductwork.
5. Check for Obstructions: Before installing the new module, take a moment to inspect the surrounding ductwork. Ensure there’s nothing blocking the airflow over where the resistor sits, such as leaves, debris, or even small toys. Proper airflow is essential for the longevity of the new module.
6. Clean Surfaces: If the wire harness terminals are corroded, clean them thoroughly using an electrical contact cleaner and a small brush. If there was an old mounting gasket, clean away any residue to ensure a good seal for the new module.
7. Install New Module: Reverse the removal procedure. Slide the new module into the ductwork, ensuring it seats correctly. Secure it with the mounting screws or retaining clip.
8. Reconnect Wiring: Reconnect the wiring harness to the new module, ensuring it clicks securely into place.
9. Reconnect Battery: Reconnect the negative (-) battery cable.
10. Test Operation: Start your vehicle and test the fan operation at all speeds. You should now have full control over your car heater blower, and the system should be back in business.

Pro Tips for Resistor Module Replacement:

• Working Space: Depending on the cramped nature of the area around the blower motor resistor module, you might find it easier to remove and install the new module with the wire harness still attached, then disconnect/reconnect it once the module is free or secured.
• Cabin Air Filter: This is an ideal moment to replace your cabin air filter if you haven't done so recently. A clogged filter restricts airflow, which can put strain on the blower motor and, crucially, reduce the airflow over the resistor module, potentially leading to premature failure. Regular maintenance of the cabin air filter is a simple way to extend the life of your HVAC system components.
• Underlying Issues: If your blower motor resistor module showed signs of severe corrosion, melting, or discolouration on the wiring harness, it could indicate that the blower motor itself is drawing too much current (amps). A 'shorted' blower motor can cause repeated resistor failures. In such cases, replacing only the resistor module might be a temporary fix. You may need to replace the blower motor or consult a professional to accurately diagnose the root cause of the excessive current draw. Note that a standard Digital Volt Ohm Meter (DVOM) often has a 10-amp fused protection limit for current measurement, which a faulty blower motor drawing excessive amps could easily exceed.

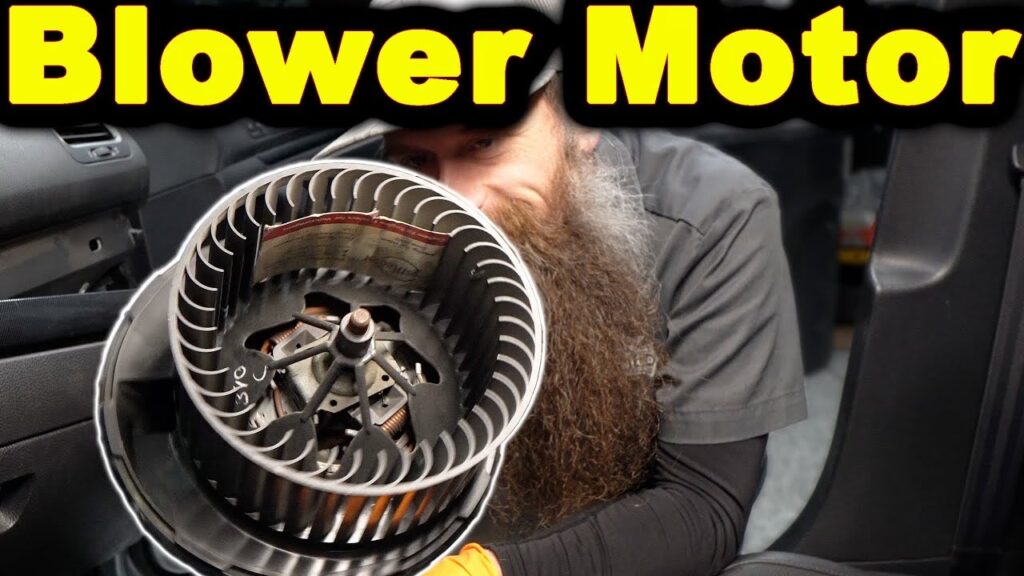

Advanced Repair: Replacing the Blower Motor

While a resistor module replacement often solves the 'single speed' issue, sometimes the blower motor itself is the problem. If your fan isn't working at all, or makes loud grinding, squealing, or rattling noises, a full blower motor replacement might be necessary. This is a more involved repair, but still achievable for the determined DIY mechanic.

Tools and Parts Required

Before you begin, gather the following essential tools and parts:

• Socket set (commonly 8mm, 10mm sockets)
• Screwdrivers (both flathead and Phillips)
• Torx drivers (if your vehicle requires them)
• Trim removal tool (plastic pry tools are ideal to prevent damage)
• Flashlight or work light (essential for seeing into tight spaces)
• Gloves and safety glasses (for personal protection)
• Replacement blower motor (ensure it's the correct part number)
• New blower motor resistor (if you suspect it was damaged by the old motor, or as a preventative measure)

Locating the Blower Motor

The blower motor is typically situated in one of two main locations within your vehicle: either under the dashboard, usually on the passenger side, or under the bonnet, also on the passenger side. Its exact placement can vary significantly depending on the car’s manufacturer and model, with some designs offering remarkably easy access and others requiring considerable contortion.

1. Check Under the Bonnet: Begin by opening your bonnet and looking on the passenger side, often near the bulkhead where the air intake for the HVAC system is located. You might spot a cylindrical or box-shaped component with electrical wires leading to it.
2. Check Under the Dashboard: If it’s not under the bonnet, the blower motor will be located under the dash on the passenger side. You’ll likely need to remove a lower trim panel, possibly held in place by mounting screws or clips, to gain access. These panels are usually made of plastic and can often be gently pried away with a trim removal tool once fasteners are undone.

Removing the Blower Motor

1. Disconnect Battery: As with any electrical repair, disconnect the negative (-) battery cable before proceeding.
2. Access the Motor: Remove any trim panels or covers necessary to fully expose the blower motor.
3. Disconnect Wiring: Locate the main wiring harness connected to the blower motor. This connector typically has a safety tab that needs to be pressed or released before it can be pulled apart. Depending on whether your system is manually or automatically controlled, this connector might have one or several wires. Manual systems often use a basic speed resistor, while automatic climate control systems may use a solid-state speed controller.
4. Inspect Connector: Once disconnected, carefully inspect the electrical connector for signs of corrosion, discolouration, or melted terminals. These are clear indicators of high resistance or increased amperage draw, which can damage the new motor. If the connector is melted, it absolutely must be replaced by splicing in a new part. For optimal longevity and reduced resistance, it's best to solder these wires together rather than using crimp connectors.
5. Identify Mounting Screws: The blower motor is usually held into the heater box (also known as the plenum) by several mounting screws. These are typically threaded into plastic and aren’t overly tight. Some screws might be hidden behind metal braces, plastic tabs, or bundles of wiring, so a small mirror can be very helpful for locating them.
6. Remove Screws: Start removing the mounting screws one at a time. As you remove the last few, be prepared for the motor to start dropping slightly. Keep a hand on the motor to support it as you remove the final screw.
7. Careful Removal: Once all screws are undone, grasp the motor and carefully manoeuvre it out of the housing. This can sometimes require a bit of wiggling and rotating due to the tight space and the shape of the fan blade (often called a 'squirrel cage'). Be extremely careful not to damage the fan blade against the heater plenum case during removal.

Installing the New Blower Motor

1. Compare Units: Before installing, compare the new blower motor with the old one. Ensure they are identical in size, shape, and connector type. In some cases, especially with climate-controlled systems, an electronic speed controller might be mounted on the old motor and will need to be transferred to the new unit. On some aftermarket replacement units, you might also need to transfer the old fan blade to the new motor. This is usually done by removing a mounting nut or clip and then carefully prying the blade off the motor shaft using a large standard screwdriver. Crucially, do not use any oil or lubricant to aid the installation of the fan onto the replacement motor shaft; this can cause the fan to slip on the shaft during operation, leading to noise and inefficiency.
2. Check for Obstructions: Prior to inserting the new motor, perform a thorough check of the plenum (the heater box) for any obvious obstructions. Leaves, sticks, ink pens, small toys, or even bits of paper can find their way into the system via the air inlets or vents. These foreign objects can impede the motor’s free rotation and lead to premature failure or noisy operation.
3. Position the New Motor: With the plenum clear, gently manoeuvre and rotate the new blower motor into position. Push it back into the plenum, carefully aligning the mounting holes.
4. Install Mounting Screws: While holding the motor firmly against the plenum, begin installing the mounting screws. Crucially, thread all screws in by hand first before tightening any of them fully. This ensures proper alignment and prevents cross-threading or stripping the plastic housing.
5. Tighten Screws: Once all screws are threaded, tighten them in a cross-pattern (like tightening wheel nuts) to ensure even pressure and proper alignment of the fan blade within the housing. Do not overtighten, as these screws are typically going into plastic. Improper tightening can cause the blade to contact the housing, resulting in a noticeable rubbing or clicking noise when the motor operates.
6. Reconnect Wiring: Locate the tang or key on the wiring connector that indicates its correct orientation. Carefully re-insert the blower fan motor electrical connector into the new motor, pushing firmly until you hear an audible click, confirming it’s securely in position. Give a gentle tug on the wiring to double-check the connection.
7. Reinstall Trim: Reinstall any lower dash covers or trim panels that you removed, securing them with their mounting screws or clips. Again, tighten these snugly but avoid overtightening.
8. Final Test: Reconnect the negative (-) battery cable. Start your engine and turn on the climate control system. Listen for the fan to come on; it should sound smooth and produce a strong, consistent airflow from the vents at all speeds. If you hear any rattling, squeaking, or ticking noises, turn the system off immediately and remove the blower motor to recheck your installation, particularly the alignment of the fan blade.

Frequently Asked Questions (FAQ)

What causes a blower motor resistor module to go bad?

Blower motor resistor modules are electrical components, and in some vehicles, they are constantly active, meaning they are prone to eventual failure simply due to wear and tear. However, several factors can accelerate their demise. Bill Kirkpatrick points out that “improper air flow across this resistor” is a major contributor. This can be caused by dirt or debris accumulating in the heater ductwork, a missing resistor module mounting gasket, or a damaged heater blower motor fan cage that impedes air movement. When airflow is restricted, the heat generated by the resistors cannot dissipate efficiently, leading to overheating and premature burnout. Another significant cause is a 'shorted' blower motor drawing too many amps. An old or failing motor can demand excessive current, putting immense strain on the resistor module and causing it to fail. If you observe corrosion on the resistor module or signs of damage, discolouration, or melting on the wire harness, it's a strong indication of an underlying problem with the blower motor drawing too much current. In such cases, simply replacing the resistor module might not be enough; the blower motor itself may need inspection or replacement to prevent recurring failures. While a heavy-duty, fused Digital Volt Ohm Meter (DVOM) is a great tool for electrical work, the current draw of a severely faulty heater blower motor can easily exceed the typical 10-amp fused protection limit of most DVOMs, so exercise caution or seek professional help for such diagnoses.

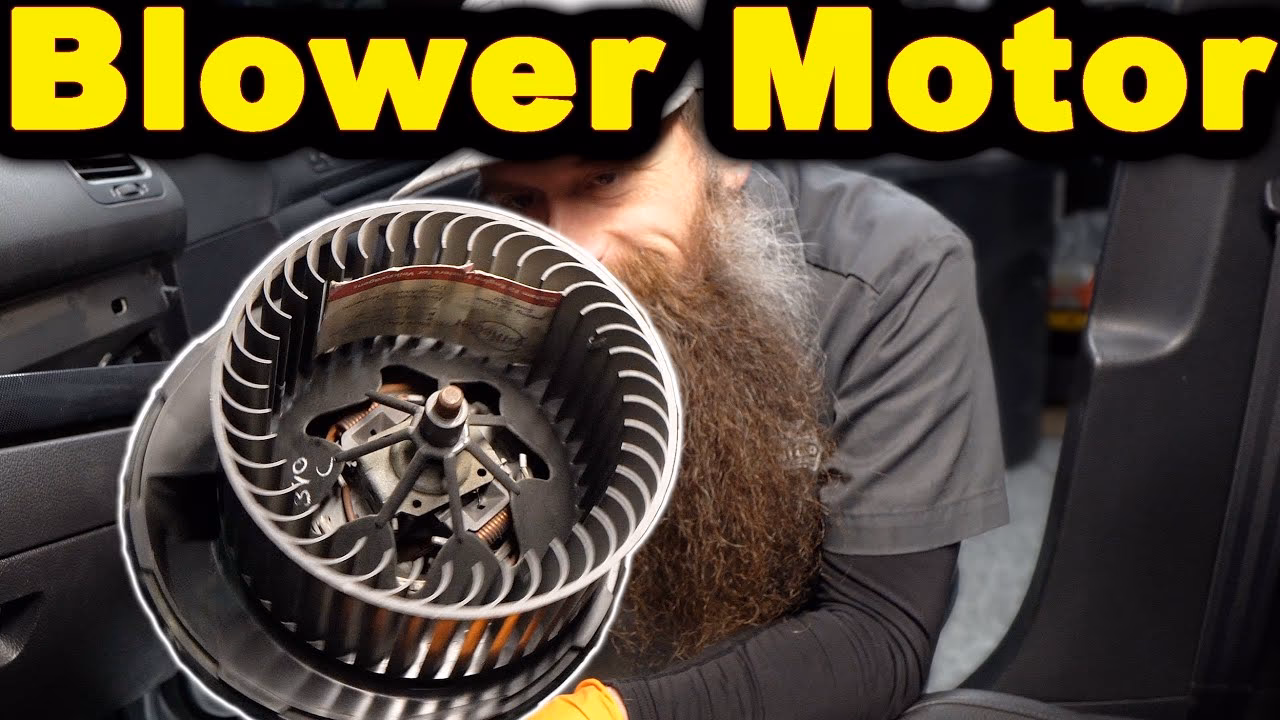

How do I access the blower motor?

Accessing your car’s blower motor typically involves locating it either under the bonnet or under the dashboard on the passenger side of the vehicle. This component is continuously used for all climate control modes, including air conditioning, heating, fresh air intake, and defrosting. The ease of access can vary greatly depending on your vehicle’s manufacturer design. To begin, check under the bonnet on the passenger side; you might see a round or rectangular component that houses the fan. If it's not visible there, it will be located under the dash on the passenger side. You’ll likely need to remove a lower trim panel, which is usually held in place by screws or clips. A trim removal tool can be very helpful here to prevent damage to the plastic. Once you have access, you’ll then proceed with disconnecting the wiring harness and removing the mounting screws holding the motor in place within the heater box. Always remember to disconnect the negative battery cable before attempting any work on electrical components.

Stay Warm While Driving This Winter

A fully functional car heater is more than just a luxury; it’s a necessity for comfort and safety, especially during the colder months in the UK when clear windscreens are paramount. Whether you’ve tackled a straightforward resistor module swap or ventured into a complete blower motor replacement, understanding and addressing these common HVAC issues can save you time and money. By following these detailed guides and paying attention to the specific symptoms your vehicle exhibits, you can effectively diagnose and repair your car's heater blower, ensuring your journeys remain toasty and comfortable, no matter the weather.
