10/08/2015
Understanding Cane Creek eeBrakes G4 Compatibility

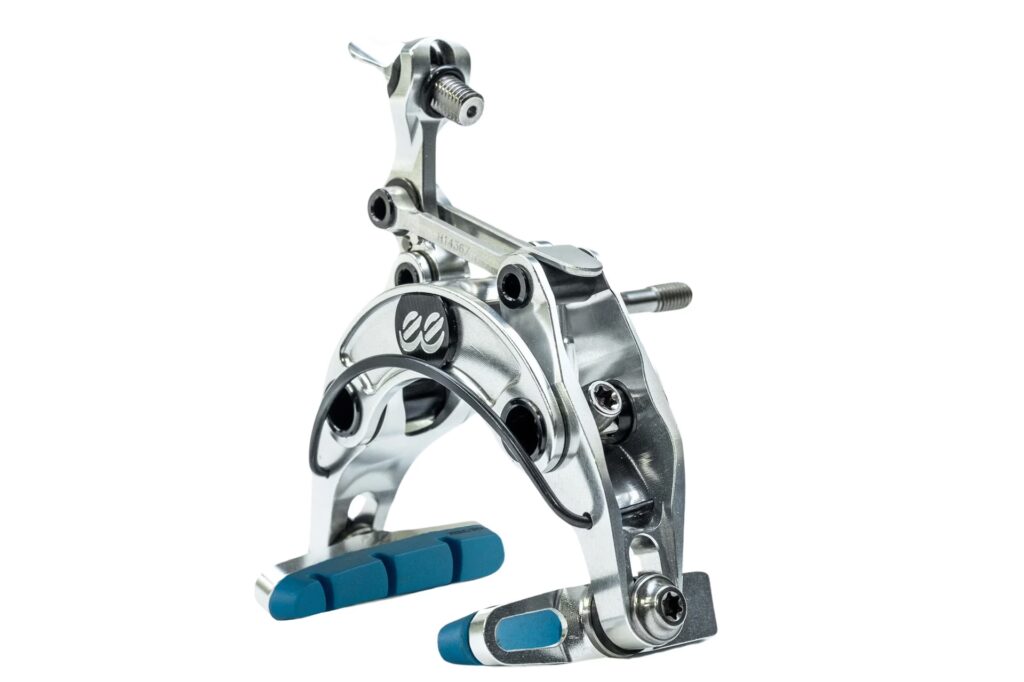

For those seeking a premium upgrade to their rim brake-equipped bicycle, the Cane Creek eeBrakes G4 Caliper Brake represents a significant leap forward in performance and weight saving. These brakes are renowned for their exceptional stopping power, superior modulation, and aerodynamic design, all while shedding valuable grams. If you're looking to enhance your cycling experience without resorting to disc brakes, understanding the compatibility of the eeBrakes G4 is crucial for a seamless integration into your existing setup. This guide will delve into the specifics of what brake levers, frame mounts, and brake pads will work harmoniously with these sophisticated calipers.
Frame Mounts: The Foundation of Compatibility
At its core, the Cane Creek eeBrakes G4 caliper brake is designed to work with conventional center-mount brake systems. This means that if your bicycle frame features the standard dual-pivot caliper mounting points, you are likely to find the eeBrakes G4 a direct fit. It's essential to verify that your frame has these established mounting holes, typically found on both the fork crown at the front and the seat stay bridge at the rear for rim brake calipers. This standardisation ensures that a wide range of road, cyclocross, and even some older mountain bike frames can be upgraded.
Lever Compatibility: Orchestrating the Braking Action
The effectiveness of any caliper brake is intrinsically linked to the brake levers that actuate them. The Cane Creek eeBrakes G4 has been engineered to be highly versatile in this regard. It is officially compatible with brake levers from all the major players in the cycling component industry: Campagnolo, Shimano, and SRAM. This broad compatibility means that whether you're running a full Campagnolo groupset, a Shimano drivetrain, or a SRAM setup, you can be confident that the eeBrakes G4 will integrate smoothly. The cable pull ratio of these levers is generally consistent with the requirements of the eeBrakes G4, allowing for precise and powerful braking. The centre-pull design of the eeBrakes G4, with its unique Cross Cable Path, also contributes to a cleaner aesthetic and improved aerodynamics, ensuring that the cable routing from your levers to the calipers is efficient.
Brake Pad Considerations: The Crucial Contact Point
The point of contact between your braking system and the wheel rim is arguably the most critical element for effective stopping. The Cane Creek eeBrakes G4 caliper brake is specifically designed to work with Shimano-style brake pads. This is a common standard, and many aftermarket brake pad manufacturers produce compounds that adhere to this style. However, it is important to note that the eeBrakes G4 calipers do not include brake pads with their purchase. This allows riders to select their preferred brake pad compound based on their riding conditions and preferences, whether that be for all-weather performance, dry-weather grip, or long-distance durability.
When choosing brake pads, consider the following:
- Compound Type: Different compounds offer varying levels of performance. For example, softer compounds generally provide better grip but wear faster, while harder compounds last longer but may offer less initial bite.
- Rim Surface: Ensure your chosen pads are compatible with your rim material. Most are designed for aluminium rims, but specific pads are available for carbon rims, often with different braking characteristics.
- Weather Conditions: If you frequently ride in wet or muddy conditions, opt for pads designed for all-weather performance.
Technical Innovations of the eeBrakes G4
Beyond compatibility, the eeBrakes G4 boasts several innovative features:
- Material Construction: Crafted from a strategic blend of high-quality aluminium, titanium, and stainless steel, these calipers offer an impressive strength-to-weight ratio.
- Cross Cable Path: The central cable routing moves the brake cable out of the wind, providing a slight aerodynamic advantage over traditional side-routed calipers.
- Optimised Clearance: The G4 design is wider, optimised for rims with widths between 22mm and 28mm (approximately 0.86 to 1.102 inches). This increased clearance accommodates modern, wider rim profiles.
- Stiffer Arch Spring: A more rigid arch spring is included, which contributes to a more consistent and responsive lever feel.
- Revised Centre Adjuster: A one-piece centre adjuster with built-in resistance makes fine-tuning cable tension easier and more precise.
Table: Key Compatibility Points
| Component | Compatibility | Notes |
|---|---|---|
| Frame Mount Type | Conventional Center-Mount | Standard dual-pivot caliper mounting points required. |
| Brake Levers | Campagnolo, Shimano, SRAM | Compatible with levers from all major manufacturers. |
| Brake Pads | Shimano-style brake pads | Pads are not included; choose your preferred compound. |
| Rim Width Optimisation | 22mm to 28mm (approx. 0.86" to 1.102") | Designed for modern, wider rim profiles. |
Frequently Asked Questions (FAQs)
Can I use my existing Shimano Ultegra brake levers with the Cane Creek eeBrakes G4?
Yes, absolutely. The Cane Creek eeBrakes G4 is designed to be compatible with Shimano brake levers, including those from the Ultegra groupset. You can expect excellent performance and modulation.
Do I need special brake cables for the eeBrakes G4?
No, standard brake cables and housing are perfectly suitable for the eeBrakes G4. The unique Cross Cable Path is a routing feature, not a requirement for special cabling.
What is the advantage of the Cross Cable Path?
The Cross Cable Path routes the brake cable centrally, moving it away from the direct airflow. This minor change can offer a small aerodynamic benefit and contributes to a cleaner, more integrated look.
Are the eeBrakes G4 suitable for cyclocross or gravel riding?
While the eeBrakes G4 offer excellent performance, their design is primarily optimised for road riding and the specific clearance for wider rims. For very muddy or abrasive cyclocross or gravel conditions, disc brakes might offer more consistent performance due to their better mud clearance and resistance to contamination. However, for dry gravel or less extreme conditions, they can be a great lightweight option.
Where can I purchase replacement brake pads for my eeBrakes G4?
You can purchase Shimano-style brake pads from most reputable bicycle retailers and online cycling stores. Brands like Shimano, Kool-Stop, SwissStop, and Jagwire all offer compatible pads.
Conclusion: A Refined Braking Experience
The Cane Creek eeBrakes G4 Caliper Brake is a testament to innovative engineering, offering a compelling alternative for cyclists who value weight savings, refined aesthetics, and exceptional braking performance without the complexities of disc brake systems. By understanding its compatibility with conventional center-mount frames, a wide range of brake levers from Campagnolo, Shimano, and SRAM, and its specific requirement for Shimano-style brake pads, you can confidently integrate these premium brakes into your build. The thoughtful design, including the Cross Cable Path and optimised clearance for modern rims, further enhances their appeal. While brake pads are not included, this allows for a personalised setup, ensuring you can achieve the perfect braking feel for your riding style and conditions.
