Aluminium Engine Block Rejuvenation

The Art and Science of Rejuvenating Aluminium Engine Blocks

Aluminium engine blocks, renowned for their lightweight properties and excellent heat dissipation, are a cornerstone of modern automotive engineering. However, like any precision component, they require meticulous care and specialised processes to ensure their longevity and optimal performance. This article delves into the comprehensive remanufacturing process for aluminium engine blocks, from initial disassembly to final assembly, highlighting the critical steps involved in bringing an old block back to its former glory, and even surpassing it.

The Comprehensive Remanufacturing Journey

The journey of an aluminium engine block through a remanufacturing facility is a testament to precision engineering and rigorous quality control. Each step is designed to address potential wear, damage, and contamination, ensuring the final product is as good as, if not better than, new.

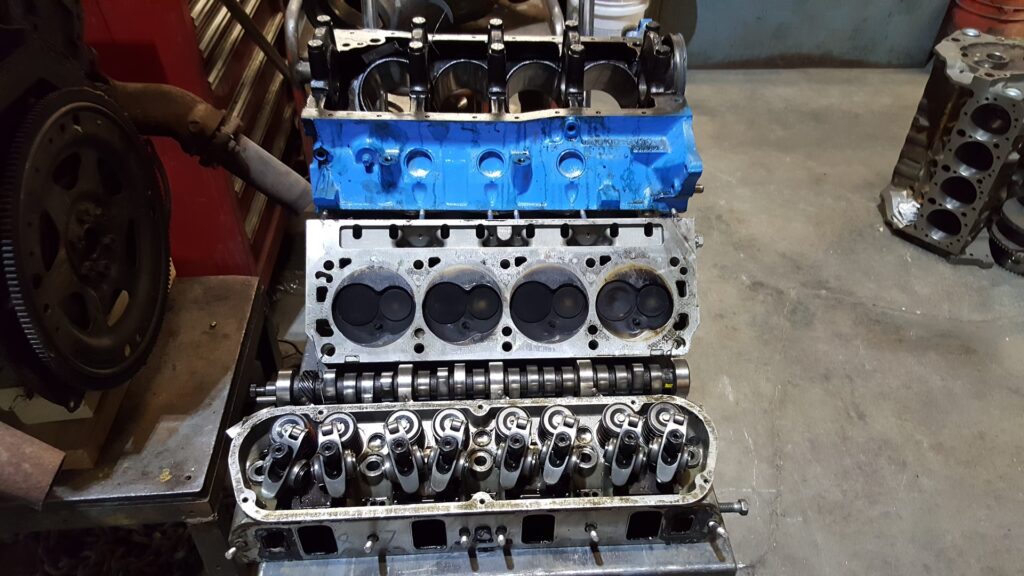

Step 1: Engine Block Disassembly and Initial Inspection

The process begins with the complete disassembly of the engine block. Every component is removed, and the block itself undergoes a thorough visual inspection. This initial assessment is crucial for identifying any obvious casting defects, cracks, or damage. For marine applications, or where originality is paramount, new castings might be sourced, or skilled technicians may undertake repairs to preserve the original block. Crucially, oil and water passage plugs are removed at this stage to ensure thorough cleaning in subsequent steps.

Step 2 & 5: Deep Cleaning - Thermal and High-Pressure Washing

Aluminium blocks, unlike their cast iron counterparts, cannot undergo the high-temperature thermal cleaning process (typically 650-800°F) due to the risk of warping or melting. Instead, they embark on a specialised cleaning regimen. The first step involves a high-pressure wash using advanced spray cleaning systems, such as the AXE SW20 OS. This system, with its powerful spray and integrated nozzles, is designed to dislodge and remove all traces of oil, dirt, and foreign material, even from the smallest oil passages. This ensures a pristine surface for the next critical cleaning stage.

Step 6 & 13: Ultrasonic Cleaning – The Benchmark of Cleanliness

Following the high-pressure wash, aluminium blocks are subjected to ultrasonic cleaning. This method is widely considered the benchmark for achieving ultimate cleanliness. Ultrasonic cavitation creates microscopic bubbles that implode, generating powerful forces capable of dislodging contaminants from every surface, including intricate internal passages that other cleaning methods cannot reach. This process effectively breaks the bonds holding even the smallest particles, leaving the block impeccably clean and ready for inspection and further machining.

Step 3: Shot Blasting – Surface Refinement and Defect Detection

While shot blasting with stainless steel shot is primarily used for cast iron to remove rust and prepare surfaces for inspection, its application on aluminium requires careful consideration. For aluminium blocks, the focus shifts to achieving a smooth surface finish post-cleaning that aids in the detection of any subtle casting defects that might have been missed. Unlike with cast iron, the peening aspect of shot blasting is generally avoided on aluminium to prevent inducing unwanted stresses.

Step 4: Magnafluxing – Iron-Specific Crack Detection

It's important to note that Magnafluxing, a magnetic particle inspection method, is exclusively for ferrous materials like cast iron. It is highly effective in detecting cracks and imperfections in these blocks. Aluminium, being non-ferrous, cannot be tested using this technique. Therefore, for aluminium blocks, alternative methods are employed to ensure structural integrity.

Step 7: Pressure Testing – Ensuring Integrity

Regardless of the block material, pressure testing is a vital step. Using specialised equipment like the Delta Pressure tester, the block is pressurised to check for any pinholes or leaks that might have been missed during initial inspections or developed due to stress. This process confirms the soundness of the casting and the integrity of any repaired areas.

Step 8: Preparation and Minor Repairs

Before machining commences, a detailed visual inspection is performed. Any minor casting defects are addressed, broken bolts are removed, and threads are repaired or re-tapped. Gasket surfaces may be attended to, carefully minimising material removal to maintain original dimensions where possible. This preparation ensures that the subsequent machining steps are performed on a sound foundation.

Step 9: Precision Machining – The CNC Advantage

Modern remanufacturing relies heavily on advanced CNC (Computer Numerical Control) machinery. For aluminium blocks, this means precise boring of cylinders, resurfacing of decks using milling, and chamfering cylinder tops. CNC machines, equipped with sophisticated probes, can automatically level the block, measure deck heights, and determine cylinder bore sizes with incredible accuracy (within .0001" repeatability). This eliminates operator error and ensures that critical tolerances are met. When milling, the machine automatically selects the correct cutter (often CBN - cubic boron nitride for its hardness) and adjusts for the required surface finish (Ra) based on the gasket material and application. The surface finish is meticulously checked using precision instruments like the Mitutoyo SJ-301.

Step 10: Connecting Rod Reconditioning

While not part of the block itself, the connecting rods are critical. Precision honing equipment, such as the Sunnen LBB-1600, is used to recondition connecting rod bores to within .0001" accuracy. This ensures a perfect fit for the crankshaft journals, contributing to the overall health of the engine.

Step 11: Cylinder Honing – Achieving the Perfect Finish

Honing is the final machining process for the cylinders. For aluminium blocks, this is a critical step for ensuring proper piston ring seal and oil control. Modern honing machines, like the Rottler H85AXY, offer unparalleled precision, achieving roundness and straightness within .0001". These machines allow for the selection of specific cross-hatch angles, which are crucial for oil retention and ring seating in aluminium bores. The machine's advanced sensors can detect taper within the cylinder and adjust its honing action accordingly, ensuring a consistent and accurate finish throughout the bore. The resultant surface finish (Ra) is again verified with instruments like the Mitutoyo SJ-301.

Step 12 & 13: Final Cleaning and Assembly Preparation

After all machining is complete, the block undergoes another high-pressure wash and ultrasonic cleaning cycle. This dual-stage cleaning is essential to remove any metallic debris or cutting fluid generated during the machining processes. Once confirmed clean, the block is ready for assembly.

Step 14: Meticulous Assembly

The assembly of a remanufactured engine block is a meticulous, non-assembly-line process. Every component, including crankshafts, bearings, pistons, and rings, is checked for proper fit and clearance using precision measuring tools. New oil restrictors, relief valves, and plugs are fitted. Crankshaft journals are checked with plastigauge and torqued to specification. Pistons and rings are installed, ensuring correct end gaps. The camshaft is fitted, and timing components are installed and verified. Cylinder heads are installed with new gaskets and fasteners. Finally, the engine is prepared for initial startup with appropriate lubricants and a new oil pump. A final inspection by an assembly manager ensures every detail is perfect before the engine is packaged for delivery.

Can Aluminium Be Repaired? The Art of Aluminium Welding

Aluminium, while offering many advantages, can be susceptible to damage, particularly from prolonged exposure to alkalis, which can degrade its protective oxide layer. When damage occurs, repair is often a more cost-effective and environmentally sound solution than replacement, especially for classic vehicles where originality is cherished.

TIG (Tungsten-Inert Gas) welding and gas welding are the primary methods used for aluminium repair. TIG welding is favoured for structural components like crankcases, while gas welding is suitable for thinner body panels.

The key to successful aluminium welding lies in meticulous preparation. This involves cutting away all damaged or corroded material, often described as removing the "metallurgical cancer," until only clean, bright metal remains. This can be achieved using grinders, files, or burrs.

Before TIG welding, aluminium castings typically require pre-heating in an oven to bring them closer to their welding temperature. This helps to prevent thermal shock and ensures a smoother, more fluid weld. During the TIG process, an inert gas, usually argon, shields the weld pool from atmospheric contamination, preventing oxidation and ensuring a clean, strong bond. A filler rod is used to build up the repaired area.

After welding, the repaired area is often fettled and machined to achieve a smooth, seamless finish. Bearing surfaces can be precisely machined back to their original dimensions. The success of aluminium welding hinges on correct preparation, appropriate pre-heating, and the selection of the correct filler rod for the specific grade of aluminium. Common faults in aluminium welding include porosity (small holes) in the weld or surrounding material if the preparation is inadequate, leading to brittle joins and potential failure.

Common Aluminium Welding Faults and Their Prevention:

Frequently Asked Questions:

Q1: Do aluminium engine blocks need to be cleaned?
Yes, absolutely. Thorough cleaning is paramount to ensure accurate inspections and successful machining. Aluminium blocks undergo a multi-stage cleaning process including high-pressure washing and ultrasonic cleaning.

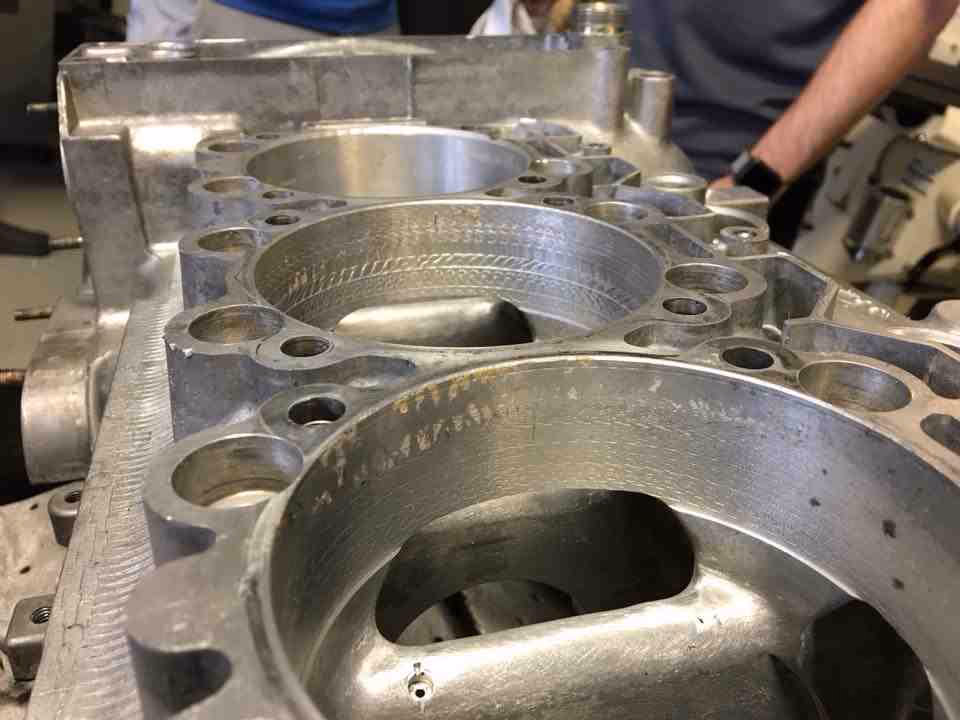

Q2: How do you hone an aluminium engine block?
Aluminium engine blocks are honed using specialised machines that control the cutting action of honing stones. The process aims to achieve precise cylinder roundness and straightness, typically within tight tolerances of .0001 inches. The angle of the cross-hatch pattern is critical for oil retention and ring sealing in aluminium bores.

Q3: Can aluminium engine blocks be welded?
Yes, aluminium engine blocks and components can be repaired by welding, most commonly using the TIG welding process. However, it requires careful preparation, pre-heating, and the use of appropriate filler materials to ensure a strong and lasting repair.

Q4: What is the most critical factor in aluminium engine block remanufacturing?
While many factors are critical, maintaining precise tolerances during machining, especially cylinder bore dimensions and surface finishes, is arguably the most crucial. This ensures proper piston ring seal, oil control, and overall engine efficiency and longevity.

Q5: Why is ultrasonic cleaning so important for aluminium blocks?
Ultrasonic cleaning is vital because it reaches internal passages and intricate surfaces that conventional cleaning methods cannot. It effectively removes microscopic contaminants, ensuring the block is free from debris that could interfere with machining or assembly, guaranteeing a higher quality rebuild.

In conclusion, the remanufacturing of aluminium engine blocks is a sophisticated process demanding precision, specialised equipment, and a deep understanding of materials. By adhering to these rigorous steps, worn-out blocks can be transformed into reliable, high-performing components, ready for many more miles of service.
