Brake Line Repairs: The Dos and Don'ts

The braking system in any vehicle is, without question, its most vital safety component. A properly functioning braking system is paramount to preventing accidents and ensuring the well-being of both the driver and other road users. Consequently, any maintenance or repair work carried out on brake lines demands the utmost precision and adherence to safety standards. This article delves into the intricacies of brake line repairs, specifically addressing the common query: what happens when you join a male and female brake line fitting? We will explore the materials involved, the types of flares, and the implications for MOT testing, drawing on guidance from official manuals.

Understanding Brake Line Materials and Fittings

Brake lines are typically constructed from robust materials designed to withstand the high pressures generated within the hydraulic braking system. Historically, steel has been a common material, often copper-plated for corrosion resistance. More modern vehicles may utilise stainless steel or even advanced composite materials. The fittings that connect these lines are equally critical, engineered to create a secure and leak-proof seal. These fittings are usually made from brass or a similar durable metal alloy.

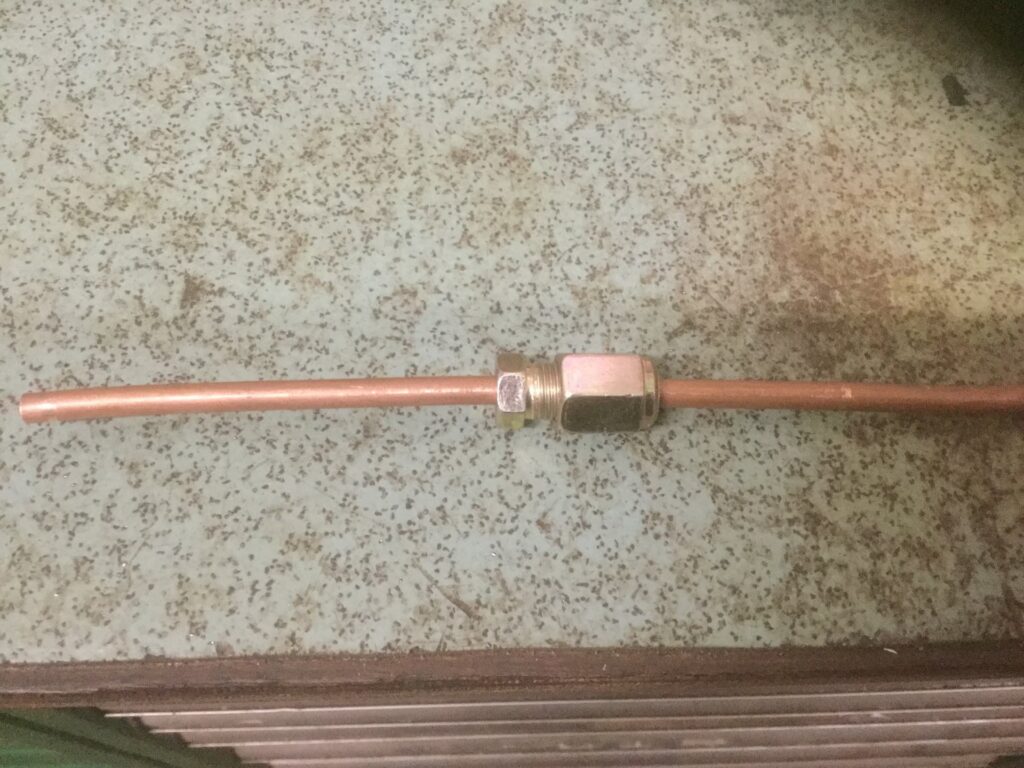

The concern arises when attempting to join two separate brake line sections. Often, a repair might involve cutting a damaged section of line and replacing it. This replacement section will have its own fittings. The question is, what happens when you try to connect a male fitting on one pipe to a female fitting on another, or indeed, use a dedicated joiner?

The Metal Mismatch Dilemma

One of the primary concerns highlighted in discussions surrounding brake line repairs is the potential for galvanic corrosion when dissimilar metals are in contact, especially when exposed to moisture. The MOT Tester's Manual, in Section 3.6, Page 1, explicitly states: "Repairs to the pressure lines of hydraulic brake systems are. Compression joints of a type using separate ferrules are not suitable." While this statement directly addresses compression joints with ferrules, it alludes to a broader principle of ensuring the integrity and safety of the entire hydraulic system.

The core of the issue, as pointed out by some experienced mechanics, lies in the interaction between different metals. If you are joining two sections of brake line, and one section has a male fitting while the other has a female fitting, you are often introducing different metal compositions into the joint. For example, a steel brake line might have a brass fitting, and you might be connecting it to another section with a similar or different metal fitting. The concern is that the different electrochemical potentials of these metals can lead to corrosion over time, weakening the joint and potentially causing a leak.

The ideal scenario, of course, is to use a single, continuous brake line where possible. However, when repairs are necessary, the method of joining becomes crucial. Using a dedicated brake line joiner, which typically has a female end to receive the flared pipe and a male end to connect to another line, can also present similar material concerns if the joiner itself is made of a different metal than the brake lines it connects.

Understanding Brake Line Flares

Brake lines are designed with specific flared ends to ensure a tight seal when connected with their corresponding fittings. There are primarily two types of flares used in automotive brake systems:

• Single Flare: This is a simpler flare, typically used on brake lines in older vehicles or for less critical applications. It involves simply flaring the end of the pipe outwards.
• Double Flare: This is the more common and robust type of flare found on modern vehicles. It involves folding the metal of the pipe back on itself, creating a double-walled flare. This provides a stronger, more reliable seal and is more resistant to cracking under pressure and vibration.

The question of whether a single flare on one pipe fits properly into another single flare on a different pipe, or if single and double flares are compatible, is significant. For a secure and safe connection, the flare on the pipe must precisely match the cone within the fitting. Mismatched flares, or using a single flare where a double flare is required, can lead to an inadequate seal, leaks, and ultimately, brake failure.

When factory-made connections are made, it's often through the use of specialised nuts and the correct type of flares. These are designed to work seamlessly together, ensuring a high level of safety and reliability. Aftermarket joiners or repair kits need to replicate this level of precision.

The MOT Tester's Perspective

The MOT test is designed to ensure that vehicles are safe to drive on public roads. Brake systems are heavily scrutinised. As the MOT Tester's Manual indicates, certain types of repairs are explicitly forbidden. The use of compression joints with separate ferrules is deemed unsuitable. This suggests that any repair method that compromises the integrity or creates a potential weak point in the hydraulic system will result in a failure.

If a tester is unsure about the suitability of a particular repair or fitting, they may err on the side of caution. The advice given in some forums – that if there's doubt, it's better to use a recognised joiner to avoid the hassle of re-doing the joint or appealing an MOT failure – highlights the importance of using approved methods and parts.

Best Practices for Brake Line Repairs

Given the critical nature of the braking system and the potential for MOT failure, it is essential to follow best practices when undertaking brake line repairs:

1. Use the Correct Flaring Tool: If you are cutting and re-flaring a brake line, ensure you use a high-quality flaring tool that can produce the correct type of flare (single or double, as specified for your vehicle).
2. Match Flare Types: Always ensure that the flares on the pipes you are joining are of the same type and that they mate correctly with the fittings.
3. Use Approved Joiners: If a joiner is necessary, use one specifically designed for brake line repairs and made from compatible materials. Brass joiners are common, but ensure they are of good quality and designed for the specific diameter of your brake lines.
4. Proper Tightening: Overtightening can damage the flare or fitting, while undertightening will result in a leak. Follow recommended torque settings if available, or tighten with a steady, firm pressure.
5. Inspect for Leaks: After the repair, it is crucial to bleed the brake system and then thoroughly inspect all joints for any signs of leaks. This should be done under pressure, by having someone press the brake pedal while you visually check the connections.
6. Consider Professional Help: If you are not confident in your ability to perform brake line repairs correctly, it is always best to seek the assistance of a qualified mechanic. They have the tools, expertise, and knowledge of regulations to ensure the job is done safely and correctly.

Common Pitfalls to Avoid

Several common mistakes can lead to brake line repair failures:

• Using the Wrong Type of Flare: As mentioned, mixing single and double flares, or using improperly formed flares, will not create a secure seal.
• Using Incompatible Materials: Joining dissimilar metals without considering galvanic corrosion can lead to long-term failure.
• Using Substandard Parts: Always opt for reputable brands for brake lines, fittings, and joiners.
• Improper Flaring Technique: A poorly executed flare can be weak, misshapen, or not seal correctly, leading to leaks.
• Ignoring the MOT Manual: Failing to adhere to the guidelines set out in the MOT Tester's Manual can lead to an immediate failure.

Frequently Asked Questions (FAQs)

Q1: Can I join a male brake line fitting to a female brake line fitting directly?

A1: While physically possible, the safety and legality of doing so depend on the specific types of fittings and whether they are designed for such a direct connection without a dedicated joiner. The primary concern is ensuring a secure, leak-proof seal and avoiding issues like galvanic corrosion. It's generally recommended to use a proper brake line joiner designed for the purpose.

Q2: Are brass brake line joiners safe to use?

A2: Brass joiners are commonly used for brake line repairs. However, it's crucial to ensure they are of good quality, specifically designed for brake lines, and are compatible with the materials of your brake lines. The primary concern remains the potential for galvanic corrosion over time if dissimilar metals are in prolonged contact, especially in the presence of moisture.

Q3: What happens if my brake lines fail an MOT test?

A3: If your brake lines fail an MOT test due to incorrect repairs, leaks, corrosion, or damage, the vehicle will not receive an MOT certificate. You will need to have the necessary repairs carried out before the vehicle can be re-tested and deemed roadworthy.

Q4: Is it acceptable to use a single flare where a double flare is required?

A4: No, it is generally not acceptable. Double flares provide a stronger and more reliable seal, and using a single flare where a double flare is specified will likely result in an MOT failure and a compromised braking system.

Q5: What is the most critical aspect when repairing brake lines?

A5: The most critical aspect is ensuring the integrity and safety of the entire braking system. This means using the correct parts, employing appropriate repair techniques, and ensuring that all connections are secure, leak-free, and will withstand the high pressures and vibrations of normal driving.

Conclusion

The repair of brake lines is a task that should not be undertaken lightly. The interaction between different metal types, the precision required for flares, and the strict regulations governing vehicle safety all play a significant role. While joining male and female brake line fittings might seem like a straightforward connection, the underlying principles of material compatibility and secure sealing are paramount. Always prioritise safety, use the correct parts and tools, and if in doubt, consult a professional mechanic. A properly maintained braking system is your first and last line of defence on the road.
