Fixing a Leaking Fork Damper Rod: A Comprehensive Guide

A leaking front fork can be more than just an unsightly mess; it's a critical issue that compromises your motorcycle's handling, stability, and overall safety. While the term 'leaking damper rod' might sound specific, it often points to a broader problem within the fork assembly, most commonly worn-out fork seals that allow oil to escape. However, internal issues with the damper rod's own seals can also contribute. This guide will walk you through the essential steps of servicing your forks, which is the definitive way to address and fix a leaking damper rod, ensuring your ride remains precise and predictable. Regular maintenance, particularly checking your fork oil after every 20 hours of riding, is paramount to preventing such issues and maintaining peak performance.

Before you begin, ensure you have a clean, well-lit workspace and all necessary tools. Safety first: always work on a stable surface, ideally with your motorcycle securely supported. This procedure involves handling potentially messy fluids and precise components, so patience and attention to detail are your best allies.

Preparation and Initial Disassembly

The first crucial step is to prepare your forks for service. This involves relieving any pressure and noting your current suspension settings. These settings are unique to your riding style and weight, so recording them meticulously will save you a lot of guesswork during reassembly and tuning.

Step 1: Record Settings and Loosen Top Cap

Begin by backing out all clickers (compression and rebound damping adjusters) to their fully open position. Make sure to accurately record your current settings before doing so. A pen and paper are far more reliable than memory or carving marks into your workbench!

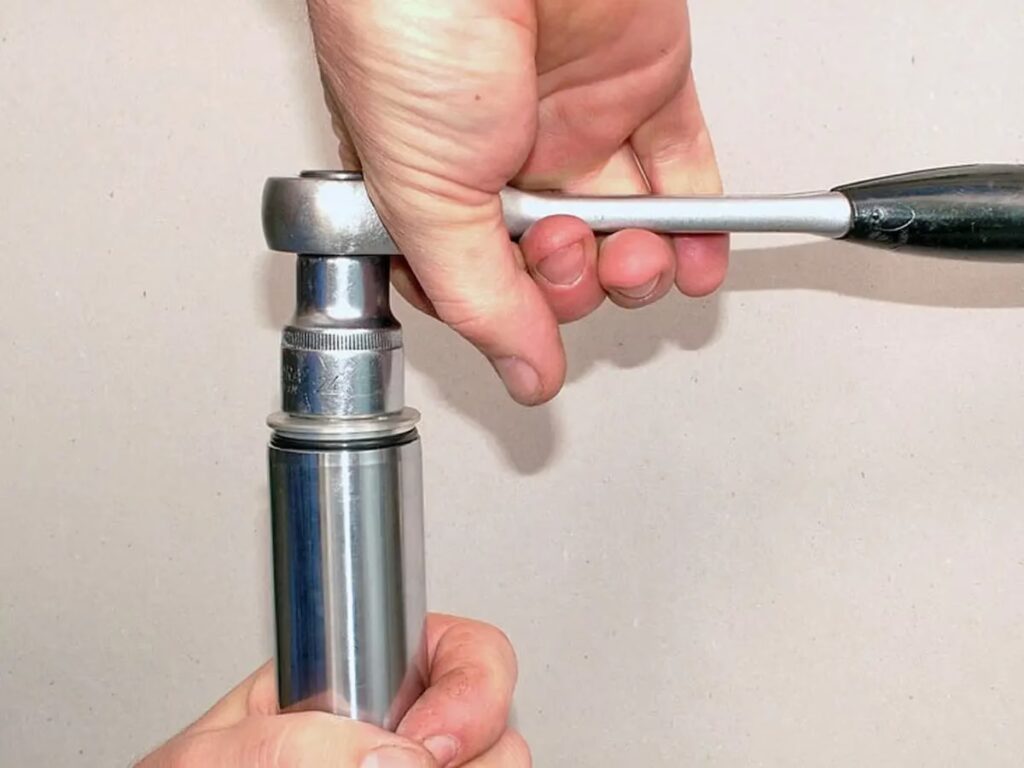

Next, you'll need to loosen the top cap of the fork. This often requires a specialised fork cap tool, readily available from reputable brands like Motion Pro or Race-Tech. If you find the fork leg difficult to hold steady while loosening the cap, a clever trick is to slide it back into your lower triple clamp and use the clamp itself as a sturdy holder. This provides excellent leverage and prevents the fork leg from spinning.

Step 2: Draining the Old Fork Oil

With the top cap loosened, it's time to drain the old, worn-out fork oil. Carefully flip the fork assembly upside down over a suitable drain pan. Allow the oil to drain completely. This can take several minutes, sometimes up to 15. Use this time wisely – perhaps to gather your thoughts or ensure all your tools are within reach. Old fork oil will likely be dark and contaminated, a clear indicator that it has broken down and lost its damping properties.

Accessing and Inspecting the Damper Rod

Once the initial draining is complete, you'll need to gain access to the damper rod itself. This involves carefully disassembling the lower portion of the fork.

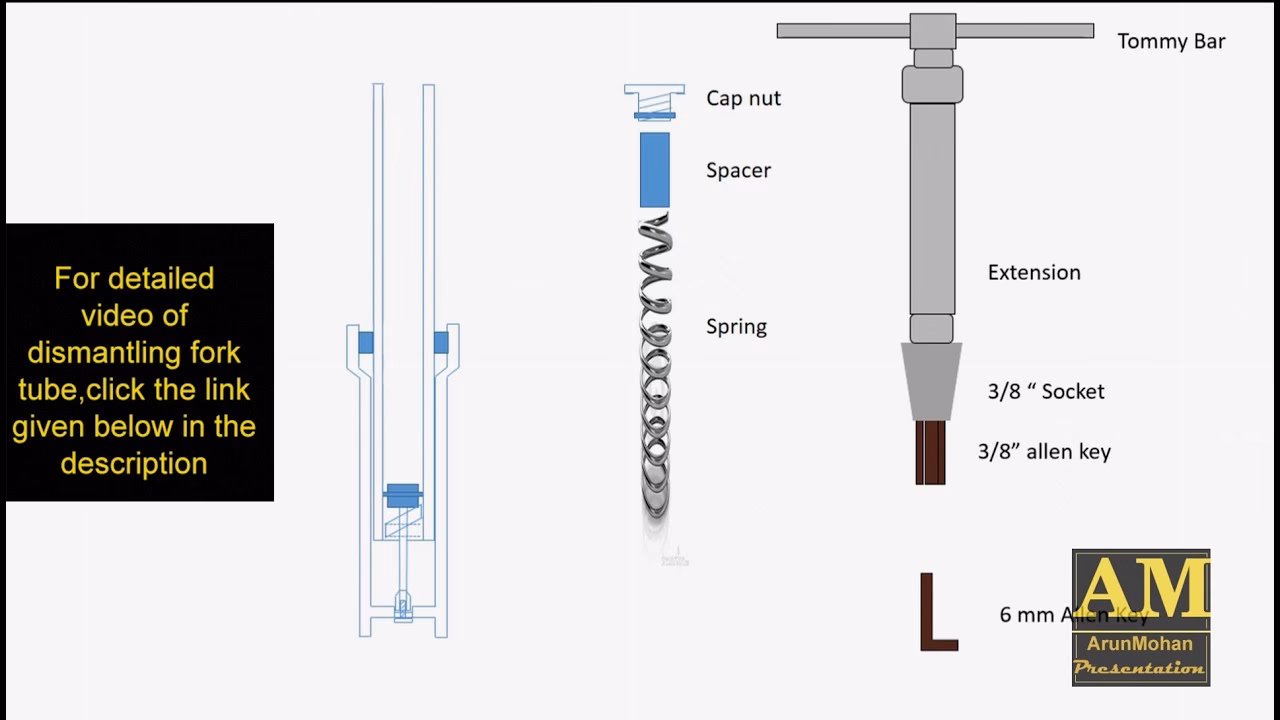

Step 3: Loosening the Fork Center Bolt

The fork center bolt secures the fork damper. To loosen this, you'll need to hold the fork lug steady. A common and effective method is to use your motorcycle's axle to help hold the fork lug in place. Once the center bolt is loose, gently push down on the lug and insert a fork holding tool. This tool is essential for keeping the internal components compressed and preventing them from springing out unexpectedly. These tools are available from various manufacturers, including Race-Tech, Honda (for specific models), or Motion Pro.

Step 4: Removing the Rebound Push Rod and Damper

With the fork holding tool in place, you can now proceed to loosen the lock nut and carefully remove the fork center bolt. Once these are out, you can gently pull out the rebound push rod. This is a slender, precision-engineered component, so handle it with care and resist any urge to swing it around – bending it would lead to significant performance issues and costly repairs. After removing the push rod, release the fork holding tool. Now, you can flip the fork assembly once more, and the fork damper should slide out, allowing you to drain any remaining oil from the upper tube.

Step 5: Separating the Fork Cap from the Damper Rod

Now, with some suitably large wrenches, carefully loosen the fork cap from the damper rod. You should be able to push on the damper rod to assist in popping out the fork cap. Once separated, flip the damper rod and fork cap assembly to drain any residual oil. At this stage, you should have all the internal components separated. This is the perfect opportunity to thoroughly clean all parts you've disassembled. A good quality contact cleaner works exceptionally well for this, ensuring all old oil and grime are removed, leaving components pristine for inspection and reassembly.

Diagnosing and Fixing the Leak

This is the critical stage for addressing a 'leaking damper rod'. While the damper rod itself has internal seals, the most common source of oil leaks from the fork is the main fork seals and dust seals. A comprehensive service involves inspecting and often replacing these components.

Inspection and Seal Replacement

With all components clean, meticulously inspect every seal and O-ring. Look for any signs of cracking, hardening, tearing, or flattening. Pay close attention to:

• Main Fork Seals: These are the primary barrier preventing oil leakage past the fork stanchion. If your fork was leaking externally, these are almost certainly the culprits. Replace them with new, high-quality seals.
• Dust Seals: Located above the main seals, these prevent dirt and debris from reaching the main seals, extending their life. While they don't hold oil, a damaged dust seal can lead to premature main seal failure.
• Internal O-rings: The damper rod assembly itself will have several small O-rings. Inspect these for wear or flattening. Even a tiny imperfection in an O-ring can lead to internal oil bypass, affecting damping performance, though less likely to cause an external leak. If you suspect an internal leak or are doing a full service, it's wise to replace these as well.
• Bushings: Check the fork bushings for wear. Worn bushings can allow excessive play, which can accelerate seal wear.

Replacing seals often requires specific seal drivers to ensure they are seated correctly without damage. Always use new seals and O-rings when performing this service; attempting to reuse old, worn seals is a false economy that will inevitably lead to another leak.

Common Leak Symptoms & Potential Solutions

Understanding where your leak is coming from can help pinpoint the exact fix.

Reassembly and Refilling

Once all components are clean and any worn seals or O-rings have been replaced, you're ready to reassemble the forks and refill them with fresh fork oil. This is where precision and correct fluid levels are paramount for optimal performance.

Step 6: Refilling with Fresh Fork Oil

Choosing the correct fork oil is vital. For a Honda Showa fork, for example, 195cc of fork oil is typically recommended. Alternatively, you can measure the oil height, often specified at 42-47mm from the top of the inner tube when fully compressed, without the spring. Always consult your motorcycle's service manual for the precise specifications for your model.

Carefully pour the recommended amount of fresh fork oil into the fork tube. Once the oil is in, slowly pump the damper rod up and down, about four inches of travel, until no more bubbles emerge from the oil. This process, known as bleeding, removes any trapped air from the damping system, which is crucial for consistent performance. Trapped air can lead to a 'spongy' feel and inconsistent damping.

Step 7: Reinstalling the Fork Cap and Bleeding Excess Oil

Once the damper rod is fully bled, carefully reinstall the fork cap onto the damper rod assembly. Tighten it to the manufacturer's specified torque, which might be around 22 foot-pounds for some models. Now, for another critical step: take an old rag and wrap it around the top part of the fork assembly. Fully compress the damping rod. As you do this, oil will likely shoot out of the oil holes – this is normal and precisely why you have the rag! Release the rod, then flip the assembly over a drain pan. Any excess oil will pour out, ensuring you have the precise, proper oil height. An alternative, albeit messier, method is to use compressed air to blow out the extra oil, but extreme caution is advised to avoid splashing oil everywhere.

Step 8: Reassembling the Fork Spring and Cartridge

With the oil height set, you can now slide your fork spring back into the fork tube. This is a moment of triumph, a sign that you're nearing completion! Now, carefully slide the entire cartridge assembly back into the fork tube. It's starting to look like a complete fork again. Tighten up the fork cap onto the fork tube, ensuring it's snug but not yet fully torqued down.

Step 9: Reconnecting the Damper Rod to the Lower Lug

Flip the fork over. You'll need to use your motorcycle's axle again to push down the fork lug, allowing you to re-insert that fork holding tool. Now, carefully slide the damper rod back into position. Remember, this is the skinny tube you had to resist swinging around earlier! The center bolt has a pin on it that is specifically shaped to match the damper rod. Gently spin the damper rod until the pin on the center bolt drops into its corresponding slot. This ensures correct alignment and operation.

Step 10: Final Torque Specifications

With the damper rod aligned, tighten the center bolt and lock nut to their specified torque, which is often around 16 foot-pounds. As you begin to tighten, you might notice a small gap; this will disappear as you reach the correct torque. Once this connection is secure, fully seat the assembly and tighten the center bolt to the lug. For many forks, this final torque is a substantial 51 foot-pounds. Always double-check your motorcycle's service manual for all torque specifications to prevent damage or unsafe operation.

Torque Specifications at a Glance

Using the correct torque is essential for safety and performance. Always refer to your specific model's service manual for exact figures, but here are some common values:

Frequently Asked Questions (FAQs)

Q: How often should I change my fork oil?

A: For optimal performance and to prevent issues like leaks, it's recommended to change your fork oil every 20 hours of riding, especially for off-road motorcycles, or at least annually for street bikes. Fork oil breaks down and loses its viscosity over time and use, significantly affecting damping performance.

Q: Can I just top up the fork oil instead of replacing it?

A: No, simply topping up is not recommended. When fork oil leaks, it's often due to worn seals, and the remaining oil is likely contaminated and degraded. A full replacement ensures you have fresh, clean oil at the correct level and viscosity, and allows you to inspect and replace worn components.

Q: What kind of fork oil should I use?

A: Always refer to your motorcycle's service manual for the recommended fork oil type and viscosity (e.g., 5W, 7.5W, 10W). Using the wrong viscosity can negatively impact your suspension's performance. Some riders experiment with different viscosities to fine-tune their damping characteristics, but always start with the manufacturer's recommendation.

Q: Do I need special tools to fix a leaking damper rod?

A: Yes, certain specialised tools are highly recommended for this job, including a fork cap tool, a fork holding tool, and potentially a seal driver. While some mechanics attempt to improvise, these tools ensure the job is done correctly, safely, and without damaging components. Investing in them will save you time and potential headaches in the long run.

Q: My forks still leak after changing the oil and seals. What now?

A: If leaks persist, double-check that your new seals were installed correctly and not damaged during installation. Ensure the fork stanchions are perfectly clean and free of nicks or burrs, which can tear new seals. Also, verify that all torque specifications were met. In rare cases, a bent fork tube or damaged internal component might be the cause, requiring further diagnosis by a professional.

Conclusion

Servicing your motorcycle's forks and addressing a leaking damper rod, or more commonly, leaking fork seals, is a vital part of motorcycle maintenance. It not only keeps your garage floor clean but, more importantly, ensures your ride remains safe, comfortable, and performs as it should. The damper rod is at the heart of your fork's damping system, and its proper function, supported by healthy seals and the correct fork oil, is indispensable. While it might seem daunting at first, following these steps carefully, paying attention to torque specifications, and conducting thorough inspections will allow you to successfully fix the issue and get back to enjoying your trusty steed on the road or trail with confidence.
