Your car's dashboard is a complex network of indicators designed to keep you informed about your vehicle's health. Among these, the ABS and traction control warning lights can cause a moment of concern, especially when they illuminate simultaneously. While it might suggest a dual failure, it's often a sign of a single underlying issue affecting both interconnected systems. Fortunately, understanding the common culprits and how to address them can demystify this situation and help you get back on the road with confidence.
The Anti-lock Braking System (ABS) is a critical safety feature that prevents your wheels from locking up during hard braking, allowing you to maintain steering control. Traction Control (TC) is another vital system, particularly on modern vehicles where it's been a mandatory safety feature since 2012. It works to prevent wheel spin during acceleration, especially on slippery surfaces, by reducing engine power or applying individual brakes.
The reason these lights often come on together is that both systems rely on many of the same components for their operation. When one of these shared parts fails, it impacts both the ABS and traction control, triggering the corresponding warning lights.

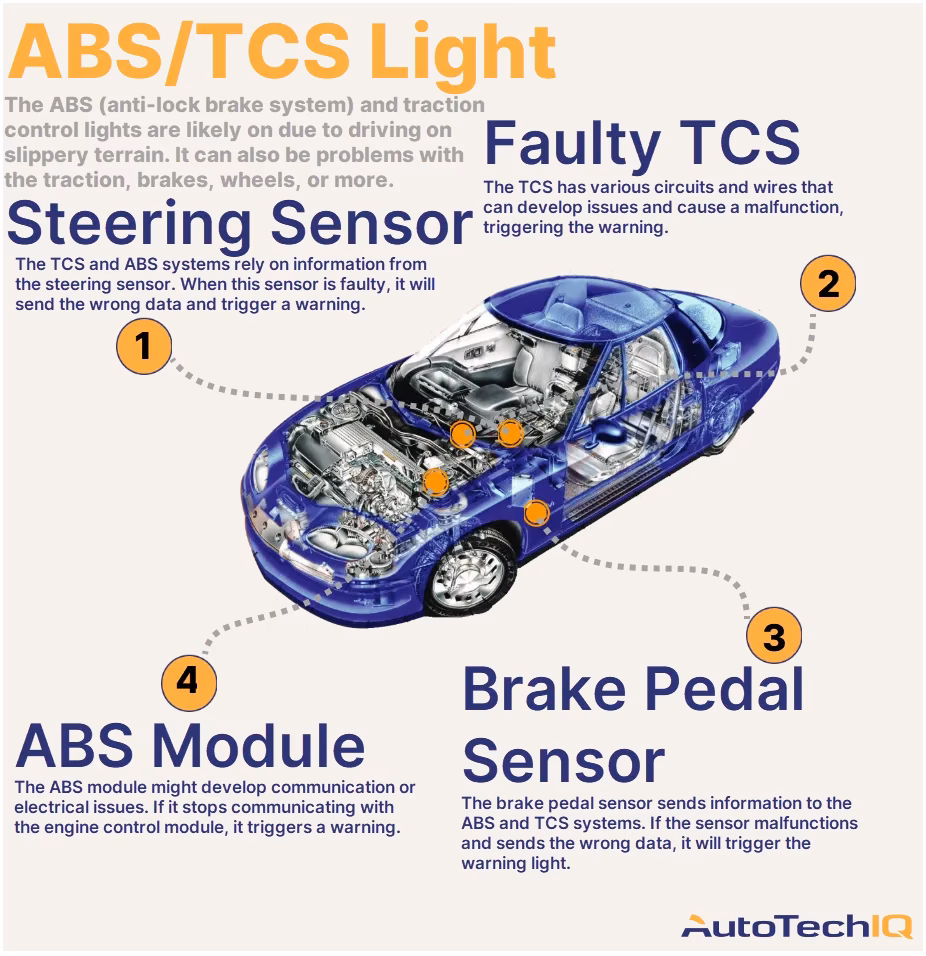

Common Reasons for Simultaneous ABS and Traction Control Light Illumination
Several factors can lead to both the ABS and traction control lights illuminating your dashboard. Identifying the specific cause is the first step towards a resolution:
1. Defective ABS Wheel Speed Sensor
Wheel speed sensors are crucial for both systems. They monitor the rotational speed of each wheel. When the ABS or TC system detects a significant difference in wheel speeds, it intervenes. If a sensor becomes damaged, dirty, or simply fails, it can send incorrect data to the vehicle's computer. This erroneous information leads to a malfunction in both systems, resulting in the illumination of both warning lights. These sensors are often exposed to road debris, making them susceptible to damage.
2. Damaged ABS Reluctor Ring
The ABS reluctor ring, also known as a tone ring, is a toothed ring that works in conjunction with the wheel speed sensor. As the wheel rotates, the sensor reads the teeth on the ring to determine the wheel's speed. If the reluctor ring is bent, cracked, or corroded, the sensor cannot accurately read the wheel speed. This inaccuracy will cause the ABS and traction control systems to malfunction, triggering the dashboard lights. In some cases, a faulty reluctor ring can also lead to a pulsating brake pedal at lower speeds and a complete loss of ABS functionality.
3. Faulty Steering Angle Sensor
The steering angle sensor, typically located within the steering column, measures the position and angle of your steering wheel, as well as how quickly it's returning to the centre. This data is vital for the traction control system to understand the vehicle's intended direction. If this sensor fails, the TC and ABS systems can no longer interpret steering inputs correctly, leading to both warning lights appearing. It's essential to ensure this sensor is functioning accurately for optimal vehicle stability.
4. Wiring Issues and Connector Problems
The intricate network of sensors, modules, and the vehicle's computer is connected by a complex wiring harness. Any damage to this wiring, such as fraying, breaks, or corrosion, can interrupt the flow of data between components. Similarly, corroded or loose connectors can prevent the necessary signals from reaching their destinations. Diagnosing wiring issues can be challenging, but often the fix involves repairing or replacing the damaged section of wire or the faulty connector.
5. Blown Fuse
Fuses are designed to protect electrical circuits from overcurrent. If a fuse related to the ABS or traction control system blows, it will interrupt power to those components. The vehicle's computer will detect this loss of power as a system fault, illuminating both warning lights. While a blown fuse might indicate an underlying electrical problem, it's a relatively simple and inexpensive fix to replace it with a new one of the correct amperage.
6. Low Brake Fluid Level
The ABS system relies on adequate hydraulic pressure to function correctly. The brake fluid level is monitored by a sensor in the master cylinder reservoir. If the brake fluid level drops too low, it can trigger the ABS warning light, and often, due to the interconnected nature of the systems, the traction control light will illuminate as well. A low brake fluid level could indicate worn brake pads or, more seriously, a leak in the brake system. It's crucial to address any leaks promptly.
7. Malfunctioning ABS Control Module
The ABS control module is the brain of the anti-lock braking system. It receives data from various sensors, processes it, and controls the braking force to each wheel. If the control module itself fails, it can cause widespread issues within the ABS and TC systems. Since both systems share this module, a failure here will almost certainly result in both warning lights illuminating. Replacing a control module can be a more significant and costly repair.
8. Low Battery Voltage or Weak Battery
Modern vehicles have sophisticated electrical systems that require a stable and sufficient power supply. A weak or failing battery can lead to low voltage being supplied to various components, including the ABS and traction control modules. When these systems do not receive adequate power, they can trigger fault codes and illuminate the warning lights. You might also notice other electrical components behaving erratically if the battery is the root cause.
| Potential Cause | Estimated Repair Cost (GBP £) |
|---|---|
| Blown Fuse | £5 - £20 |
| Low Brake Fluid | £10 - £30 (if no leak) |
| ABS Wheel Speed Sensor | £100 - £300 (part & labour) |
| ABS Reluctor Ring | £150 - £350 (part & labour) |
| Wiring Issues | £100 - £500+ (depending on complexity) |
| Steering Angle Sensor | £150 - £400 (part & labour) |
| ABS Control Module | £500 - £1,200+ (part & labour) |
| Battery Replacement | £100 - £250 |
Note: Costs are estimates and can vary significantly based on vehicle make, model, age, and garage rates.
How to Diagnose and Fix the ABS and Traction Control Lights
Addressing these illuminated warning lights requires a systematic approach:
1. Retrieve Diagnostic Trouble Codes (DTCs)
The first and most crucial step is to use an OBD-II scanner to read the diagnostic trouble codes stored in the vehicle's computer. These codes will point towards the specific system or component that is reporting a fault. Many modern scanners also offer live data streams, which can provide further insight into sensor readings and system performance.
2. Inspect Physical Components
Once you have an idea of the potential issue from the DTCs, a physical inspection is necessary. Carefully examine the ABS wheel speed sensors and their wiring for any visible signs of damage, corrosion, or debris. Check the ABS reluctor rings for cracks or contamination. Ensure all related electrical connectors are clean and securely attached.
3. Check Brake Fluid Level and Condition
Locate the brake fluid reservoir under the bonnet. Check the fluid level against the 'MIN' and 'MAX' markings. If it's low, top it up with the correct type of brake fluid specified in your owner's manual. While topping up, also inspect the fluid's condition. If it appears dark or murky, a brake fluid flush and replacement may be beneficial.
4. Examine Fuses
Consult your owner's manual to locate the fuse box(es) and identify the fuses associated with the ABS and traction control systems. Carefully remove each relevant fuse and visually inspect the filament inside. If the filament is broken, the fuse is blown and needs to be replaced with a new one of the exact same amperage rating.
5. Test Sensors (If Necessary)
For components like wheel speed sensors, a multimeter can be used to test their resistance and output signals. Compare the readings with the specifications provided in your vehicle's service manual. This can help determine if the sensor is functioning correctly or if it has failed.
6. Address Battery Health
If you suspect a weak battery, have it tested at an auto parts store or by a mechanic. Ensure the battery terminals are clean and the connections are secure. If the battery is old or showing signs of weakness, consider replacing it. After addressing battery issues, you may need to clear the DTCs to reset the warning lights.
7. Clear Codes and Test Drive
After performing any necessary repairs or replacements, use your OBD-II scanner to clear the stored diagnostic trouble codes. Then, take the vehicle for a test drive to see if the ABS and traction control lights remain off. If they reappear, it indicates that the underlying issue has not been fully resolved, and further diagnosis may be required.
8. Seek Professional Assistance
If you're uncomfortable performing these checks or if the problem persists after your initial efforts, it's always best to consult a qualified mechanic. They have the advanced diagnostic tools and expertise to accurately pinpoint and resolve complex issues.
Frequently Asked Questions
How do I reset my ABS and traction control lights?
The warning lights will typically reset themselves once the underlying fault has been repaired. If they don't go off automatically after the repair, you can use an OBD-II scanner capable of clearing codes to reset them. However, simply clearing the codes without fixing the problem will only result in the lights returning.
How much does it cost to fix the ABS and traction control light?
The cost varies greatly depending on the cause. A blown fuse or low brake fluid might cost less than £30. Replacing a wheel speed sensor or reluctor ring could range from £100 to £350. More complex issues like a faulty ABS control module can cost upwards of £500 to over £1,200, including parts and labour.
Can low brake fluid cause the ABS light to come on?
Yes, absolutely. A low brake fluid level is a common cause for both the ABS and traction control lights to illuminate. It's a relatively simple fix if it's just a matter of topping up the fluid, but it's crucial to investigate why the level is low, as it could indicate a leak.
Can I drive without ABS and traction control?
While it is generally legal to drive your vehicle with the ABS and traction control systems deactivated or malfunctioning, it is not recommended, especially in adverse driving conditions. These systems are crucial safety features that significantly enhance your ability to control the vehicle, particularly in emergencies or on slippery surfaces. Driving without them means you lose the benefits of anti-lock braking and traction assistance, which could compromise your safety.
What happens if I ignore the ABS and traction control lights?
Ignoring these warning lights means you are driving without the safety net of ABS and traction control. This can be particularly dangerous in emergency braking situations or when driving on wet, icy, or loose surfaces. While your car may still drive normally, your ability to maintain control in critical moments will be significantly reduced, increasing the risk of an accident. Furthermore, an unresolved issue could potentially lead to more significant and costly damage to other vehicle systems over time.
Understanding why your ABS and traction control lights are on is key to ensuring your vehicle's safety and performance. By following a logical diagnostic process, you can often identify and resolve the issue, restoring peace of mind and the full functionality of these vital safety systems.
