Mk2 Focus Gearbox Oil: The Correct Fill Level

When it comes to maintaining your Ford Focus Mk2, ensuring the gearbox has the correct fluid level is paramount for its longevity and smooth operation. However, a common point of confusion arises when determining precisely how much oil should be in the gearbox. The trusty Haynes manual, a staple for many DIY mechanics, typically advises filling the gearbox to the bottom of the filler plug threads. This is a widely accepted standard across many vehicle makes and models. Yet, delve into online forums and communities, and you'll often encounter suggestions that the fluid level should actually be around 10mm below this very filler hole. This conflicting advice can leave even experienced enthusiasts scratching their heads. So, which is correct, and why the discrepancy? Let's delve into the mechanics and the practicalities to help you make an informed decision for your Mk2 Focus.

Understanding Your Mk2 Focus Gearbox

The Ford Focus Mk2, depending on its engine and year of manufacture, typically features one of two manual gearbox types: the IB5 or the MTX75. Both are robust units, but like any mechanical component, they rely heavily on proper lubrication to function correctly. Gearbox oil serves multiple critical roles:

• Lubrication: It reduces friction between moving parts like gears, bearings, and synchros, preventing wear and tear.
• Cooling: It helps dissipate heat generated by friction within the gearbox, preventing overheating.
• Cleaning: It carries away metallic particles and sludge, keeping the internal components clean.
• Corrosion Protection: It protects metal surfaces from rust and corrosion.

Given these vital functions, the correct level of fluid is not merely a suggestion; it's a requirement for optimal performance and preventing premature failure.

The Haynes Manual Standard: Bottom of the Filler Plug Threads

The Haynes manual's instruction to fill to the bottom of the filler plug threads is a time-honoured method for a reason. This level typically ensures that all internal components, including the main gears, bearings, and the differential (if integrated), are adequately submerged and lubricated during operation. When the vehicle is on level ground, and the oil reaches this point, it indicates a full and sufficient volume of fluid for the gearbox's design. This method is straightforward and has been applied successfully to countless gearboxes over decades, providing a reliable visual indicator that the unit is appropriately filled.

The "10mm Below" Debate: What's Behind It?

The suggestion to fill 10mm below the filler plug hole is less common as a general rule but has gained traction in specific communities, particularly for certain Ford models, including the Mk2 Focus. There are several theories and practical reasons why this advice might exist:

• Mitigating Overfilling Issues: One of the primary concerns with filling to the very brim of the filler hole is the potential for overfilling. While it might seem harmless, overfilling a gearbox can lead to several problems.
• Foaming: Excess oil can be churned by the gears, leading to aeration and foaming. Foamy oil has reduced lubricating properties and can lead to increased wear.
• Increased Internal Pressure: An overfilled gearbox can experience higher internal pressure, which puts undue stress on seal leaks and gaskets. This can lead to leaks, particularly from the driveshaft seals or selector shaft seals, which are common failure points in older gearboxes.
• Drag and Reduced Efficiency: Excess oil can create more resistance for the gears to move through, leading to increased drag, slightly reduced fuel efficiency, and potentially harder gear changes.
• Specific Design Quirks: It's possible that for some revisions of the IB5 or MTX75 gearbox, or for specific driving conditions, a slightly lower fill level was found to be beneficial in preventing certain issues, such as oil being forced into the clutch housing or excessive pressure build-up. While not officially documented in generic manuals, such 'best practices' can emerge from extensive field experience or even manufacturer service bulletins that aren't widely disseminated.

It's important to note that without official manufacturer documentation specifically stating a 10mm lower fill level for the Mk2 Focus, this advice remains anecdotal, albeit potentially well-intentioned and based on practical experience.

The Dangers of Incorrect Fluid Levels

Whether you underfill or overfill, getting the gearbox oil level wrong can have serious consequences:

Underfilling:

• Insufficient Lubrication: Critical components, especially those higher up in the gearbox casing, may not receive adequate oil spray or submersion.
• Increased Wear: Lack of lubrication leads to metal-on-metal contact, accelerating wear on gears, bearings, and synchros.
• Overheating: Reduced oil volume means less heat dissipation, leading to higher operating temperatures and further breakdown of the oil.
• Noise and Rough Shifting: You might notice whining noises, grinding, or difficulty engaging gears.
• Premature Failure: Ultimately, underfilling dramatically shortens the lifespan of the gearbox.

Overfilling:

• Foaming and Aeration: As discussed, this reduces the oil's effectiveness as a lubricant and coolant.
• Seal Leaks: Increased internal pressure can force oil past seals, leading to external leaks and potential damage to the clutch (if oil leaks onto the clutch plate).
• Increased Drag: Can lead to slightly reduced fuel economy and a feeling of 'heaviness' in the drivetrain.
• Potential for Damage: In extreme cases, excessive pressure could lead to damage to internal components or even the gearbox casing, though this is rare.

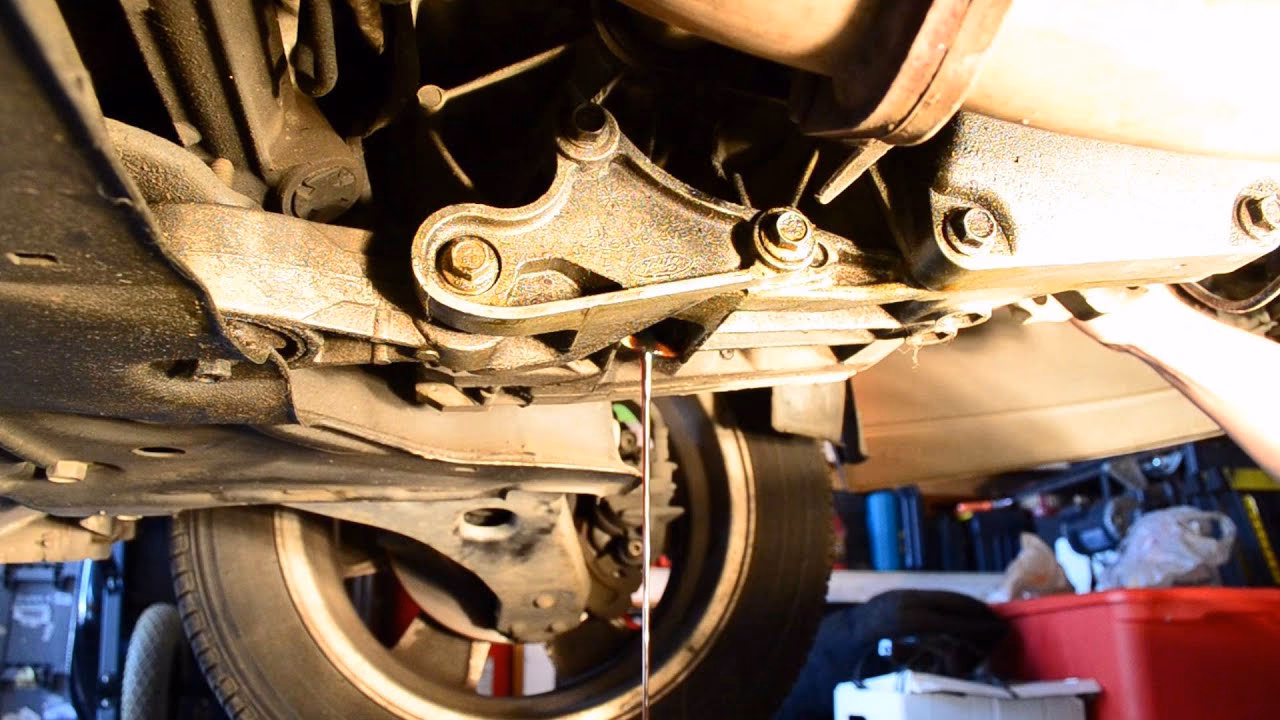

Checking and Filling Your Mk2 Focus Gearbox

Regardless of which fill level you aim for, the procedure for checking and filling remains largely the same:

1. Prepare the Vehicle: Ensure the car is on a level surface. This is absolutely critical for an accurate reading. Use axle stands and a jack, or a ramp/lift for safety. The gearbox should be cool, as hot oil expands.
2. Locate the Filler Plug: On most Mk2 Focus manual gearboxes, the filler plug is typically located on the front or side of the gearbox casing, often identifiable by a large hex head. It's usually above the drain plug.
3. Clean Around the Plug: Before removal, thoroughly clean the area around the filler plug to prevent dirt or debris from entering the gearbox.
4. Remove the Filler Plug: Using the appropriate tool, carefully remove the filler plug.
5. Checking the Level (if already filled): If you're just checking, carefully insert a bent piece of wire or a thin, clean finger into the hole. The oil level should be at the bottom of the threads if following the Haynes manual, or slightly below if aiming for the 10mm mark.
6. Filling the Gearbox: Use a fluid pump or a large syringe with a flexible hose to pump new, specified gearbox oil into the filler hole.
7. Achieving the Desired Level:
   • Haynes Method: Continue pumping oil until it just begins to trickle out of the filler hole. Once it stops trickling, the level is at the bottom of the threads.
   • 10mm Below Method: This requires more precision. You'll need a dipstick or a thin, clean rod with a marked 10mm point from the end. Fill until the oil level is approximately 10mm below the bottom edge of the filler hole. This can be tricky to measure accurately without specialized tools.
8. Replace the Filler Plug: Once the desired level is achieved, reinstall the filler plug, ensuring it's tightened to the manufacturer's specified torque. Do not overtighten.

Reconciling the Discrepancy: Which Path to Take?

Given the conflicting advice, what's the safest and most reliable approach for your Mk2 Focus? Here's a comparative overview:

Recommended Action:

For the vast majority of Mk2 Focus owners, adhering to the Haynes manual's advice – filling to the bottom of the filler plug threads – is the most reliable and safest approach. This is the established method designed by manufacturers to ensure all components are adequately lubricated under normal operating conditions.

The '10mm below' advice should be considered if you are consistently experiencing issues that point to overfilling, such as recurring driveshaft seal leaks shortly after a fluid change, or if you have specific information from a trusted Ford specialist that this applies to your exact gearbox revision for a known issue. However, if your gearbox is performing well and shows no signs of issues, sticking to the manual is the most prudent course of action.

Important Considerations Beyond Fill Level

• Correct Fluid Type: Always use the specific gearbox oil recommended by Ford for your Mk2 Focus. Using the wrong viscosity or type can lead to poor performance and damage. Check your owner's manual for the precise specification (e.g., 75W-90, 75W-80, API GL-4).
• Seal Condition: Before refilling, inspect the seals around the driveshafts and selector shafts for any signs of leaks. A leaky seal will lead to oil loss regardless of the initial fill level.
• Driving Style: While not directly related to fill level, aggressive driving or heavy loads can put more stress on the gearbox, making correct lubrication even more critical.

Frequently Asked Questions (FAQs)

Q1: How often should I check/change my Mk2 Focus gearbox oil?

A: Ford generally considers manual gearbox oil to be a 'lifetime' fluid for the Mk2 Focus, meaning it doesn't require regular changes under normal driving conditions. However, many mechanics and enthusiasts recommend changing it every 60,000 to 100,000 miles, or after 5-7 years, especially if you do a lot of stop-start driving, towing, or if you've bought a used car and its service history is unknown. Checking the level should be part of your routine maintenance checks.

Q2: What are the signs of low gearbox oil?

A: Common signs include difficulty shifting gears (especially when cold), a whining or humming noise from the gearbox, grinding noises, or a noticeable increase in gearbox temperature. External leaks are also a clear indicator.

Q3: Can I mix different types of gearbox oil?

A: No, it is strongly advised against mixing different types or brands of gearbox oil. Different oils may have incompatible additive packages, which can lead to chemical reactions, reduced lubrication, and potential damage to the gearbox components. Always drain completely and refill with the correct, specified oil.

Q4: Is it possible to overfill a gearbox? What happens?

A: Yes, it is very possible to overfill a gearbox. As discussed, this can lead to increased internal pressure, foaming of the oil (reducing its lubricating properties), and potential leaks from seals. It can also cause increased drag and slightly harder shifting.

Q5: What type of oil does my Mk2 Focus gearbox take?

A: For most Mk2 Focus manual gearboxes (IB5 and MTX75), Ford typically specifies a 75W-90 or 75W-80 synthetic or semi-synthetic gear oil that meets API GL-4 specification. Always consult your vehicle's owner's manual or a reputable Ford parts supplier for the exact specification for your specific model and year.

Conclusion

The debate over the Mk2 Focus gearbox oil fill level highlights the importance of understanding not just what the manual says, but also the practical implications of fluid levels. While forum advice about filling 10mm below the filler hole might be a valid consideration for specific cases of persistent issues like seal leaks or foaming, the standard and most reliable method for general maintenance remains to fill to the bottom of the filler plug threads as per the Haynes manual. Always prioritise the correct type of fluid and ensure your vehicle is on a perfectly level surface for an accurate reading. When in doubt, consulting a qualified Ford specialist can provide peace of mind and prevent costly gearbox repairs down the line. Proper gearbox maintenance, including correct fluid levels, is key to many miles of trouble-free motoring.
