Car Brake System Components Explained

The Heart of Safety: Understanding Your Car's Braking System

The ability to stop your vehicle safely and effectively is arguably the most crucial aspect of road safety. Your car's braking system is a complex yet brilliantly engineered network of components working in harmony to convert kinetic energy into heat, slowing your vehicle down. Without a well-maintained braking system, even the most advanced automotive technology is rendered less effective. This article delves into the essential parts that make up this vital system, explaining their function and importance.

1. The Brake Pedal

This is where the process begins. The brake pedal is the driver's direct interface with the braking system. When you press down on the brake pedal, you are initiating the braking sequence. The amount of force you apply to the pedal directly influences the braking pressure generated within the system. While seemingly simple, the pedal assembly includes levers and linkages designed to multiply your foot's force, making it easier to apply significant braking power.

2. The Brake Booster (Servo)

Unless you drive a very old or a very basic vehicle, your car will have a brake booster, often referred to as a servo. This ingenious device uses either vacuum from the engine or hydraulic pressure to amplify the force you apply to the brake pedal. Without a brake booster, you would need considerable leg strength to bring your car to a halt, especially in emergency situations. It significantly reduces the effort required, making braking more comfortable and safer. Common types include vacuum-assisted boosters and hydro-boosters, which use power steering fluid pressure.

3. The Master Cylinder

Connected directly to the brake booster, the master cylinder is the powerhouse of the hydraulic braking system. It's essentially a reservoir filled with brake fluid and one or more pistons. When you press the brake pedal and the booster amplifies the force, this force is transmitted to the pistons within the master cylinder. These pistons then push the brake fluid through the brake lines. Most modern vehicles use a dual-circuit master cylinder for safety. This means that if one hydraulic circuit fails (e.g., due to a leak), the other circuit can still provide some braking power, preventing a complete loss of control.

4. Brake Fluid

Brake fluid is the lifeblood of the hydraulic braking system. It's a special type of fluid designed to transmit pressure efficiently from the master cylinder to the wheel brakes. Brake fluid has a high boiling point, which is crucial because the braking process generates a significant amount of heat. If the fluid were to boil, it would create vapour pockets within the lines. These vapour pockets are compressible, unlike the fluid, leading to a spongy brake pedal and a drastic reduction in braking performance – a phenomenon known as 'brake fade'. Brake fluid also needs to be non-corrosive to protect the metal components within the system and must lubricate moving parts.

5. Brake Lines and Hoses

These are the conduits that carry the pressurized brake fluid from the master cylinder to each wheel. Brake lines are typically made of rigid steel tubing, offering durability and strength. However, at the wheels, where movement and vibration are significant, flexible rubber or reinforced hoses are used. These brake hoses allow for the suspension and steering components to move without damaging the rigid lines. It's essential that these lines and hoses are in good condition, free from leaks, cracks, or bulges, as any compromise here can lead to a loss of brake pressure.

6. The Wheel Brakes: Disc Brakes vs. Drum Brakes

At each wheel, the pressurized brake fluid acts upon a braking mechanism. The two primary types are disc brakes and drum brakes, with disc brakes being far more common on modern vehicles, especially for the front wheels.

a) Disc Brakes

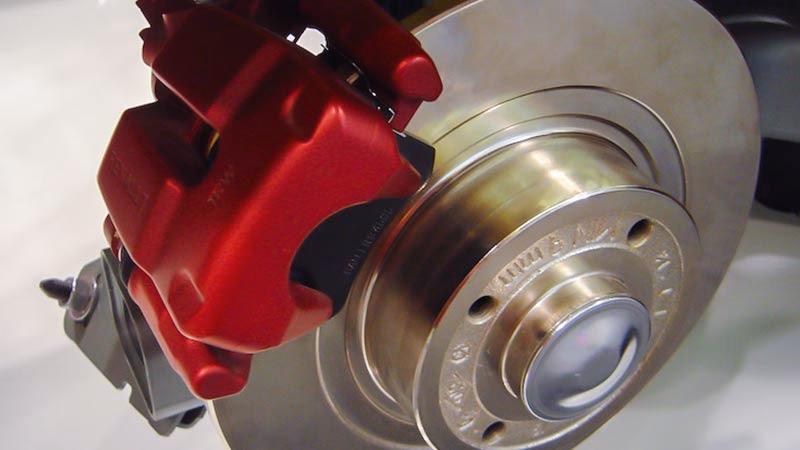

Disc brakes consist of a rotary disc (rotor) that spins with the wheel and a caliper that houses brake pads. When you apply the brakes, hydraulic pressure forces the brake pads to clamp down onto the rotor. The friction generated between the pads and the rotor slows the wheel's rotation.

• Brake Rotor (Disc): A metal disc, usually made of cast iron or sometimes steel alloys, that rotates with the wheel hub. They can be solid or ventilated (with internal vanes) to help dissipate heat.
• Brake Caliper: A clamp-like mechanism that houses the brake pads and pistons. When brake fluid pressure is applied, pistons inside the caliper push the brake pads against the rotor.
• Brake Pads: Friction material mounted within the caliper. These are the primary wear items in a disc brake system. They are designed to be replaced periodically as they wear down.

b) Drum Brakes

Drum brakes are more common on the rear wheels of older or smaller vehicles, and often within the rear disc brake assembly for the parking brake mechanism. They comprise a rotating drum attached to the wheel hub, with stationary brake shoes inside. When braking force is applied, the brake shoes are pushed outwards against the inner surface of the drum, creating friction to slow the wheel.

• Brake Drum: A cylindrical metal component that rotates with the wheel.
• Brake Shoes: Curved metal pieces lined with friction material. These shoes are pushed outwards by a wheel cylinder to contact the drum.
• Wheel Cylinder: A hydraulic cylinder containing pistons that push the brake shoes outward when pressure is applied.
• Brake Adjusters: Mechanisms that automatically or manually adjust the position of the brake shoes as they wear, maintaining proper clearance.

7. Anti-lock Braking System (ABS)

Most modern vehicles are equipped with ABS. This sophisticated system prevents the wheels from locking up during heavy braking, allowing the driver to maintain steering control. ABS uses wheel speed sensors, hydraulic valves, and a control unit to rapidly pulse the brakes on and off at each wheel, preventing skidding. You'll often feel a pulsing sensation through the brake pedal when ABS is active.

8. Parking Brake (Handbrake/E-Brake)

While not part of the primary hydraulic braking system, the parking brake is a crucial safety feature. It's typically a mechanical system that engages a separate set of brake shoes or a small drum within the rear brake assembly (or a caliper disc system). It's designed to hold the vehicle stationary when parked, especially on inclines. It can be a lever between the seats, a pedal, or increasingly, an electronic button (Electronic Parking Brake - EPB).

Ensuring Your Braking System is in Peak Condition

Understanding these components highlights the importance of regular maintenance. Worn brake pads, contaminated brake fluid, leaking lines, or faulty boosters can all compromise your safety. Regular inspections by a qualified mechanic are essential to ensure all parts of your braking system are functioning correctly. Don't neglect your brakes; they are your most important safety feature.

Frequently Asked Questions

Q1: How often should I check my brake fluid?

It's recommended to check your brake fluid level regularly, perhaps every time you check your engine oil. If the level is consistently low, it could indicate a leak in the system, which needs immediate attention.

Q2: What are the signs that my brake pads need replacing?

Common signs include a squealing or grinding noise when you brake, a vibrating or pulsating brake pedal, and a longer stopping distance. If your brake warning light illuminates on the dashboard, it's also a critical sign.

Q3: Can I drive with worn brake pads?

While you might still be able to stop, driving with worn brake pads significantly reduces your braking effectiveness and can damage the brake rotors, leading to more expensive repairs. It's also a safety hazard.

Q4: What's the difference between brake fade and brake judder?

Brake fade is the loss of braking power, often due to overheating brake fluid or components. Brake judder is a vibration felt through the steering wheel or pedal, often caused by uneven rotor surfaces.

Q5: Why does my brake pedal feel spongy?

A spongy brake pedal typically indicates the presence of air in the brake lines or that the brake fluid has boiled. Both situations require professional inspection and service.
