Mastering the Maverick X3 Oil Change Challenge

The Can-Am Maverick X3 is a remarkable piece of engineering, designed for thrilling off-road adventures and high-performance escapades. Its powerful Rotax engine and robust chassis are built to conquer the toughest terrains. However, like any high-performance vehicle, it demands regular maintenance to ensure its longevity and peak performance. One of the most fundamental tasks is changing the engine oil, a seemingly simple concept that, on the Maverick X3, often turns into what many owners describe as a royal pain due to its intricate packaging and clever, albeit challenging, design.

While the principles of an oil change remain consistent – drain the old, replace with new – the execution on a Maverick X3 requires patience, the right tools, and a good understanding of its unique layout. This comprehensive guide will walk you through the process, highlighting the challenges and providing practical advice to make your next oil change as smooth as possible, ensuring your X3 continues to deliver exhilarating experiences for years to come.

Why the Maverick X3 Oil Change is a True Test

Unlike a conventional car, the Can-Am Maverick X3's engine is nestled deep within its frame, surrounded by various components, skid plates, and the exhaust system. This compact packaging is brilliant for weight distribution and chassis rigidity but creates a formidable barrier when it comes to routine maintenance. Accessing the drain plugs and oil filters often requires removing multiple panels and navigating tight spaces where standard tools simply won't fit. The primary difficulties stem from:

• Limited Access: The engine and its vital components are tightly integrated into the chassis, making them difficult to reach.
• Multiple Drain Points: The X3 features not one, but two primary engine oil drain plugs, one on the engine itself and another on the remote oil reservoir. Both need to be drained for a complete oil change.
• Filter Locations: The oil filters are also located in somewhat awkward positions, requiring specific approaches for removal and installation.
• Skid Plates and Body Panels: These protective elements, essential for off-road durability, often need to be partially or fully removed to gain adequate access, adding time and complexity to the process.
• Hot Components: Working around a recently run engine means dealing with hot exhaust pipes and other components, necessitating caution.

Essential Tools and Supplies for the Job

Before you begin, gather all the necessary tools and supplies. Having everything at hand will prevent frustration and delays:

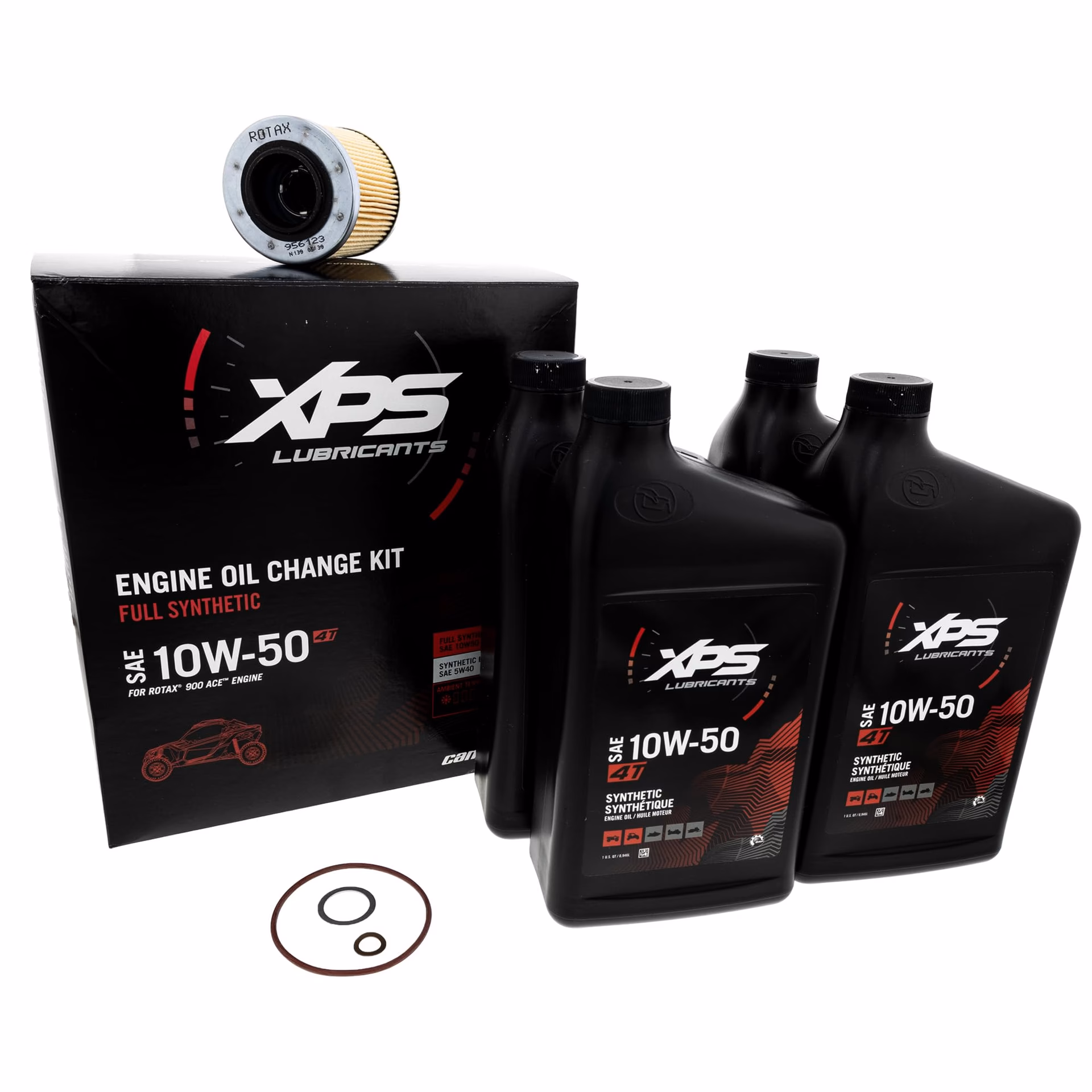

• New Engine Oil: Refer to your owner's manual for the specific type and viscosity (e.g., XPS Synthetic Oil 5W-40 or equivalent). Ensure you have the correct quantity.
• New Oil Filters: You'll need two – one for the engine and one for the remote reservoir. Always use genuine Can-Am parts or high-quality aftermarket equivalents.
• New Crush Washers/O-rings: Essential for the drain plugs to ensure a leak-free seal. Do not reuse old ones.
• Drain Pans: At least two, one for each drain point, with sufficient capacity.
• Socket Set: Including a variety of sizes (e.g., 10mm, 13mm, 17mm, 18mm, 24mm) and extensions.
• Torque Wrench: Absolutely crucial for tightening drain plugs and filter caps to the correct torque specifications to prevent damage or leaks.
• Filter Wrenches: Specific cap-style wrenches for the oil filters will make removal much easier.
• Hex/Allen Key Set: For various bolts on skid plates and access panels.
• Rubber Mallet: Sometimes helpful for gently persuading stuck panels.
• Funnel: For mess-free refilling.
• Clean Rags/Shop Towels: For cleaning up spills.
• Safety Glasses and Gloves: Always prioritise personal safety.
• Jack and Jack Stands or Ramps: To safely elevate the vehicle for better access, if needed.

The Step-by-Step Oil Change Process

1. Pre-Service Preparations and Warm-Up

Ensure your Maverick X3 is on a level surface. Run the engine for 5-10 minutes to warm up the oil. Warm oil drains more thoroughly, carrying away more contaminants. Once warm, shut off the engine and allow it to cool slightly to a manageable temperature, but still warm enough to drain effectively. Never work on a scalding hot engine.

2. Gaining Access: Panel Removal

This is where the 'pain' often begins. You'll need to remove or loosen several panels and skid plates to access the drain plugs and filters. Typically, this involves:

• Removing the rear passenger seat and the plastic panel beneath it to access the remote oil reservoir drain plug and filter.
• Potentially removing or loosening the rear skid plate to access the engine drain plug. Some models or aftermarket skid plates may offer an access hole, but often, full removal provides the best working space.
• Accessing the engine oil filter might require removing a side panel or working from underneath, depending on your specific X3 model and accessories.

Take pictures as you go to remember where each bolt and panel belongs. Keep track of different bolt lengths and types.

3. Draining the Engine Oil

There are two primary drain plugs for the engine oil:

• Remote Oil Reservoir Drain Plug: Located at the bottom of the remote oil reservoir, usually accessible from the top once the seat and panel are removed. Place a drain pan directly beneath it. Carefully remove the plug (often 10mm or 13mm socket) and allow the oil to drain completely. Inspect the crush washer and replace it.
• Engine Oil Drain Plug: This is typically located on the bottom of the engine crankcase, usually requiring access from underneath. Position your second drain pan. Carefully remove this plug (often a larger size, like 17mm or 18mm) and allow the oil to drain fully. Again, replace the crush washer.

Allow ample time for all the old oil to drain out. Tilting the vehicle slightly (if safe to do so) can help ensure a more complete drain, but be extremely careful and use proper safety equipment if doing so.

4. Replacing the Oil Filters

The Maverick X3 uses two oil filters:

• Engine Oil Filter: This spin-on filter is usually located on the side of the engine. Use a cap-style filter wrench to loosen it. Be prepared for some oil spillage as you remove it. Once removed, ensure the old filter's O-ring didn't stick to the engine block. Lightly lubricate the new filter's O-ring with fresh oil before threading it on. Hand-tighten until snug, then turn an additional 3/4 to 1 full turn, or follow the manufacturer's specific torque specification.
• Remote Oil Reservoir Filter: This is typically a cartridge-style filter located within the remote oil reservoir housing, accessible once the reservoir drain plug is removed. You'll usually need to unscrew the cap (often 24mm socket) to pull out the old cartridge filter. Replace the old O-rings on the cap with new ones supplied with the filter. Install the new cartridge filter, ensuring it's correctly seated, then re-install the cap and tighten to torque specifications.

Clean up any spilled oil immediately.

5. Refilling with Fresh Oil

Once both drain plugs are re-installed with new crush washers and torqued to spec, and both new filters are in place, it's time to add fresh oil. Consult your owner's manual for the exact oil capacity. The Maverick X3 typically holds around 3.5 litres (3.7 US quarts) of engine oil, but always verify. Use a clean funnel to pour the oil into the remote oil reservoir fill neck. Add about 80-90% of the recommended capacity first.

6. Checking Levels and Final Steps

After adding the initial amount of oil, start the engine and let it idle for a few minutes. This allows the new oil to circulate through the engine and fill the filters. Check for any leaks around the drain plugs and filters. Shut off the engine and wait a few minutes for the oil to settle. Now, check the oil level using the dipstick located on the remote oil reservoir.

The X3's dipstick reading can be a bit tricky. Ensure the vehicle is level. Pull out the dipstick, wipe it clean, re-insert it fully, then pull it out again to read the level. Add small amounts of oil as needed until the level is between the 'min' and 'max' marks. Do not overfill! Overfilling can cause aeration and potentially damage the engine.

Once the oil level is correct, re-install all removed body panels and skid plates, ensuring all bolts are tightened securely. Double-check all connections and fasteners. Properly dispose of the used oil at a recycling centre.

Common Pitfalls and How to Avoid Them

• Stripped Drain Plugs: Always use the correct size socket and a torque wrench. Do not overtighten.
• Leaking Drain Plugs: Always use new crush washers. They are designed to deform and create a seal only once.
• Incorrect Oil Type/Quantity: Refer to your owner's manual. Using the wrong oil can lead to premature wear. Overfilling or underfilling can also cause significant issues.
• Forgetting an O-ring: Ensure all old O-rings are removed from filter caps and replaced with new ones to prevent leaks.
• Air Locks: Ensure the system is adequately filled and circulated to prevent air pockets.
• Working on a Hot Engine: Patience is key. Allow components to cool sufficiently to avoid burns.

Table: Common Maverick X3 Fluid Capacities & Types (Engine Oil Focus)

*Always consult your specific owner's manual for the most accurate and up-to-date information regarding capacities and specifications for your model year.

Frequently Asked Questions (FAQs)

Q: How often should I change the oil in my Can-Am Maverick X3?
A: Can-Am generally recommends changing the engine oil every 100 hours of operation or once a year, whichever comes first. However, if you ride in extremely dusty, muddy, or aggressive conditions, more frequent changes may be beneficial.

Q: Can I use automotive oil in my Maverick X3?
A: It is strongly recommended to use oil specifically designed for powersports applications, like Can-Am's XPS oil or an equivalent that meets the required API SN and JASO MA2 specifications. Automotive oils may not have the necessary additives or shear stability for the high-stress environment of a UTV engine and its wet clutch (if applicable).

Q: What happens if I overfill the oil?
A: Overfilling can lead to several problems, including aeration of the oil (which reduces its lubricating properties), increased crankcase pressure, and potential damage to seals or even the engine itself. Always aim for the 'max' mark on the dipstick, but never exceed it.

Q: I've changed the oil, but the low oil pressure light is on. What should I do?
A: First, re-check the oil level immediately. If the level is correct, ensure the oil filters are properly installed and tight. If the light persists, do not run the engine. There might be an issue with an oil pressure sensor, a blocked oil passage, or an air lock. It's best to consult a qualified mechanic in this scenario.

Q: Do I need to change the transmission and differential fluids at the same time as the engine oil?
A: Not necessarily at the exact same time, but they are part of a comprehensive service schedule. Transmission and differential fluids typically have longer service intervals (e.g., every 200 hours or 2 years) compared to engine oil. However, it's often convenient to perform these services together if you have the time and resources.

Conclusion

While changing the oil in your Can-Am Maverick X3 can indeed be a challenging task due to its unique packaging and multiple access points, it is a crucial part of maintaining your off-road machine. By understanding the specific requirements, gathering the right tools, and following a methodical approach, you can successfully complete this vital maintenance chore. Taking the time to do it right will not only save you money on workshop fees but will also provide the satisfaction of knowing you’ve personally contributed to the longevity and performance of your incredible Maverick X3, ensuring it's always ready for your next adventure.
