DIY Diff Oil Change: Drain Plug Removal Guide

Understanding how to properly service your vehicle's differential is a cornerstone of effective preventative maintenance, ensuring the longevity and smooth operation of your car's drivetrain. A critical step in this process is the correct removal of the differential drain plug. While it might seem like a straightforward task, there are nuances and best practices that can make the difference between a quick, clean job and a frustrating, messy ordeal. This guide will walk you through the essential steps, tools, and considerations for successfully removing your differential drain plug and completing an effective oil change, drawing on practical tips and insights.

Why Your Differential Needs Regular Attention

The differential is a vital component of your vehicle, allowing your wheels to rotate at different speeds when cornering. This intricate gear system is constantly under immense stress and friction, generating significant heat. To mitigate wear and tear, it relies on specialised differential fluid to lubricate, cool, and protect its internal components. Over time, this fluid degrades due to heat, contamination, and the breakdown of its additives. Neglecting differential fluid changes can lead to increased friction, excessive heat, premature wear of gears and bearings, and ultimately, costly repairs or even complete differential failure.

Regular fluid changes are an investment in your vehicle's future. They help maintain optimal performance, reduce noise from the drivetrain, and significantly extend the life of this expensive assembly. Think of it as an essential health check for a hard-working part of your car.

Gathering Your Essential Tools and Materials

Before you even think about getting under your vehicle, ensure you have all the necessary tools and materials at hand. Being prepared not only makes the job smoother but also safer. For a typical differential oil change, you'll need:

• New Differential Fluid: Always consult your vehicle's service manual for the correct type and viscosity. For instance, many vehicles, including a 2007 Fiat 500, specify 75W-90 GL-5. Ensure you have the correct volume; a front differential might require around 500 ml, while a rear might need 250 ml.
• Wrenches/Sockets: You'll need the appropriate size for both the drain and fill plugs. While specific vehicles like the Fiat 500 might use less common sizes (e.g., a 3/16-inch square drive for drain plugs and a 6 mm Allen key for fill plugs), standard socket sets with various hex or square drives are typically required. A breaker bar can be invaluable for stubborn plugs.
• Drain Pan: A wide, low-profile drain pan is ideal for catching the old fluid without making a mess. Ensure it has sufficient capacity.
• Fluid Pump: A hand pump that screws directly onto the new fluid bottle is highly recommended for mess-free refilling, especially in tight spaces. Some even come with measurement markings.
• Funnel: While a pump is primary for filling, a small funnel might assist with specific fluid transfers or for creating a custom spill-guard.
• New Crush Washers/Seals: It is absolutely crucial to replace the crush washer or seal on both the drain and fill plugs. Reusing old ones can lead to leaks.
• Jack and Jack Stands: For safety, always use sturdy jack stands to support the vehicle once lifted. Never rely solely on a jack.
• Wheel Chocks: To prevent the vehicle from rolling.
• Rags/Shop Towels: For cleaning up spills and wiping down components.
• Gloves: To protect your hands from oil and grime.
• Safety Glasses: To protect your eyes from splashes.
• Optional: Penetrating oil for seized plugs, a torque wrench for correct tightening, and a clean container for inspecting old fluid.

Preparation: Setting the Stage for Success

Proper preparation is paramount for a successful and safe differential fluid change. Don't rush this stage.

Heating the Fluid

Just like engine oil, differential fluid drains more efficiently when warm. The user's experience of driving the car to warm up the oil is an excellent practice. A short drive (15-20 minutes) will bring the fluid to an optimal temperature, making it less viscous and ensuring a more complete drain. Be careful, however, as the components will be hot.

Safety First: Lifting and Securing Your Vehicle

Always prioritise safety first. Park your vehicle on a flat, level surface. Engage the parking brake and place wheel chocks behind the wheels that will remain on the ground. Use a reliable jack to lift the vehicle to a comfortable working height. Once lifted, immediately place sturdy jack stands under appropriate jacking points and gently lower the vehicle onto them. Give the vehicle a slight nudge to ensure it's stable before crawling underneath.

Locating the Plugs and Cleaning the Area

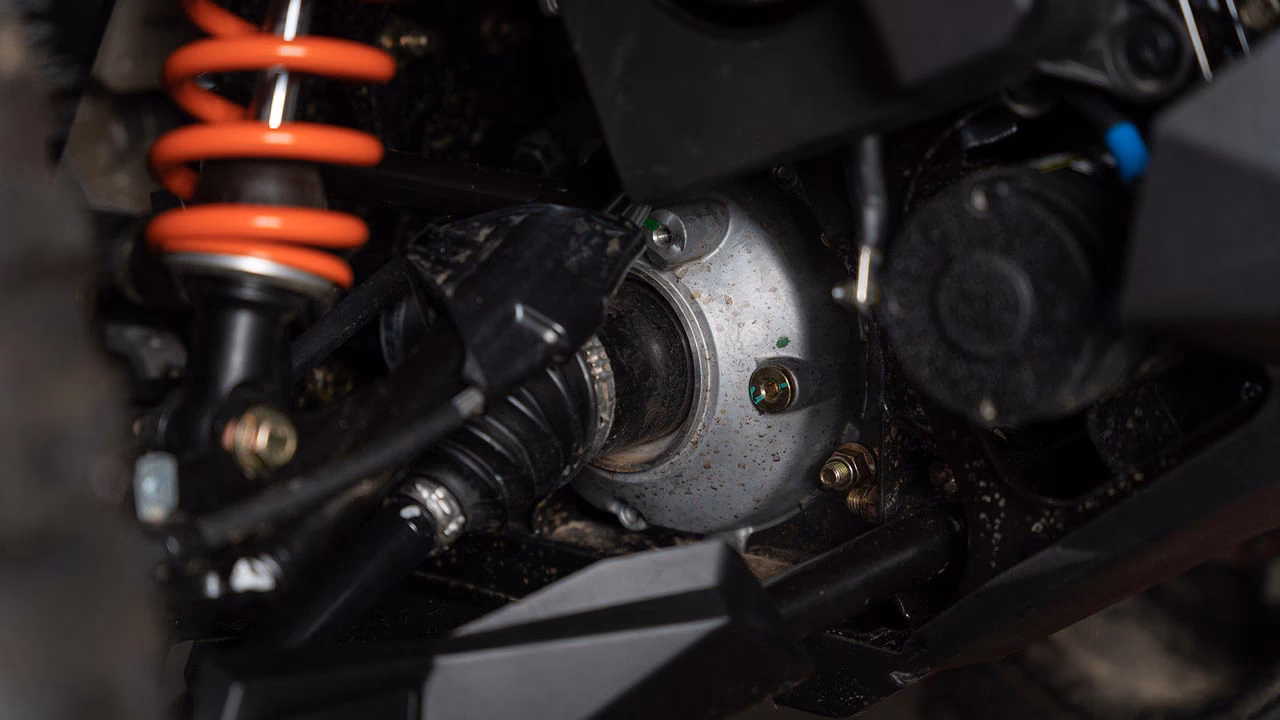

The differential housing is typically a pumpkin-shaped component found on the axle. You'll usually find two plugs: a lower drain plug and a higher fill plug. For some vehicles, like the Fiat 500, there might be a front and a rear differential, each with its own set of plugs. Before attempting to loosen any plug, use a wire brush or a rag to thoroughly clean the area around both the drain and fill plugs. This prevents dirt, grit, or debris from falling into the differential once the plugs are removed, which could contaminate the new fluid and damage the gears.

The Drain Plug Removal Process: Your Primary Objective

This is where the rubber meets the road. Removing the drain plug correctly is crucial to avoid stripping it, damaging the housing, or creating an unnecessary mess.

1. Loosen the Fill Plug First (Crucial Step!)

This is a golden rule of fluid changes: always loosen the fill plug before attempting to remove the drain plug. Why? Because if you drain the fluid and then discover you can't get the fill plug undone, you'll be stranded with a differential that's empty and unusable. Ensure you can easily loosen the fill plug, even if you don't fully remove it yet.

2. Position Your Drain Pan

Place your drain pan directly underneath the differential drain plug. If you anticipate a messy spill due to the vehicle's frame or other obstructions, be prepared with a custom solution. As per the user's clever method for the rear differential of a Fiat 500, cutting a 1-litre oil container from a top corner to the opposite bottom corner can create an effective funnel. This can be slipped into place between the frame and the differential housing, guiding the draining oil directly into your collection container and preventing it from spilling onto the chassis.

3. Breaking the Drain Plug Loose

Using the correct tools and size wrench or socket (e.g., a 3/16-inch square drive for the Fiat 500 drain plug), apply steady, firm pressure to loosen the drain plug. Some plugs can be extremely tight, especially if they haven't been removed in a long time. If it's stubborn, a breaker bar will provide much-needed leverage. Avoid using excessive force that could strip the plug head or round off the edges. If it's truly stuck, a quick spray of penetrating oil and allowing it to soak for 15-30 minutes can help. In extreme cases, a controlled application of heat with a torch (with extreme caution, away from fuel lines!) might be necessary, but this is usually a last resort for professionals.

4. The "Opposite Side Jack-Up" Technique for Full Drainage

As suggested by some service manuals, including for the Fiat 500, once the drain plug is out and the initial flow of oil has slowed, you might consider jacking up the opposite side of the vehicle slightly. This subtle tilt can help ensure every last drop of old fluid drains out, maximising the effectiveness of your fluid change. This is a subtle but effective trick for a truly thorough drain.

5. Removing the Plug and Managing the Flow

Once the plug is loose, carefully unscrew it by hand. Be ready for the fluid to gush out. It will likely be warm, so be cautious. Allow all the old fluid to drain completely. This can take several minutes. While it's draining, inspect the old fluid. Note its colour (new fluid is typically amber, while old fluid will be dark brown or black). Pay close attention to any metal particles or shavings in the fluid, especially if you're using a transparent collection container like a cut-up plastic yogurt pot, as the user described. Small, almost glitter-like particles might be normal wear, but larger chunks or significant amounts of metallic sludge could indicate a more serious internal issue requiring professional inspection. This fluid analysis is key.

6. Inspecting the Drain Plug

Most differential drain plugs are magnetic, designed to capture metallic wear particles. Once removed, thoroughly clean the plug and inspect the magnetic tip for any debris. A small amount of fine, grey sludge is normal wear. However, if you find larger metal shavings or chunks, it's a strong indicator of internal component wear and warrants further investigation.

Remember to remove the old crush washer from the drain plug. It will likely be compressed and stuck on.

Refilling Your Differential: The Final Steps

With the old fluid drained and the drain plug inspected, it's time to refill your differential with fresh fluid.

1. Reinstalling the Drain Plug

Before reinserting the drain plug, ensure you fit a new crush washer or seal. This is non-negotiable for preventing leaks. Hand-tighten the plug first, then use your wrench or socket to tighten it to the manufacturer's specified torque specifications. Over-tightening can strip threads, while under-tightening can lead to leaks. If you don't have a torque wrench, tighten it firmly but do not overtighten it. A good rule of thumb is snug, plus a quarter turn, but always prefer a torque wrench if possible.

2. Adding New Fluid

Using your fluid pump, begin pumping the new differential fluid into the fill hole. For a front differential, like the Fiat 500's 500 ml capacity, you might pump until fluid just starts to trickle out of the fill hole or until you've added the specified volume. For a rear differential, where precise measurement is key (e.g., 250 ml for the Fiat 500), it's best to measure the exact amount beforehand. The user's method of using a hand pump that screws into a bottle with measurements, pumping 250 ml into a 300 ml bottle, demonstrates excellent precision.

3. Securing the Fill Plug

Once the correct amount of fluid has been added, reinstall the fill plug with a new crush washer or seal. Tighten it to the manufacturer's specified torque. Clean up any spills around both plugs.

Post-Change Checks and Disposal

Once both plugs are securely tightened, lower your vehicle off the jack stands. Give the differential area a final wipe down to ensure it's clean and dry. Take your vehicle for a short test drive, paying attention to any unusual noises or leaks. After the drive, re-inspect the drain and fill plugs for any signs of leakage. Finally, dispose of the old differential fluid responsibly at an authorised recycling centre or auto parts store. Never pour it down drains or onto the ground.

Front vs. Rear Differential Service Differences

While the general process remains similar, there can be subtle differences between servicing front and rear differentials, especially in vehicles equipped with both, like some Fiat 500 models.

Frequently Asked Questions About Differential Fluid Changes

How often should I change my differential fluid?

Service intervals vary significantly by vehicle manufacturer, driving conditions, and differential type. Consult your owner's manual. Common intervals range from 30,000 to 100,000 miles. Severe driving conditions (towing, off-roading, extreme temperatures) may require more frequent changes.

What are the signs of bad differential fluid?

Signs include a whining or howling noise from the rear (or front) of the vehicle, particularly when accelerating or decelerating; grinding sounds; or a burning smell. However, by the time these symptoms appear, significant damage may have already occurred. Regular inspection and changes are key.

What if my drain plug is stripped or seized?

This is a common frustration. For a stripped head, special tools like a bolt extractor socket or welding a nut onto the plug might be necessary. For a seized plug, penetrating oil, heat, and a breaker bar are often effective. If all else fails, professional help is advised to avoid damaging the differential housing itself, which is a much more expensive repair.

Can I use any 75W-90 GL-5 fluid?

While 75W-90 GL-5 is a common specification, always ensure the fluid meets or exceeds your manufacturer's specific requirements. Some differentials require synthetic fluids, limited-slip additives, or specific brand approvals. Using the wrong fluid can lead to poor performance and premature wear.

Is it normal to find metal on the magnetic drain plug?

A small amount of very fine, metallic paste or "fuzz" on the magnetic drain plug is normal wear over time. This indicates the magnet is doing its job. However, if you find larger chunks, flakes, or an excessive amount of metallic sludge, it's a concern and suggests abnormal wear within the differential that warrants further investigation by a qualified mechanic.

Concluding Thoughts: The Value of DIY Differential Maintenance

Servicing your differential, particularly the critical step of drain plug removal, is a manageable DIY task for most home mechanics. By following these steps, understanding the specific requirements of your vehicle, and prioritising preventative maintenance, you can ensure a thorough and effective fluid change. This proactive approach to maintenance not only saves you money on garage fees but also provides valuable insight into the health of your vehicle's drivetrain. Regular differential fluid changes are a small effort for a significant return in vehicle reliability and longevity. Embrace this aspect of vehicle care, and your car will thank you with many more miles of smooth, reliable operation.
