Cambelt Replacement Guide

The Crucial Role of Your Car's Cambelt

The cambelt, also known as the timing belt, is an unsung hero of your vehicle's engine. This seemingly simple rubber belt plays an absolutely critical role in the synchronisation of your engine's internal components. It connects the crankshaft to the camshaft(s), ensuring that the engine's valves open and close at precisely the right moments during the combustion cycle. Without a functioning cambelt, your engine simply wouldn't run. Over time, however, like all components subjected to constant motion and heat, the cambelt succumbs to wear and tear. This ageing process can lead to stretching, cracking, or even snapping, with potentially catastrophic consequences for your engine.

Understanding when your cambelt needs attention and how to replace it is vital for maintaining the health and longevity of your car. While replacing a cambelt is a task best left to experienced mechanics due to its complexity, knowing the process can empower you to recognise the signs of a worn belt and make informed decisions about its maintenance. This guide will walk you through the essentials of cambelt replacement, from identifying the need for a new belt to the step-by-step process itself.

Signs Your Cambelt Needs Replacing

Proactive maintenance is key when it comes to your car's cambelt. Ignoring the signs of wear can lead to costly repairs. Here are some common indicators that your cambelt may be nearing the end of its life:

• Ticking Noise: A persistent ticking sound coming from the engine, particularly noticeable on startup, can indicate that the cambelt is loose or damaged and is hitting the timing cover.
• High Mileage or Age: Cambelts have a recommended replacement interval, usually based on mileage (e.g., every 60,000 to 100,000 miles) or age (e.g., every 5 to 7 years), whichever comes first. Rubber degrades over time, even if the mileage hasn't been reached.
• Visible Wear: If you or your mechanic can visually inspect the cambelt (often requiring the removal of covers), look for signs of fraying, cracking, glazing (a shiny, smooth surface), or missing teeth.
• Engine Misfires or Rough Idling: A worn cambelt can cause incorrect valve timing, leading to the engine running poorly, misfiring, or idling unevenly.
• Difficulty Starting: If the cambelt has slipped or is significantly worn, it might affect the engine's ability to start.

Tools You'll Need for Cambelt Replacement

Before embarking on the cambelt replacement process, it's crucial to have the correct tools at hand. Attempting this job without the proper equipment can lead to frustration and potential damage. Here's a list of essential tools:

How to Replace Your Car's Cambelt: A Seven-Step Process

Replacing a cambelt is a precision job. If you are not confident in your mechanical abilities, it is strongly advised to seek professional assistance. However, understanding the steps involved can be beneficial. Here's a general overview:

Step 1: Obtain the Correct Cambelt Replacement

This is arguably the most crucial first step. Using the wrong cambelt can lead to immediate engine damage. Consult your vehicle's owner's manual for the exact specification. Alternatively, your local garage or a reputable parts supplier can help you identify the correct belt based on your car's registration number or VIN. The 'teeth' on the new cambelt must precisely match the cogs on the crankshaft and camshafts to maintain perfect synchronisation.

Step 2: Disconnect the Battery

For safety, always disconnect the battery before commencing any work on the engine. Disconnect both the positive (+) and negative (-) battery terminals. This prevents any accidental electrical shorts or shocks while you're working around the engine bay. It's good practice to secure the disconnected cables away from the battery terminals.

Step 3: Remove Ancillary Belts and Components

To gain access to the cambelt, you'll typically need to remove the alternator belt and any other accessory belts that obstruct the cambelt. These are usually located on pulleys driven by the crankshaft. You may also need to remove components such as the power steering pump, air conditioning compressor, or engine mounts if they are in the way. Loosen the tensioners for these belts and carefully remove them. Keep track of any bolts or fasteners you remove, as they will need to be reinstalled correctly.

Step 4: Align the Timing Marks

This is a critical stage that requires extreme accuracy. With the accessory belts removed, you can now access the cambelt and its pulleys. You will need to rotate the crankshaft using a spanner or socket until the timing marks on the crankshaft pulley and camshaft pulleys align with the corresponding marks on the engine block or cylinder head. These marks are usually indicated by dots, lines, or arrows. Consult your vehicle's service manual for the precise location of these marks and the correct alignment procedure. Once aligned, it's often recommended to remove the timing cover(s) that protect the cambelt.

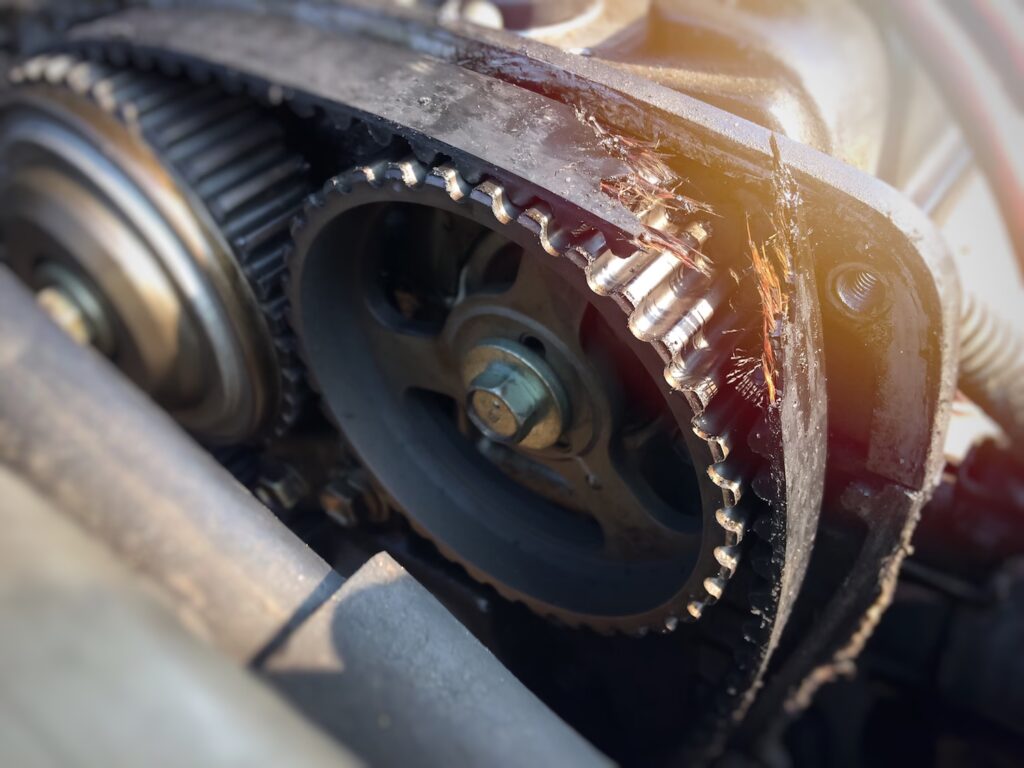

Step 5: Remove the Old or Broken Cambelt

Before removing the old cambelt, ensure the surrounding area is clean and free from any oil or coolant leaks, as these can degrade the new belt. With the engine's timing perfectly aligned, you can now loosen the tensioner that holds the cambelt in place. This will release the tension, allowing you to carefully slide the old belt off the pulleys. If the belt has already snapped, you will simply remove the broken pieces.

Step 6: Fit the New Cambelt

With the old belt removed and the timing marks still perfectly aligned, carefully fit the new cambelt onto the pulleys. Start by fitting it onto the crankshaft pulley, then route it around the other pulleys (water pump, tensioner, idler pulleys, and camshaft pulleys) in the correct sequence as indicated in your service manual. Once the new belt is in place, you'll need to install and adjust the cambelt tensioner to achieve the correct tension. Over-tensioning can damage bearings, while under-tensioning can lead to premature wear or slippage. Use a torque wrench to tighten the tensioner bolt to the manufacturer's specification.

Step 7: Reassemble and Test

After the new cambelt is fitted and tensioned, double-check that all timing marks are still correctly aligned. Manually rotate the crankshaft a couple of full revolutions (again, following your service manual's instructions) to ensure the belt runs smoothly and the timing marks remain aligned. Reinstall any covers, components, and accessory belts that you removed earlier. Ensure all fasteners are tightened correctly. Finally, reconnect the battery, start the engine, and listen for any unusual noises. If everything sounds normal, take your car for a cautious test drive to ensure the engine is running smoothly and that the cambelt is performing as expected.

Cambelt vs. Timing Chain

It's worth noting that not all cars use cambelts. Many modern vehicles, and some older ones, utilise a timing chain instead. Timing chains are typically made of metal and are designed to last the lifetime of the engine, often not requiring replacement unless there's a specific issue. However, cambelts are generally made of reinforced rubber and have a finite lifespan, necessitating periodic replacement.

Here's a brief comparison:

Frequently Asked Questions

Q1: How often should I replace my cambelt?

A1: This depends on your vehicle's manufacturer recommendations. Always check your owner's manual. Typically, it's either based on mileage (e.g., every 60,000 to 100,000 miles) or age (e.g., every 5 to 7 years), whichever comes first.

Q2: What happens if my cambelt snaps?

A2: If your cambelt snaps while the engine is running, especially in an 'interference' engine, the pistons can collide with the valves, causing severe and often irreparable damage to the engine's internal components, potentially leading to a very expensive repair bill or even requiring a full engine replacement.

Q3: Can I replace my cambelt myself?

A3: While it's possible, replacing a cambelt is a complex and precise job. It requires specific tools and a thorough understanding of engine timing. If you are not an experienced mechanic, it is highly recommended to have a qualified professional carry out the replacement to avoid costly mistakes.

Q4: Is it necessary to replace the water pump and tensioner at the same time as the cambelt?

A4: Yes, it is strongly recommended. The water pump is often driven by the cambelt, and its lifespan is similar to that of the cambelt. The tensioner and idler pulleys also wear out. Replacing these components at the same time as the cambelt is a wise preventative measure, as the labour cost for their replacement would be significantly higher if done separately later.

Q5: How can I tell if my car has a cambelt or a timing chain?

A5: The best way is to consult your car's owner's manual. If you don't have the manual, you can often find this information on the manufacturer's website or by contacting a dealership with your vehicle's registration details. Sometimes, you can identify it by looking at the front of the engine; timing chains are usually behind a metal cover, while cambelts are often behind a plastic cover.

Conclusion

The cambelt is a vital but often overlooked component of your car's engine. Regular checks and timely replacement are essential to prevent serious engine damage and ensure your vehicle continues to run smoothly and reliably. By understanding the signs of wear and the importance of adhering to recommended replacement intervals, you can protect your investment and avoid potentially devastating repair costs. When in doubt, always consult your owner's manual or seek the expertise of a qualified mechanic.
