Cat C12 Overhaul Kits & Remanufacturing

Understanding Cat C12 Engine Overhaul Kits and Remanufacturing

The Caterpillar C12 engine is a robust inline-six diesel engine, widely recognised for its application in marine propulsion. Known for its impressive horsepower range, from 345 mhp to 497 mhp, and its solid reputation for performance and fuel economy, the C12 is a popular choice for various sea-going vessels. Its environmentally friendly credentials stem from an electronically controlled fuel system that meets stringent emission standards like EPA Tier 2 commercial, IMO II, and EU IW or RCD. Furthermore, its identical size, footprint, and connection points to the 3196 engine make it an excellent and convenient replacement option.

When an engine like the C12 begins to show signs of wear or suffers internal damage, an overhaul or a remanufactured replacement becomes a necessary consideration. Caterpillar offers various levels of overhaul kits to cater to different repair needs, with the Platinum level being the most comprehensive. Understanding what these kits contain is crucial for a successful engine rebuild.

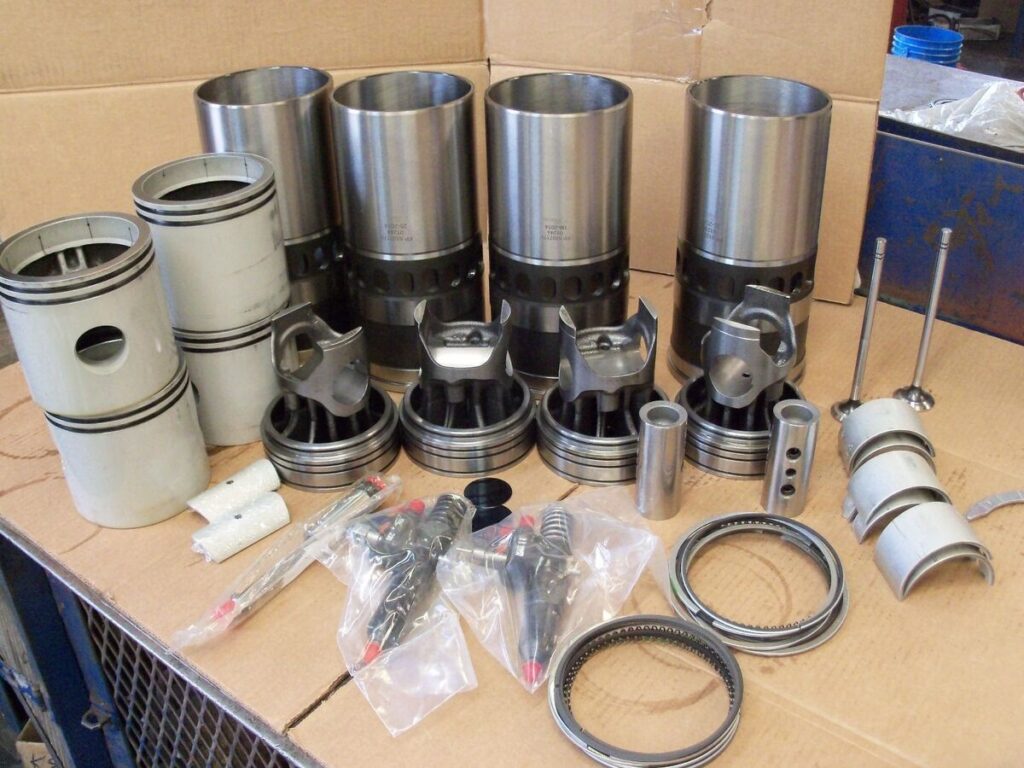

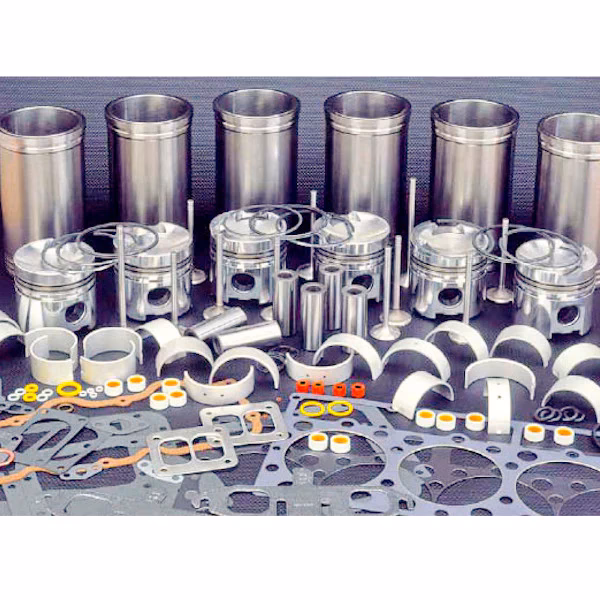

What's Included in a Cat C12 Reman C12 Platinum Overhaul Kit?

A Cat Reman C12 Platinum level engine overhaul kit represents the pinnacle of comprehensive engine rebuilding for this specific model. It is designed to provide virtually everything needed to restore an engine to its original specifications, ensuring maximum performance and longevity. The Platinum kit builds upon the foundation of the Gold kit by incorporating a suite of high-quality, remanufactured core components, ensuring that critical parts are not just replaced but are restored to OEM standards.

Specifically, a Cat Reman C12 (16.0:1 Compression Ratio) Platinum level engine overhaul kit typically includes all the components found in the Gold kit, plus the following key items:

• Cat Reman Cylinder Heads: These are fully rebuilt and tested cylinder heads, ensuring optimal sealing and combustion efficiency.
• Cat Reman Fuel Injectors: Precision-remanufactured fuel injectors deliver the correct fuel mixture for improved performance and fuel economy.
• Cat Reman Water Pump: A remanufactured water pump ensures efficient engine cooling, preventing overheating.
• Cat Reman Oil Pump: This vital component is remanufactured to ensure consistent and adequate oil pressure for lubrication and engine protection.
• Cat Reman Cylinder Packs: These include remanufactured cylinders, pistons, rings, and liners, all meticulously prepared to meet original specifications for superior sealing and wear resistance.

The inclusion of these remanufactured core components in the Platinum kit signifies a commitment to restoring the engine's internal health with parts that have undergone rigorous inspection, machining, and testing processes. This approach offers a significant advantage over simply replacing worn parts with new ones, as remanufactured components often benefit from the lessons learned from previous failures, incorporating design improvements where applicable.

The Remanufacturing Process: Restoring Excellence

When considering engine replacement options, particularly for engines that have experienced catastrophic internal failure, a remanufactured long block from a reputable supplier like Big Bear Engine Company offers a compelling alternative to purchasing a brand-new engine. This is especially true when external components from the original engine are still functional and can be salvaged, further reducing overall costs.

The remanufacturing process is a meticulous journey that transforms a worn-out engine core into a unit that performs to Original Equipment Manufacturer (OEM) specifications. It's not about merely refurbishing old parts; it's about completely rebuilding the engine with a combination of meticulously remanufactured core parts and brand-new components where necessary. This ensures that the final product meets or exceeds the performance and reliability of a new engine.

Core Tear Down, Cleaning, and Inspection

The process begins with a complete tear-down of the engine core. Every single part is meticulously stripped and then subjected to thorough cleaning processes. This often involves chemical jet washing or hot tanking to remove stubborn impurities, carbon deposits, and sludge that could compromise performance or lead to premature component failure. Following cleaning, each component undergoes a rigorous inspection. This includes:

• Crankshaft: Precision machined to exact tolerances, polished, and magnafluxed to detect even the smallest cracks.
• Cylinder Head: Resurfaced to ensure a perfect sealing surface with the block, compatible with modern head gasket materials. Valve height is checked, and the head is vacuum tested to confirm correct valve seating.
• Block: Inspected for cracks and imperfections using magnetic particle testing. Cylinders are bored, honed, and inspected to precise tolerances. For critical engines, torque plate honing is employed to prevent cylinder distortion after the head is installed and torqued.
• Camshaft: Carefully inspected and precisely machined to achieve correct valve lift. Lobes are measured with micrometers to ensure they meet OEM tolerances.
• Connecting Rods: Cleaned and machined to OEM specifications, then honed to the original equipment standard diameter to ensure even stress distribution across bearings. New bushings are fitted and machined where required. Rods are also inspected for any bend or twist.

Machining and Reassembly with New Parts

After the thorough inspection, components that meet the stringent remanufacturing standards are machined. This machining process restores parts to their original dimensions and tolerances. For instance, cylinder heads are resurfaced, crankshafts are reground and polished, and blocks are bored and honed.

Crucially, all remanufactured Cat C12 long blocks are built with a strategic combination of both remanufactured and new parts. This ensures that components prone to wear or those critical for initial performance and reliability are replaced with new ones. A standard set of new parts typically includes:

• Pistons and Rings: New pistons and rings are essential for proper cylinder sealing and oil control.
• Bearings: New main and connecting rod bearings ensure optimal lubrication and reduce friction.
• Gaskets and Seals: A complete set of new gaskets and seals prevents leaks and ensures proper fluid containment.
• Liners: New cylinder liners provide a fresh, wear-resistant surface for the pistons.

These new parts are sourced from a combination of OEM and reputable aftermarket suppliers, guaranteeing optimal performance and reliability throughout the engine's operational life. The meticulous machining and the use of quality new parts are fundamental to the high standards upheld in the remanufacturing of Cat C12 engines.

Common Cat C12 Engine Problems and Failures

While the Cat C12 is a durable engine, like any complex piece of machinery, it can be susceptible to certain problems and failures over time. Understanding these common issues can help owners and technicians proactively address potential problems or diagnose existing ones more effectively. Some of the most frequently encountered C12 engine issues include:

• Spun Crankshaft Bearings: This often occurs due to a lack of adequate lubrication or oil pressure, leading to the bearing rotating within its housing, causing significant damage.
• Cracked Cylinder Head: Overheating or stress can lead to cracks in the cylinder head, compromising the seal between the combustion chamber and the cooling system or oil passages.
• Dropped Valves: Valve train issues, such as worn valve guides or spring failure, can lead to a valve dropping into the cylinder, causing severe internal damage.
• Camshaft Failure: Wear on camshaft lobes or bearing journals can impact valve timing and lift, affecting engine performance.
• Crankshaft Failure: Catastrophic failure of the crankshaft, often due to bearing issues or stress fractures, is a serious problem requiring extensive repair or replacement.
• Lifter/Roller Failure: Wear or failure of the lifters or roller followers in the valve train can disrupt valve operation.
• Connecting Rod Failure: Similar to crankshaft bearings, connecting rod bearings can fail due to lubrication issues, or the rod itself can fail under extreme stress.
• Scored Pistons and Liners: Contamination in the oil or inadequate lubrication can lead to scoring on the piston and cylinder liner surfaces, causing blow-by and loss of compression.
• Overfueling: Issues with the fuel system, such as faulty injectors or electronic control problems, can lead to excessive fuel delivery, impacting performance, emissions, and potentially causing internal damage.
• Lack of Oil or Oil Pressure: This is a critical issue that can quickly lead to widespread internal engine damage. It can be caused by oil pump failure, low oil level, clogged oil passages, or worn bearings.
• Extreme Blow-By: Excessive blow-by, indicated by a large volume of gases escaping past the piston rings into the crankcase, typically points to worn piston rings, scored cylinders, or damaged pistons.

When these issues arise, depending on their severity, they might necessitate a complete engine replacement. However, if caught early enough, a significant portion of the engine can often be salvaged through targeted repairs and component replacement.

Cat C12 Engine Replacement Options

When faced with a declining C12 engine, several replacement options are available, each with its own set of advantages and disadvantages. The decision often hinges on factors like cost, required turnaround time, and the availability of parts and expertise. The primary options include:

• Buying a New CAT C12 from the Dealer: This is the most straightforward option, offering the peace of mind that comes with a brand-new, factory-warranted engine. However, it also typically represents the highest upfront cost.
• Purchasing a Remanufactured C12 Long Block: As discussed, this is an excellent option for those with catastrophic internal failures who can reuse external components. It offers a significant cost saving compared to new while providing a professionally rebuilt engine to OEM specifications.
• Overhauling the Existing Engine: If the core engine is in relatively good condition and the issues are not too severe, an overhaul using a comprehensive kit like the Platinum level can restore the engine's performance. This can be a cost-effective solution if the labor and parts are managed efficiently.
• Used C12 Engines: While potentially the cheapest option initially, buying a used engine carries the highest risk. Without a thorough inspection and history, a used engine might have hidden problems that surface shortly after installation, leading to unexpected costs and downtime.

The choice between these options will ultimately be guided by a careful assessment of the engine's current condition, the budget available, and the operational requirements of the vessel or equipment.

Frequently Asked Questions about Cat C12 Engines

Q1: What is the main difference between a Gold and a Platinum Cat C12 overhaul kit?
A1: The Platinum kit includes additional remanufactured core components such as cylinder heads, fuel injectors, water pump, oil pump, and cylinder packs, offering a more comprehensive rebuild than the Gold kit.

Q2: Do Cat C12 long blocks from remanufacturers use all new parts?
A2: No, remanufactured C12 long blocks are built with a combination of both remanufactured core parts and new parts. Critical wear items like pistons, rings, bearings, gaskets, seals, and liners are typically replaced with new components.

Q3: Can a C12 engine be used for applications other than marine propulsion?
A3: While primarily known for marine use, the C12's versatility and power output could potentially lend itself to other heavy-duty industrial applications, though its design is optimized for marine environments.

Q4: What are the most common causes of C12 engine failure?
A4: Common causes include lubrication issues leading to bearing failure, overheating causing cylinder head cracks, valve train problems, and general wear and tear on components like pistons and liners.

Q5: Is it better to buy a new or a remanufactured Cat C12 engine?
A5: This depends on the budget and the situation. A new engine offers the highest certainty but at a premium price. A remanufactured engine offers a balance of cost savings and restored performance, backed by a warranty, making it a popular choice for many.
