When embarking on any construction project, from a simple driveway to a complex building foundation, the groundwork is absolutely paramount. The sub-base, that foundational layer beneath the finished surface, plays a critical role in the longevity and stability of the entire structure. In the UK, a widely specified and highly regarded material for this purpose is known as GBP Type 1 granite sub base. But what exactly is it, and why is it so crucial? This article will delve deep into the properties, applications, and advantages of this essential construction material.

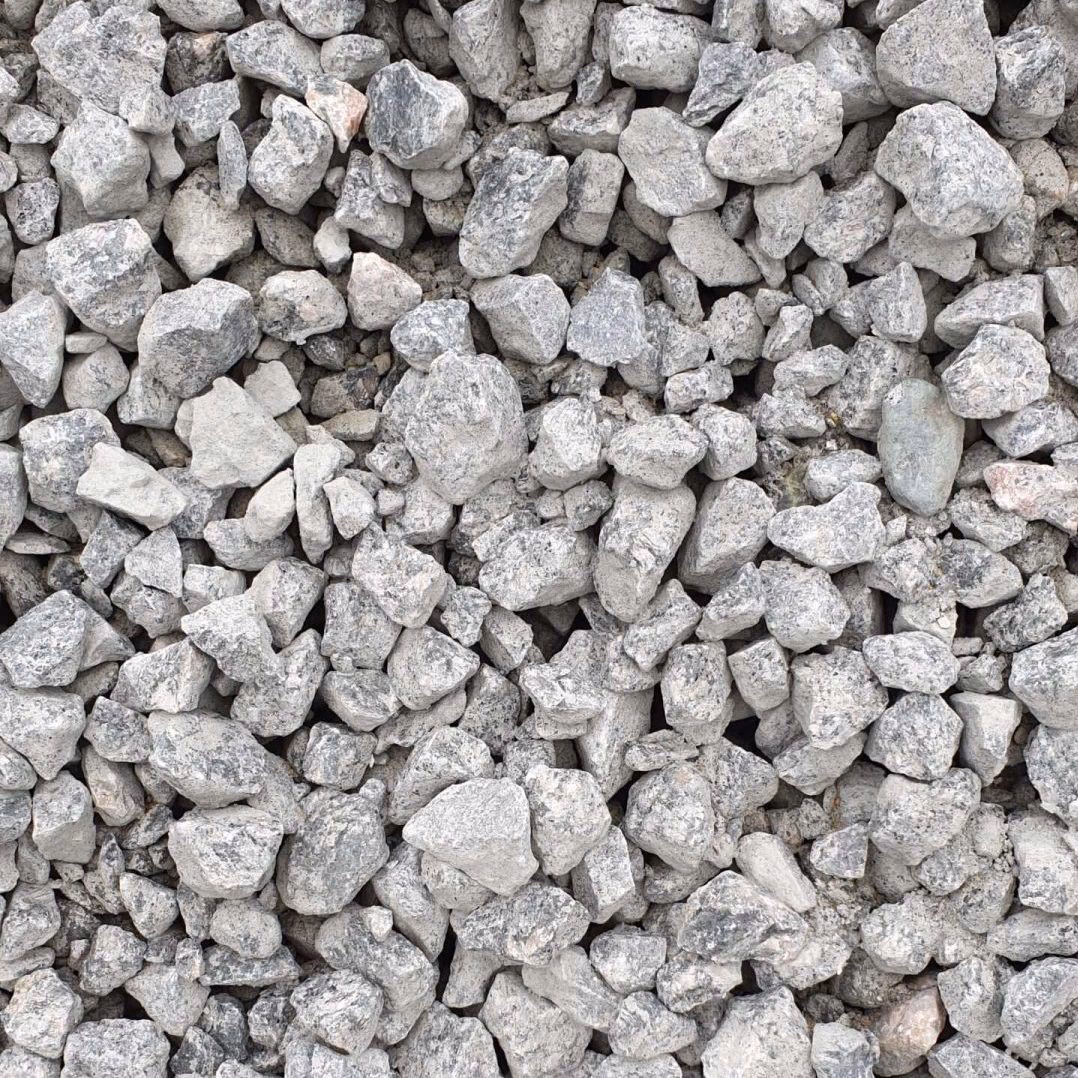

What is GBP Type 1 Granite Sub Base?
GBP Type 1 granite sub base, often simply referred to as 'Type 1' or 'MOT Type 1' (referring to its suitability for Ministry of Transport specifications), is a specific type of aggregate used as a sub-base or capping layer in road construction, driveways, pathways, and various other civil engineering applications. It is a carefully graded mixture of crushed stone, primarily granite, with a maximum particle size typically around 50mm. The key characteristic of Type 1 is its well-graded particle size distribution. This means it contains a range of stone sizes, from larger chippings down to fine dust. This specific grading allows the material to compact effectively, creating a dense, stable, and load-bearing layer.
The Composition of Type 1 Granite
The primary component of GBP Type 1 granite sub base is, as the name suggests, granite. Granite is an igneous rock, known for its exceptional hardness, durability, and strength. These properties make it an ideal aggregate for applications that require resistance to wear, weathering, and heavy loads. The process of creating Type 1 involves crushing large pieces of granite into smaller, angular fragments. These fragments are then sieved and blended to achieve the precise grading required by specifications. The inclusion of finer particles (often referred to as 'fines') is crucial. These fines fill the voids between the larger aggregate particles, enabling the material to compact into a cohesive and impermeable layer when subjected to compaction equipment like vibratory rollers.
Key Characteristics and Benefits
The popularity and widespread use of GBP Type 1 granite sub base stem from a number of significant benefits:
- Excellent Load-Bearing Capacity: Due to its dense and stable compacted structure, Type 1 can effectively distribute loads, preventing deformation and failure of the overlying surface.
- Good Drainage: While it compacts well, the angular nature of the aggregate and the presence of voids (before full compaction) allow for a degree of permeability, aiding in the drainage of surface water away from the foundation.
- Durability and Longevity: Granite itself is a highly durable material, resistant to frost heave and chemical attack. This translates to a long service life for the sub-base layer.
- Versatility: It is suitable for a wide range of applications, from domestic driveways to major highway construction.
- Cost-Effectiveness: When considering its performance and lifespan, Type 1 offers excellent value for money.
- Ease of Compaction: The well-graded nature of the material ensures it compacts readily and effectively, reducing labour and time on site.
Applications of GBP Type 1 Granite
The versatility of GBP Type 1 granite sub base means it finds application in numerous construction scenarios:
- Driveways: It forms the essential base layer for both domestic and commercial driveways, providing a stable foundation for tarmac, block paving, or gravel surfaces.
- Road Construction: It is a fundamental component of road construction, used as a sub-base and base course to support the asphalt or concrete wearing layers.
- Footpaths and Patios: For pedestrian areas, Type 1 provides a stable and level base, preventing sinking or unevenness over time.
- Building Foundations: It can be used as a capping layer or sub-base beneath building foundations, particularly on sites with poor ground conditions, to improve stability and reduce settlement.
- Hardstanding Areas: For areas requiring robust, stable surfaces for parking or storage, Type 1 is a common choice.
- Car Parks: Similar to driveways and roads, it provides the necessary support for the finished surface in car parks.
The Importance of Correct Installation
While GBP Type 1 granite sub base is a high-performance material, its effectiveness is heavily reliant on correct installation practices. This involves:
- Excavation: Ensuring the excavation is to the correct depth and width for the intended application.
- Preparation of the Sub-grade: The natural ground beneath the sub-base should be compacted and stable.
- Laying the Material: Type 1 should be laid in layers (typically no more than 150mm thick per layer) to achieve optimal compaction.
- Compaction: Each layer must be thoroughly compacted using appropriate vibrating rollers or plate compactors. This is a critical step that transforms the loose aggregate into a dense, stable mass. Insufficient compaction will lead to a weak sub-base and premature failure of the surface.
- Moisture Content: The moisture content of the aggregate during compaction is also important. Too dry, and it won't compact effectively; too wet, and it can become unstable.
Comparison with Other Sub-Bases
While Type 1 granite is a popular choice, other aggregates can be used for sub-bases. Understanding the differences can help in selecting the most appropriate material for a given project:
| Sub-Base Material | Primary Composition | Typical Applications | Key Advantages | Considerations |
|---|---|---|---|---|
| GBP Type 1 Granite | Crushed Granite (well-graded) | Driveways, Roads, Paths, Foundations | High strength, durability, excellent compaction, good drainage | Can be more expensive than some alternatives |
| Crushed Concrete | Recycled crushed concrete | Roads, Hardstandings, Backfill | Cost-effective, good load-bearing, sustainable option | May have less consistent grading than virgin granite, potential for rebar fragments |
| Ballast (Railway Ballast) | Crushed hard igneous rock (often granite or basalt) | Railway track beds | Excellent drainage, high load-bearing capacity, resists degradation | Specific grading for railway applications, not typically used for general civil engineering |
| Clean Fill / Hardcore | Mixed recycled materials (brick, concrete, stone) | General fill, bulk excavation backfill | Cost-effective for bulk filling | Not suitable for load-bearing surfaces without a specific sub-base layer; variable quality |
Frequently Asked Questions
Q1: What is the maximum particle size for Type 1 granite?
A1: Typically, the maximum particle size is around 50mm, though this can vary slightly depending on the specific supplier and specification.
Q2: Can I use Type 1 granite for a patio base?
A2: Yes, Type 1 granite makes an excellent sub-base for patios, providing a stable and level foundation for paving slabs or other surface materials.
Q3: How much Type 1 granite do I need?
A3: This depends on the area to be covered and the required depth. You'll need to calculate the volume (length x width x depth) and then convert this to tonnes, considering the typical density of compacted Type 1.
Q4: Is Type 1 granite permeable?
A4: While it compacts to a dense layer, the angular nature of the aggregate allows for some degree of permeability, which aids drainage. However, it's not as permeable as a dedicated drainage aggregate.
Q5: What's the difference between Type 1 and Type 3 aggregate?
A5: Type 3 aggregate is generally a coarser material with a larger maximum particle size and a less strict grading requirement. It's often used as a sub-base where a higher degree of permeability is needed, or as a blinding layer.
Conclusion
GBP Type 1 granite sub base is a fundamental material in modern construction, offering a robust, durable, and reliable foundation for a vast array of projects. Its carefully controlled grading, combined with the inherent strength of granite, ensures excellent load-bearing capabilities and longevity. Understanding its composition, benefits, and the critical importance of proper installation will help ensure the success and enduring quality of any construction endeavour. Whether you're a seasoned professional or a DIY enthusiast planning a new driveway, specifying and correctly installing Type 1 granite is a sure way to build on a solid foundation.
