The Bultaco Sherpa: A Trials Revolution

In the annals of motorcycling history, few machines have had as profound and immediate an impact as the Bultaco Sherpa. Emerging seemingly from nowhere in the mid-1960s, this unassuming Spanish motorcycle didn't just compete in the world of observed trials; it utterly transformed it. Before the Sherpa's arrival, trials competitions were largely the domain of large, heavy British four-stroke motorcycles, often little more than modified road bikes. The Sherpa, however, heralded a new era, one defined by agility, lightness, and the potent punch of a two-stroke engine.

The Genesis of a Legend: Bultaco's Founding and the Miller Partnership

The story of the Bultaco Sherpa is inextricably linked to the vision of Francesc “Paco” Bultó and the unparalleled skill of Irish trials rider Sammy Miller. Bultó founded Bultaco in 1958, following a significant disagreement with Pere Permanyer, the majority shareholder of Montesa, where Bultó had served as company director. The crux of their dispute was Permanyer's desire to cut motorsport expenses during an economic downturn, a move Bultó vehemently opposed, believing competitive racing was the very lifeblood of a motorcycle manufacturer.

With encouragement from former Montesa employees, Bultó established his own company, naming it “Bultaco” – a clever portmanteau of “Bultó” and his nickname “Paco.” Bultaco quickly earned a formidable reputation for building race-winning machines, launching its first motorcycle, the 125cc Tralla 101 road bike, in 1959. Its racing prowess was immediately evident when the company entered its first Spanish Grand Prix, securing seven of the top ten positions.

It was into this competitive environment that Sammy Miller, a trials rider dissatisfied with the cumbersome British machinery of the era, approached Bultaco. Miller envisioned a new kind of trials bike, one far removed from the heavy, road-bike-derived machines that typified the sport. Bultaco's existing renown for successful, lightweight two-stroke engines made them the perfect partner. This collaboration between the Spanish manufacturer and Miller proved to be a once-in-a-generation winning combination.

Revolutionising Trials: The Sherpa's Design Philosophy

What set the Bultaco Sherpa apart was its radical departure from conventional trials bike design. Unlike the heavier British bikes, the Sherpa was exceptionally small and light. It featured a simple, yet robust, frame and a compact two-stroke, single-cylinder engine that delivered power to the rear wheel via a chain drive. Crucially, the Sherpa was engineered to offer outstanding ground clearance and was highly manoeuvrable, allowing riders to navigate challenging terrain with unprecedented ease. The two-stroke engine, despite its size, punched well above its weight, delivering a potent, tractable powerband that was perfectly suited for trials competition.

The combination of these factors – its minimal weight, agile handling, and surprisingly strong engine – made the new Bultaco virtually unbeatable. It was a machine designed from the ground up for the specific demands of observed trials, rather than being an adaptation of a road-going model.

An Era of Unrivalled Dominance

The Sherpa's impact on the sport was immediate and profound. Sammy Miller's victory at the prestigious Scottish Six Days Trial in 1965 on his Bultaco Sherpa was a landmark moment. He followed this with further wins in 1967 and 1968, firmly establishing the Sherpa's dominance. Throughout the 1970s, this unassuming little bike utterly dominated its much larger rivals in the World Trials Championship, clinching the title an astonishing eight times. In total, it would win the Scottish Six Days Trial four times.

These early victories by Sherpa riders signalled a significant paradigm shift in motorcycle sport. It was one of several such shifts that would ultimately contribute to the collapse of the formerly dominant British motorcycle industry, which had largely underestimated the threat posed by the nimble Spanish newcomer until it was far too late.

Understanding the Sherpa T Engine: Power and Precision

The heart of the Bultaco Sherpa T was its piston-port, two-stroke engine, which, despite its apparent simplicity, delivered remarkably sophisticated performance tailored for trials. Riders quickly discovered that this engine was a true "donkey," providing impressive carburetion and pulling power from incredibly low revs. Without the modern complexities of reed valves, power valves, or advanced ignition systems, it achieved a level of low-end grunt that often felt more akin to a four-stroke or even a diesel engine.

The large flywheel rotor played a crucial role, helping the engine maintain momentum and prevent stalling even when revs dropped into the treble figures. Clever porting ensured that the power delivery was absolutely spot on, with maximum torque produced just shy of peak horsepower (e.g., 14.5 ft-lb at 4000rpm and 14.1bhp at 5500rpm for the 250cc 198B model). This enabled a sharp, controllable hit of power, capable of projecting the bike and rider up and over incredibly large obstacles. The 350cc Sherpa, with its approximately one-third more power and torque at similar rev ranges while maintaining the same weight, was an even more formidable machine.

The Sherpa's exceptional agility, combined with its engine's ability to dig deep into the rev range, meant it could get itself out of challenging situations or up steep inclines with surprising ease. Its tight turning circle allowed for incredible manoeuvrability, making it a joy for skilled riders to control.

Evolution of the Sherpa T: A Timeline of Innovation

The Bultaco Sherpa T underwent continuous development throughout its production run, adapting to the evolving demands of trials competition.

Notable Bultaco Sherpa T Successes

Bultaco Sherpa 250 198B Specifications

A Rider's Journey: George Webb and the Bultaco

The Bultaco Sherpa's impact wasn't confined to top-tier factory riders; it also profoundly influenced the experiences of everyday competitors, including those in military service. George Webb, a well-known and respected Army MCA rider from the 1960s to the 1980s, had extensive experience with various motorcycles in Army trials, long-distance trials, and international events. Initially, Army trials often involved heavy, standard-issue machines like the World War II-era M20 BSA, a 500cc side-valve with poor ground clearance and no rear suspension – a stark contrast to the agility required for trials.

After struggling with a "Bendy Bike" 250 Sprite that "never handled very well" and "needed so much maintenance," Webb decided to get a "proper trials bike." He ordered a Bultaco directly from the factory in Spain. Upon its arrival, he immediately recognised its superiority. Webb described the Bultaco as "chalk and cheese against the Sprite," a testament to its refined design and performance. This Bultaco would become his mount for the 1969 Scottish Six Days Trial, where he rode as part of the Official Army Team, alongside other notable riders on Greeves and Saracen machines. Webb also later rode a 350 Bultaco Sherpa, which he fondly remembered as his "last trials bike," highlighting the model's enduring appeal and capability.

The Restoration Challenge: Dave Wood's Sherpa Rebuild

For many enthusiasts, owning a piece of motorcycling history means undertaking the rewarding, yet challenging, task of restoration. Dave Wood, a seasoned trials bike builder, embarked on the rebuild of a 1970 Bultaco 250 Model 49 Sherpa, offering invaluable insights into the process and true costs involved. He acquired his Model 49 as a non-runner, but crucially, it was "all there and not butchered," a good starting point for a comprehensive restoration.

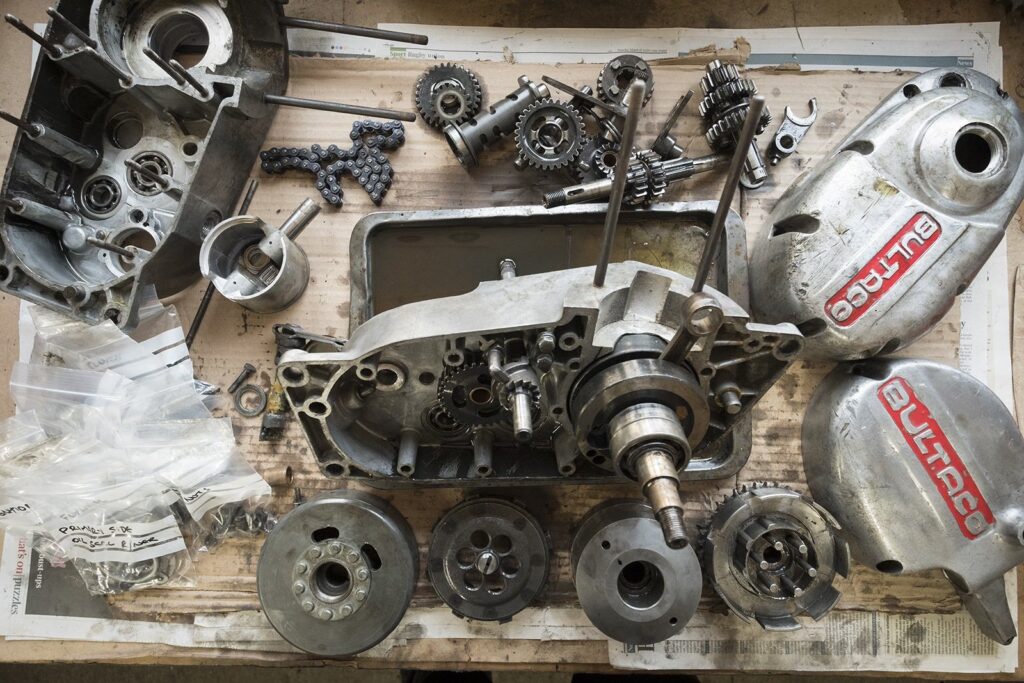

Wood's approach was thorough: a complete strip-down and inspection of all parts. He highlighted common necessities for these vintage machines, such as a rebore and conrod kit, new main bearings, and gearbox bearings. Fortunately, his engine casings were free of stripped threads, a common and often costly issue. Dave noted that a full engine rebuild typically costs around £400-£500, with a top-end piston/rebore only around £200.

Restoration often presents a choice: simply making the bike mechanically sound for riding, or going further with cosmetic enhancements like polishing alloy parts and powder coating the frame and tank. Wood opted for the latter, sending components off for professional polishing and powder coating, adding significantly to the overall cost but resulting in a visually appealing machine. His total expenditure for a full, high-standard rebuild, including parts like head bearings, swing arm bushes, and professional paintwork, came to an estimated £1300-£1400. This contrasts sharply with a purely mechanical restoration, which might be around £600, illustrating the owner's choice in balancing function and aesthetics.

During the rebuild, Wood encountered typical challenges, such as a pinhole leak in the fuel tank requiring specialist sealing and repainting, and discovering that a replacement silencer was slightly the wrong shape for the heat shield. He also experimented with engine characteristics, fitting a smaller crank weight on the clutch side to alter the revving nature, and later modifying the frame for a tighter steering rake and adding two teeth to the rear sprocket to improve low-end response, addressing the "long in rake" feel of older Sherpas in modern tighter sections. Despite these hurdles, Wood's Model 49 proved to be "very reliable and works well for what it is," even against much more modern machinery, demonstrating the enduring quality and rideability of a well-restored Bultaco Sherpa.

The End of an Era

Despite its immense success and groundbreaking influence, Bultaco's journey did not extend far into the 1980s. Spain's political turmoil and widespread industrial action severely impacted the company's ability to produce and sell motorcycles. The rise of sophisticated Japanese competitors, such as Yamaha with its innovative TY250 and Honda's significant investment in Montesa, further challenged Bultaco's position. These newer Japanese machines, featuring minimalist chassis, monoshock suspension, and advanced torque-reed valve engines, began to surpass Bultaco in terms of agility and performance.

Having faced financial difficulties since the late 1970s, Bultaco ultimately closed its doors for the final time in 1982. Nevertheless, its legacy was cemented: the company had secured no less than four European titles, five World Championships, eleven Spanish national championships, and eleven UK championships, forever changing the face of observed trials.

Frequently Asked Questions (FAQs)

What made the Bultaco Sherpa revolutionary?

The Bultaco Sherpa was revolutionary due to its lightweight design, powerful two-stroke engine, exceptional ground clearance, and superior manoeuvrability. Unlike its heavier, four-stroke British predecessors that were often modified road bikes, the Sherpa was purpose-built for trials, offering an unprecedented level of agility and performance that changed the sport's landscape.

Who was Sammy Miller's role in the Sherpa's development?

Sammy Miller, a top Irish trials rider, was instrumental in the Sherpa's development. Dissatisfied with existing machinery, he collaborated directly with Bultaco. His vision and input led to the design of the lightweight, agile two-stroke Sherpa, which he then rode to numerous victories, proving its revolutionary capabilities.

How did the Sherpa compare to British trials bikes of its era?

The Sherpa was significantly lighter and more agile than the British trials bikes of its era, which were typically large, heavy four-strokes. The Sherpa's two-stroke engine delivered a more responsive and tractable power delivery suitable for trials, while its design offered better ground clearance and a tighter turning circle, making it superior for navigating challenging sections.

What were the key achievements of the Bultaco Sherpa?

The Bultaco Sherpa achieved immense success, including Sammy Miller's multiple wins at the Scottish Six Days Trial (1965, 1967, 1968) and an astonishing eight World Trials Championship titles in the 1970s. It also secured numerous European, Spanish national, and UK championships, marking a period of unprecedented dominance for a single model.

Is a Bultaco engine good for trials?

Yes, the Bultaco engine, particularly the two-stroke Sherpa T unit, was exceptionally well-suited for trials. It was renowned for its impressive low-rev pulling power and tractability, allowing riders to maintain control and navigate obstacles at very low speeds. Its large flywheel helped prevent stalling, making it highly effective for the precise demands of observed trials.

What are the challenges of restoring a classic Bultaco Sherpa?

Restoring a classic Bultaco Sherpa can involve several challenges, including sourcing specific parts like conrod kits and pistons, addressing common issues like stripped engine casing threads, and deciding on the level of cosmetic restoration (e.g., professional paintwork vs. DIY). Fuel tank leaks are also a known issue requiring specialist sealing. The cost can vary significantly depending on the desired outcome, from purely mechanical soundness to a full, show-quality refurbishment.

Conclusion

The Bultaco Sherpa's legacy extends far beyond its impressive tally of championship titles. It fundamentally reshaped the sport of observed trials, proving that lightness and agility, combined with a potent and tractable two-stroke engine, were the keys to success. Its impact was so profound that it directly contributed to a paradigm shift in motorcycle design, pushing other manufacturers to innovate and adapt. Even today, the Sherpa remains a beloved classic, a testament to its groundbreaking design and the indelible mark it left on motorcycling history.
