BSA B25 Starfire: A Classic British Thumper

BSA B25 Starfire: A Look Back at a British Icon

The BSA B25 Starfire, alongside its close relative the Fleetstar, represents a significant chapter in British motorcycle manufacturing. Produced between 1967 and 1972, this 247cc unit single-cylinder machine evolved from the venerable C15 and carried the lineage of the Triumph Tiger Cub. It was a bike designed to capture the burgeoning teenage market, a segment that craved performance, style, and affordability. Even today, the B25 Starfire offers a unique and rewarding riding experience, a tangible connection to a bygone era of motorcycling.

Evolution from the C15 to the Starfire

The story of the B25 Starfire begins in the late 1950s. BSA, anticipating government legislation that would limit learner riders to 250cc machines, needed to update its product range. Their existing offering, the C12, was a rather uninspiring pre-unit single that struggled to compete with the more sporting offerings from rivals like Royal Enfield and Ariel, as well as the increasingly popular Italian and Far Eastern imports. BSA's solution was to develop a new 250cc unit single, drawing inspiration from its sister company Triumph's 200cc Tiger Cub. This resulted in the launch of the C15 Star in 1958. Initially, the C15 was a softly tuned commuter, but as the learner laws came into effect, BSA began to develop sportier versions. The SS80, with its hotter engine and a claimed top speed of 80mph, was one such iteration, alongside off-road variants like the 250 Starfire.

The C15 range continued until 1967, when it was replaced by the more modern and visually appealing C25 Barracuda. This new model boasted a stiffer frame, a significantly more powerful engine with larger fins, and a claimed 26bhp output, revving to an impressive 9000rpm. It featured a 10:1 compression ratio piston and a 'supersports' camshaft, coupled with a stylish fibreglass fuel tank, sculpted side panels, and a humped seat. The Barracuda was a marked improvement over its predecessor, designed to rival the Japanese 250cc machines entering the market.

The Barracuda's attractive lines and the use of components from larger BSA models made it a compelling choice for younger riders. It featured BSA's own front forks, a substantial chrome Lucas headlight, a 120mph Smiths speedometer, Girling rear shocks, a quick-detach rear wheel, and a 12-volt electrical system. However, the Barracuda name was short-lived, lasting only a year before the bike was rebranded as the B25 Starfire. This change was necessitated by the American car giant Plymouth, who held the rights to the 'Barracuda' name.

The B25 Starfire: Strengths and Weaknesses

The frame used on both the C25 and B25 models proved to be robust, even capable of handling the larger 441cc engine from the B44 Victor. The front brake evolved to a full-width design, and the high-compression piston was retained. However, BSA removed the valve lifter that had aided starting on the C25. When UK regulations banned fibreglass fuel tanks, the Starfire's tank was replaced with steel and increased in size. By the 1969/70 model year, the Starfire was arguably at its best. Enhancements to the engine's breathing system aimed to improve oil retention at high revvings. Despite these improvements, a notable weakness was the inadequate connecting rod, which contributed to the bike's notorious reputation for dramatic engine failures.

The Starfire's high-compression piston, coupled with a potentially poorly set-up engine, could make starting a challenge. In the UK, young owners often lacked the funds for preventative maintenance, and the bikes were frequently ridden hard. BSA, it seems, underestimated the abuse a teenage rider could inflict. These 250cc machines, with their highly-strung engines, were often thrashed in all weathers, leading to failures in both the bottom and top ends of the engine. Weekend exploits often necessitated significant mechanical attention by Sunday evening to ensure the bike was ready for the work week.

This tendency for mechanical issues was mirrored in the Triumph TR25W Street Scrambler, a bike essentially based on the BSA Starfire but distinguished by a high-level exhaust and Triumph badges. Dealers noted that while the TR25W had its share of mechanical shortcomings, it remained popular with customers. This sentiment was echoed by Bob Grant, a Triumph importer, who acknowledged the bike's troublesome nature but emphasised its appeal and ease of sale.

The B25S Starfire Street Scrambler

By 1969, BSA had made strides in improving the Starfire's durability. For the American market, they introduced the B25S Starfire Street Scrambler, specifically targeting the youth demographic. This model was a relatively straightforward conversion, building upon an existing Street Scrambler variant that featured a standard Starfire tank and a high-level pipe with a wire heat shield. For the 1970 model year, BSA incorporated parts from the 'parts bin'. The wire heat shield was replaced with the fibreglass item from the Triumph TR25W, and the bike received folding footrests, 'western' handlebars, and the fuel tank from the low-compression engine-equipped Fleetstar. The Street Scrambler was finished in a distinctive candy blue paint scheme with a white stripe and red pinstripe, a nod to the Union flag, though perhaps a little late for the 'Swinging London' craze.

The fuel tank on the Street Scrambler bore a resemblance to the original Shooting Star Daytona tank from the 1950s. While few Street Scramblers found their way into UK dealerships, a UK-registered example was famously featured on the cover of The Shadows' album 'Shades of Rock'.

A Personal Account: Restoring a 1969 B25S

The author's own 1969 B25S Starfire presents a fascinating case study. With mismatched engine and frame numbers, but components manufactured only days apart in October 1969, its origins are somewhat obscure. The bike wasn't listed in factory despatch books and, after being registered in the US, returned to the UK in 2016 as an off-road vehicle. Curious lugs brazed onto the frame suggest it might have been used as a circus stunt bike, fitted with bars for performing tricks. Past damage, including a fire that affected the clutch cable casing, a missing speedometer, and a damaged fibreglass exhaust heat shield, added to its unique history. The petrol tank was leaking, and the wrong side panel was fitted on the left side.

Acquired by the author at a VMCC jumble in 2017, the restoration began with fitting a replacement speedometer and drive. A Fleetstar petrol tank was sourced and repainted. The author recounts a humorous anecdote about the painter's dismay at the original tank's 'blobby' factory finish, which the author insisted be replicated. Recreating the original candy blue proved difficult, with a metallic blue from a Vauxhall Corsa being used as a substitute. A correct exhaust heat shield was eventually found in Ireland. Cosmetically, these were the main interventions.

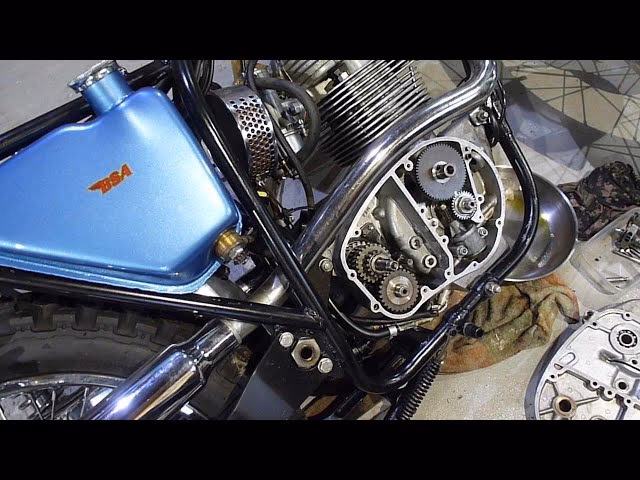

Mechanically, the author replaced the front brake cable and has had to replace the fork gaiters twice. The ease of disassembly is noted, with the top end and wheels being removable in approximately half an hour. Lining up the front mudguard remains a challenge, and while the 12-volt electrics are basic, they function reliably. The 'noisy' engine, as described in the original sales advert, was identified as piston slap after a top-end rebuild and careful attention to valve clearances. This piston slap, the author posits, might explain the bike's ease of starting despite its high-compression piston.

Despite the noise, the Starfire performs surprisingly well and handles competently on its 'knobbly' tyres. On the road, it's a source of considerable enjoyment, turning heads with its distinctive engine note. It also serves as a conversation starter, often attracting attention from older individuals who recall owning or knowing someone who owned a similar machine in the 1960s or 1970s.

Should You Buy a Starfire?

The BSA B25 Starfire is an excellent choice for those seeking an affordable entry into the world of classic British motorcycles. It's perfectly suited for short trips, such as nipping to the shops or the pub, or for leisurely rides along quiet country lanes. Getting a Starfire to life is often a theatrical experience, requiring a few firm nudges before it bursts into a sputtering, noisy, yet characterful existence. They are ideal for those moments when you want to recapture a sense of youthful exuberance.

The mechanical 'loudness' stems from various factors: the long pushrods, the resonant rocker box, and the large, undamped aluminium fins. Adjusting the valve clearances, which involves eccentric cams, can be a fiddly process, though it was likely considered an innovation at the time. The use of common BSA cycle parts across the range contributes to their reliability and ease of maintenance, with numerous parts suppliers available. The later models benefit from a superb full-width front brake, borrowed from larger BSA and Triumph machines. The clutch action is smooth, and the gearbox, feeling surprisingly modern, shifts without crunch. Once in fourth gear, rolling back the throttle provides brisk acceleration, though keeping an eye on the oil pressure light and listening for unusual noises is always advisable.

Vibration is not excessive for the rider, though components can loosen over time if not regularly checked due to the engine's inherent buzziness. Despite their reputation for fragility, a well-maintained late 1960s Starfire, with a quiet bottom end and decent oil filtration, promises a grin-inducing experience. While electronic ignition can be fitted, the standard points system can function well. For those concerned about the high compression, fitting a lower-compression Fleetstar piston or a compression-reducing bottom cylinder plate is a viable option. In contemporary riding, the need to outrun a 650 Lightning or evade a police car is unlikely, making such modifications a practical consideration.

The Starfire is lightweight compared to many contemporaries, and its seat height is accessible for most riders. If you're looking for a different kind of classic British motorcycle and don't require it as a primary mode of transport, the Starfire is a cost-effective and enjoyable option for a first British classic. Finding a good example privately for around £2000 is achievable, though dealers may ask for £4000, often with optimistic pricing.

Specifications (1969 Model)
