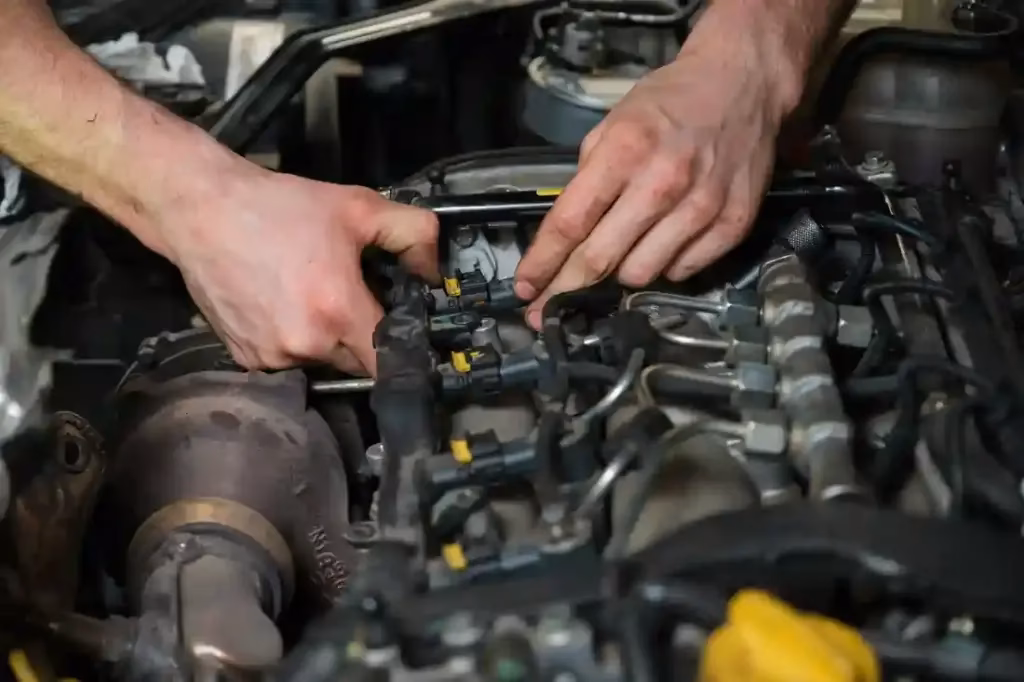

Broken & Damaged Fuel Injector Removal Guide

Few things are as frustrating for a car owner or mechanic as a faulty fuel injector, especially when it's not just faulty but also broken or severely damaged. Fuel injectors are precision components vital for delivering fuel to your engine's combustion chambers with atomised accuracy, ensuring efficient burning and optimal performance. However, due to various factors like heat, carbon build-up, and corrosion, these vital components can become seized, leading to significant challenges when removal becomes necessary. This comprehensive guide delves into the complexities of removing broken and damaged fuel injectors, providing insights into why they fail, the signs to look for, and the specialised methods and tools required to tackle this often daunting task without causing further harm to your engine.

Understanding the intricacies of injector removal is paramount, as a botched attempt can quickly escalate a simple component replacement into a costly engine repair. Whether you're a seasoned DIY enthusiast or contemplating a professional service, this article aims to equip you with the knowledge needed to approach broken or damaged injector removal with confidence and competence.

Why Fuel Injectors Fail and Become Damaged

Fuel injectors operate in a harsh environment, constantly exposed to high temperatures, pressure, and the by-products of combustion. Over time, several factors can contribute to their failure and, crucially, their physical damage, making removal exceptionally difficult:

• Carbon Build-up: This is perhaps the most common culprit. Combustion by-products and unburnt fuel can accumulate around the injector tip and within the injector bore, essentially 'welding' the injector to the cylinder head. This carbon build-up creates a strong bond, making simple extraction impossible.
• Corrosion: Moisture, especially in diesel engines where water can sometimes contaminate fuel, can lead to rust and corrosion on the injector body and within the bore. This corrosion can cause the injector to seize firmly in place.
• Heat Cycling: The constant expansion and contraction from extreme temperature changes can cause the injector to become tightly bound within its bore. Over years of operation, this thermal stress can lead to an incredibly tight fit.
• Fuel Contamination: Poor quality fuel or debris in the fuel system (e.g., rust particles from an old fuel tank) can clog the internal mechanisms of the injector, causing it to fail. While not directly causing physical damage for removal, a failed injector often needs removal, and contamination can exacerbate seizing.
• Physical Impact or Improper Installation: Sometimes, an injector can be damaged during previous maintenance or installed incorrectly. Over-tightening can stress the injector body, leading to cracks or fractures, making it prone to breaking during removal attempts.
• Age and Wear: Like any mechanical component, injectors have a finite lifespan. Seals degrade, internal components wear, and the material itself can fatigue, increasing the likelihood of failure and difficulty in removal.

Recognising the Signs of a Damaged or Failing Injector

Before you even consider removal, it's essential to identify if an injector is indeed the source of your vehicle's woes. Early detection can sometimes prevent the injector from seizing completely or breaking. Look out for these common symptoms:

• Engine Misfires or Rough Idling: A faulty injector might not spray fuel correctly, leading to incomplete combustion in one or more cylinders. This manifests as a noticeable misfire, rough idle, or a shaky engine.
• Reduced Fuel Economy: An injector that is stuck open will deliver too much fuel, while one that is partially clogged will deliver too little. Both scenarios lead to inefficient combustion and a noticeable drop in miles per gallon (MPG).
• Black Smoke from Exhaust: Particularly common in diesel engines, excessive black smoke indicates unburnt fuel, often due to an injector spraying poorly or being stuck open.
• Fuel Leaks: Damaged injector seals or a cracked injector body can lead to visible fuel leaks around the injector area. This is a serious fire hazard and needs immediate attention.
• Check Engine Light (CEL): The vehicle's engine control unit (ECU) monitors injector performance. A fault will often trigger the CEL, accompanied by specific diagnostic trouble codes (DTCs) related to injector circuit malfunctions or misfires.
• Strong Fuel Odour: If you smell fuel inside or around your vehicle, it could indicate a leaking injector or fuel line, which warrants immediate investigation.

The Daunting Challenge of Broken and Damaged Injector Removal

Removing a perfectly functioning injector can be challenging enough, but when an injector is broken or severely seized, the task elevates to a whole new level of complexity. The primary concern is avoiding further damage to the cylinder head, specifically the injector bore. This is a precision-machined area, and any scratches, gouges, or deformation can prevent a new injector from sealing correctly, leading to leaks, compression loss, and potentially irreparable damage to the engine.

When an injector breaks, often the top portion that allows for conventional pulling tools snaps off, leaving the main body of the injector embedded deep within the bore. This scenario requires highly specialised tools and techniques, as standard methods become ineffective. The injector body might be brittle, making it prone to crumbling if excessive force is applied incorrectly. Furthermore, the confined spaces within the engine bay often limit access, making precise work even more difficult.

Methods for Removal: From Stubborn to Severely Broken

The approach to injector removal depends heavily on the extent of the seizure or damage. It's always best to start with the least invasive methods and escalate only if necessary.

1. Standard Removal (for Seized but Intact Injectors)

• Preparation and Cleaning: Before attempting any removal, thoroughly clean the area around the injector. Remove any dirt, debris, or carbon build-up using brushes, compressed air, and appropriate cleaning solvents. This prevents contaminants from entering the engine once the injector is out.
• Penetrating Oil: Liberally apply a high-quality penetrating oil to the base of the injector where it meets the cylinder head. Allow it to soak for several hours, or even overnight, to allow it to seep into the seized threads and carbon build-up. Repeated applications can be beneficial.
• Engine Heat Cycling: Sometimes, warming the engine can help. Run the engine for a short period (5-10 minutes) to get it warm, then turn it off and immediately apply penetrating oil. The heat helps the oil penetrate deeper as the metal expands and contracts.
• Slide Hammer Pullers: These are the go-to tools for most seized injectors. They attach to the top of the injector and use a weighted hammer that slides up and down a shaft to create an impact force that gradually pulls the injector free. Different adapters are available for various injector types. Consistent, firm impacts are more effective than brute force.
• Leverage Tools: Some kits include lever-type pullers that provide continuous upward pressure, which can sometimes be more effective than impact for certain types of seizure.

2. Broken Injector Removal (When the Top Snaps Off)

This is where the real challenge begins, requiring specialised extraction kits. These kits are designed to grip the remaining body of the injector from the inside or outside, allowing it to be pulled out.

• Internal Puller Kits: These kits typically involve a collet or expanding tool that is inserted into the hollow core of the broken injector body. Once inserted, it expands to grip the internal walls of the injector, allowing a slide hammer or hydraulic puller to be attached and extract the remaining piece.
• External Gripping Tools: Some kits provide tools that clamp onto the exposed outer part of the broken injector body, allowing for a pulling force to be applied.
• Drilling Out (Last Resort): If all other methods fail, drilling out the injector is a highly risky procedure that should only be attempted by experienced professionals. It involves precisely drilling down the centre of the broken injector body in stages, often using reverse-thread taps to try and 'catch' the remaining piece. The risk of drilling off-centre and damaging the cylinder head or leaving metal shavings in the combustion chamber is extremely high.
• Electro-Discharge Machining (EDM): This is an advanced, non-contact method used by specialist workshops. EDM uses electrical discharges to erode the metal of the broken injector without touching the surrounding cylinder head material. It's highly effective but requires specialised equipment and expertise, making it a last resort for the most stubborn cases.

Essential Tools for the Job

Tackling broken or damaged injector removal requires more than just a basic toolkit. Investing in or hiring the right equipment is crucial for success and to prevent further damage:

• Standard Socket and Wrench Set: For removing fuel lines, electrical connectors, and securing bolts.
• Torx and Hex Bit Sockets: Many modern injectors use these fasteners.
• Injector Puller Kit: A comprehensive kit that includes a slide hammer and various adapters for different injector types.
• Broken Injector Extraction Kit: Essential if the injector is already snapped. These vary widely by make and model, so ensure compatibility.
• Penetrating Oil: A high-quality, fast-acting type.
• Bore Cleaning Brushes and Reamers: Once the old injector is out, the bore must be meticulously cleaned to ensure the new injector seats correctly.
• Compressed Air: For cleaning debris from the injector area and bore.
• Torque Wrench: Absolutely critical for reinstalling new injectors to the manufacturer's specified torque wrench settings to prevent leaks and damage.
• Safety Glasses and Gloves: Always protect your eyes and hands from fuel, chemicals, and debris.
• Diagnostic Scan Tool: To read fault codes and clear them after replacement.

The General Process of Removal (and What to Expect)

While specific steps vary by vehicle model, the general process for removing a stubborn or broken injector follows a predictable sequence:

1. Safety First: Disconnect the battery. Ensure the engine is cool (unless heat cycling is part of your strategy). Wear appropriate PPE.
2. Access and Preparation: Remove any engine covers, air intake components, fuel lines, and electrical connectors that obstruct access to the injectors. Label everything to ensure correct reassembly.
3. Clean the Area: Thoroughly clean around the base of the injector to prevent debris from falling into the combustion chamber once the injector is removed.
4. Apply Penetrating Oil: Douse the base of the injector with penetrating oil and allow it to soak. Be patient – this step is crucial.
5. Attempt Standard Removal: If the injector is intact, attach the appropriate slide hammer or leverage tool and apply steady, consistent force. Avoid jerky movements. If it doesn't budge, apply more penetrating oil and wait.
6. Address Broken Injectors: If the injector breaks during step 5, or if it was already broken, switch to your specialised broken injector extraction kit. Carefully follow the kit's instructions for internal or external gripping. This often involves precise drilling or tapping.
7. Inspect the Bore: Once the injector is out, carefully inspect the injector bore in the cylinder head for any damage, corrosion, or remaining carbon.
8. Clean the Bore: Use appropriate bore cleaning brushes and reamers to meticulously clean the bore. Ensure it is perfectly smooth and free of any debris. This is vital for the new injector to seal properly.
9. Install New Injector: Apply a thin layer of appropriate grease or anti-seize compound (if recommended by the manufacturer) to the new injector body, and replace all seals and washers with new ones. Carefully insert the new injector and tighten it to the manufacturer's precise torque specifications using a torque wrench.
10. Reassembly and Testing: Reconnect fuel lines, electrical connectors, and all other components. Reconnect the battery. Prime the fuel system (if necessary) and start the engine. Check for leaks, misfires, or any abnormal sounds. Clear any fault codes with your scan tool.

Comparative Table: Injector Removal Methods

Prevention is Better Than Cure

While removal techniques are crucial, preventing injectors from seizing or breaking in the first place is always the best approach:

• Regular Fuel Filter Replacement: A clean fuel filter prevents contaminants from reaching the injectors.
• Use High-Quality Fuel: Avoid cheap, low-grade fuels that may contain more impurities.
• Fuel Additives: While controversial, some high-quality fuel system cleaners can help prevent carbon build-up and keep injectors clean. Use them sparingly and according to product instructions.
• Regular Servicing: Adhere to your vehicle's service schedule. During routine maintenance, mechanics can often spot early signs of injector issues.
• Address Leaks Promptly: Any signs of fuel or exhaust leaks around the injectors should be investigated and fixed immediately, as they can lead to carbon build-up and seizing.

When to Seek Professional Help

While attempting DIY injector removal can save money, there are clear instances where calling in a professional mechanic or specialist is not just advisable but essential:

• Lack of Specialised Tools: If you don't have the specific broken injector extraction kit for your vehicle, don't try to improvise. You're likely to cause more damage.
• Limited Experience: If you're not confident with complex mechanical tasks, especially those involving the cylinder head, it's best to leave it to someone with expertise.
• Severely Seized or Deeply Broken Injectors: When an injector is broken deep within the bore, or so seized that even a professional-grade slide hammer won't move it, specialised techniques like EDM or highly precise drilling are required. These are not DIY tasks.
• Risk of Further Damage: The potential cost of repairing a damaged cylinder head far outweighs the savings from a DIY attempt. If you feel you might damage the engine, stop and call a professional.
• No Progress: If you've spent hours applying penetrating oil and trying various methods without any movement, it's time to admit defeat and get professional assistance.

Frequently Asked Questions (FAQs)

Q1: Can I remove a broken injector myself?

A1: It depends on the severity of the break and your mechanical experience. If only the electrical connector or a small plastic part has broken off, and the injector body is still intact and accessible, you might be able to remove it with standard tools. However, if the main metal body of the injector has snapped, leaving a significant portion embedded in the cylinder head, then a specialised broken injector extraction kit is required. These kits can be complex to use, and if you lack experience or the proper tools, it's highly recommended to seek professional help to avoid costly engine damage.

Q2: What happens if I don't remove a damaged or broken injector?

A2: Ignoring a damaged or broken injector can lead to several severe problems. A stuck-open injector can cause excessive fuel delivery, leading to rich running conditions, black smoke, reduced fuel economy, and potentially damaging the catalytic converter. A clogged or completely failed injector will cause misfires, rough idling, reduced power, and can eventually lead to unburnt fuel washing down the cylinder walls, diluting engine oil and causing premature wear. A physically broken injector can also lead to fuel leaks, which are a serious fire hazard, or allow exhaust gases to escape, further complicating removal and causing engine bay contamination.

Q3: How much does injector removal and replacement cost?

A3: The cost varies significantly. For a straightforward, easily removable injector, you might pay a few hundred pounds for labour and parts. However, for a severely seized or broken injector that requires specialised tools, extensive labour, or even cylinder head removal, the cost can quickly escalate into thousands of pounds. This is why attempting removal yourself, if you're capable, or seeking a specialist early on, can be beneficial.

Q4: Do I need to replace all injectors if one is faulty?

A4: Not always. If only one injector is confirmed faulty (e.g., specific diagnostic code, physical damage), you can often replace just that single injector. However, if your vehicle has high mileage, or if the failure of one injector is indicative of widespread wear or contamination in the fuel system, many mechanics recommend replacing all injectors (or at least those on one bank of cylinders) as a preventative measure. This is particularly true for common rail diesel systems where injector wear tends to be more uniform.

Q5: What are the biggest risks of DIY injector removal?

A5: The primary risk is causing further damage to the cylinder head, specifically the injector bore. If the bore is scratched, gouged, or deformed, the new injector may not seal correctly, leading to compression loss, fuel leaks, or exhaust gas leaks. Another risk is leaving parts of the broken injector or metal shavings inside the combustion chamber, which can severely damage engine internals when started. Incorrect reinstallation, particularly over-tightening the new injector, can also lead to premature failure or damage to the injector or head.

Removing a broken or severely damaged fuel injector is undoubtedly one of the more challenging tasks in automotive maintenance. It demands patience, the right tools, and a meticulous approach. While the temptation to save money by attempting a DIY fix is strong, understanding the inherent risks and knowing when to call upon the expertise of a professional is crucial. By following the guidelines outlined in this article, you can significantly improve your chances of a successful outcome, ensuring your vehicle's engine returns to optimal performance without incurring additional, avoidable damage.
