Understanding Tyre Angles: Your Car's Foundation

When you think about your car's performance and safety, your mind might jump to the engine, brakes, or even the tyres themselves. However, there's a less obvious but equally critical aspect that dictates how your vehicle handles, how long your tyres last, and how efficiently you drive: tyre angles. These precise measurements, often referred to collectively as wheel alignment, are the unsung heroes of a stable and predictable ride. Far from being a mere technicality, understanding tyre angles – namely camber, caster, and toe – is key to appreciating the intricate dance between your car and the road.

Imagine your car's wheels not just pointing straight ahead, but subtly tilted in various directions. These subtle tilts are what we call tyre angles, and they are meticulously set by manufacturers to optimise handling, minimise tyre wear, and ensure your vehicle tracks straight and true. When these angles are out of specification, even by a fraction, the consequences can range from annoying steering issues to dangerously unpredictable handling and premature tyre replacement. Let's unpack what each of these angles means and why they matter so much.

What Exactly Are Tyre Angles?

Tyre angles refer to the various orientations of your vehicle’s wheels relative to its body and the road surface. They are critical for ensuring proper steering, stability, and tyre longevity. While there are several angles involved in a complete wheel alignment, the three primary ones are camber, caster, and toe.

Camber Angle: The Vertical Tilt

Camber is the inward or outward tilt of the tyre when viewed from the front of the vehicle. It's measured in degrees and plays a significant role in how your tyre makes contact with the road, especially during cornering.

• Positive Camber: If the top of the tyre tilts outwards from the vehicle, it has positive camber. This setup is sometimes used on heavy vehicles or older cars to compensate for suspension sag under load. Too much positive camber can lead to excessive wear on the outer edge of the tyre.
• Negative Camber: If the top of the tyre tilts inwards towards the vehicle, it has negative camber. This is common on performance cars and many modern vehicles because it helps to keep the tyre flat on the road during cornering, improving grip and stability. However, excessive negative camber can cause accelerated wear on the inner edge of the tyre.
• Zero Camber: When the tyre is perfectly vertical, perpendicular to the road surface, it has zero camber.

The correct camber setting helps distribute the vehicle's weight evenly across the tyre's contact patch, which is crucial for grip and even tyre wear. Incorrect camber can lead to handling issues like pulling to one side or poor cornering stability, as well as significant tyre wear on one side of the tread.

Caster Angle: The Steering Stability Angle

Caster is the angle of the steering axis when viewed from the side of the vehicle. It's the tilt of the steering pivot (the imaginary line through the upper and lower ball joints or strut mount) forward or backward from vertical. Caster does not directly affect tyre wear but profoundly influences steering stability, effort, and self-centring.

• Positive Caster: If the top of the steering axis tilts backwards (towards the rear of the vehicle), it has positive caster. This is the most common and desirable setting for most vehicles. Positive caster helps the wheels to self-centre after turning, much like the front wheels of a shopping trolley. It provides stability at high speeds, improving straight-line tracking and reducing the need for constant steering corrections.
• Negative Caster: If the top of the steering axis tilts forwards (towards the front of the vehicle), it has negative caster. This makes the steering lighter but less stable, often leading to wandering and difficulty maintaining a straight line, especially at speed. It's rarely used in modern passenger vehicles.
• Zero Caster: When the steering axis is perfectly vertical.

A car with proper caster feels stable and predictable, making it easier to drive straight and reducing driver fatigue on long journeys. Incorrect caster can lead to a vehicle that wanders, feels twitchy, or requires constant steering input to stay in a straight line.

Toe Angle: The Forward-Looking Angle

Toe is the most critical tyre angle for tyre wear and straight-line stability. It refers to how much the front edges of the tyres are turned inward or outward relative to each other when viewed from above. It’s usually measured in fractions of an inch or millimetres, or in degrees.

• Toe-in: If the front edges of the tyres are closer together than the rear edges, the wheels are said to have toe-in. This means the tyres are slightly pointed inwards towards each other. Toe-in generally improves straight-line stability, helping to compensate for forces that might cause the wheels to splay outwards while driving. However, too much toe-in will cause excessive wear on the outer edges of the tyres as they constantly scrub against the road.
• Toe-out: If the front edges of the tyres are further apart than the rear edges, the wheels are said to have toe-out. This means the tyres are slightly pointed outwards from each other. Toe-out is often used to improve a car's turning response, particularly in performance applications, as it helps the inside wheel turn more sharply during a corner. Excessive toe-out, however, will cause significant wear on the inner edges of the tyres and can make the car feel unstable or dart unexpectedly.
• Zero Toe: When the wheels are perfectly parallel to each other.

Even a small amount of incorrect toe can cause rapid and severe tyre wear, often described as a 'feathered' edge. It can also lead to a steering wheel that isn't straight when driving in a straight line, or a vehicle that pulls to one side.

Why Are Tyre Angles So Important?

The precise calibration of camber, caster, and toe is paramount for several reasons:

• Tyre Longevity: The most common symptom of misaligned tyre angles is uneven and accelerated tyre wear. Correct alignment ensures the tyre tread makes full and even contact with the road, distributing wear across the entire surface.
• Vehicle Handling and Stability: Proper alignment is fundamental to a car's handling characteristics. It ensures the car tracks straight, responds predictably to steering inputs, and maintains stability at various speeds and road conditions.
• Fuel Efficiency: When wheels are misaligned, they create more rolling resistance due to scrubbing against the road. This requires the engine to work harder, leading to increased fuel consumption.
• Driving Safety: A car with poor alignment can be difficult to control, especially during emergency manoeuvres. It can pull to one side, cause the steering wheel to vibrate, or make the vehicle feel unstable, all of which compromise safety.
• Steering Feel: Correct caster provides the desired steering effort and self-centring action, making the car feel balanced and responsive.

When Should You Check Your Tyre Angles (Get an Alignment)?

While tyre angles are set at the factory, they can be knocked out of specification over time or due to various incidents. It's advisable to have your wheel alignment checked if you notice any of the following:

• Your car pulls or drifts to one side when driving on a straight, level road.
• The steering wheel is not straight when you are driving in a straight line.
• You notice uneven or rapid tyre wear (e.g., one side of the tyre is more worn than the other, or a feathered edge).
• Your steering feels loose, vague, or too heavy.
• You've hit a significant pothole, curb, or been involved in a minor collision.
• You've replaced steering or suspension components (e.g., tie rods, ball joints, control arms, springs, or shock absorbers).
• You've purchased new tyres, as proper alignment will maximise their lifespan.
• As a general maintenance practice, it's often recommended to have an alignment check every 12,000 to 15,000 miles, or annually.

The Alignment Process

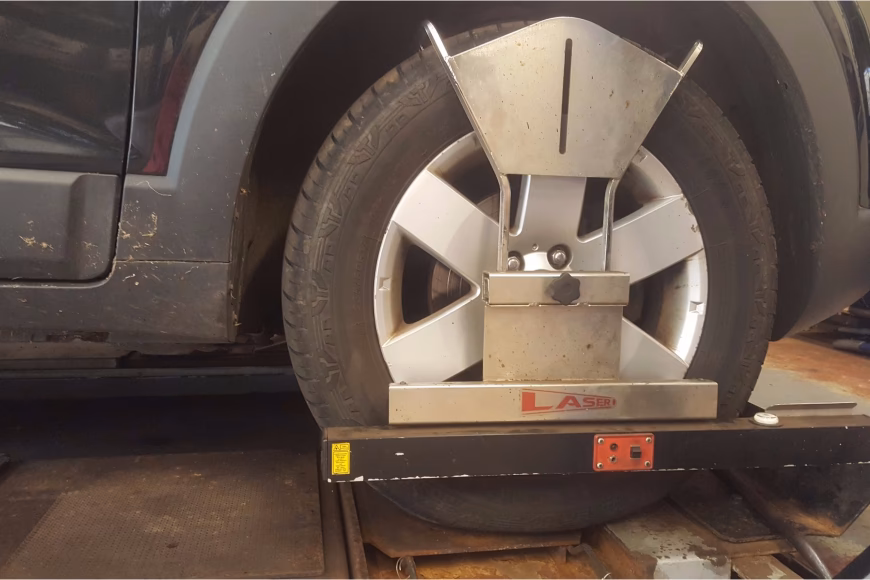

A professional wheel alignment is performed using specialised equipment, typically laser-guided systems, that precisely measure all the tyre angles on your vehicle. The technician will compare these measurements to the manufacturer's specifications for your specific make and model. If any angles are out of spec, adjustments are made to the suspension components (such as tie rods, eccentric bolts, or shims) to bring them back within the correct range. It's a precise job that requires expertise and the right tools, so it's not something typically done by a DIY mechanic.

Comparative Table of Key Tyre Angles

Frequently Asked Questions About Tyre Angles and Alignment

Can I adjust tyre angles myself?

While some very basic adjustments might seem possible, achieving precise and correct tyre angles requires specialised equipment and expertise. DIY attempts often lead to further misalignment, accelerated tyre wear, and compromised safety. It's always best to have a professional perform a wheel alignment.

How often should I get an alignment?

There's no strict rule, but a general recommendation is every 12,000 to 15,000 miles or once a year. However, if you notice any of the warning signs (pulling, uneven wear, crooked steering wheel) or after significant suspension work or impact, get it checked immediately.

What are the signs of bad alignment?

Key signs include your car pulling to one side, the steering wheel being off-centre when driving straight, uneven or rapid tyre wear, steering wheel vibrations, or a loose/wandering feeling in the steering.

Does tyre pressure affect alignment?

No, tyre pressure does not directly affect the mechanical alignment angles themselves. However, incorrect tyre pressure can mimic symptoms of misalignment (like pulling or uneven wear) because it changes the tyre's contact patch with the road. Always ensure your tyre pressures are correct before assessing alignment issues.

Is wheel balancing the same as wheel alignment?

No, they are distinct services. Wheel balancing addresses vibrations caused by an uneven distribution of weight around the tyre and wheel assembly. Wheel alignment adjusts the angles of the wheels themselves relative to the vehicle and each other. Both are crucial for optimal driving, but they solve different problems.

Conclusion

Tyre angles are a fundamental aspect of your vehicle's engineering, meticulously designed to provide a safe, comfortable, and efficient driving experience. Understanding camber, caster, and toe helps demystify why your car behaves the way it does and why regular wheel alignment is not just an optional extra, but a vital part of your vehicle's maintenance schedule. By ensuring these angles are correctly set, you're not only protecting your investment in tyres but also enhancing your car's performance, stability, and ultimately, your safety on the road. Don't underestimate the power of a perfectly aligned set of wheels – it’s the foundation for every journey you take.
