Briggs & Stratton Carburetors: Your Engine's Heart

When it comes to the heart of your outdoor power equipment, few components are as critical as the carburetor. It's the unsung hero, meticulously blending air and fuel to create the perfect combustible mixture that powers everything from your lawnmower to your pressure washer. A well-functioning carburetor ensures smooth operation, reliable starts, and optimal fuel efficiency. But when it falters, your equipment can quickly become a frustrating, underperforming burden. This is precisely why the choice of carburetor, and its proper maintenance, is paramount for any discerning owner.

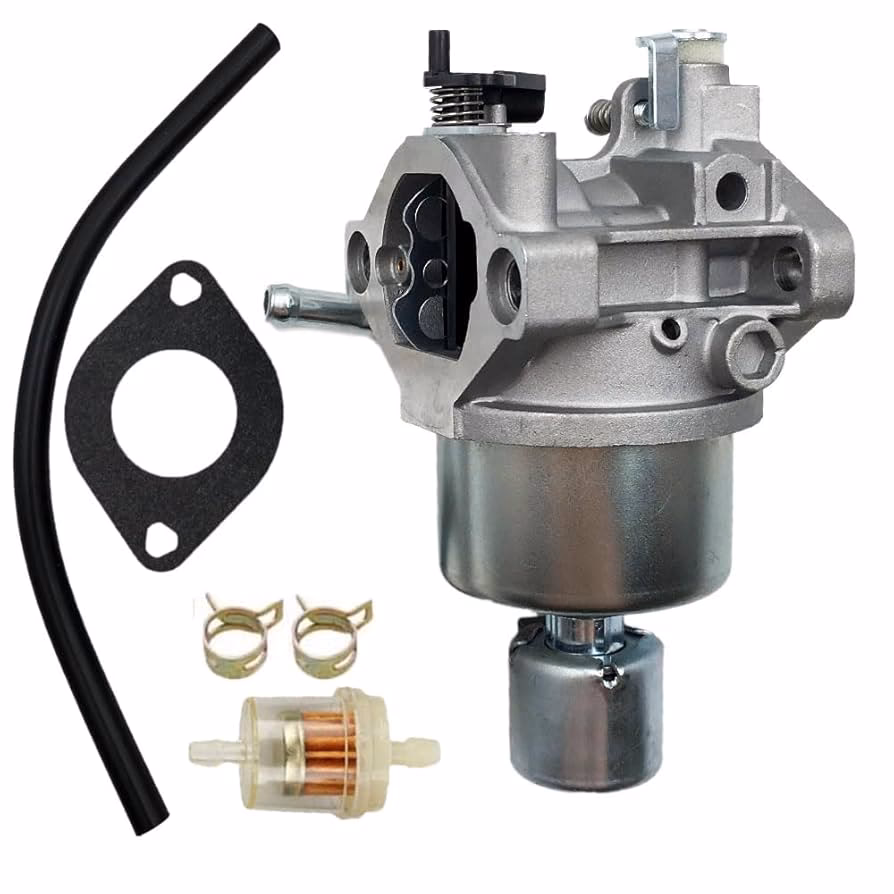

Why Genuine Briggs & Stratton Carburetors Are the Smart Choice

In a market flooded with generic alternatives, opting for genuine Briggs & Stratton carburetors isn't just a recommendation; it's an investment in the longevity and performance of your machinery. These aren't just any replacement parts; they are engineered with precision and designed to meet the exact specifications of your Briggs & Stratton engine. Here’s why they stand head and shoulders above the rest:

Authentic Quality: Uncompromised Integrity

Genuine Briggs & Stratton carburetors are crafted to the same exacting standards as the original components installed in your engine. This ensures perfect fit, form, and function, maintaining the engine's integrity and preserving its intended performance characteristics. Unlike aftermarket parts, which can vary wildly in quality and often lead to compatibility issues or premature failure, OEM (Original Equipment Manufacturer) parts guarantee that you're getting a component designed specifically for your engine model. This commitment to authentic quality translates directly into reliability you can trust.

Optimal Fuel Delivery: Efficiency and Longevity

The primary role of a carburetor is to deliver a precise fuel-air mixture. A genuine Briggs & Stratton carburetor is calibrated for optimal fuel delivery, ensuring your engine receives the exact blend required for efficient combustion. This precision results in smoother throttle response, reduced fuel consumption, and, crucially, prolonged engine life. An incorrect mixture, often a consequence of poorly manufactured generic carburetors, can lead to rough running, excessive fuel usage, and even irreversible engine damage. Investing in an OEM part means investing in your engine's optimal performance and lifespan.

Easy Installation: Hassle-Free Maintenance

Time is valuable, and no one wants to spend hours wrestling with ill-fitting parts. Genuine Briggs & Stratton carburetors are direct replacement parts, meaning they are designed for a seamless, hassle-free installation. This significantly reduces downtime and simplifies maintenance tasks. The peace of mind that comes with knowing a part will fit perfectly and function as intended right out of the box is invaluable, making engine servicing a much less daunting task.

Understanding Your Carburetor: The Basics

Before delving into maintenance, it's helpful to understand the basic operation of a carburetor. It mixes petrol and air in the correct ratio for combustion within the engine's cylinders. Air enters through the air filter and travels through a venturi, a constricted section that increases air velocity and decreases pressure. This lower pressure draws petrol from the float bowl through a main jet into the airstream. The throttle plate controls the amount of air-fuel mixture entering the engine, regulating speed, while the choke plate restricts air flow for easier cold starting.

Common Carburetor Issues and Their Symptoms

Even the most robust carburetors can develop issues over time. Common culprits include:

• Stale Fuel: Petrol left in the carburetor for extended periods can degrade, leaving behind sticky varnish and residue that clogs vital passages.
• Contaminants: Dirt, debris, or grit from the fuel tank can enter the carburetor, blocking jets and channels.
• Wear and Tear: Gaskets, O-rings, and diaphragms can degrade, leading to leaks or improper sealing.
• Improper Adjustments: Incorrectly set idle or mixture screws can cause poor running.

Symptoms of a faulty carburetor often include:

• Engine won't start or is hard to start.
• Rough idling or stalling.
• Lack of power during operation.
• Engine surging or hunting.
• Excessive smoke or unusual exhaust smells.
• Fuel leaks.

Tackling the Grit Problem: A Carburetor Cleaning and Reassembly Guide

One of the most common issues plaguing carburetors is the presence of grit, dirt, or debris that clogs the intricate fuel passages. A thorough cleaning is often all that's needed to restore performance. While the process requires patience and attention to detail, it's a manageable task for the DIY enthusiast. Remember to work in a clean, well-lit area and have a parts tray to keep everything organised.

Tools and Materials You'll Likely Need:

• Carburetor cleaner (aerosol spray)
• Compressed air
• Small brushes (e.g., old toothbrush, pipe cleaners, small wire brushes)
• Screwdrivers (various sizes, including small flathead for jets)
• Socket/spanner set
• Pliers
• New carburetor repair kit (essential, as it includes new gaskets, seals, welch plugs, and sometimes new jets/needles)
• Pin punch (slightly smaller than welch plug) and small hammer
• Enamel nail polish (clear)
• Safety glasses and gloves

Step-by-Step Cleaning and Reassembly Process:

Phase 1: Disassembly and Initial Cleaning

1. Safety First: Disconnect the spark plug lead to prevent accidental starting. Drain the fuel tank.
2. Remove the Carburetor: Carefully disconnect the fuel line, throttle linkage, and choke linkage. Unbolt the carburetor from the engine. Note the position of all linkages and hoses, perhaps taking photos for reference.
3. Initial Inspection: Examine the exterior for obvious damage or leaks.
4. Disassemble the Carburetor: Remove the float bowl. Carefully remove the float and inlet needle. Unscrew any jets (main jet, idle jet) and mixture screws. Remove the throttle and choke plates/shafts if necessary for thorough cleaning. Be extremely gentle with small parts.
5. Clean All Components: Spray all metal parts with carburetor cleaner. Pay special attention to small holes and passages. Use small brushes or pipe cleaners to dislodge stubborn deposits. For heavily varnished parts, consider soaking them in a carburetor cleaning solution (follow product instructions carefully).
6. Blow Out Passages: Use compressed air to thoroughly blow out all passages, jets, and orifices. Ensure air flows freely through every passage. This is crucial for removing any dislodged grit or cleaner residue. Wear safety glasses!

Phase 2: Reassembly with New Kit Components

This phase incorporates the specific reassembly steps provided, ensuring fresh seals and plugs for optimal performance.

7. Install New Welch Plugs: If your carburetor had welch plugs (small, thin metal discs covering drilled passages) that were removed or damaged during cleaning, now is the time to replace them. Use a pin punch slightly smaller than the outside diameter of the new plug. Gently tap on the punch with a hammer until the plug is flat. Be careful not to use excessive force, as strong blows can cause the plug to cave in. Once flat, seal the outside edge of the plug with enamel nail polish to prevent leaks.
8. Install Inlet Needle Seat and Needle: Insert the new inlet needle seat (from your repair kit) with the groove facing down, using a bushing driver or a suitable tool to gently press it into place until it's seated properly. Then, install the new inlet needle onto the float. Carefully install the float and needle assembly into the carburetor body, ensuring the float pivots freely.
9. Assemble the Choke: Insert the return spring inside the foam seal (if applicable) and slide the spring and seal assembly onto the choke shaft. Plastic choke plates often have a stop catch at one end of the spring; metal plates have a notch to hold the hook at one end of the spring.
10. Insert Choke Shaft and Plate: Insert the choke shaft into the carburetor body and engage the return spring. If your choke lever uses a detent spring to control the choke plate position, carefully guide this spring into the notched slot on the choke lever. Place the new choke plate on the shaft with the single notch on the edge towards the fuel inlet. Lift the choke shaft and lever up slightly and turn counterclockwise until the stop on the lever clears the spring anchor. Then, push the shaft down.
11. Secure Choke Plate: Insert the choke plate into the choke shaft or attach it with screws so that the dimples on the plate face the fuel inlet side of the carburetor. The dimples help hold and align the choke shaft and plate correctly.
12. Install Throttle Shaft Seal and Plate: Install the new throttle shaft seal (from your kit) with the sealing lip facing down into the carburetor body until the top of the seal is flush with the top of the carburetor. Turn the throttle shaft until the flat side is facing out. Attach the new throttle plate to the shaft with its screws, ensuring the numbers on the throttle plate face the idle mixture screw and the dimples face inwards.
13. Reinstall Jets and Mixture Screws: Carefully screw in all jets and mixture screws that were removed. For mixture screws, gently turn them in until they just seat (do not overtighten), then back them out the recommended number of turns (consult your engine's service manual for specific settings, typically 1 to 2 turns out).
14. Reassemble Float Bowl and Gaskets: Install new gaskets and O-rings from your repair kit. Reattach the float bowl.
15. Reinstall Carburetor: Mount the carburetor back onto the engine, reconnect all linkages, fuel lines, and the air filter assembly.
16. Test and Adjust: Refill the fuel tank, reconnect the spark plug lead, and start the engine. You may need to fine-tune the idle speed and mixture screws for optimal performance.

Preventative Maintenance: Keeping Grit at Bay

Prevention is always better than cure. Here are key preventative measures to minimise carburetor issues:

• Use Fresh Fuel: Stale petrol is the number one cause of carburetor problems. Always use fresh petrol, ideally no older than 30 days.
• Fuel Stabiliser: For equipment stored for extended periods (e.g., over winter), add a high-quality fuel stabiliser to the petrol. Run the engine for a few minutes to circulate the stabilised fuel through the carburetor.
• Fuel Filters: Regularly inspect and replace your fuel filter. A clean fuel filter is your first line of defence against contaminants reaching the carburetor.
• Proper Storage: If storing equipment for more than a month, either drain the fuel system completely or use a fuel stabiliser as mentioned above.
• Clean Air Filter: A dirty air filter can restrict airflow, causing the engine to run rich and potentially drawing in more debris.

When to Replace vs. Repair

While cleaning and repair kits can solve many carburetor issues, there are times when a full replacement, especially with a genuine Briggs & Stratton OEM part, is the more economical and reliable option:

Frequently Asked Questions About Carburetors

Q: How often should I clean my carburetor?

A: There's no fixed schedule. It depends heavily on usage and fuel quality. If you use fresh, stabilised fuel and a good fuel filter, you might only need to clean it every few years. However, if your equipment sits for long periods with fuel in it, or you experience performance issues, a cleaning might be necessary annually or as problems arise.

Q: What are the signs of a bad carburetor?

A: Common signs include hard starting, rough idling, stalling, surging (engine RPMs fluctuating up and down), lack of power, excessive smoke, or fuel leaks. If your engine isn't running smoothly, the carburetor is often the first place to check.

Q: Can I use fuel additives to clean my carburetor without disassembling it?

A: Some fuel additives claim to clean carburetors. While they can help with minor deposits and preventative maintenance, they are generally not effective for significant clogs or gummed-up passages caused by old fuel or grit. For those issues, a physical disassembly and cleaning are usually required.

Q: What is a welch plug, and why is it important?

A: A welch plug is a small, thin, domed metal disc used to seal drilled passages within the carburetor body that are created during the manufacturing process. These passages are vital for fuel and air flow. If a welch plug is damaged or leaks, it can lead to incorrect fuel mixtures and poor engine performance. Replacing them with new ones from a repair kit ensures proper sealing and integrity of the carburetor's internal circuits.

Q: Is it difficult to adjust a carburetor?

A: Modern carburetors often have fixed jets and no external adjustments, or only a single idle speed screw. Older models may have adjustable high-speed and low-speed mixture screws. While not inherently difficult, precise adjustment requires understanding how each screw affects the fuel-air mixture and often a keen ear for engine sounds. Always consult your engine's service manual for specific adjustment procedures and recommended settings.

Q: What's the difference between a main jet and an idle jet?

A: The main jet controls the fuel flow at higher engine speeds and under load, while the idle jet (or pilot jet) controls the fuel flow at idle and low engine speeds. Both are crucial for smooth operation across the engine's RPM range.

Conclusion

Your outdoor power equipment relies heavily on a perfectly functioning carburetor to deliver the performance you expect. Choosing genuine Briggs & Stratton OEM carburetors ensures you're fitting a part designed for precision, durability, and seamless compatibility. While cleaning and repair can often restore a struggling carburetor, understanding when to opt for a full replacement with a genuine part can save you time, frustration, and ultimately, money. By combining the benefits of authentic OEM components with diligent preventative maintenance and timely troubleshooting, you'll keep your Briggs & Stratton engine running powerfully and reliably for many seasons to come.
