Moto Guzzi Breva V1100 Engine Removal

Embarking on the journey of removing the engine from your Moto Guzzi Breva V1100 is a significant undertaking, often necessitated by major repairs, upgrades, or a thorough restoration. This task, while demanding, is achievable with careful planning, the right tools, and a methodical approach. This guide aims to provide a detailed, step-by-step walkthrough, ensuring you can tackle this project with confidence. We'll cover everything from initial preparations to the final engine lift, highlighting crucial safety precautions and offering practical advice to streamline the process.

Preparation is Key

Before you even think about unbolting anything, meticulous preparation is paramount. This isn't a job to rush. Gather all the necessary tools, ensuring you have a comprehensive set of spanners, sockets, torque wrenches, screwdrivers, pliers, and specialised Moto Guzzi tools if available. You'll also need a suitable lifting device, such as an engine crane or a sturdy workshop stand, capable of safely supporting the weight of the V1100 engine. Don't underestimate the weight; these engines are substantial. Clear your workspace, ensuring ample room to manoeuvre and lay out components logically. A clean and organised environment will prevent lost parts and make reassembly significantly easier. Consider purchasing a workshop manual specific to your Breva V1100, as it will contain precise torque figures and detailed diagrams that are invaluable.

Disconnecting and Draining Fluids

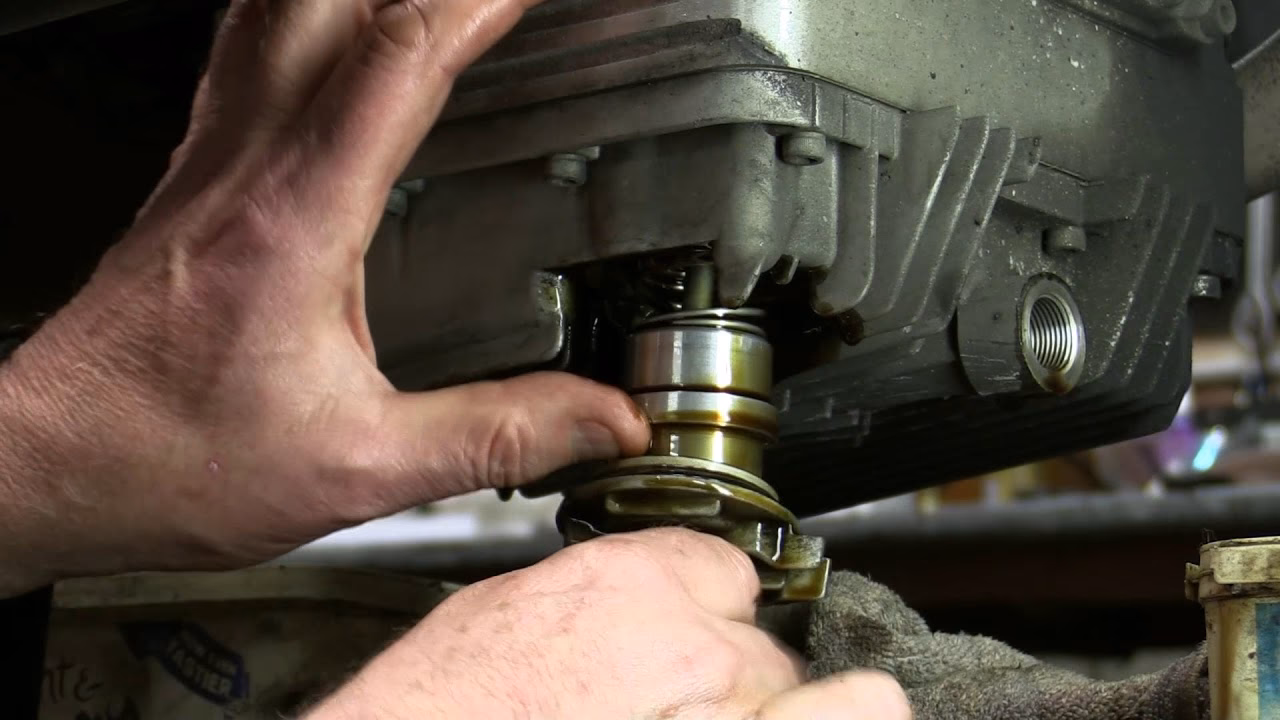

The first practical steps involve safely draining all essential fluids. This includes the engine oil and coolant. Locate the oil drain plug, typically found at the bottom of the sump, and place a suitable container beneath it. Allow the oil to drain completely. You'll also need to drain the coolant system; locate the radiator drain tap and the engine block drain plugs, if present. Once drained, it's good practice to clean up any spills immediately. Next, disconnect the battery's negative terminal to prevent any accidental electrical shorts during the process.

Removing Ancillary Components

With the fluids drained, you can begin systematically disconnecting and removing the components attached to the engine and chassis. This is where patience and organisation are vital. It's highly recommended to label every wire, hose, and cable as you disconnect them. Taking photographs or videos as you go can also be an excellent reference for reassembly. Start with the electrical connections, carefully noting where each plug and wire goes. Then, move on to fuel lines, ensuring they are safely capped to prevent fuel spillage. The airbox and intake system will likely need to be removed to gain better access to the engine. Pay close attention to any vacuum hoses or sensor connections.

Cooling System and Exhausts

The radiator and associated hoses will need to be disconnected and carefully removed. Be prepared for residual coolant to escape, even after draining. The exhaust system, a significant component, must also be unbolted from the cylinder heads and any mounting brackets on the frame. It’s often easier to remove the exhaust headers and mufflers as a complete unit.

Fuel System and Throttle Body

Carefully disconnect the fuel lines from the fuel pump and injectors. Ensure these lines are properly sealed or plugged to prevent contamination or leakage. The throttle body assembly will also need to be detached from the intake manifolds. This often involves disconnecting throttle cables, electrical connectors, and any vacuum lines.

Ignition and Electrical Systems

Trace and disconnect all wiring harnesses connected to the engine. This includes the alternator wiring, starter motor connections, ignition coil leads, and various sensor plugs (e.g., crankshaft position sensor, lambda sensors). Again, labelling is your best friend here. Ensure that disconnected wires are safely secured and won't snag during engine removal.

Accessing the Engine Mounts

With all ancillary components disconnected, you can now focus on the engine mounts themselves. The Moto Guzzi V1100 engine is typically secured to the frame at several points. These usually involve bolts that pass through rubber or metal bushings. You'll need to identify all of these mounting points. Common locations include:

• Front engine mounts, often connecting to the frame cradle.
• Rear engine mounts, which might connect to the gearbox or swingarm pivot area.
• Possibly upper or lower stabiliser brackets.

It’s crucial to support the engine adequately before removing the final mounting bolts. A jack or a dedicated engine stand placed strategically beneath the engine sump or gearbox is essential. Ensure the support is stable and can bear the engine’s full weight.

The Crucial Lift

Once all bolts and connections are free, and the engine is securely supported, you can proceed with the actual lift. Slowly and carefully begin to raise the engine using your lifting device. As you lift, watch closely for any remaining snagged wires, hoses, or components that might have been overlooked. You may need to manoeuvre the engine slightly, tilting it to clear frame members or other parts of the motorcycle. The key is to lift smoothly and steadily, making incremental adjustments. If you encounter resistance, stop immediately and re-check your work. Never force the engine out; there's likely a connection or bolt still in place.

Table: Common Tools Required

Reassembly Considerations

Reassembling the Breva V1100 engine requires the reverse of the removal process. It’s equally important to use the correct torque settings for all bolts and nuts to ensure the integrity and safety of the motorcycle. Refer to your workshop manual for these specifications. Ensure all electrical connections are clean and securely seated. Reconnect all hoses and lines, checking for any leaks before starting the engine. It’s also a good time to replace any worn or damaged components, such as engine mounts or fluid seals. A thorough check of all systems before firing up the engine is crucial for a successful outcome.

Frequently Asked Questions (FAQ)

Q1: How heavy is the Moto Guzzi Breva V1100 engine?

A1: While exact figures can vary slightly depending on the specific configuration and accessories attached, the Moto Guzzi V1100 engine is a substantial unit, typically weighing in the region of 70-80 kg (approximately 155-175 lbs). Always use appropriate lifting equipment and have assistance if needed.

Q2: Do I need to remove the gearbox with the engine?

A2: In most cases, the engine and gearbox are designed to be removed as a single unit on the Moto Guzzi V1100. They are typically bolted together and can be separated once removed from the frame if necessary.

Q3: What are the most common mistakes made during engine removal?

A3: Common mistakes include failing to label components, not adequately supporting the engine before removing mounts, forcing the engine when something is still connected, and not draining fluids thoroughly. Meticulous organisation and patience are key to avoiding these issues.

Q4: Can I perform this task alone?

A4: While it might be technically possible for a very experienced individual with the right lifting equipment, it is highly recommended to have at least one assistant, especially during the lifting and manoeuvring stages. The engine's weight and bulk make it a two-person job for safety and ease.

Q5: Where can I find a workshop manual for the Moto Guzzi Breva V1100?

A5: Workshop manuals can often be purchased from specialist motorcycle parts suppliers, online retailers, or sometimes found in digital format from dedicated Moto Guzzi forums or enthusiast websites. An official manual is always the best source for accurate information.

Removing the engine from your Moto Guzzi Breva V1100 is a challenging but rewarding task. By following these guidelines, preparing thoroughly, and working methodically, you can successfully complete this significant mechanical operation, paving the way for essential maintenance or upgrades. Remember, safety first, and take your time to ensure every step is performed correctly.
