A compromised brake line is a serious issue that can significantly affect your vehicle's stopping power. If you've noticed a spongy brake pedal, a drop in brake fluid levels, or even a tell-tale puddle of fluid beneath your car, it's a strong indication that a brake line might be compromised. Ignoring such symptoms can lead to dangerous braking performance, so it's crucial to address it promptly. While a full brake line replacement is a job often best left to professionals, small leaks, particularly in the flexible hoses, can sometimes be addressed with a temporary repair or a more involved DIY approach if you're confident with your mechanical skills. This guide aims to provide you with a thorough understanding of how to approach a leaky brake line, covering diagnosis, repair methods, and essential safety precautions. Understanding your braking system is the first step towards ensuring its optimal performance and your safety.
Understanding Brake Lines

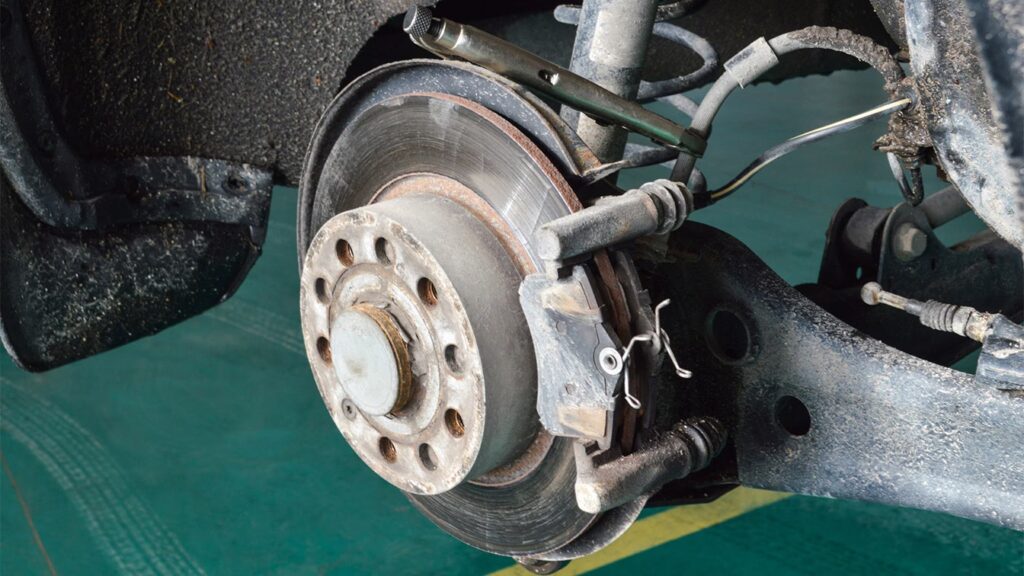

Brake lines are the arteries of your vehicle's braking system. They are essentially robust tubes, typically made of steel or a combination of steel and rubber, designed to withstand high pressures. These lines carry the brake fluid from the master cylinder, which converts your foot's pressure into hydraulic force, all the way to the brake callipers or wheel cylinders at each wheel. When you press the brake pedal, the master cylinder pushes brake fluid through these lines. This fluid then exerts pressure on the brake pads (or shoes), forcing them against the rotors (or drums), which ultimately slows or stops your vehicle. There are generally two types of brake lines: rigid metal lines that run along the chassis of the car and flexible rubber hoses that connect the rigid lines to the moving parts of the suspension, like the callipers. It's often the flexible hoses that are more susceptible to wear and damage due to their exposure to the elements and constant movement.
Identifying a Leaky Brake Line
Before you can fix a leaky brake line, you must first confirm that this is indeed the problem. Several signs can point towards a brake line issue: * Spongy or Soft Brake Pedal: This is a classic symptom. If your brake pedal feels mushy and requires more travel than usual before engaging the brakes, it suggests air or fluid has entered the system where it shouldn't be. * Reduced Braking Performance: If your car takes longer to stop or the brakes feel less effective, a leak in the brake line is a likely culprit. * Brake Warning Light: Modern vehicles have sensors that can detect low brake fluid levels or pressure issues, illuminating a warning light on your dashboard. * Visible Fluid Leaks: The most direct sign is finding a puddle of brake fluid under your vehicle, typically near a wheel. Brake fluid is usually clear to amber in colour and has a slightly oily feel. * Hissing Sound: In some cases, a significant leak might produce a faint hissing sound as fluid escapes under pressure. If you suspect a brake line leak, it's imperative to inspect all brake lines, including the rigid metal ones running under the car and the flexible rubber hoses near the wheels. Look for any signs of corrosion, cracks, bulges, or wet spots on the lines.
Tools and Materials for Brake Line Repair
While a professional repair is recommended for complete peace of mind, for minor leaks or temporary fixes, you might consider a DIY approach. Here’s what you'll likely need: * Brake Line Repair Kit: These kits often contain a new section of brake line, appropriate fittings, and sometimes a flare nut wrench. Ensure the kit is compatible with your vehicle's make and model. * Flare Nut Wrenches: These are essential for loosening and tightening brake line fittings without damaging them. Standard wrenches can easily round off the soft metal of the fittings. * Tubing Cutter: A specialised cutter designed for brake lines ensures a clean, square cut, which is crucial for a proper seal. * Brake Line Flaring Tool: If you're not using a pre-flared repair section, you'll need a flaring tool to create the correct flare on the end of the new brake line. There are different types of flares (double flare and bubble flare), so ensure you have the correct tool for your vehicle. * Brake Fluid: You'll need the correct type of brake fluid (DOT 3, DOT 4, etc.) as specified in your owner's manual to top up the system. * Wrenches and Pliers: For general use and holding components. * Rags and Brake Cleaner: To clean the area around the leak and any new components. * Safety Glasses and Gloves: Essential for protecting your eyes and skin from brake fluid, which is corrosive. * Jack and Jack Stands: To safely lift and support the vehicle.
Safety First!
Working on your brakes is a critical safety task. Always prioritise safety: 1. Park on a Level Surface: Ensure your vehicle is on a stable, flat surface. 2. Engage the Parking Brake: And chock the wheels for extra security. 3. Wear Protective Gear: Safety glasses and gloves are non-negotiable. 4. Brake Fluid Hazard: Brake fluid is corrosive. Avoid contact with skin and paintwork. If you spill it on paint, clean it immediately with water. 5. No Smoking: Never smoke while working with brake fluid or near the brake system. 6. Proper Jacking: Use a reliable jack and always support the vehicle with jack stands before getting underneath it.
Step-by-Step Guide to Fixing a Brake Line (using a repair kit)
This guide outlines a common method using a pre-made repair section or a kit that involves cutting and flaring. For simplicity, we'll focus on replacing a section of a rigid brake line. 1. Locate the Damage: Pinpoint the exact location of the leak. Clean the area thoroughly with brake cleaner and a rag to get a clear view. 2. Prepare the Vehicle: Safely lift the vehicle using a jack and secure it with jack stands. Ensure the wheel nearest to the damaged brake line is removed for better access. 3. Cut Out the Damaged Section: Using a tubing cutter, make a clean, straight cut on either side of the damaged area. Remove the compromised section of the brake line. Be prepared for a small amount of brake fluid to drip out. 4. Prepare the New Brake Line Section: If your kit includes a new piece of tubing, ensure it's the correct length. If you need to cut and flare a new piece, this is where the flaring tool comes in. Follow the instructions for your specific flaring tool to create a double flare (most common for brake lines) on both ends of the new tubing. A proper flare is crucial for a leak-free seal. 5. Install the New Section: Slide a new brake line nut onto the new tubing section. Then, carefully position the new tubing between the existing brake lines. Connect one end of the new tubing to the existing line, ensuring the threads engage correctly. Thread on the appropriate fitting or nut and tighten it using a flare nut wrench. Repeat for the other end, connecting it to the other section of the original brake line. Tighten securely but avoid over-tightening, which can damage the fittings. A Comparison of Flare Types:
| Flare Type | Description | Common Application |
|---|---|---|
| Double Flare | Two outward flares for a robust seal. | Most automotive brake lines |
| Bubble Flare | A single outward flare with a rounded end. | Some European vehicles |
6. Tighten Fittings: Use your flare nut wrenches to snug up all connections. Ensure they are firm to prevent leaks but do not overtighten. 7. Refill Brake Fluid: Locate the brake fluid reservoir under the bonnet (usually a translucent plastic container). Check the fluid level and top it up with the correct type of brake fluid specified in your owner's manual. Do not overfill. 8. Bleed the Brakes: This is a critical step to remove any air that may have entered the system. You’ll typically need a helper for this. * Start with the wheel furthest from the master cylinder. * Have your helper press and hold the brake pedal down. * Open the bleed nipple on the brake calliper or wheel cylinder slightly using a wrench. Fluid and air will escape. * Close the bleed nipple before your helper releases the brake pedal. * Repeat this process for all wheels, moving closer to the master cylinder, until no more air bubbles emerge from the bleed nipples and the brake pedal feels firm. 9. Test the Brakes: With the vehicle still on jack stands, start the engine and pump the brake pedal several times. The pedal should become firm. Check for any leaks at the repaired connections. Lower the vehicle carefully. Take your vehicle for a slow, careful test drive in a safe area, like an empty car park, and test the brakes gently at first. Listen for any unusual noises and ensure the pedal feels solid.
Temporary Fixes (Use with Extreme Caution!)
In an emergency, a brake line repair clamp or a specialised brake line patch kit might be used for a very temporary fix. These are not permanent solutions and should only be used to get you to a repair shop. They do not involve cutting or flaring and are designed to seal a minor leak. However, their reliability is questionable, and relying on them for extended periods is extremely risky.
Troubleshooting Common Issues
- Still Leaking: If the brake line continues to leak after the repair, double-check all fittings for tightness. Ensure the flares on the new tubing are correctly formed and seated. There might be another, previously unnoticed leak elsewhere in the system.
- Spongy Pedal After Repair: This almost always indicates air in the brake lines. You may need to repeat the bleeding process, possibly multiple times, or there might be a leak at one of the fittings that allowed air to enter.
- Brake Fluid Level Dropping: If the level continues to drop, you have another leak. Inspect all lines, connections, the master cylinder, and the callipers.
Frequently Asked Questions
Q: How long does it typically take to fix a brake line?A: For a skilled mechanic, replacing a section of brake line can take anywhere from 1 to 3 hours, depending on the complexity of the job and vehicle access. A DIY repair, especially if you're flaring your own lines, could take significantly longer, potentially half a day or more for a beginner. Q: What if I can't find the exact hole?A: If you can't visually locate the leak, try cleaning the entire brake line assembly thoroughly. With the engine running and the brake pedal gently pressed, you might see or hear fluid escaping. Alternatively, you can use a dry rag to wipe down the lines; the fluid will leave a noticeable wet streak. Q: Can I use flexible brake hose for a rigid line repair?A: While flexible hoses are part of the system, they are not a direct replacement for rigid metal lines. Rigid lines provide structural support. If a rigid line is damaged, it should be replaced with a new rigid line or a section of rigid line. Using flexible hose where rigid is intended can lead to improper routing and potential damage. Q: How much does it cost to fix a brake line?A: The cost can vary widely. Parts for a brake line repair typically range from £20 to £100 for the line itself and fittings. Labour costs at a garage can add significantly, with total repairs often falling between £100 and £300, but potentially more for complex jobs or premium vehicles. Q: Is it safe to drive with a leaky brake line?A: Absolutely not. Driving with a compromised brake line is extremely dangerous. Your braking ability will be severely impaired, putting yourself and others at significant risk. If you suspect a leak, stop driving the vehicle immediately and arrange for it to be towed to a qualified mechanic.
