DIY Guide: Replacing Your Bike Brake Pads

Maintaining your bicycle's brakes is paramount for your safety and the overall enjoyment of your ride. Worn brake pads can compromise stopping power, increase stopping distances, and even damage your wheels or rotors over time. Fortunately, replacing brake pads is a relatively straightforward task that most cyclists can accomplish at home with a few basic tools. This guide will walk you through the process for both common types of bicycle brakes: rim brakes and disc brakes, ensuring you have the knowledge to keep your bike in top condition.

Before diving into the specifics, it's crucial to understand why brake pad replacement is so important. Brake pads are a consumable component, meaning they are designed to wear down as they perform their function of creating friction against the rim or rotor. Ignoring worn pads can lead to a sudden loss of braking ability, particularly in wet conditions, and can also cause irreversible damage to more expensive components. Regular inspection and timely replacement are key to maintaining optimal stopping performance and ensuring a safe cycling experience.

Identifying Worn Brake Pads

Knowing when to replace your brake pads is the first step. Here are the common signs to look out for:

• Reduced Braking Power: If you find yourself having to squeeze your brake levers much harder to achieve the same stopping power, your pads are likely worn.
• Squealing or Grinding Noises: While some squealing can be due to contamination, a persistent, loud squeal often indicates worn pads. A grinding noise, especially with rim brakes, means the pad material is completely gone, and you're grinding metal-on-metal, which can quickly ruin your rim. For disc brakes, grinding means the backing plate is hitting the rotor.
• Visible Wear Indicators: Many pads have wear lines or dimples. If these are no longer visible, or the pad material is very thin (typically less than 1-2mm), it's time for a replacement.
• Hardened or Glazed Pads: Pads can become hard and shiny (glazed) over time due to heat. This reduces their effectiveness. While sometimes you can rough up the surface with sandpaper, replacement is often the best solution.
• Contamination: If your pads have been contaminated with oil or grease, they will lose effectiveness. Cleaning might help, but often replacement is necessary.

Tools You'll Need

The specific tools vary slightly between rim and disc brakes, but here's a general list:

• Appropriate replacement brake pads (ensure they match your brake type and model).
• Hex keys (Allen keys): Typically 4mm, 5mm, and 6mm.
• Torx keys (for some disc brake systems).
• Pliers (for cutting cable ties or adjusting cable tension on rim brakes).
• Cable cutters (for rim brake cables if replacing).
• Clean rags.
• Rubbing alcohol or disc brake cleaner (for disc brakes).
• Flat-head screwdriver (for some pad retaining pins).
• A bike stand (optional, but highly recommended for ease).
• Gloves (to keep hands clean and prevent contamination).

Replacing Rim Brake Pads

Rim brakes, common on road bikes and older mountain bikes, use pads that press against the wheel rim. The process is generally simpler than disc brakes.

Step-by-Step Guide for Rim Brakes:

1. Prepare Your Bike: If you have a quick-release lever on your brake caliper, open it to release tension and make wheel removal easier. If not, you might need to loosen the brake cable anchor bolt. It's often easier to work with the wheel removed.
2. Remove Old Pads: Each brake pad is typically held in place by a single hex bolt or a nut. Use the appropriate hex key (often 5mm) to loosen this bolt. Once loose, slide the old pad out of its holder. Note the orientation of the pad and any washers or spacers, as you'll need to reinstall them correctly.
3. Clean Brake Calipers and Rims: With the pads removed, take this opportunity to clean any accumulated grime from your brake calipers and, importantly, your wheel rims. Use a clean rag and rubbing alcohol to remove dirt and any residue that might have transferred from the old pads. A clean rim ensures optimal braking efficiency with the new pads.
4. Install New Pads: Slide the new brake pads into the pad holders. Ensure they are oriented correctly – many pads are marked 'Left' or 'Right', or have an arrow indicating rotation direction. Pay close attention to any curved washers or spacers; these are crucial for proper alignment and 'toe-in'.
5. Adjust Pad Position and Toe-In: This is a critical step for quiet and effective rim braking. Re-tighten the pad bolt just enough so that the pad can still be moved by hand, but not so loose that it flops around.
• Height: Position the pad so that it makes full contact with the braking surface of the rim, without touching the tyre or dropping below the rim's edge.
• Angle (Toe-In): 'Toe-in' means the front edge of the brake pad (relative to the direction of wheel rotation) touches the rim slightly before the back edge. This helps eliminate squealing. You can achieve this by placing a thin piece of card (like a business card) under the rear of the pad while you squeeze the brake lever to hold the pad against the rim. While holding the lever, tighten the pad bolt firmly. Remove the card. The gap created at the rear should be minimal (less than 1mm).
6. Check Cable Tension and Lever Feel: Once both pads are installed and aligned, release the quick-release (if opened) or re-tension the brake cable. Squeeze the brake lever a few times to seat the pads. Check for proper lever feel – it should be firm, not spongy, and the pads should engage the rim without excessive lever travel. Adjust cable tension at the lever or caliper if necessary.
7. Final Check: Spin the wheel to ensure the pads don't rub when the brake is not applied. If they do, re-adjust the pad position or cable tension.

Replacing Disc Brake Pads

Disc brakes, prevalent on modern mountain bikes, hybrids, and increasingly on road bikes, use pads that clamp onto a metal rotor. The process can be a bit more intricate due to the smaller tolerances involved.

Step-by-Step Guide for Disc Brakes:

1. Prepare Your Bike: It's almost always necessary to remove the wheel for disc brake pad replacement. Place your bike in a stand.

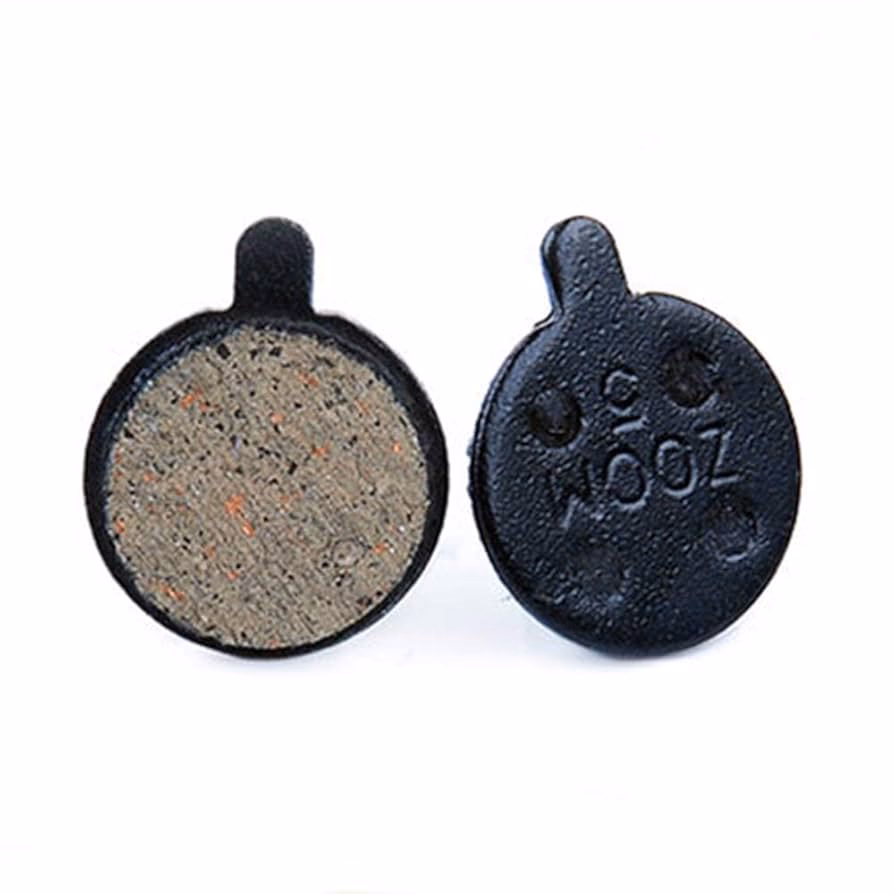

2. Identify Pad Type: Disc brake pads come in various shapes and sizes, and also different compounds (organic/resin, metallic/sintered, semi-metallic). Ensure your new pads are compatible with your specific brake caliper model.
3. Remove Retaining Pin/Clip: Most disc brake pads are held in place by a small retaining pin or clip. This is usually secured by a split pin or a small threaded bolt. Carefully remove this pin/clip. Some pads are loaded from the top, others from the bottom.
4. Remove Old Pads: Once the retaining pin is out, the old pads can usually be pulled directly out of the caliper. Be careful not to touch the rotor or the new pads with oily fingers.
5. Push Pistons Back: This is a crucial step. As pads wear, the brake pistons extend further. New, thicker pads will not fit unless the pistons are fully retracted. Use a clean, blunt tool (like a plastic tyre lever, a disc brake piston press tool, or a large flat-head screwdriver) to gently but firmly push the pistons back into the caliper body. Do this slowly and evenly, ensuring both pistons retract fully. If you have an open hydraulic system, opening the bleed port can make this easier, but it's often not necessary. Never use excessive force.
6. Clean Caliper and Rotor: Use a clean rag and dedicated disc brake cleaner or rubbing alcohol to clean the inside of the caliper and, if removed, the brake rotor. Contamination is the enemy of disc brakes.
7. Install New Pads: Carefully slide the new pads into the caliper, ensuring the friction material faces the rotor. They should sit neatly against the pistons. Reinstall the retaining pin/clip, making sure it's fully secured.
8. Reinstall Wheel: Carefully reinstall your wheel, ensuring the rotor slots perfectly between the new pads without rubbing.
9. Pump Brake Lever: Before riding, pump your brake lever several times until it feels firm. This pushes the pistons out and seats the new pads against the rotor.
10. Bed-In New Pads: This is arguably the most important step for disc brakes. New pads need to be 'bedded in' to transfer some of their material to the rotor, creating an optimal friction surface.
• Find a safe, quiet area.
• Accelerate to a moderate speed (e.g., 15-20 mph).
• Apply the brakes firmly but not to a complete stop, allowing the bike to slow down significantly. Do this about 10-20 times for each brake.
• Avoid hard stops that lock the wheel during this process.
• You should feel the braking power gradually increase.
11. Final Check: Spin the wheel to ensure the rotor doesn't rub the pads when the brake is not applied. If it does, you might need to re-align your brake caliper (usually by loosening the two bolts holding the caliper to the frame, squeezing the brake lever firmly, and re-tightening the bolts while holding the lever).

Common Issues and Troubleshooting

Even with careful installation, you might encounter a few snags:

• Squealing Brakes: For rim brakes, this is often due to a lack of 'toe-in' or contaminated rims/pads. For disc brakes, it could be contamination (clean rotor and pads with alcohol), improper bedding-in, or a misaligned caliper.
• Spongy Brake Lever: For rim brakes, this usually means too much slack in the cable. Adjust the cable tension. For hydraulic disc brakes, it indicates air in the system, which requires a brake bleed (a more advanced procedure).
• Pads Rubbing: For rim brakes, check pad alignment and cable tension. For disc brakes, ensure pistons are fully retracted, the caliper is aligned, and the wheel is properly seated in the dropouts.
• Poor Braking Power After Replacement: For disc brakes, ensure you've bedded in the pads correctly. For both types, check for contamination on the pads or braking surface.

Choosing the Right Brake Pads

The type of brake pad you choose can significantly impact braking performance, especially for disc brakes.

• Rim Brake Pads: These are typically made of rubber compounds. Different compounds offer varying performance in wet vs. dry conditions, and some are specific to carbon rims. Always use pads designed for your rim material.
• Disc Brake Pads:
  • Organic/Resin Pads: Offer good initial bite, quiet operation, and perform well in dry conditions. They wear faster and fade more quickly under heavy braking. Ideal for general riding and lighter use.
  • Metallic/Sintered Pads: Offer excellent stopping power, durability, and perform well in wet, muddy conditions. They can be noisier and require more lever force for initial bite. Ideal for aggressive riding, downhill, or wet climates.
  • Semi-Metallic Pads: A blend of organic and metallic, aiming to offer a balance of performance characteristics.

  Always check your brake manufacturer's recommendations for compatible pad types.

Table: Rim vs. Disc Brake Pad Replacement Overview

Frequently Asked Questions (FAQs)

Q: How often should I replace my brake pads?

A: There's no fixed schedule as it depends heavily on riding style, terrain, weather conditions, and pad compound. Inspect your pads regularly (e.g., every few rides or once a month). Replace them when they show significant wear, reduced performance, or reach their wear indicators.

Q: Can I mix different types of brake pads on the same bike?

A: For rim brakes, you can use different brands, but ensure they are compatible with your rim material. For disc brakes, you can use different compounds (e.g., organic on front, metallic on rear) if desired, but always ensure they are the correct shape and fit for your specific caliper model.

Q: What is 'bedding in' and why is it so important for disc brakes?

A: Bedding in is the process of gradually heating up new disc brake pads and rotors through repeated braking. This transfers a thin, even layer of pad material onto the rotor, optimising the friction surface. Without proper bedding in, your brakes will lack power, be noisy, and wear unevenly.

Q: My disc brakes are making a loud squealing noise after replacing pads. What's wrong?

A: This is a common issue. Most likely causes are contamination of the pads or rotor (even fingerprints can cause this), or improper bedding in. Try cleaning the rotor thoroughly with disc brake cleaner and re-bedding the pads. If the noise persists, the pads might be permanently contaminated and require replacement.

Q: Do I need to bleed my hydraulic disc brakes after changing pads?

A: Generally, no. Changing pads does not introduce air into the system. However, if your lever feels spongy after pushing the pistons back, it might indicate that your system already had some air or was due for a bleed, which is a separate maintenance task.

Q: Can I use automotive brake cleaner on my bike's disc brakes?

A: It's best to use dedicated bike disc brake cleaner or isopropyl alcohol (rubbing alcohol). Some automotive cleaners can leave residues that are detrimental to bike brake performance or may damage rubber seals.

Q: My rim brake pads are wearing unevenly. What causes this?

A: Uneven wear is typically due to incorrect alignment of the pads, where one part of the pad makes more contact than another. Ensure your pads are perfectly parallel to the rim (or have the correct toe-in) and are making full, even contact across their surface when the brake is applied.

Replacing your bike's brake pads is an essential part of routine bicycle maintenance. By following these steps, you can ensure your braking system is reliable, safe, and performs optimally, allowing you to enjoy countless miles of cycling with confidence. Remember, if you ever feel unsure about a step or encounter persistent issues, it's always wise to consult a professional bike mechanic.
