Mastering Your ATV's Braking System

Understanding the intricacies of your All-Terrain Vehicle's (ATV) braking system isn't just a technicality; it's a fundamental aspect of safe and effective riding. For any ATV owner, grasping the basics of how these critical components function is paramount. This knowledge not only simplifies troubleshooting when an issue arises but also empowers you to perform routine maintenance, ensuring your brakes remain sharp and reliable in all conditions. While ATV brake systems have evolved over time with various designs, the core principles discussed here cover the vast majority, equipping you with the essential insights needed to keep your quad performing optimally.

It's important to acknowledge that the world of ATV braking has seen numerous variations. The fundamental concepts outlined in this comprehensive guide aim to demystify these systems, providing a solid foundation for riders of all experience levels. From the moment you squeeze that lever or press that pedal, a complex yet perfectly synchronised dance of mechanics and hydraulics begins, all orchestrated to bring your powerful machine to a controlled halt.

How ATV Brakes Operate

ATVs utilise a range of braking systems, primarily relying on disc brakes, drum brakes, or a strategic combination of both to achieve superior vehicle control. Each system employs distinct mechanisms to convert the rider's input into the necessary stopping force, slowing down or completely halting the vehicle's momentum. While their operational methods differ, their ultimate goal remains the same: reliable and consistent deceleration.

The Power of Disc Brakes

For ATVs equipped with disc brakes, the process of deceleration is a sophisticated hydraulic affair. When the rider engages the brake, either by pulling the hand lever or depressing the foot pedal, a precise sequence of events is initiated. This action pressurises the brake fluid, which is then efficiently transmitted through a network of brake lines. This pressurised fluid acts upon the brake piston, causing it to powerfully propel the brake pad against the brake disc. The resulting contact generates significant friction, which in turn inhibits the rotation of the wheels, bringing the ATV to a smooth and controlled stop. This system is renowned for its excellent stopping power and consistent performance, particularly in varied riding conditions.

Understanding Drum Brakes

In contrast, ATVs featuring drum brakes operate on a different, yet equally effective, principle. When the brake lever is engaged, it activates a robust solid steel cable. This cable is meticulously engineered to exert outward force on the brake shoes, pressing them firmly against the inner surface of the brake drum. The friction created by this interaction is what ultimately decelerates the vehicle, facilitating a safe and controlled halt. Drum brakes are often found on older or more budget-friendly ATV models and, while simpler in design, provide reliable stopping capabilities.

Essential Components in an ATV Brake System

Regardless of whether your ATV employs disc or drum brakes, certain fundamental components are indispensable for the system's operation. Understanding each part's role is key to comprehending how your ATV achieves its stopping power.

• Hand Lever: This is the primary interface for the rider. Positioned conveniently on the handlebar, the rider pulls or squeezes this lever to activate the brakes. On many modern ATVs, engaging the hand lever typically activates the brakes on all four wheels, providing comprehensive stopping power.
• Master Cylinder: Located adjacent to the hand lever on the handlebar, the master cylinder is a crucial component in hydraulic braking systems. It comprises a small reservoir, which holds the vital brake fluid, and a small piston that functions as a hydraulic actuator. When the hand lever is pulled, this small piston efficiently pushes brake fluid down the brake line, initiating the hydraulic process. The reservoir usually features a gauge or an 'eye' style indicator to display the current fluid level. A dark centre typically signifies a full reservoir, while a white centre indicates low fluid levels. A black centre generally means the brake fluid levels are acceptable. Always consult your ATV's owner's manual for precise instructions on checking the fluid level for your specific model. It's critical to ensure the fluid level remains above the minimum mark at all times, but equally important not to overfill, as this can lead to undesirable brake drag or even brake lock-up.
• Brake Lines: These are the conduits through which brake fluid travels from the master cylinder to the caliper on each wheel. Brake lines are engineered to withstand high pressures and can be made from flexible lines, or rigid solid steel or copper pipes, depending on the specific application and design requirements.
• Brake Fluid: This hydraulic fluid is the lifeblood of the entire braking system. Utilising the correct type of brake fluid for your ATV, typically DOT 3 or DOT 4, is absolutely essential for optimal performance. It's crucial to remember that even a minuscule amount of air entering the system can severely impair brake function, making proper bleeding procedures vital after any fluid service.

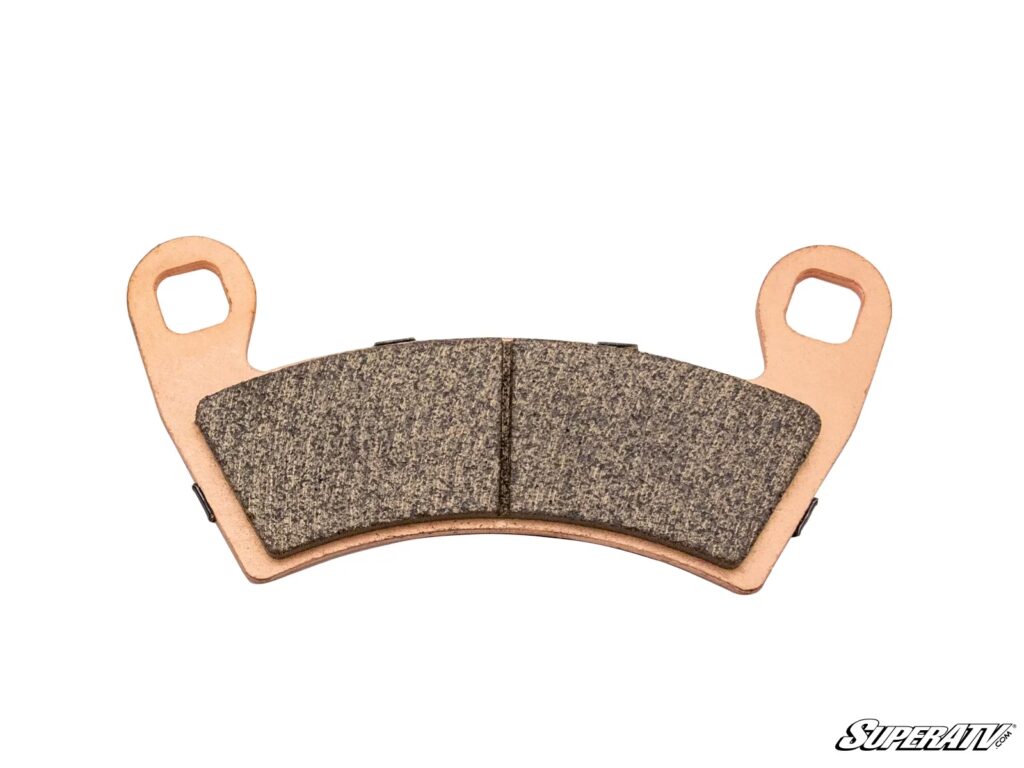

• Brake Caliper: Found at each wheel hub, the brake caliper is a robust metal clamp. It houses one or more hydraulic pistons designed to securely hold the brake pads in place and, critically, to press them against the brake disks during braking. This pressure is what generates the necessary friction for deceleration.
• Brake Disk: Each wheel is fitted with a brake disk that rotates in perfect synchronisation with the wheel. When the brake fluid reaches the piston within the caliper, the piston is forced outwards against the brake pad. This pad, crafted from materials specifically designed to withstand extreme friction and heat, is then pressed firmly against the brake disk, effectively slowing the wheel's rotation.

On systems where the hand lever operates disc brakes, the brake calipers can be activated on all four wheels simultaneously. Alternatively, on some models, they might activate only the two front wheels along with one of the rear wheels. This latter setup is common on bikes that utilise a locked rear differential, meaning a single caliper on one rear wheel is sufficient to brake both rear wheels effectively. A notable characteristic of these systems is that the pressure applied to all calipers is typically equal, as they generally lack a proportioning valve, which is common in most on-road vehicles.

How Foot Pedal-Operated Disc Brakes Work

Many ATVs offer the convenience of a foot pedal in addition to the traditional hand lever. On ATVs equipped with disc brakes on all four wheels, engaging the foot brake pedal often yields the same braking effect as pressing the hand lever. However, there are a few key distinctions to be aware of.

The foot pedal typically has its own dedicated master cylinder, which, like its hand-operated counterpart, pressurises and pushes brake fluid to the calipers. The brake fluid reservoir for the foot pedal system, however, is often located elsewhere on the ATV. For instance, on a Polaris Sportsman, while the master cylinder is situated near the pedal, the brake fluid reservoir might be found at the front of the ATV, neatly tucked away beneath the cargo rack panel.

Another significant difference lies in the braking distribution. On some ATVs, the foot pedal does not engage the front brakes at all, activating only the rear brakes. In such models, the foot pedal master cylinder is solely connected to the rear calipers. The most prevalent configuration on contemporary ATVs is where the hand lever operates all calipers, providing comprehensive braking, while the foot pedal is specifically designed to operate only the rear calipers.

However, it's crucial to acknowledge the variations that exist, particularly among older models. Some older bikes feature a separate 'trailing' caliper specifically for the foot brake, usually mounted on one of the rear wheels. Even some newer bikes might only have a single caliper fitted on one of the rear wheels. ATVs configured this way, with a single caliper on one of the rear wheels, are highly likely to have a locked rear differential. This design ensures that both rear wheels brake simultaneously when the pedal is engaged, despite only one having a direct caliper.

Learning the specific design of your ATV's braking system is not merely advisable; it is a critical safety measure. Mistakenly assuming you will achieve full braking power solely by using your foot pedal can lead to a potentially fatal error. In situations demanding an immediate and rapid stop, relying only on the rear wheel brakes on such models will result in a significantly longer stopping distance compared to engaging all wheels.

To ascertain how your particular ATV is designed, a simple inspection of where the foot pedal master cylinder's brake lines lead can provide clarity. Alternatively, you can safely test your bike at slower speeds in an open gravel area, minimising accident risks. If the rear end of your ATV noticeably begins to slide to either side when you use the foot pedal, but not when you use the hand lever, it's a strong indicator that the foot pedal likely activates only the rear brakes.

Drum Brake Systems Explained

For ATVs that do not feature disc brakes, it is highly probable they are equipped with drum brakes. These systems are more commonly found on older or more budget-friendly models. It's also not uncommon to encounter models that combine both technologies, featuring drum brakes on the rear wheels while utilising disc brakes on the front for enhanced stopping power. Drum brake systems are generally simpler in their design and construction, though they are often considered less effective in terms-of overall stopping power and heat dissipation compared to their disc brake counterparts.

Here are the key components of a drum brake system and how they work in unison:

• Hand Lever or Foot Pedal: These operate in a similar fashion to those found on disc brake systems, providing the rider's input.
• Brake Wire: Connected directly to the hand lever or foot pedal, the brake cable is a fundamental part of the mechanical drum brake system. It consists of a thin, durable steel wire housed within a protective casing, allowing it to slide freely back and forth as the brake lever is operated.
• Brake Hub: The brake hub is precisely fitted where the suspension meets the wheel and rotates freely at the same speed as the wheel. The drum itself is constructed entirely of metal and features an internal shape that gives drum brakes their distinctive name. The inner steel walls of the hub serve the same crucial purpose as the discs in disc brake systems: they are the surface against which friction is generated when the brake shoes are pressed.
• Brake Shoe: Housed within the brake drum, the brake shoe functions similarly to brake pads in disc brakes. The most common configuration involves two brake shoes within each hub. The brake cable connects to a lever arm on the brake hub. When pulled, this arm forces the brake shoes outwards, pressing them firmly against the steel drum's inner surface, thereby creating the essential braking effect. Small springs, directly connected to the shoes, then gently pull them away from the drum when the brake lever or foot pedal is released, disengaging the braking action.

The Parking Brake

Most ATVs are equipped with a parking brake system, a vital feature designed to prevent the vehicle from accidentally rolling or moving when parked. I personally always engage the parking brake, especially when parking on steep inclines, as it significantly aids the ATV's transmission in shifting more easily in and out of PARK. While many cars utilise a separate brake wire that bypasses the hydraulic braking system for their parking brake, this is typically not the case on ATVs.

On ATVs, the parking brake usually functions by ingeniously locking the hand lever in its activated position. This means the ATV's primary braking system is repurposed to serve as the parking brake. When engaged, it keeps the brakes on all four wheels constantly activated until the brake is intentionally released. To activate the parking brake, pull the hand lever firmly against the handlebar. While maintaining this position with one hand, use your free hand to flip the locking mechanism. This mechanism will then prevent the lever from retracting when you release your grip. To disengage the parking brake, simply squeeze the hand lever again and release the locking mechanism.

The appearance of the locking mechanism may vary slightly from model to model, but the underlying principle of operation remains consistent. For example, on my Polaris, there's a two-step switch, allowing me to select the desired level of applied force. Older bikes might feature a more straightforward hand brake locking mechanism, similar to the one found on my old Lynx snowmobile, which also clearly illustrates the steel wire cable in its non-hydraulic system.

ABS (Anti-Lock Braking System)

With Can-Am's recent introduction of ABS (Anti-Lock Braking System) to the ATV world, it's pertinent to conclude this discussion with a brief overview of how these advanced systems operate. An ABS-equipped ATV shares all the conventional components of a hydraulic brake system but integrates additional anti-locking features that significantly enhance safety and control.

The additional components typically include a hydraulic electronic control unit (ECU), several hydraulic pressure sensors, and wheel speed sensors. These sensors are constantly monitoring how the wheels behave in various braking situations, transmitting their signals to the ECU. The ECU, serving as the 'brain' of the operation, processes these sensor signals. Based on this real-time data, it precisely calculates and adjusts the optimal braking force that needs to be delivered to each caliper. This rapid and precise modulation of braking force prevents wheel lock-up, allowing the rider to maintain steering control even during aggressive braking on slippery surfaces.

This entire process occurs instantaneously, with a speed and precision far beyond what any human rider could achieve on non-ABS systems. The result is superior stopping power, improved stability, and a significantly reduced risk of skidding, particularly in challenging terrain or emergency braking scenarios. ABS technology represents a significant leap forward in ATV safety and performance.

Frequently Asked Questions

Understanding your ATV's brakes often leads to specific questions. Here are answers to some common queries:

What to do When ATV Brake Pads Squeal?

ATV brake pads that emit a squealing noise are a common annoyance and often indicate an issue that needs attention. The most frequent culprits are dirt, dust, or debris accumulating on the brake pads and discs. A good first step is to thoroughly clean the brake pads and discs using a dedicated brake cleaner. This can often resolve the squealing by removing contaminants that interfere with smooth contact. If the squealing persists, installing an anti-squeal shim, typically made of aluminium, can also be a highly effective solution. These shims help to dampen vibrations that cause the squealing noise.

Do ATV brake pads wear out?

Absolutely, ATV brake pads are designed to wear out over time, as they are friction components. It's not a question of if, but when. Once your brake pads begin to wear down significantly, you could be putting yourself into potentially dangerous situations. The ability to stop quickly and successfully is paramount on an ATV, especially given the varied terrain and speeds involved. Mud and moisture, which are common elements in ATV riding environments, along with excessive or aggressive use of the brakes, are the primary factors that can significantly accelerate the degradation and wear of your ATV brake pads. Regular inspection and timely replacement are crucial for maintaining safety and performance.
