The Silent Menace: How a Faulty Brake Servo Can Lead to Unresponsive Brakes
Have you ever found yourself pressing down on the brake pedal with all your might, only to feel it remain stubbornly stiff, offering little to no assistance? Or perhaps you've noticed a peculiar sucking or whooshing sound emanating from the engine bay, a sound that seems to coincide with a less-than-ideal braking performance. If any of this sounds familiar, you might be experiencing the tell-tale signs of a faulty brake servo. This crucial component, often overlooked until it fails, plays a vital role in ensuring your vehicle stops safely and effectively. Ignoring these symptoms could have serious consequences, potentially leaving you with unresponsive brakes when you need them most.
Understanding the Brake Servo: Your Braking Powerhouse
In the intricate system that is your car's braking mechanism, the brake servo, also known as the brake booster, is a true unsung hero. It's strategically positioned between the master cylinder and the brake pedal. Its primary function is to amplify the force you apply to the brake pedal, making braking significantly easier and more efficient. Without it, you'd likely find yourself needing considerably more effort to bring your vehicle to a halt, especially at higher speeds or when carrying a load.
How Does It Work? The Magic of Vacuum Assistance
The operation of a vacuum brake servo is a clever interplay of air pressure and mechanical action. At its core, the servo unit is a hollow housing containing a movable rubber diaphragm. This diaphragm effectively divides the housing into two distinct chambers. One of these chambers is connected to the vehicle's intake manifold or a dedicated vacuum pump. This connection creates a vacuum, meaning the air pressure within that chamber is significantly lower than atmospheric pressure. The other chamber is typically at atmospheric pressure, or its pressure is controlled by the brake pedal linkage.
When you press the brake pedal, a valve within the servo opens, allowing atmospheric pressure into the chamber that was previously under vacuum. This pressure differential across the diaphragm creates a powerful force. This force is then transmitted to the master cylinder, effectively multiplying the pressure you applied with your foot. This amplification is what gives you that reassuringly firm and responsive brake pedal feel. Essentially, the servo uses the engine's vacuum to provide braking assistance, making your life and your car's stopping power considerably easier.
The Usual Suspects: Common Brake Servo Failures
While brake servos are generally robust, they are not immune to wear and tear. The most frequent culprit behind servo malfunctions is often a seemingly minor issue: a split or damaged breather pipe. This pipe is crucial for regulating the vacuum within the servo. When it cracks or splits, it allows air to leak into the vacuum chamber, disrupting the delicate pressure balance. This disruption can manifest in a couple of ways:
- The Sucking or Whooshing Noise: This is often the most noticeable symptom. The leak in the vacuum pipe creates an audible sucking or whooshing sound as air is drawn into the system. It's the sound of your brake servo struggling to maintain its vacuum.
- The Hard Brake Pedal: When the vacuum is compromised, the servo cannot provide adequate assistance. This means that the force you apply to the pedal is not significantly amplified, resulting in a much harder, less responsive brake pedal. You'll have to push down much harder to achieve the same braking effect, which can be alarming and dangerous.
Beyond the Pipe: Other Potential Issues
While a split vacuum pipe is the most common cause, other factors can also contribute to a servo not working correctly. These might include:
- Internal Diaphragm Failure: The rubber diaphragm within the servo can degrade over time, developing tears or holes. This would also lead to a loss of vacuum and the associated symptoms.

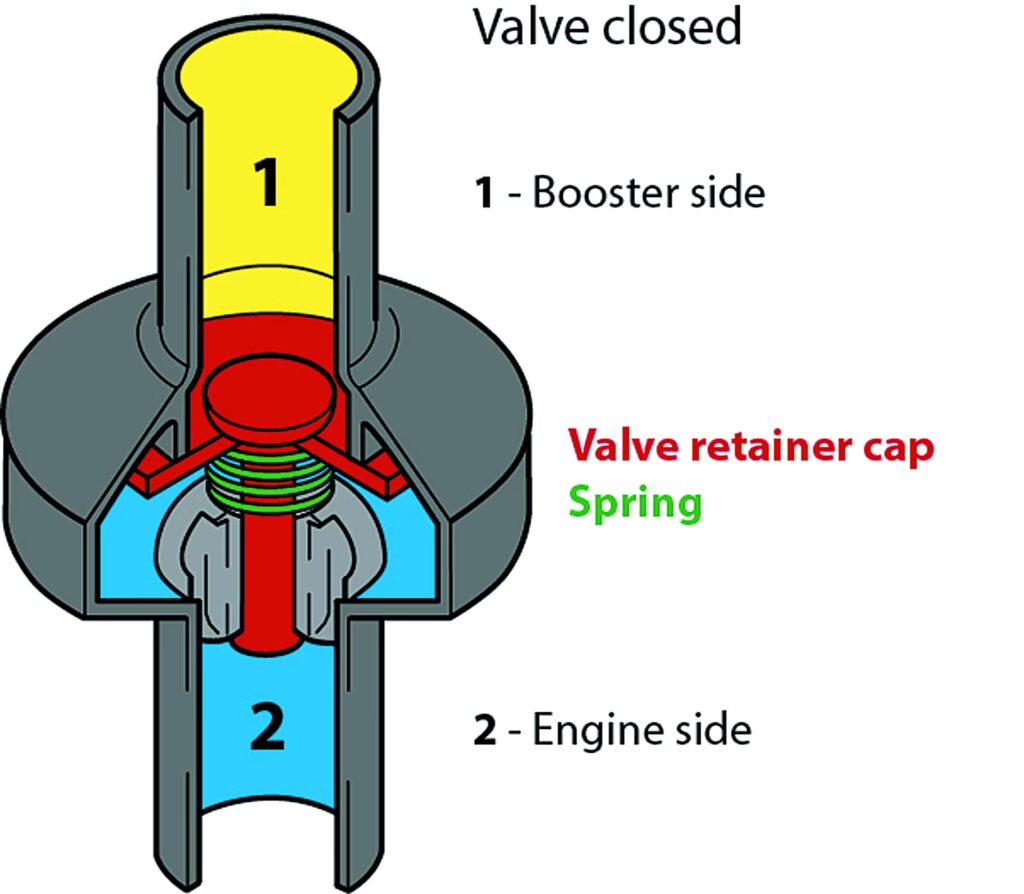

- Faulty Valves: The internal valves that control the flow of air and vacuum within the servo can become stuck or damaged, preventing proper operation.
- Corroded Brake Lines: While not directly a servo fault, severely corroded brake lines can impede the flow of brake fluid, leading to a spongy or unresponsive pedal. This can sometimes be mistaken for a servo issue, highlighting the importance of a thorough diagnosis.
- Issues with the Master Cylinder: A failing master cylinder can also impact brake performance, and its symptoms can sometimes overlap with those of a faulty servo.
What to Do When Your Brakes Feel Off
If you're experiencing a hard brake pedal or hearing unusual noises from the engine bay, it's crucial to address the issue promptly. Don't delay in seeking professional help. Continuing to drive with compromised braking systems puts yourself and others at significant risk. The first step is to have your vehicle inspected by qualified technicians who can accurately diagnose the problem.
The Diagnostic Process: Pinpointing the Fault
A reputable garage will employ a systematic approach to identify the root cause of your braking issues. This typically involves:
- Visual Inspection: A thorough check of the brake servo, vacuum pipes, and associated linkages for any visible signs of damage, leaks, or corrosion.
- Vacuum Testing: Using specialized equipment to test the integrity of the vacuum system and the servo unit itself. This can help identify leaks that might not be immediately apparent.
- Functional Checks: Assessing the operation of the brake pedal and the servo's response under different braking conditions.
- Checking Other Brake Components: Ensuring that the master cylinder, brake fluid, and brake lines are all functioning correctly.
Why Choose a Professional Garage?
When it comes to your vehicle's braking system, there's no room for guesswork. Professional mechanics have the knowledge, experience, and specialized tools to accurately diagnose and repair brake faults. Attempting DIY repairs on critical safety systems like brakes can be dangerous and may even lead to further damage. A qualified technician can not only identify a faulty brake servo but also ensure that all other related components are in good working order, providing you with peace of mind.
Choosing the Right Service Centre
When looking for a garage to service your vehicle, consider factors such as:
- Reputation: Look for established garages with a strong track record and positive customer testimonials.
- Expertise: Ensure they have technicians experienced in diagnosing and repairing braking systems.
- Equipment: A well-equipped workshop will have the necessary diagnostic tools and specialized equipment.
- Transparency: A good garage will provide clear explanations of the problem, the proposed solution, and a detailed quote.
Preventative Maintenance: A Stitch in Time Saves Nine
Regular vehicle servicing is key to preventing minor issues from escalating into major, costly repairs. During a routine service, mechanics will often check critical components like the brake system. Identifying a small split in a vacuum pipe or a potential issue with the brake servo during a scheduled service can save you from the distress and expense of a sudden brake failure.
Signs to Watch Out For:
Be vigilant and pay attention to any changes in your vehicle's braking performance. The most common indicators of a problem include:
- A hard or stiff brake pedal that requires excessive force.
- A sucking or whooshing noise when applying the brakes or when the engine is running.
- Brakes that feel spongy or less effective than usual.
- The brake warning light illuminating on your dashboard.
Frequently Asked Questions (FAQ)
Q1: Can a faulty brake servo cause my brakes to become completely unresponsive?
Yes, a severely compromised brake servo can significantly reduce braking power, making the brakes feel very unresponsive and requiring extreme force to operate. In extreme cases, it could lead to a dangerous inability to stop effectively.
Q2: Is the sucking noise from the engine bay always a sign of a faulty brake servo?
While a sucking or whooshing noise is a very common symptom of a vacuum leak, which often points to a faulty brake servo or a split vacuum pipe, it's not exclusively caused by this. Other vacuum-operated systems in your car could also develop leaks. A professional diagnosis is essential.
Q3: How much does it typically cost to repair or replace a brake servo?
The cost can vary significantly depending on the make and model of your vehicle, the specific fault, and whether the servo needs repair or replacement. It's best to get a quote from a reputable garage after they have diagnosed the issue.
Q4: Can I continue driving if I suspect my brake servo is faulty?
It is highly recommended that you do not drive your vehicle if you suspect a fault with the brake servo. Compromised braking systems are a serious safety hazard. Arrange for your vehicle to be towed to a garage for inspection and repair.
Q5: What is the difference between a brake servo and the master cylinder?
The brake servo amplifies the force you apply to the brake pedal, making braking easier. The master cylinder converts the mechanical force from the brake pedal (amplified by the servo) into hydraulic pressure, which is then sent to the brake calipers or wheel cylinders to activate the brakes.
Conclusion: Prioritise Your Safety
Your vehicle's braking system is paramount to your safety on the road. A hard brake pedal, unusual noises, or a general feeling of reduced braking efficiency are all signals that should not be ignored. A faulty brake servo is a common cause of these symptoms, and addressing it promptly is essential. By understanding how your brake servo works and recognizing the early warning signs, you can ensure your vehicle remains safe and reliable. Don't wait for a potential brake failure; get your vehicle checked by professionals and keep those brakes performing at their best.
