Mustang GT Brake Issues: DIY Repair & Maintenance

When you acquire a vehicle, especially one with a bit of history like a 99-04 Mustang GT, anticipating future maintenance is always a wise move. For many, the braking system often becomes an early point of attention. A tell-tale sign that your brakes are not performing optimally might be obvious rust lines forming on the rotor, particularly towards the centre. This visual cue strongly suggests that the brake pad isn't fully engaging with the rotor's surface, as consistent use would typically wear these rust spots away. Initially, it might seem like a job you can postpone, especially if the outer brake pads appear to have ample thickness. However, as many discover, the situation can escalate quickly, leading to disconcerting noises that signal a more serious underlying issue. It's a common oversight, but crucial to remember: always check both the inner and outer brake pads. A seemingly thick outer pad can mask a dangerously worn inner pad, often due to crucial components like guide pins losing their lubrication and seizing, preventing proper brake operation. This guide will walk you through the comprehensive process of replacing both rear and front brake pads and rotors, ensuring your Mustang GT stops safely and reliably.

The Root of the Problem: Understanding Uneven Brake Pad Wear

The scenario described – where the outer brake pad looks perfectly fine but the inner pad is worn down to metal – is a classic symptom of uneven wear caused by seized caliper guide pins. These pins, sometimes called slider pins, are vital for the caliper to move freely and apply even pressure across the brake pad onto the rotor. When they lose their lubrication or become corroded, the caliper can't float correctly, leading to one pad taking the brunt of the braking force while the other remains relatively unused. This not only significantly reduces braking efficiency and causes a dreadful racket but also accelerates wear on the functional pad and can lead to dangerous situations. It highlights the importance of thorough inspection beyond just a quick glance at the outer pad.

Essential Tools and Parts for Your Brake Overhaul

Before you begin, ensure you have all the necessary equipment. Having everything at hand will make the job smoother and safer.

Tools Required:

• Basic set of wrenches (a ratcheting wrench is highly recommended for caliper bolts).
• Hydraulic jack and jack stands (for safely lifting and supporting the vehicle).
• 6-inch C-clamps (for retracting front brake calipers).
• Small block of wood (to protect piston surfaces when using C-clamps).
• Specialty tool for retracting rear brake pistons (due to the parking brake mechanism; often available for rent from auto parts stores like Autozone).
• Mallet (rubber or soft-faced, for stubborn rotors).
• Breaker bar (for high-torque bolts).
• Torque wrench (essential for correct bolt tightening).

Parts Required:

• New front brake pads (one box).
• New rear brake pads (one box).
• Two front brake rotors (sold individually).
• Two rear brake rotors (sold individually).
• High-temperature slider pin grease (specifically designed for brake components).
• Brake-Kleen (or similar brake cleaner spray) and clean rags.

Note on Parts: The author had issues with C-Tek ceramic pads being too thick. NAPA parts were found to be a good fit. While some might consider having old rotors turned, new rotors are often similarly priced and eliminate any hassle or potential for continued issues.

Preparing Your Mustang: Safely Lifting the Vehicle

Safety is paramount when working under a vehicle. Always ensure the car is stable before commencing any work.

1. Begin by loosening the wheel lug nuts slightly on the wheels you plan to remove. Do not remove them completely yet.
2. For the rear, position your jack under the differential and lift the car. Once lifted, place sturdy jack stands securely under the subframe. Slowly lower the car onto the jack stands, ensuring they are stable.
3. For the front, the K-member can serve as both a lifting point and a place to set your jack stands.
4. Once the car is safely on jack stands, fully remove the lug nuts and then the wheels.
5. Safety Tip: Always place the removed wheels flat under the car's frame, near the jack stands. In the unlikely event of a jack stand failure, the wheels can provide a crucial last line of defence, preventing the car from hitting the ground and potentially crushing someone.

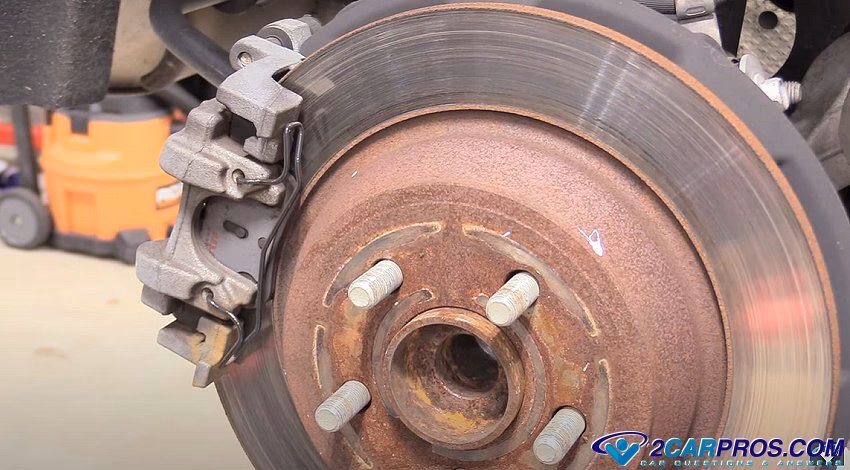

Replacing the Rear Brakes: A Step-by-Step Guide

The rear brakes on a 99-04 Mustang GT have a specific retraction method due to the integrated parking brake.

Removing the Rear Calipers:

Each rear caliper is held in place by two bolts, which are also the slider pins. These are designed to slide, so they won't simply unthread all the way out. If a pin spins in place, you may need to apply outward pressure while unscrewing it to get it to release.

• Use a ratcheting wrench if possible; a regular socket wrench often won't fit in the tight space. A standard box wrench can work but will be slower.
• Once both pins are loose, carefully pull the caliper away from the rotor.
• Crucial: Do NOT let the caliper hang by its brake line. This can damage the line, leading to a dangerous brake fluid leak. Use a bungee cord, ratchet strap, or a sturdy box to support the caliper, ensuring there is slack in the brake line.

Removing the Rear Brake Pads:

With the caliper removed, the brake pads are easily accessible. Simply pinch the small levers on the pads and pull them out. Note that there might be small metal shims attached to the pads; these should be discarded as your new pads will come with fresh replacements.

This is where you'll likely confirm the uneven wear if your inner pad is significantly thinner or worn to metal, contrasting sharply with the outer pad.

Removing the Rear Rotors:

Before the rotor can be removed, the caliper bracket must be unbolted from the knuckle. This bracket typically has two substantial bolts.

• These bolts are generally torqued much tighter than the slider pins. You may need a breaker bar for the upper bolt due to space constraints and leverage.
• For the lower bolt, if a breaker bar doesn't fit, a box wrench with another wrench hooked onto it for extra leverage can be effective.
• Once these bolts are removed, the bracket will likely fall free.
• With the bracket gone, the rotor should simply slide off the wheel hub. If it's stubborn due to rust, a few gentle taps with a mallet around the hub area should free it.

The Importance of Clean Slider Pins and Boots

This is arguably the most critical step for preventing future uneven wear. If your slider pins were seized, this is where you address the problem directly.

1. Remove both slider pins from the caliper bracket. If a pin is badly seized and won't come out, a replacement bracket (which often includes new pins and boots) might be the most cost-effective solution, as it was for the author.
2. Thoroughly clean the pins with Brake-Kleen and a rag, removing all old grease and grime. They should be smooth and free of debris.
3. Inspect the rubber boots that protect the pins. Look for any cracks or tears. Cracked boots allow contaminants and moisture in, leading to premature seizing. If damaged, replace them (they are usually available in an inexpensive brake hardware kit).
4. Apply a liberal, but not excessive, coating of high-temperature slider pin grease to the pins. The goal is to ensure smooth movement without clogging the boot. Also, apply some grease to the inside of the bracket bores where the pins slide.
5. Carefully reinsert the greased pins into their bores.
6. Finally, ensure the rubber boots are properly seated on the small flange just above the bracket. Pinch the boot and force it down, turning slightly, until it pops into place. Wipe off any excess grease from the outside of the boots.

Reinstallation of Rear Brake Components

Now, it's time to put everything back together.

Reinstalling Rotors and Brackets:

• Slide the new rotor onto the wheel hub. Many new rotors come with a packing grease to prevent rust during shipping; this MUST be thoroughly cleaned off with Brake-Kleen before use. Failing to do so will cause immediate brake failure and is extremely dangerous.
• Reinstall the caliper bracket. Torque both bracket bolts to 79 lb-ft. If you can't get a torque wrench on one, ensure it's tightened securely with leverage.

Reinstalling the Rear Brake Pads:

• Take your new brake pads and their accompanying shims.
• Place one of the four smaller shims at the top and bottom of each pad.
• Slide the pads back into the caliper bracket, ensuring they are seated correctly.

Retracting the Rear Calipers:

New pads are thicker, so the caliper piston needs to be retracted into the caliper body. For the rear calipers, this is a unique process due to the integrated parking brake mechanism.

1. Remove the cap from the brake fluid reservoir under the bonnet. This prevents pressure build-up as the piston retracts.
2. You will need the specialty tool designed for spinning back rear pistons. This tool has various plates to fit different piston slot patterns.
3. Select the plate that fits into the two slots on the caliper piston. Attach it to the front of the tool.
4. Slide the pad-shaped backing plate around the tool's handle and onto the back.
5. Seat the tool inside the caliper, ensuring the plate fits into the piston slots and the backing plate rests against the back of the caliper.
6. As you crank the handle, the tool will spin and push the piston back into its bore. Continue until the piston is fully retracted.
7. Once complete, remember to reinstall the brake master cylinder cap.

Reinstalling the Rear Calipers:

• Your brake pad box should contain two larger shims, one for each side. These shims seat into the top of the caliper itself. Push them firmly into place.
• Carefully push the retracted caliper back over the new pads and onto the bracket. It might be a snug fit; a few gentle taps with a rubber mallet can help, but if it doesn't go on easily, something is wrong. Double-check that the piston is fully retracted and that the pads are seated correctly. If you're using aftermarket pads, ensure they aren't thicker than OEM specifications (some cheaper pads can be problematic).
• Once the caliper is seated, reinstall both slider pin bolts.
• Torque these caliper-to-bracket bolts (slider pins) to 24 lb-ft.
• Consider threading a couple of lug nuts onto the wheel studs temporarily to help seat the rotor straight onto the hub.

Moving to the Front: Caliper and Pad Replacement

The front brake replacement process is largely similar to the rear, with a few key differences, particularly in caliper retraction.

Removing the Front Calipers:

• Similar to the rear, two bolts hold each front caliper in place. These are also slider pins.
• If a pin spins freely and lacks a flat spot for a wrench, you may need to use a vice grip to hold it firm enough to unscrew without damaging the rubber boot.
• Once the bolts are out, the caliper might be stuck to the pads. Gentle prying with a hammer (as shown in the source material) can help free it.
• Again, support the caliper to prevent it from hanging by the brake line.

Removing the Front Brake Pads:

• The front pads simply pull off, similar to the rears.
• Note that the front pad shims differ from the rear. Instead of four small shims, there are typically two larger ones per side, for the top and bottom. Pay attention to their orientation as you remove them for correct reinstallation.

Removing the Front Caliper Bracket:

• This procedure is almost identical to the rear. Locate and remove the two large bolts holding the caliper bracket to the knuckle.
• These bolts can be exceptionally tight. You'll likely need significant leverage, possibly by doubling up on wrenches or using an electric impact wrench if you have one.

Changing the Front Rotor:

• With the caliper bracket removed, the old rotor will simply pull off.
• Install the new rotor, ensuring it's been thoroughly cleaned with Brake-Kleen to remove any packing grease.
• Clean and grease the front slider pins, checking that their boots are intact, just as you did for the rear.
• Reinstall the front caliper bracket, torquing the bolts to 85 lb-ft.

Reinstalling the Front Brake Pads:

• Seat the two larger pad shims (one top, one bottom) onto the caliper bracket.
• Slide the new front pads into place.
• There will also be a final shim for the caliper itself, similar to the rears.

Retracting the Front Calipers:

Unlike the rears, front calipers do not have an integrated parking brake and are much simpler to retract.

1. Remove the cap from the brake master cylinder reservoir.
2. Place an old brake pad (or a block of wood) against the caliper piston(s).
3. Use two 6-inch C-clamps (one per piston if it's a dual-piston caliper) to push the pistons back into the bore. Using two clamps is crucial to ensure both pistons retract simultaneously.
4. Slowly tighten the C-clamps until the piston(s) are fully retracted.

Reinstalling the Front Calipers:

• Don't forget to replace the final caliper shim.
• Slide the retracted caliper back over the new pads and onto the bracket.
• Reinstall the two caliper-to-caliper bracket bolts (slider pins).
• Torque these bolts to 25 lb-ft.

Comparative Table: Caliper Retraction Methods

Frequently Asked Questions (FAQs)

Q1: Why did my inner brake pad wear out while the outer one looked fine?

A1: This is almost always due to seized or sticking caliper slider pins. These pins allow the caliper to float freely and apply even pressure to both sides of the rotor. When they get corroded or lose lubrication, the caliper can't move properly, leading to uneven wear where one pad does all the work.

Q2: Do I really need that special tool for the rear calipers?

A2: Yes, for the 99-04 Mustang GT rear calipers (and many other vehicles with integrated parking brakes), a special 'spin-back' tool is essential. The piston needs to be rotated as it's pushed in, not just pushed. Trying to force it with a C-clamp can damage the caliper.

Q3: My new brake pads won't fit, what's wrong?

A3: First, ensure the caliper piston is fully retracted. If it still doesn't fit, the new pads might be slightly thicker than OEM specifications (a common issue with some aftermarket brands like the Centric C-Tek mentioned). Alternatively, ensure the rotor is seated perfectly straight on the hub; sometimes, a slight misalignment can prevent the caliper from seating.

Q4: How important is it to grease the slider pins?

A4: Extremely important! Proper lubrication of the slider pins is critical for the caliper to function correctly, ensuring even brake pad wear and optimal braking performance. Neglecting this step is a primary cause of uneven wear and premature brake failure.

Q5: Can I reuse my old rotors or just have them 'turned'?

A5: While turning (machining) old rotors is an option to smooth their surface, for the 99-04 Mustang GT, the cost of new rotors is often comparable to or less than machining. New rotors eliminate any concerns about minimum thickness, warping, or hidden damage, making them a more straightforward and often safer choice for DIYers.

Wrap-up and Final Considerations

Changing brakes on a 99-04 Mustang GT might seem daunting at first, but as this guide illustrates, it's a straightforward process that is well within the capabilities of most DIY enthusiasts. Mechanics often charge a significant sum for this routine maintenance, so undertaking it yourself can lead to substantial savings. While brakes are safety critical components and require careful attention to detail, following these steps diligently will ensure your work is effective and safe.

Always double-check all torquing specifications and ensure everything is properly tightened before putting the wheels back on. After completing the job, gently pump the brake pedal a few times before starting the engine to build hydraulic pressure. Then, perform a few slow, controlled stops in a safe area to 'bed in' the new pads and rotors. If at any point you feel uncertain about a step or encounter an unexpected problem, do not hesitate to seek expert help from a qualified mechanic to ensure your brakes are absolutely safe to drive on.
