Brake Pad Toe-In: The Key to Quieter Stops

Few things are more frustrating on a bicycle than a set of brakes that squeal like a banshee every time you pull the lever. Beyond the sheer annoyance, persistent squealing can also be a sign of inefficient braking and uneven wear on your brake pads, leading to diminished stopping power and a shorter lifespan for your components. While there are several factors that can contribute to noisy brakes, one of the most effective and often overlooked solutions is a simple adjustment known as brake pad toe-in.

This technique involves angling your brake pads ever so slightly so that the front edge of the pad makes contact with the wheel rim fractionally before the rear edge. It might seem counter-intuitive to not have the entire pad surface engage simultaneously, but for certain types of braking systems, this subtle tweak is the difference between a cacophony of screeching and blissful silence, alongside significantly improved pad longevity.

Understanding Brake Pad Toe-In: What Is It Exactly?

Imagine setting your brake pads so that they are perfectly parallel to the rim. While this seems logical, it rarely works perfectly in practice, especially with certain brake designs. Toe-in refers to the deliberate angling of the brake pad so that its leading edge (the part that contacts the rim first as the wheel rotates forward) touches the rim before the trailing edge. The gap between the trailing edge of the pad and the rim should be minimal, usually no more than 1-2mm.

Think of it like a pigeon-toed stance for your brake pads. This small, deliberate offset plays a crucial role in managing the dynamics of how the brake pad interacts with the rim, particularly addressing issues related to brake arm flex and vibration.

The Root of the Problem: Brake Arm Flex and Vibration

To fully appreciate why toe-in is so important, we need to delve into the mechanics of how different brake systems operate. When a brake pad makes contact with the rim, it generates friction, which in turn creates a force that tries to slow the wheel down. This force also exerts a torque on the brake arm itself. In many brake designs, particularly older or more flexible ones, this torque causes the brake arm to twist or flex slightly.

Consider cantilever brakes or V-brakes (also known as linear-pull brakes). These systems typically have longer brake arms that pivot from the frame or fork. When the pad hits the rim, the force applied isn't perfectly rigid. This causes the brake arm to flex. Instead of the entire pad hitting the rim flat and uniformly, the centre of pressure shifts towards the rear of the pad. This means the trailing edge of the pad ends up doing a disproportionate amount of the work, leading to it wearing out much faster than the front edge. This uneven wear is not only wasteful but also reduces overall braking efficiency.

Furthermore, this flex and the non-uniform contact can create a resonant vibration between the brake pad, the rim, and the brake arm assembly. This vibration is precisely what manifests as that ear-splitting squeal. It's similar to how a violin bow causes strings to vibrate, but in this case, it's an unwanted, uncontrolled oscillation.

Why Toe-In is Essential for Cantilever and V-Brakes

Given the inherent flexibility in their long arms and pivot points, cantilever brakes and V-brakes are the primary candidates for needing brake pad toe-in. The slight angle ensures that the front of the pad makes initial contact. As braking force increases and the brake arm flexes, the rest of the pad then comes into full contact with the rim. This progressive engagement achieves several vital benefits:

• Eliminates Brake Squeal: By ensuring the front of the pad touches first, the toe-in creates a dampening effect. It essentially acts like a tiny wedge, preventing the pad from vibrating against the rim in a way that generates noise. The initial contact absorbs the energy that would otherwise lead to resonance. This is often the most immediately noticeable benefit for riders.
• Promotes Even Pad Wear: With toe-in, the entire surface of the brake pad is encouraged to engage more uniformly throughout the braking process. Instead of the rear wearing out prematurely, the load is distributed more evenly across the pad's surface. This significantly extends the lifespan of your brake pads, saving you money and maintenance time.
• Improved Braking Feel: A more consistent and uniform contact between the pad and the rim can also lead to a more predictable and controlled braking feel. You get better modulation and a more confident stop, as the braking force is applied smoothly across the pad.

When Toe-In is Less Critical: Dual-Pivot Caliper Brakes

In contrast to cantilevers and V-brakes, modern dual-pivot caliper brakes, commonly found on road bikes, typically do not require significant toe-in, if any at all. The design of these brakes features much stiffer, shorter arms and more precise, less flexible pivot points. This rigidity means there is very little, if any, twisting or flexing of the brake arms when the pads engage the rim.

Because the arms are so stiff, the entire pad surface can make uniform contact with the rim without significant force-induced distortion. Attempting to add toe-in to a rigid dual-pivot caliper brake might actually reduce braking efficiency by limiting the effective contact area or even introduce new squeals if the angle is incorrect. For these brakes, simply aligning the pads parallel to the rim is usually the correct approach.

It's also worth noting that disc brakes, which are increasingly common on all types of bicycles, do not use rim brake pads and therefore the concept of toe-in is entirely irrelevant to them. Their pads clamp a rotor, and their operation is fundamentally different.

How to Implement Brake Pad Toe-In: A Step-by-Step Guide

Adjusting brake pad toe-in is a relatively straightforward maintenance task that most cyclists can perform at home with basic tools. You will typically need an Allen key that fits the bolt securing your brake pads.

Tools Required:

• Appropriate Allen key (usually 5mm or 6mm).
• A small, thin piece of cardboard, like a business card (optional, but highly recommended).

The Process:

1. Locate the Brake Pad Bolt: Each brake pad is typically secured to the brake arm by a single bolt.
2. Loosen the Bolt: Using your Allen key, loosen the bolt just enough so that you can move the brake pad by hand, but it still holds its position with a little friction. You don't want it to flop around freely.
3. Position the Pad for Toe-In: This is where the 'trick' comes in. There are a few methods:

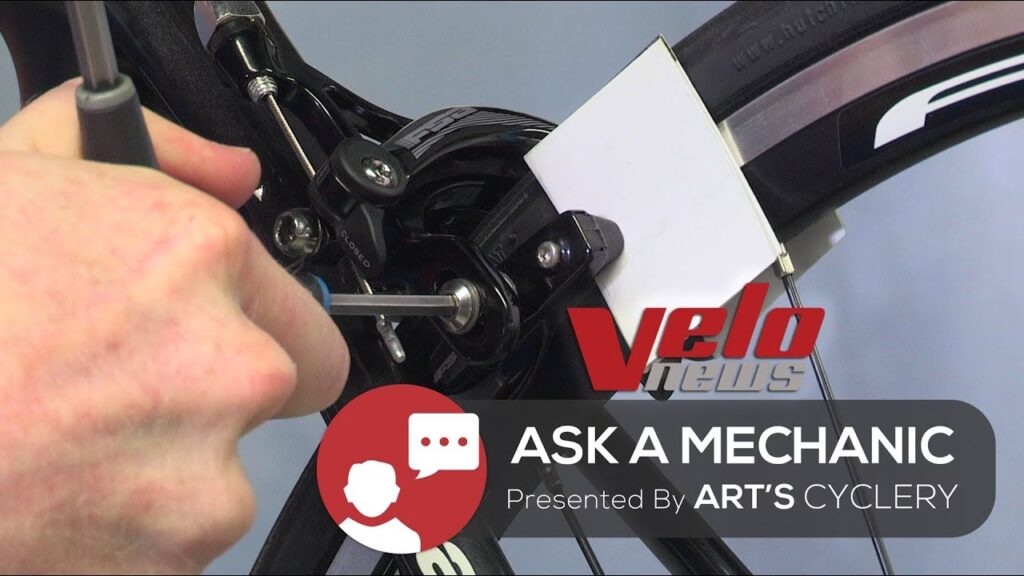

   • The Business Card Method (Recommended for Precision): Place a thin business card or a piece of cardboard between the rear (trailing) edge of the brake pad and the rim. Ensure the card is only at the very back edge. Now, squeeze the brake lever so that the pad presses against the rim, sandwiching the card. This will automatically create the desired toe-in angle, as the front of the pad will be closer to the rim than the rear, due to the thickness of the card.
   • The Rubber Band Method: Similar to the business card, you can loop a thick rubber band around the brake lever and handlebar to hold the brake lever partially engaged. Then, manually angle the pad so its front edge slightly touches the rim first, leaving a tiny gap at the rear.
   • The Eyeball Method: For experienced mechanics, you can simply visually angle the pad so that the front appears to touch first, leaving a barely perceptible gap at the rear. This requires a good eye and some practice.
4. Tighten the Bolt: While holding the brake lever squeezed (or with the business card in place), carefully tighten the brake pad bolt firmly. Make sure the pad does not shift its angle as you tighten. Ensure it's secure, but do not overtighten.
5. Release and Inspect: Release the brake lever and remove the business card (if used). Spin the wheel and visually inspect the pad. You should see a very slight gap at the rear of the pad when it's not engaged, or at least confirm that the front edge is the first to contact the rim when you gently squeeze the lever.
6. Test and Adjust: Take your bicycle for a short test ride in a safe area. Listen for any squealing. If it still squeals, or if braking feels weak, you may need to repeat the process, perhaps increasing or decreasing the toe-in angle slightly. A little goes a long way.

Common Mistakes and Troubleshooting

While toe-in is simple, a few common pitfalls can arise:

• Too Much Toe-In: If you angle the pad too aggressively, you might reduce the effective contact area of the pad with the rim. This can lead to reduced braking power, as less of the pad is doing the work. It can also cause premature wear on just the leading edge of the pad. Aim for a very subtle angle, usually 1-2mm gap at the trailing edge.
• Not Enough Toe-In: If you don't apply enough angle, the problem of squeal and uneven wear will persist. You might need to experiment slightly to find the 'sweet spot' for your specific brake system.
• Persistent Squeal After Toe-In: If your brakes still squeal after correctly applying toe-in, the issue might lie elsewhere. Check your rim surface for cleanliness (oil, dirt, or wax can cause squeal). Ensure your brake pads are clean and not contaminated with oil or grease. Sometimes, old or hardened brake pads can also be a culprit and may need replacing. Finally, check that your wheel is properly seated in the dropouts and that your quick-release skewer or thru-axle is tight.
• Uneven Pad Wear Despite Toe-In: If you notice one side of the pad wearing faster, re-check your toe-in angle. Also, ensure your brake arms are centred and that the pads are hitting the rim squarely from side-to-side.

Comparative Table: Brake Type & Toe-In Needs

Frequently Asked Questions (FAQs)

How much toe-in is ideal?

Generally, a very slight toe-in is all that's needed. When the pad is pressed against the rim, the trailing edge should have a gap of approximately 1-2mm from the rim. Using a business card (typically around 0.25-0.3mm thick) as a spacer at the trailing edge is often perfect for achieving the right amount of toe-in.

Can toe-in reduce braking power?

If applied correctly, toe-in should not reduce braking power; in fact, it can improve it by ensuring more consistent and effective pad-to-rim contact. However, if you apply too much toe-in, you might reduce the effective contact area, which could lead to a perceived reduction in stopping power.

Is toe-in necessary for new brake pads?

Yes, absolutely. Whenever you install new brake pads, you should always check and adjust the toe-in. New pads will be perfectly flat, and without toe-in, they are likely to squeal and wear unevenly, just like old pads.

What if my brakes still squeal after toe-in?

If toe-in doesn't solve the squeal, check for other common culprits: dirty or contaminated rims (clean them with rubbing alcohol), contaminated brake pads (lightly sand the surface or replace them), loose brake calipers, or worn-out rims. Sometimes, the angle of the brake arms themselves can contribute to the problem, requiring professional adjustment.

Does rim condition affect toe-in effectiveness?

Yes, significantly. A dirty, greasy, or excessively worn rim can negate the benefits of proper toe-in. Ensure your rims are clean and free from debris. If your rims are severely worn, pitted, or grooved, they may need to be replaced, as no amount of toe-in will compensate for a poor braking surface.

Conclusion

Brake pad toe-in is a simple yet profoundly effective adjustment that every cyclist should understand, especially those riding bikes equipped with cantilever or V-brakes. It's a quick fix for annoying brake squeal and a vital step towards achieving uniform pad wear, extending the life of your components, and ensuring consistent, reliable braking performance. By spending a few minutes to correctly set your brake pad toe-in, you'll not only enjoy a quieter ride but also a safer and more efficient cycling experience. Don't let a simple squeal diminish your enjoyment; take control of your brakes and ride with confidence!
