Keeping Your Discs Rub-Free: A Guide

Are you hearing that infuriating scraping or squealing noise every time you ride your mountain bike, even when you're not pulling the brake lever? That's disc brake rub, and it's not just an irritating sound; it's a sign that something isn't quite right with your braking system. This common issue can drastically impact your riding experience, making you feel as though your bike is constantly dragging, diminishing your speed, and even affecting your safety. But don't despair! Fixing disc brake rub is often a straightforward process that doesn't require specialist tools or a trip to the bike shop. In this detailed guide, we'll delve into the root causes of this notorious problem and provide you with a clear, actionable, five-step method to get your disc brakes running silently and efficiently again. Whether you're a seasoned trail rider or just getting started, mastering this essential maintenance task will save you time, money, and a whole lot of frustration.

What Exactly Is Disc Brake Rub?

In simple terms, disc brake rub occurs when your bike's brake pads make unwanted contact with the brake disc, or rotor, even when you’re not actively applying the brakes. While a slight brushing sound is completely normal when you pull the brake lever, a persistent noise when your brakes are disengaged indicates an issue that needs immediate attention. This rubbing can manifest as a constant, grating sound, or sometimes as a lighter 'tinging' or 'brushing' noise with each rotation of the wheel. It's often mistaken for dirt on the rotor, and unfortunately, it's highly unlikely to resolve itself. Learning how to diagnose and fix disc brake rub is an invaluable skill for any cyclist, particularly those with mountain bikes, as it's a common occurrence that can be remedied in just a few minutes once you know the ropes.

Why Are Your Disc Brakes Rubbing? 7 Common Causes Explained

Understanding the root cause of your disc brake rub is the first step towards a lasting solution. Here are the seven most frequent culprits:

1. Warped or Bent Rotor

Perhaps the most prevalent cause of disc brake rub is a warped or bent brake rotor. The rotor is the shiny metal disc attached to your wheel hub, and it needs to be perfectly straight for the pads to glide past it without contact. Rotors can become bent or warped due to excessive heat build-up during intense braking, or simply from being knocked during storage, transport, or even a minor crash. When a rotor is no longer true, it will repeatedly strike the brake pads as the wheel spins, creating that familiar rubbing sound.

2. Poorly Adjusted Caliper

The brake caliper is the housing that holds your brake pads and straddles the rotor. If your caliper isn't perfectly aligned over the rotor, the pads inside can constantly drag. This misalignment can occur if the brake cable (on mechanical systems) is too taut, or if the hydraulic pistons have extended too far inwards. A common scenario for this is pulling the brake lever without the wheel in place, which can cause the pistons to over-extend and then bind against the rotor when the wheel is reinstalled.

3. Worn Out Brake Pads

While often overlooked until your braking performance deteriorates, severely worn brake pads can surprisingly lead to disc brake rub. As pads wear down, the material becomes thinner, and on hydraulic systems, the pistons compensate by extending further out. If the pads are completely worn down to their metal backing plates, the metal can directly contact the rotor, causing a harsh, grinding rub and potentially damaging your rotor. Regular inspection of your pads is crucial, not just for stopping power, but also to prevent this specific type of rub.

4. Dirt Stuck in Pads or Rotor

For mountain bikers, this is an especially common issue. Riding through mud, grit, and debris means that small particles can easily become lodged in your brake pads or adhere to the rotor surface. When these contaminants are present, they can cause a gritty, scraping rub against the pads. While often this type of rub will clear itself after a short ride as the debris is dislodged, sometimes the dirt becomes stubborn, requiring a manual cleaning of your braking components.

5. Stuck Piston

Exclusive to hydraulic disc brake systems, stuck pistons are a significant cause of persistent rub. When you pull a hydraulic brake lever, fluid is forced into the caliper, pushing two pistons outwards, which in turn press the brake pads against the rotor. If one or both of these pistons become contaminated, corroded, or simply sticky, they may not retract fully after the brake lever is released. This leaves the pad continuously pressed against the rotor, causing constant rub. Using high-quality braking components from reputable brands like Shimano or SRAM can help mitigate the risk of sticky pistons.

6. Inconsistent Pad Wear

Although less common, uneven wear of your brake pads can also contribute to disc brake rub. If one side of a brake pad wears down more quickly than the other, or if the two pads within a single caliper wear unevenly, it can lead to the pads adjusting inwards at an odd angle. This can result in one-sided rubbing, where only a portion of the pad contacts the rotor, creating a subtle but annoying drag.

7. The Wheel Isn’t Seated Correctly

A surprisingly frequent and easily remedied cause of brake rub is a wheel that isn't properly seated in the bike's dropouts. If the wheel is inserted at even a slight angle, it can cause the rotor to sit off-centre within the brake caliper, leading to immediate and frustrating one-sided rub. This is particularly common with bikes using traditional quick-release skewers, which require careful attention to alignment during installation, compared to the more secure and self-aligning thru-axles.

How To Fix Disc Brake Rub in 5 Simple Steps

Now that we've identified the potential causes, let's get your brakes running smoothly again. The process is remarkably straightforward, though it varies slightly depending on whether your bike uses hydraulic or mechanical disc brakes.

What Tools Do You Need?

You won't need an entire workshop for this task. Here's a list of recommended tools:

• Allen Keys (typically 4mm, 5mm, 6mm)
• Flathead Screwdriver (small, for safety pins)
• Tyre Lever (for hydraulic piston reset)
• Bike Stand (optional, but highly recommended for ease of access)
• Rotor Straightening Tool (optional, if your rotor is bent)
• Torx Keys or Lockring Tool (optional, if replacing the rotor or specific pad types)

Step 1: The Initial Inspection

With your bike securely mounted in a stand (or inverted on its saddle and handlebars), spin the affected wheel. Observe closely where the disc brake rub is occurring. This initial inspection is crucial for accurate diagnosis. Check the following:

• Is the wheel seated correctly? Ensure the wheel's axle is fully and evenly pushed into the dropouts. If using a quick release, ensure it's clamped securely and straight. If it looks off-centre, loosen it, reseat the wheel firmly, and re-tighten.
• Is the brake rotor bent or warped? As the wheel spins, watch the rotor pass through the caliper. Does it wobble or visibly deflect sideways? If so, you have a bent rotor.
• Are the disc brake pads worn down? Shine a light into the caliper and inspect the pad material. If it's very thin (less than 0.5mm) or you see exposed metal, your pads are worn out.

If your rotor is bent beyond minor straightening, or your pads are completely worn, it's highly advisable to acquire replacement parts before proceeding to the next steps. Attempting to adjust a severely warped rotor or metal-on-metal pads will only offer temporary relief, if any.

Step 2: Replace Any Necessary Parts (If Required)

If your inspection revealed a need for new parts, now is the time to replace them. If not, skip to Step 3.

Replacing a Warped Rotor:

First, remove the wheel from the bike to gain better access. Rotors are typically attached to the hub with either 6 small Torx bolts or a centre lockring. Use the appropriate Torx keys or lockring tool to unfasten and remove the old rotor. Install the new rotor, ensuring it's oriented correctly (some have a rotational arrow) and tighten the bolts/lockring to the manufacturer's specified torque. If you opt to straighten a slightly bent rotor, use a dedicated rotor straightening tool. Gently bend the rotor back into true, making small adjustments and re-checking its straightness by spinning the wheel.

Replacing Worn Brake Pads:

Pads are usually held in place by a small safety pin or clip. Remove this clip and unscrew or pull out the safety pin. The pads should then slide out from the caliper. Dispose of the old pads responsibly. Before inserting new pads, especially for hydraulic systems, you may need to reset the pistons (see Step 3 for detailed instructions). Once the pistons are fully retracted, slide in the new pads, ensuring they are correctly seated, and reinsert the safety pin and clip. If you're on mechanical brakes, you won't need to push pistons back; simply replace the pads and proceed.

Step 3: Reset The Caliper

This critical step ensures your brake pads start from a neutral, fully retracted position, allowing for optimal adjustment.

For Hydraulic Disc Brakes:

Begin by removing the wheel from the bike. Then, remove the brake pads by undoing the safety clip and removing the safety pin. Once the pads are out, take a clean tyre lever (or a dedicated piston press tool) and gently, but firmly, push the hydraulic pistons back into the caliper. Apply even pressure to both pistons simultaneously if possible. Be careful not to force them, as this could damage the seals or the pistons themselves. They should retract fully until they are flush with the caliper body. Once fully retracted, reinsert the brake pads, ensuring they are seated correctly, and secure them with the safety pin and clip.

For Mechanical Disc Brakes:

With mechanical brakes, the process is different. First, locate the pinch bolt on the caliper that secures the brake cable. Completely loosen this bolt to release the tension on the cable. Next, go to each side of the caliper where the pad adjustment bolts are located (usually small Allen key fittings). Fully undo these adjustment bolts. This ensures the pads are as far apart as possible, giving you a clean slate for adjustment and helping to achieve balanced pressure later, which prevents uneven pad wear.

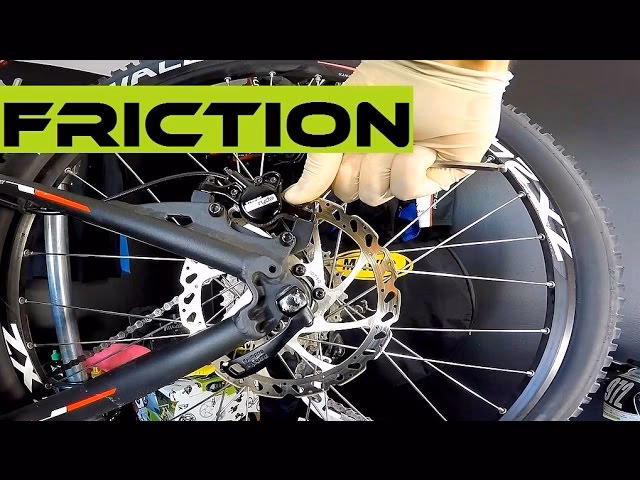

Step 4: Adjust The Disc Brake Calipers

This is where you align your caliper for perfect, rub-free operation.

Step 5: Test Your Work!

Once you’ve completed the adjustments, it’s time for the ultimate test. Take your bike off the stand and double-check that all bolts you loosened are now securely tightened. Give the wheel a good spin to confirm there's no rubbing. Then, take the bike for a short, cautious ride. Apply the brakes a few times to bed them in. You should now experience a smooth, quiet, and rub-free ride!

It's always a good idea to carry the appropriate Allen key with you on your first few rides after adjustment, just in case you notice any minor rubbing re-emerge. Small, iterative micro-adjustments can often fine-tune the system to perfection. With a little practice, diagnosing and fixing disc brake rub will become second nature, ensuring your mountain bike is always ready for silent, high-performance adventures.

Frequently Asked Questions About Disc Brake Rub

Q: Is disc brake rub always a serious problem?

A: While often annoying, disc brake rub isn't always "serious" in the sense of immediate danger, but it should always be addressed. Persistent rub can lead to premature pad wear, reduced braking efficiency, increased rolling resistance (making pedalling harder), and ultimately, a less enjoyable ride. Ignoring it can also warp your rotor further or cause uneven pad wear, leading to more complex issues down the line.

Q: Can I ride my bike if the disc brakes are rubbing?

A: You can, but it's not recommended for long periods. Riding with rubbing brakes will make your ride less efficient, slow you down, and wear out your pads and potentially your rotor much faster. If the rub is severe, it could also generate excessive heat, which is detrimental to your braking system. It's best to fix it as soon as possible.

Q: How often should I check for disc brake rub?

A: It's good practice to quickly check your brakes before every ride by spinning your wheels and listening for any unwanted noise. After any maintenance involving wheel removal or brake adjustments, a thorough check is essential. If you ride frequently or in harsh conditions, more regular checks (e.g., weekly) are advisable.

Q: My brakes rubbed, but now they've stopped. Is it fixed?

A: Not necessarily. If the rub was due to dirt or minor debris, it might have dislodged itself. However, if it was due to a bent rotor, misaligned caliper, or sticky piston, the rub might return, or the underlying issue could still be present but temporarily masked. It's always best to identify the cause and ensure a proper fix rather than hoping it disappears permanently.

Q: Can cleaning my brakes prevent rub?

A: Yes, regular cleaning, especially of your rotors and calipers, can help prevent rub caused by dirt and debris build-up. Using a dedicated disc brake cleaner can remove contaminants that might cause noise or stickiness. However, cleaning won't fix issues like a bent rotor or misaligned caliper.
