The braking system is arguably the most critical safety feature in any vehicle, and your Nissan Qashqai II is no exception. While often overlooked until a problem arises, a well-maintained braking system ensures your ability to slow down, stop, and avoid hazards effectively. For the Nissan Qashqai II (J11 generation, produced from 2013 to 2021), the braking system is a sophisticated assembly designed for reliability and performance, featuring a blend of mechanical components and advanced electronic aids.
Understanding how your Qashqai's brakes operate, what components are involved, and the signs of wear can empower you to maintain your vehicle's safety and performance. This comprehensive guide will delve into the specifics of the Nissan Qashqai II's braking system, from the friction materials that bring you to a halt to the intelligent electronics that prevent skids.
Core Components of Your Qashqai II's Braking System
At its heart, the Nissan Qashqai II utilises a disc brake system on all four wheels. This modern and efficient design provides consistent stopping power and excellent heat dissipation, crucial for safe driving. Let's break down the primary mechanical components:
Brake Discs (Rotors)
Brake discs, often referred to as rotors, are the large metal plates attached to the wheel hubs. When you press the brake pedal, the brake pads clamp down on these discs, creating friction that slows the wheel's rotation. The Qashqai II typically features different types of discs for the front and rear axles:
- Front Brake Discs: These are usually ventilated discs. They consist of two disc surfaces separated by a series of fins or vanes. This design allows air to flow through the centre, dissipating heat much more effectively. Given that the front brakes perform up to 70% of the braking effort, especially under hard braking, their ability to manage heat is paramount to prevent brake fade.
- Rear Brake Discs: The rear axle typically uses solid discs. These are simpler, single-piece metal discs. While they don't dissipate heat as efficiently as ventilated discs, the rear brakes handle less braking force, making solid discs sufficient for their role.
Discs are subject to wear over time, becoming thinner and sometimes developing grooves or warping due to heat and friction. Regular inspection is vital.

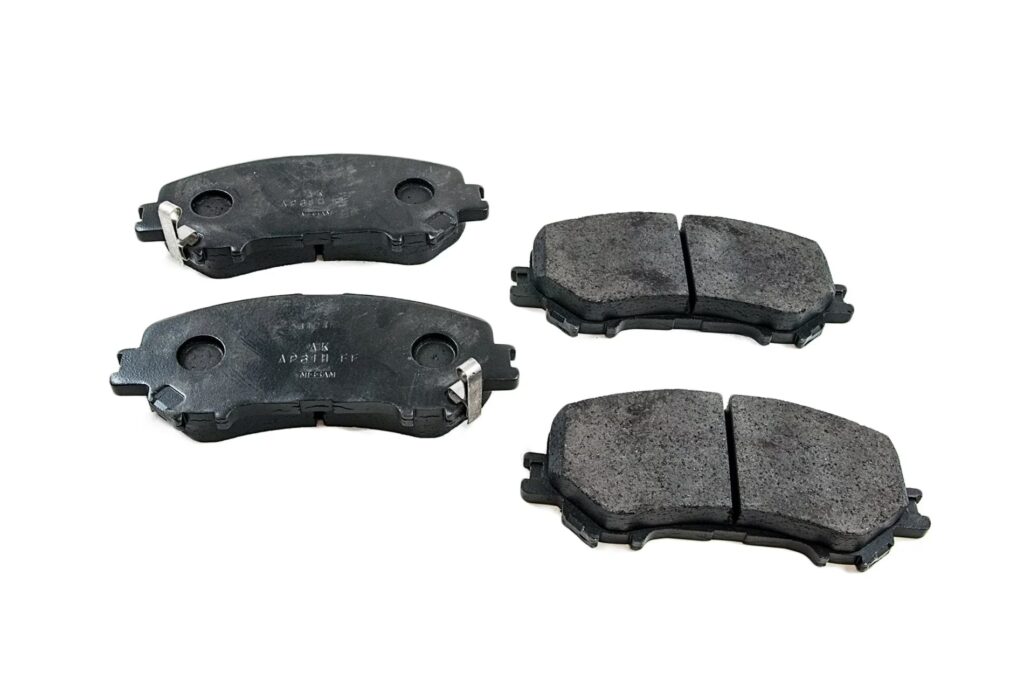

Brake Pads
Brake pads are the friction material that presses against the brake discs. They are designed to wear out over time, as this is how they convert kinetic energy into heat. Your Qashqai II's pads are typically made from a composite material, often semi-metallic or ceramic, chosen for a balance of performance, noise, and longevity.
- Friction Material: This is the crucial part that contacts the disc. Different compounds offer varying characteristics regarding braking performance, noise levels, dust production, and lifespan.
- Backing Plate: A steel plate to which the friction material is bonded.
- Wear Indicators: Many pads have built-in wear indicators, which are small metal tabs that squeal when the pads are low, alerting you that replacement is needed.
Worn brake pads can lead to reduced braking efficiency, increased stopping distances, and potential damage to the brake discs.
Brake Calipers
The brake caliper is the assembly that houses the brake pads and pistons. When hydraulic pressure is applied, the pistons push the pads against the brake disc. The Qashqai II uses floating calipers, which means the caliper itself can move slightly relative to the disc, ensuring even pressure application.
- Pistons: These are the components that move to push the brake pads. They are sealed to prevent brake fluid leakage.
- Mounting Bracket: Secures the caliper to the vehicle's suspension.
- Slider Pins: Allow the caliper to float and move freely.
Issues with calipers, such as seized pistons or corroded slider pins, can lead to uneven pad wear, pulling to one side when braking, or reduced braking performance.
Brake Fluid
Brake fluid is a non-compressible hydraulic fluid that transmits the force from your brake pedal to the brake calipers. It operates under immense pressure and heat. The Nissan Qashqai II typically uses DOT4 brake fluid. This fluid is hygroscopic, meaning it absorbs moisture over time, which can lower its boiling point and lead to a 'spongy' pedal feel or even brake failure due to vapour lock.
Regular brake fluid changes, as recommended by Nissan, are crucial for maintaining the integrity and performance of your braking system.
Master Cylinder and Brake Booster
- Master Cylinder: This component converts the mechanical force from your foot on the brake pedal into hydraulic pressure. It contains two separate circuits for safety, ensuring that if one circuit fails, you still have some braking ability.
- Brake Booster (Servo): Located between the brake pedal and the master cylinder, the brake booster uses vacuum pressure (from the engine) to multiply the force you apply to the pedal. This significantly reduces the physical effort required to brake, making stopping comfortable and efficient.
Advanced Braking Technologies in the Qashqai II
Beyond the mechanical components, modern vehicles like the Nissan Qashqai II incorporate sophisticated electronic systems that enhance braking safety and performance:
Anti-lock Braking System (ABS)
ABS is a fundamental safety feature in the Qashqai II. Its primary function is to prevent the wheels from locking up during hard braking. If a wheel locks, the vehicle can skid uncontrollably. ABS sensors monitor wheel speed; if a wheel is about to lock, the ABS module rapidly modulates the brake pressure to that wheel, allowing it to continue rotating. This maintains steering control and often reduces stopping distances, especially on slippery surfaces.
Electronic Brakeforce Distribution (EBD)
EBD works in conjunction with ABS. It automatically adjusts the braking force applied to each wheel to maximise stopping power without losing control. For instance, during hard braking, weight shifts to the front of the vehicle. EBD will apply more braking force to the front wheels and less to the rear, preventing the rear wheels from locking prematurely, which could cause a spin.
Brake Assist (BA)
Brake Assist is designed to help drivers in emergency braking situations. Many drivers do not apply full braking force quickly enough in a panic stop. BA detects the rapid application of the brake pedal and, if it senses an emergency, automatically applies maximum braking pressure, even if the driver hasn't pressed the pedal all the way down. This can significantly shorten stopping distances in critical moments.
Electronic Stability Programme (ESP) / Vehicle Dynamic Control (VDC)
While not solely a braking system, ESP (or Nissan's equivalent, VDC) heavily relies on the braking system. It uses sensors to detect if the vehicle is losing traction and potentially skidding or losing control (e.g., in an oversteer or understeer situation). If detected, ESP selectively applies the brakes to individual wheels and/or reduces engine power to help steer the vehicle back on its intended path, greatly enhancing stability.
Electronic Parking Brake (EPB)
Many Nissan Qashqai II models are equipped with an Electronic Parking Brake. Instead of a traditional handbrake lever, the EPB is activated by a button. It uses an electric motor to engage the rear brakes, offering convenience and sometimes an auto-hold function for hills. This system also integrates with the vehicle's electronics, sometimes releasing automatically when you drive off.
Maintenance and Common Braking Issues
Regular maintenance is paramount for the safety and longevity of your Qashqai II's braking system. Adhering to Nissan's service schedule for brake checks and fluid changes is highly recommended.
Signs Your Brakes Need Attention:
- Squealing or Grinding Noises: A high-pitched squeal often indicates worn brake pads (due to the wear indicator). A grinding noise usually means the pads are completely worn down, and the metal backing plates are rubbing against the discs, which can cause significant damage.
- Vibration or Pulsation: If you feel a vibration through the brake pedal or steering wheel when braking, it often points to warped brake discs. This can be caused by excessive heat.
- Spongy or Soft Brake Pedal: A pedal that feels soft or goes too far to the floor could indicate air in the brake lines, low brake fluid, a failing master cylinder, or contaminated brake fluid.
- Vehicle Pulling to One Side: This can suggest uneven brake wear, a seized caliper, or an issue with the brake hose on one side.
- Increased Stopping Distances: If your car takes longer to stop than usual, your braking system's efficiency is compromised.
- Brake Warning Light: An illuminated brake warning light on your dashboard requires immediate attention. It could indicate low brake fluid, worn pads, or an ABS system fault.
Always address these signs promptly. Delaying brake repairs can lead to more extensive damage and, critically, compromise your safety.
Brake Component Comparison: Front vs. Rear
| Component Type | Front Brakes (Qashqai II) | Rear Brakes (Qashqai II) |
|---|---|---|
| Disc Type | Ventilated Discs | Solid Discs |
| Primary Function | Provide majority of stopping power (approx. 70%) | Provide supplementary stopping power, maintain stability |
| Heat Dissipation | Excellent, due to ventilation | Good, but less efficient than front |
| Wear Rate | Typically wear faster due to higher workload | Typically wear slower than front brakes |
| Caliper Type | Floating Caliper | Floating Caliper (often with integrated EPB mechanism) |
Frequently Asked Questions About Qashqai II Brakes
How often should I replace brake pads on my Qashqai II?
The lifespan of brake pads varies significantly based on driving style, conditions, and pad material. Generally, front pads might need replacing every 20,000 to 40,000 miles, while rear pads can last longer, often 40,000 to 60,000 miles or more. Listen for warning signs like squealing, or consult your service manual for recommended inspection intervals, typically at every service.
What are the signs of warped brake discs?
The most common sign of warped brake discs is a vibration or pulsation that you can feel through the brake pedal or steering wheel when you apply the brakes. In severe cases, you might also hear a rhythmic thumping sound.
Why is my brake pedal feeling soft or spongy?
A soft or spongy brake pedal often indicates air in the hydraulic system, low brake fluid levels, contaminated brake fluid (due to moisture absorption lowering its boiling point), or a failing master cylinder. This issue requires immediate professional inspection as it severely compromises braking performance.
Can I replace brake pads and discs myself?
While it is possible for experienced DIY mechanics to replace pads and discs, it's a critical safety component. Incorrect installation can lead to brake failure. Given the integration with ABS, EBD, and EPB systems, specialised tools and knowledge are often required, especially for bleeding the system or resetting the EPB. For peace of mind and safety, it's generally recommended to have this work performed by a qualified mechanic.
What is brake fade, and how can I avoid it?
Brake fade occurs when the braking system loses effectiveness due to excessive heat build-up, often during prolonged or heavy braking (e.g., descending a long, steep hill). The brake pedal might feel firm but provide little stopping power. To avoid it, use lower gears to assist braking (engine braking), avoid riding the brakes, and allow the brakes to cool down if you notice a reduction in performance.
Is it normal for my Qashqai II's brakes to make noise?
A slight squeal when the brakes are cold or after rain can be normal. However, persistent squealing, grinding, or clunking noises are not normal and indicate a problem. Squealing often points to worn pads, while grinding suggests metal-on-metal contact. Any new or unusual noises should be investigated by a professional.
In conclusion, the Nissan Qashqai II's braking system is a sophisticated and highly effective setup, designed to provide reliable stopping power and enhanced safety. Understanding its components, recognising the signs of wear, and adhering to regular maintenance schedules are key to ensuring your vehicle remains safe and performs optimally on the road. Don't take your brakes for granted; they are your first line of defence in preventing accidents.
