Why Are Your Disc Brakes Grinding? A UK Guide

When you press the brake pedal, the last sound you want to hear is a harsh, unsettling grinding. This noise is often far more alarming than the typical squealing that indicates worn brake pads, and it can become so loud that it draws unwanted attention from other road users. So, what exactly causes this ominous grinding sound when braking, and crucially, what steps can you take to resolve it? This guide will meticulously walk you through all the potential reasons your disc brakes might be grinding, outlining practical solutions to restore your vehicle's safety and quiet operation. By the end, you'll have a clear understanding of the underlying issues and whether it's safe to continue driving with noisy brakes.

Understanding That Alarming Grinding Noise

A grinding noise from your brakes is rarely a minor issue. Unlike a high-pitched squeal, which often signifies worn pads approaching their limit, grinding usually indicates a more severe problem, often involving metal-on-metal contact. This can not only be incredibly disconcerting but also significantly compromises your vehicle's braking efficiency and, by extension, your safety on the road. Ignoring this sound is not an option, as it can lead to further damage to expensive brake components or, in the worst-case scenario, complete brake failure.

Common Causes of Grinding Brakes

Grinding brakes are typically caused by severely worn brake pads, warped or rusty rotors, or foreign objects trapped within the caliper assembly. It can also stem from broken brake pad shims, the use of low-quality pads, or even prolonged periods of vehicle inactivity. A precise diagnosis is key to implementing the correct repair. Here are the most common culprits behind that unwelcome grinding sound when you apply the brakes:

• 1. Severely Worn Brake Pads

  This is arguably the most frequent cause of grinding. Brake pads are designed with a friction material that gradually wears down over time. This material is a composite of various substances, including steel, graphite, brass, or copper fibres. As the pad material diminishes, it eventually exposes the metal backing plate of the brake pad. When this metal backing comes into direct contact with the metal brake rotor, it produces that distinct, harsh grinding noise. It’s important to note that you usually receive a warning before this happens: initially, worn brake pads will often emit a high-pitched squealing or squeaking sound, thanks to an integrated wear indicator. If you address the issue at this early stage, you might avoid the grinding altogether. The lifespan of brake pads varies significantly, typically ranging from 25,000 to 60,000 miles, depending on driving habits, vehicle type, and the quality of the pads chosen.

• 2. Debris Trapped in the Caliper

  If the grinding or screeching noise occurs even when you aren't actively braking, or seems intermittent, it could indicate something more than just worn pads. Occasionally, small stones, grit, or other road debris can become lodged between the brake rotor and the caliper. This foreign object will then scrape against the rotor as it spins, creating a grinding or harsh scraping sound. If left unaddressed, this trapped debris can cause significant scoring and damage to the brake rotor, leading to more costly repairs down the line. In some fortunate instances, the item might dislodge itself simply through continued driving, particularly after hitting a bump or turning. However, if it persists, manual intervention will be necessary.

• 3. Compromised Brake Pad Shims

  Brake pad shims are thin pieces of metal or rubber, often found on the back of brake pads, designed to reduce vibration and noise. They act as a buffer between the brake pad's backing plate and the caliper piston. If these shims become worn, bent, or break, they can lose their effectiveness and even make direct contact with other components of the brake system, most commonly the rotor. When this metal-on-metal contact occurs, it produces a grinding sound. This is why it's standard practice for new shims to be included and installed whenever brake pads are replaced. Overlooking this small but crucial component during a brake service can quickly lead to unexpected noise problems.

• 4. Rusty or Warped Brake Rotors

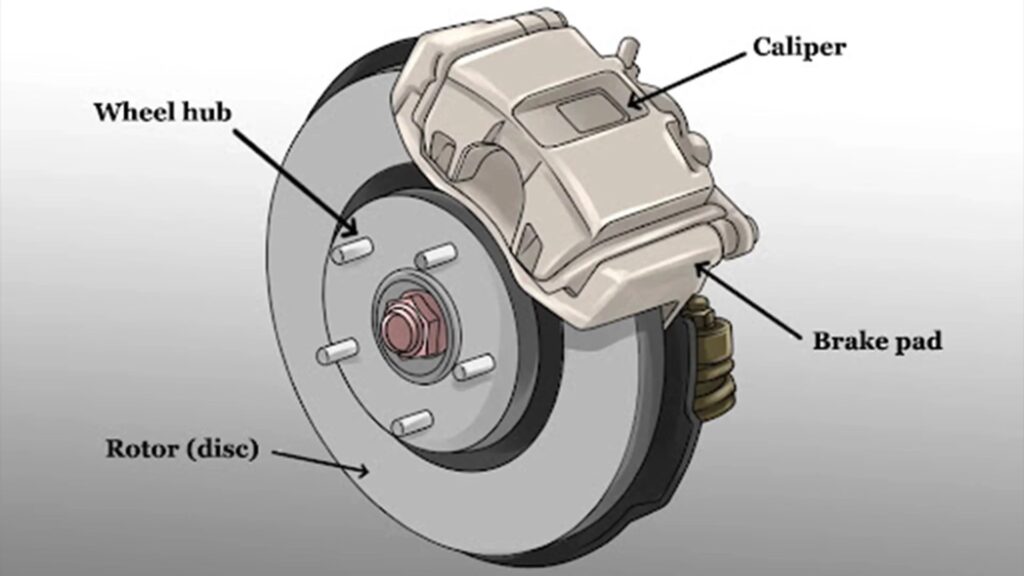

  Brake rotors are the large, flat metal discs that the brake pads clamp onto to create friction and slow the vehicle down. Over time, particularly in the damp UK climate, rotors are susceptible to rust, especially if the vehicle is left standing for extended periods or is frequently exposed to moisture. A thin layer of surface rust will usually clear itself after a few braking applications, but severe or pitted rust can cause a persistent grinding noise. Beyond rust, rotors can also become warped due to excessive heat, hard braking, or uneven wear. A warped rotor will not provide a smooth, flat surface for the pads to grip, leading to pulsations through the pedal and a grinding or shuddering sensation. While minor rust might clean off, significantly worn or warped rotors often require resurfacing (machining them flat again) or, more commonly, complete replacement. Fortunately, brake rotors generally have a longer lifespan than pads, typically lasting between 50,000 to 70,000 miles.

• 5. Inferior Quality Brake Pads

  It's understandable to seek cost-effective solutions when it comes to vehicle maintenance. However, opting for the cheapest brake pads available can often be a false economy, leading to more problems than they solve, including excessive noise. Low-quality brake pads often contain a higher proportion of metallic content compared to their premium counterparts. This increased metal content makes them more prone to scraping and grinding, especially when cold or under heavy braking. Understanding the different types of brake pads can help you make an informed choice:

  Brake Pad Type	Key Characteristics	Noise Level	Typical Cost	Durability
  Organic (NAO)	Made from fibres (e.g., fibreglass, Kevlar, carbon), fillers, and resin. Softer material.	Highest (prone to squeal/grind)	Lowest	Lowest (high wear rate)
  Semi-Metallic	Contains 30-65% metal (iron, copper, steel, brass) mixed with organic fillers and resin.	Medium (can be noisy when cold)	Medium	Medium to High (good all-rounder)
  Ceramic	Composed of ceramic fibres, fillers, and bonding agents. Very low dust.	Lowest (very quiet operation)	Highest	Highest (excellent durability)

  As you can see, while organic pads are the cheapest, they are often the lowest quality and most prone to noise. Semi-metallic pads offer a good balance, but ceramic pads are generally considered the best for quiet operation and durability, albeit at a higher price point.

• 6. Infrequent Vehicle Use

  If your car hasn't been driven for an extended period, you might be surprised to hear grinding from the brakes, even though the pads haven't worn down through use. The primary culprit here is rust. Brake rotors are made of cast iron, which is highly susceptible to surface rust when exposed to moisture in the air, especially after rainfall or a damp night. While a light layer of rust typically gets scrubbed off after a few gentle braking applications, prolonged inactivity can lead to more significant rust build-up or even pitting, which can cause a grinding noise until the rust is completely worn away. Beyond the brakes, leaving a car stationary for too long can lead to a host of other issues, including fluid leaks, flat spots on tyres, and a drained battery. To prevent such problems, it's advisable to drive your vehicle for at least a short period once a week.

Diagnosing and Resolving Grinding Brakes

Regardless of your mechanical experience, there are systematic ways to determine the cause of grinding brakes and address the issue. Below are a few simple steps to follow. Remember, only proceed with tasks you feel comfortable and confident performing to ensure your safety and avoid further damage.

• 1. Pinpointing the Source of the Noise

  The first crucial step in diagnosing grinding brakes is to identify which wheel the noise is originating from. This can be tricky while driving, as sounds can often echo or seem to come from a different location than their actual source. Try listening carefully when braking at low speeds in a quiet area. If you're struggling to pinpoint it, a friend can be invaluable. Have them stand safely outside the vehicle while you slowly apply the brakes in a controlled, open space like a quiet driveway or private car park. Their external perspective can help narrow down the exact wheel.

• 2. Accessing the Brake System

  Once you've identified the problematic wheel, you'll need to safely lift the vehicle using a jack and secure it with axle stands. Remove the wheel to gain access to the brake assembly. In many cases, you might be able to spot the issue immediately after removing the wheel, such as a large stone caught in the caliper. However, for a thorough inspection, it's often necessary to remove the brake caliper itself. This usually involves unbolting two guide pins that hold it in place. Be careful not to let the caliper hang by the brake hose, as this can damage the hose; support it with a wire or bungee cord.

• 3. Thorough Inspection of Pads and Rotors

  With the brake pads and rotor exposed, you can get a much clearer picture of what needs attention. Begin by inspecting the brake pads. New brake pads typically have a friction material thickness of around 9.5mm to 12.7mm (3/8 to 1/2 inch). While some squealing might begin when they reach about 6mm, you should aim to replace them when they get down to approximately 3mm (1/8 inch), or about 20-25% of their original thickness. Grinding often occurs when they are even thinner, or when the metal backing plate is making contact. Next, examine the brake rotor. You’re not primarily looking for thickness here, but rather the condition of its surface. The rotor surface should appear smooth, clean, and free from deep grooves, discolouration (indicating overheating), or warping. If you notice significant scoring, uneven wear, or a wavy appearance, the rotor either needs to be resurfaced by a professional (if sufficient material remains) or, more commonly, replaced. It's highly recommended to replace both brake pads and rotors in pairs across an axle (i.e., both front wheels or both rear wheels) to ensure even braking performance.

• 4. Checking for Foreign Objects or Damaged Shims

  With the pads removed, carefully inspect the area between the caliper and the rotor for any trapped debris. Small stones can often be dislodged with a screwdriver or pick. Also, take this opportunity to inspect the brake pad shims. These thin plates are crucial for noise reduction. They should be clean, intact, and properly seated. If they are bent, corroded, or missing, they will need to be replaced. While new shims are typically supplied with new brake pads, sometimes they can be overlooked during installation, or they might simply degrade over time.

• 5. Knowing When to Call a Professional

  While a basic inspection and simple pad replacement can be a satisfying DIY job for some, brake systems are critical safety components. If you are unfamiliar with the intricacies of brake mechanics, lack the appropriate tools (like a caliper compression tool or torque wrench), or simply feel uncertain about any step of the process, it is always best to defer to a qualified mechanic. There is absolutely no shame in seeking professional help, especially when your safety and the safety of others on the road are at stake. A professional can quickly diagnose complex issues, ensure components are installed correctly, and perform necessary tests like bleeding the brake lines if the hydraulic system was disturbed.

Frequently Asked Questions About Grinding Brakes

Is it safe to drive with grinding brakes?

Absolutely not. If your brakes are making a grinding noise, it is a clear indication of a serious issue that requires immediate attention. This sound typically signifies metal-on-metal contact, meaning the friction material on your brake pads is completely worn away, or there's significant damage to the rotors or other components. Continuing to drive risks complete brake failure, which could lead to a dangerous accident. Drive only if absolutely necessary and directly to a garage for inspection.

How much does it cost to fix grinding brakes in the UK?

The cost to fix grinding brakes in the UK can vary significantly depending on the underlying cause and whether you perform the work yourself or hire a professional. On average, replacing just the brake pads typically costs between £100 and £250 per axle (including parts and labour). If the brake rotors also need replacing due to wear, rust, or warping, the cost can rise to £200-£450 per axle. If the issue is something simpler, like removing trapped debris, the cost might just be for inspection labour, perhaps £50-£100. Performing the work yourself, assuming you have the tools and expertise, will save you significantly on labour costs, leaving you with just the price of the parts.

How long can I continue driving with grinding brakes?

You should not drive on grinding brakes for any significant period. As mentioned, this sound is a dire warning. When the pads first begin to wear, you'll typically hear a squealing or chirping noise. Grinding indicates you've passed that warning stage and are now experiencing direct metal-on-metal friction. This not only severely compromises your stopping power but also rapidly damages your brake rotors, potentially turning a cheaper pad replacement into a more expensive pad and rotor job. In extreme cases, brake components can seize or fail completely, leaving you without effective braking. Prioritise safety and get them checked immediately.

Will replacing brake pads always stop the grinding?

If the grinding noise is solely caused by completely worn-out brake pads exposing their metal backing, then yes, replacing the pads will resolve the issue. However, if the grinding has been occurring for some time, it's highly likely that the rotors have also suffered damage (scoring, warping, or deep grooves) from the metal-on-metal contact. In such cases, simply replacing the pads will not eliminate the grinding, and the new pads will quickly wear out or perform poorly on a damaged rotor. This is why a thorough inspection of both pads and rotors is crucial before any repair is authorised.

What are the consequences of ignoring grinding brakes?

Ignoring grinding brakes carries severe consequences. Firstly, your vehicle's stopping distance will increase significantly, putting you at a much higher risk of collision. Secondly, the continuous metal-on-metal friction will rapidly and severely damage your brake rotors, turning a relatively inexpensive pad replacement into a more costly pad and rotor replacement. Thirdly, prolonged neglect can lead to damage to other brake components, such as the calipers or wheel bearings, due to excessive heat or abnormal forces. Ultimately, the most dangerous consequence is the potential for complete brake system failure, leaving you unable to stop your vehicle when it matters most.

In conclusion, if you hear a grinding noise when braking, it's a critical warning that demands your immediate attention. This sound is your car's way of alerting you to potential danger and significant wear within the braking system. Whether it necessitates new brake pads, resurfacing or replacing rotors, or simply removing a trapped foreign object, dealing with the issue promptly is paramount. Delaying a fix can escalate a minor problem into a major, expensive repair, or worse, lead to a perilous situation where your brakes fail to perform effectively.

With the right diagnosis and a methodical approach, most brake issues can be resolved efficiently. For those with a modicum of mechanical aptitude and the correct tools, some of these repairs, such as replacing brake pads, can be tackled in your home garage. Many DIY enthusiasts find satisfaction in maintaining their own vehicles. However, there's absolutely no fault in seeking professional assistance when a job feels beyond your capabilities or comfort level. What's most important, above all else, is ensuring that your vehicle's braking system is in optimal working order, guaranteeing safety for yourself and everyone else on the road.
