Carrera CrossFire 2 Brakes: A Deep Dive

When considering a hybrid bicycle like the Carrera CrossFire 2, one of the most crucial aspects to evaluate is its braking system. Riders often wonder about the type and effectiveness of the brakes on such a versatile machine. Rest assured, the Carrera CrossFire 2 is indeed equipped with brakes, and they are designed to provide effective stopping power, particularly when combined with its front suspension, ensuring a ride that is both safe and comfortable.

The Carrera CrossFire 2 typically features mechanical disc brakes. These brakes are a popular choice for hybrid bikes due to their reliability and consistent performance across various weather conditions. Unlike traditional rim brakes, disc brakes operate by clamping brake pads onto a rotor attached to the wheel hub, rather than directly onto the wheel rim. This design offers several advantages, including improved stopping power, especially in wet conditions, and reduced wear on your wheel rims.

Understanding the Carrera CrossFire 2's Braking System

The mechanical disc brakes on the CrossFire 2 provide a robust and dependable stopping mechanism. When you pull the brake lever, a cable transmits the force to a caliper, which then squeezes the brake pads against the spinning rotor. This friction slows down and eventually stops the wheel. The beauty of this system, particularly on the CrossFire 2, lies in its synergy with the bike's front suspension. The suspension helps to absorb the forces generated during braking, preventing the harsh 'jerking' sensation that can occur on rigid bikes. This combination results in a more controlled and comfortable deceleration, allowing for smoother stops even from higher speeds or on varied terrains.

While mechanical disc brakes are highly effective and offer excellent modulation – the ability to finely control the braking force – they do come with their own quirks. One common complaint, as noted by riders, is that the brakes on the Carrera CrossFire 2 can be 'squeaky'. This noise, while often annoying, doesn't necessarily indicate a fault with the brake's stopping capability, but it certainly warrants investigation and resolution for a more pleasant riding experience.

Why Do My Brakes Squeak? Common Causes and Solutions

Squeaky brakes are a prevalent issue for many cyclists, and the Carrera CrossFire 2 is no exception. Understanding the root cause is the first step towards silencing them. Here are the most common reasons your mechanical disc brakes might be squealing and how to address them:

• Contamination: This is arguably the most frequent culprit. Oil, grease, chain lubricant, or even dirt and road grime can contaminate the brake pads or rotors. Once contaminated, the friction characteristics change, leading to noise.
• Solutions: Clean the rotors thoroughly with a specific disc brake cleaner or isopropyl alcohol and a clean, lint-free cloth. If the pads are heavily contaminated, they may need to be replaced, as cleaning them might not fully remove impregnated contaminants. Avoid touching the rotor or pad surfaces with your bare hands.
• Misalignment: If the brake caliper or pads are not perfectly aligned with the rotor, they can rub unevenly, causing vibration and noise.
• Solutions: Loosen the caliper mounting bolts slightly. Squeeze the brake lever firmly and hold it while re-tightening the bolts. This often self-aligns the caliper. Check if the rotor is bent or warped, which can also cause misalignment issues.
• Worn or Glazed Pads: Over time, brake pads wear down. If they're very thin, the backing plate might be close to contacting the rotor. Alternatively, pads can become 'glazed' – a hardened, shiny surface forms due to excessive heat or light braking, reducing friction and causing noise.
• Solutions: Inspect your brake pads. If they are worn down to less than 1mm of pad material, replace them. If glazed, you can try lightly sanding the pad surface with fine-grit sandpaper (e.g., 150-grit) on a flat surface to remove the glazed layer, then re-bed them.
• New Pads or Rotors Not Bedded In: Brand new pads and rotors need a 'bedding-in' period to transfer some pad material onto the rotor surface. Without proper bedding, they can be noisy and less effective.
• Solutions: Perform a bedding-in procedure. Find a safe, open area. Accelerate to a moderate speed (e.g., 15-20 mph) and then brake firmly but without skidding, bringing your speed down to walking pace. Repeat this about 20-30 times. This process heats the pads and rotors, allowing for optimal material transfer and quiet operation.
• Loose Caliper Bolts or Quick Release: If any part of the braking system is loose, it can vibrate and cause noise.
• Solutions: Check that all caliper mounting bolts are tightened to the manufacturer's specifications. Ensure your wheel's quick release or thru-axle is properly secured and tightened.
• Poor Quality Pads: Sometimes, aftermarket brake pads, while cheaper, might be made of materials prone to noise.
• Solutions: Consider investing in higher-quality, reputable brand brake pads specifically designed for your brake model.

Maintenance Tips for Optimal Braking Performance

Regular maintenance is key to ensuring your Carrera CrossFire 2's brakes remain quiet, effective, and safe. Here are some essential tips:

• Regular Cleaning: Keep your rotors clean. After riding in wet or muddy conditions, or if you notice any contamination, clean them with disc brake cleaner.
• Pad Inspection: Routinely check your brake pads for wear. Look for the thickness of the pad material; if it's less than 1mm, it's time for a replacement. Also, check for uneven wear, which could indicate alignment issues.
• Cable Tension: Mechanical disc brakes rely on cable tension. Over time, cables can stretch slightly, leading to a spongy feel at the lever. Adjust the cable tension at the caliper or lever barrel adjuster to ensure a firm, responsive brake feel.
• Lever Feel: Pay attention to the feel of your brake levers. They should feel firm and engage consistently. Any sponginess, excessive travel, or grinding sensation should be investigated.
• Rotor Check: Periodically inspect your rotors for bends, warps, or deep scoring. A bent rotor will cause inconsistent braking and noise. Minor bends can sometimes be straightened with a rotor truing fork, but severely warped rotors should be replaced.
• Bolt Checks: Ensure all bolts related to the braking system – caliper mounting bolts, rotor bolts – are securely tightened.

The Importance of Effective Braking on a Hybrid Bike

For a hybrid bike like the Carrera CrossFire 2, which is designed for a mix of road cycling, light trail use, and commuting, effective braking is paramount. You'll encounter diverse situations, from navigating busy urban streets with sudden stops to descending gentle inclines on gravel paths. Reliable brakes provide the confidence to handle these scenarios safely. The combination of mechanical disc brakes and front suspension on the CrossFire 2 is particularly beneficial as it allows for strong, controlled stops without the jarring feedback often associated with abrupt braking, enhancing both safety and rider comfort.

When to Replace Brake Pads

Knowing when to replace your brake pads is crucial for safety and performance. The general rule of thumb is to replace them when the pad material is worn down to approximately 1mm thick, or if you start to hear a metal-on-metal grinding sound, which indicates the backing plate is contacting the rotor. Other signs include a significant decrease in braking power, increased lever pull required to stop, or if the pads are heavily contaminated and cleaning doesn't resolve the issue.

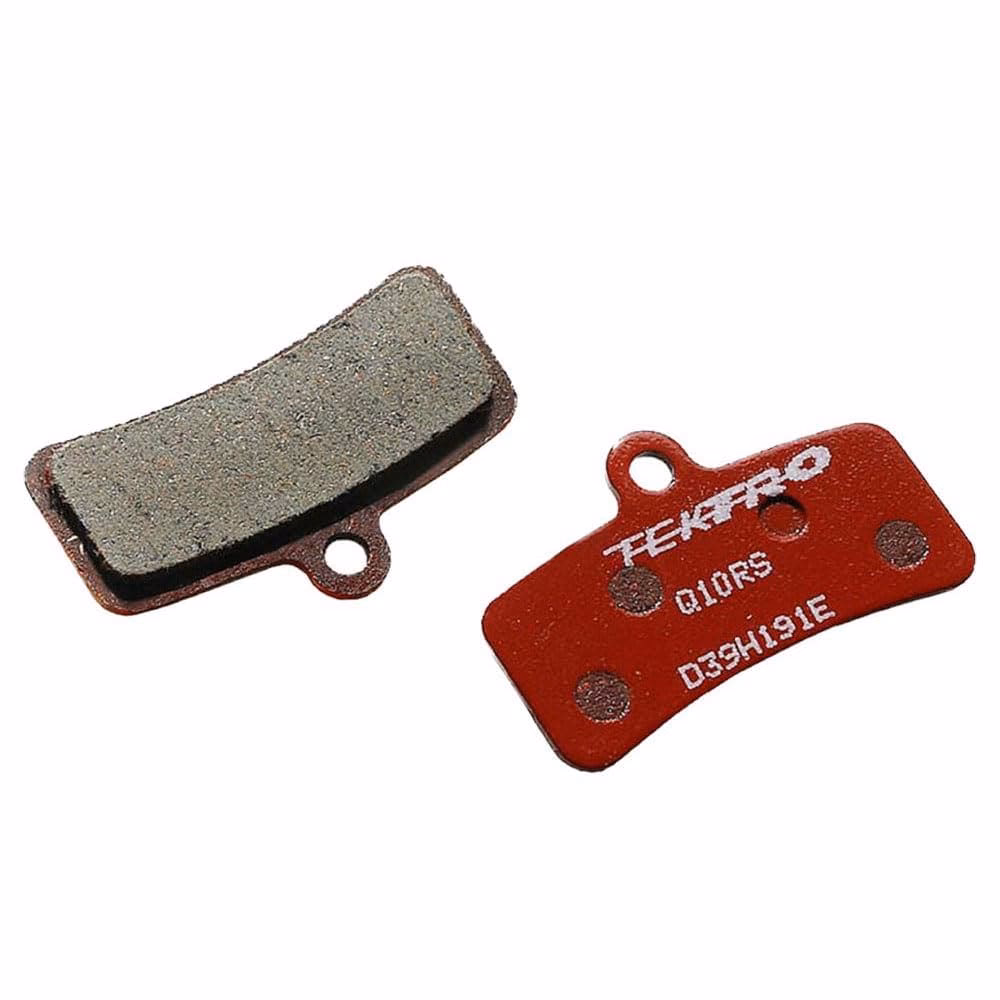

Replacing brake pads on mechanical disc brakes is a relatively straightforward DIY task for most home mechanics. You'll typically need an Allen key or Torx wrench, depending on your caliper model. Ensure you purchase the correct replacement pads for your specific brake caliper (e.g., Shimano, Tektro, Clarks, etc., compatible with the CrossFire 2's fitted brakes). After installation, remember to bed in the new pads to achieve optimal performance and prevent immediate squeaking.

Frequently Asked Questions About Carrera CrossFire 2 Brakes

Q: Are the Carrera CrossFire 2 brakes good enough for commuting?

A: Absolutely. The mechanical disc brakes on the Carrera CrossFire 2 offer reliable and consistent stopping power, which is ideal for urban commuting where you might encounter sudden stops or varied road conditions. Their performance in wet weather is a significant advantage over traditional rim brakes for daily commuting.

Q: Can I upgrade the brakes on my Carrera CrossFire 2 to hydraulic disc brakes?

A: While technically possible, upgrading from mechanical to hydraulic disc brakes would require replacing the brake levers, calipers, rotors, and potentially the cables/hoses. This can be a costly and complex upgrade. For most riders, properly maintained mechanical disc brakes offer sufficient performance for the bike's intended use. However, if you desire superior stopping power and modulation with less lever effort, it is an option, but consult a bike shop for compatibility and installation.

Q: How often should I replace the brake pads on my Carrera CrossFire 2?

A: The lifespan of brake pads varies greatly depending on riding conditions, frequency of use, and rider weight. As a general guideline, inspect your pads every 3-6 months. Replace them when the pad material is worn down to about 1mm thickness, or if you notice a significant decrease in braking power or hear grinding noises.

Q: Is it normal for new brake pads to squeak?

A: Yes, it can be normal for new brake pads to squeak initially. This is often due to the pads not being 'bedded in' properly. Follow the bedding-in procedure described above to help eliminate the noise and ensure optimal performance.

Q: What's the best way to clean my brake rotors?

A: Use a specific disc brake cleaner or isopropyl alcohol applied to a clean, lint-free cloth. Spray the cleaner onto the cloth, not directly onto the rotor, to avoid overspray contaminating other bike components. Wipe the rotor thoroughly until it's clean and dry. Avoid using household cleaners or anything that leaves a residue.

Q: My brake lever feels spongy. What could be wrong?

A: A spongy brake lever on mechanical disc brakes usually indicates either stretched brake cables or insufficient cable tension. You can typically adjust this using the barrel adjuster near the brake lever or at the caliper itself. If the problem persists after adjustment, the cable might need replacement, or there could be an issue with the caliper mechanism itself.

In conclusion, the Carrera CrossFire 2 is well-equipped with a capable mechanical disc braking system that, when properly maintained, provides reliable and effective stopping power. Addressing common issues like squeaking through regular cleaning, inspection, and correct bedding-in procedures will ensure your riding experience remains safe and enjoyable. Understanding your bike's brakes is a fundamental part of responsible cycling, allowing you to hit the roads and trails with confidence and control.
