DIY Honda CR-V Brake Pad Replacement Guide

Ensuring your vehicle's braking system is in top condition is paramount for road safety. If you've noticed a decline in your Honda CR-V's stopping power, hear unsettling noises when braking, or simply know it's time for a routine replacement, tackling brake pad replacement yourself can be a rewarding and cost-effective endeavour. While it might seem daunting, with the right tools, a bit of patience, and this detailed guide, you can confidently restore your CR-V's braking performance.

Brake pads are a critical component of your vehicle's braking system, designed to create friction against the brake discs (rotors) to slow and stop your car. Over time, these pads wear down, and their effectiveness diminishes. Recognising the signs of worn pads and knowing how to replace them is a fundamental skill for any car owner. This guide will walk you through the entire process, focusing specifically on your Honda CR-V, ensuring you have all the information needed for a successful DIY job.

When It's Time for New Brake Pads on Your Honda CR-V

Knowing when to replace your brake pads isn't just about mileage; it's also about recognising the warning signs your CR-V gives you. Typically, brake pads last anywhere from 20,000 to 50,000 miles, or roughly three to five years, but this can vary significantly based on driving style, road conditions, and the type of pads used. Here are the key indicators that your Honda CR-V's brake pads need attention:

• Squealing or Chirping Noises: Many brake pads have a small metal indicator that produces a high-pitched squeal when they've worn down to a certain point. This is usually the first audible warning.
• Grinding Sound: If you hear a deep grinding noise when braking, it means the pads are severely worn, and the metal backing plate is making contact with the rotor. This is a critical sign and requires immediate attention to prevent damage to the rotors.
• Longer Stopping Distances: If your CR-V takes longer to come to a stop than it used to, or if the brake pedal feels softer or needs to be pressed further down, your pads might be too thin to generate adequate friction.
• Burning Smell: A distinct chemical or burning smell after heavy braking can indicate overheating brake pads, which might be a sign of excessive wear or a problem with the braking system.
• Vibrations Through the Pedal: While often a sign of warped brake rotors, worn pads can sometimes contribute to vibrations felt through the brake pedal.
• Visual Inspection: You can often visually inspect your brake pads through the wheel spokes. If the friction material is less than a quarter of an inch (around 3-4mm) thick, it's time for replacement.
• Excessive Brake Dust: While some brake dust is normal, an unusual amount building up on your wheels can sometimes be an indicator of worn pads, especially if the material is breaking down rapidly.

Ignoring these signs can lead to more extensive and costly repairs, not to mention compromising your safety. Always address brake issues promptly.

Essential Tools and Materials You'll Need

Before you begin, gather all the necessary tools and materials. Having everything at hand will make the process smoother and more efficient. Here's a comprehensive list:

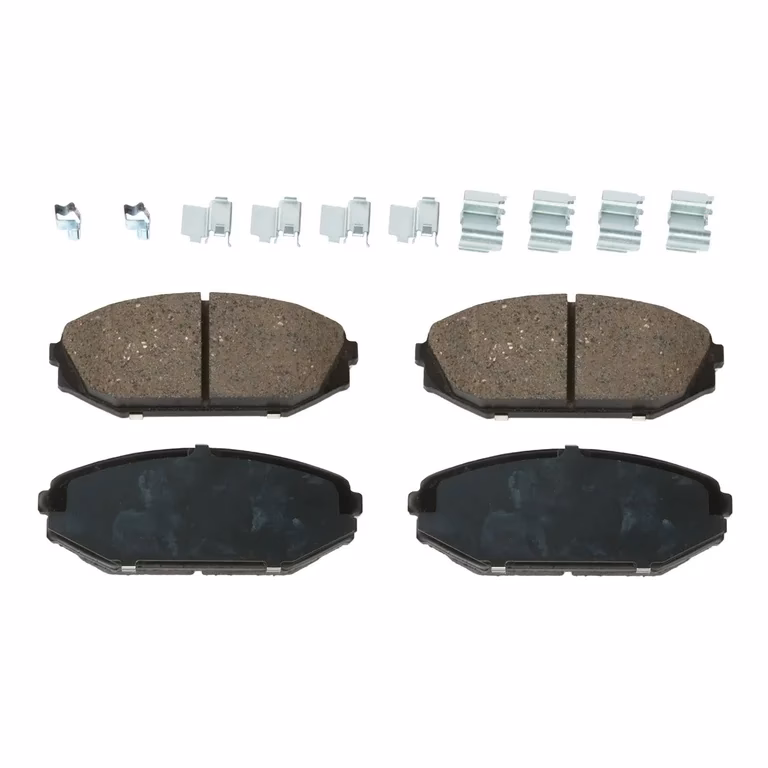

• New Brake Pads: Ensure they are specifically for your Honda CR-V model and year. Consider quality ceramic or semi-metallic options for durability and performance.
• Hydraulic Jack: A sturdy jack capable of lifting your CR-V safely.
• Jack Stands: Absolutely crucial for safety. Never work under a vehicle supported only by a jack.
• Wheel Chocks: To prevent the vehicle from rolling.
• Lug Wrench or Breaker Bar with Socket: To remove your wheel nuts.
• Socket Wrench Set: Including sockets for caliper bolts (often 12mm, 14mm, or 17mm depending on the model year).
• C-Clamp or Caliper Piston Compressor Tool: To push the caliper piston back into its bore.
• Wire Brush: For cleaning the caliper bracket and hardware.
• Brake Cleaner: To clean components and remove grease or brake fluid.
• High-Temperature Brake Grease/Lubricant: Specifically for caliper pins and pad backing plates to prevent squealing.
• Torque Wrench: Essential for tightening wheel nuts and caliper bolts to the manufacturer's specifications.
• Safety Glasses: To protect your eyes from debris and brake dust.
• Gloves: To keep your hands clean and protected.
• Flathead Screwdriver or Pry Bar: To help remove old pads if they're stuck.
• Shop Rags or Paper Towels: For cleaning and wiping.

Optional but recommended:

• New Brake Rotors: If your rotors show signs of deep scoring, warping, or are below minimum thickness, replacing them at the same time is highly advisable.
• Brake Fluid: To top up if necessary after compressing the pistons.

Safety First: Crucial Steps Before You Begin

Working on your vehicle's braking system requires strict adherence to safety protocols. Do not skip or rush these steps:

1. Park on a Level Surface: Ensure your CR-V is on a firm, flat, and level surface.
2. Engage Parking Brake: Fully engage the parking brake to prevent the vehicle from rolling.
3. Chock the Wheels: Place wheel chocks behind the rear wheels (if working on the front) or in front of the front wheels (if working on the rear).
4. Loosen Lug Nuts: While the vehicle is still on the ground, use your lug wrench to slightly loosen the lug nuts on the wheel you'll be removing. Do not remove them yet.
5. Wear Safety Gear: Always wear safety glasses and gloves to protect your eyes and hands from brake dust, dirt, and chemicals.
6. Consult Your Owner's Manual: Refer to your Honda CR-V's owner's manual for specific torque specifications for lug nuts and caliper bolts, and for recommended jacking points.

Step-by-Step Guide to Replacing Your Honda CR-V Brake Pads

This guide will focus on one wheel at a time. The process is generally similar for all four wheels, though rear brakes may sometimes have an additional step for the parking brake mechanism.

1. Lift and Secure Your CR-V

Position your hydraulic jack under the designated jacking point for the wheel you're working on (consult your owner's manual). Lift the vehicle until the wheel is off the ground. Place a jack stand securely under the vehicle's frame, near the jacking point. Slowly lower the jack until the vehicle rests firmly on the jack stand. For added safety, you can leave the jack in place with slight tension, but the primary support must be the jack stand. Never rely solely on the jack.

2. Remove the Wheel

Now that the vehicle is safely supported, fully remove the loosened lug nuts and carefully take off the wheel. Set it aside in a safe place.

3. Inspect the Brake System

With the wheel off, you'll have a clear view of the brake caliper, pads, and rotor. Take a moment to inspect everything: look for any leaks in the brake lines, check the condition of the brake rotor for deep grooves, cracks, or excessive rust, and note how much friction material is left on your old pads. This is also a good time to assess if you need new rotors.

4. Remove the Caliper Bolts

The brake caliper is typically held in place by two bolts (sometimes referred to as guide pins or slider pins) on the back. These are usually 12mm, 14mm, or 17mm. Using your socket wrench, loosen and remove these bolts. Pay attention to any shims or washers that might be present and note their orientation. Some calipers might have a spring clip on the front; remove this with a screwdriver or pliers if present.

5. Remove the Old Brake Pads

Once the caliper bolts are out, the caliper should be able to pivot upwards or be carefully lifted off the rotor. Do not let the caliper hang by the brake hose, as this can damage the hose. Use a wire or bungee cord to suspend the caliper from the suspension spring or frame. The old brake pads should now be easily removable from the caliper bracket. They might be held in place by clips or simply rest within the bracket. A flathead screwdriver can help gently pry them out if they're stuck.

6. Clean and Prepare the Caliper Bracket

With the old pads removed, thoroughly clean the caliper bracket where the pads sit. Use a wire brush to remove any rust, dirt, and old brake dust. This ensures the new pads can move freely. Apply a thin layer of high-temperature brake grease to the clean contact points on the bracket where the pad ears will sit, and to the caliper guide pins (after cleaning them).

7. Compress the Caliper Piston

Before installing new, thicker pads, you'll need to push the caliper piston(s) back into the caliper bore. This creates space for the new pads. Place one of the old brake pads against the piston face (to protect it) and use a C-clamp or a dedicated caliper piston compressor tool to slowly and steadily push the piston back until it is flush with the caliper body. Be mindful that this action will push brake fluid back into the master cylinder reservoir; check your brake fluid level under the bonnet to ensure it doesn't overflow. If it's near the 'Max' line, you might need to remove a small amount of fluid using a syringe before compressing the piston.

8. Install the New Brake Pads

Carefully insert the new brake pads into the caliper bracket. Ensure they are oriented correctly (the friction material faces the rotor) and that any anti-rattle clips or shims are in their proper positions. Apply a thin layer of brake grease to the metal backing plate of the new pads where they contact the caliper piston and the caliper body, but absolutely *not* on the friction material itself.

9. Reinstall the Caliper

Carefully lower the caliper back over the new pads and rotor. Align the caliper with the mounting holes and reinsert the caliper bolts. Tighten these bolts by hand first, then use your torque wrench to tighten them to the manufacturer's specified torque (refer to your CR-V's manual). Do not overtighten, as this can strip threads or damage the caliper. If you removed a spring clip, reattach it now.

10. Reattach the Wheel and Lower Vehicle

Place the wheel back onto the hub, aligning the bolt holes. Hand-tighten the lug nuts. Once all lug nuts are snug, lower the vehicle completely off the jack stand and jack. With the vehicle on the ground, use your torque wrench to tighten the lug nuts in a star pattern to the manufacturer's specified torque. This ensures even pressure and prevents warping the rotor.

11. Repeat for Remaining Wheels

Repeat the entire process for the other wheels. It's crucial to replace brake pads in pairs (both front wheels, or both rear wheels) to ensure even braking performance.

12. Bedding In New Brake Pads

After replacing your brake pads, a crucial step is the "bedding in" process. This helps transfer a thin, even layer of friction material from the pads to the rotors, optimising performance and preventing noise. The exact procedure can vary, but a common method involves:

1. Drive at a moderate speed (e.g., 30-40 mph).
2. Apply the brakes firmly but not to a complete stop, reducing speed significantly (e.g., to 5-10 mph). Repeat this 5-6 times, allowing a few minutes between each stop for the brakes to cool slightly.
3. Drive at a slightly higher speed (e.g., 50-60 mph).
4. Apply the brakes more forcefully, again not to a complete stop, reducing speed significantly. Repeat this 2-3 times.
5. Drive normally for 10-15 minutes without heavy braking to allow the brakes to cool down completely.

Avoid harsh braking or riding the brakes immediately after installation, as this can glaze the pads and reduce their effectiveness.

Choosing the Right Brake Pads for Your Honda CR-V

When selecting new brake pads, you'll encounter different material types, each with its own characteristics. For your Honda CR-V, the most common options are ceramic and semi-metallic.

Comparative Table: Brake Pad Materials for Your CR-V

For most Honda CR-V owners, ceramic pads offer a superior balance of quiet operation, low dust, and long life, making them an excellent choice for daily driving. However, if you frequently tow or drive aggressively, semi-metallic pads might offer a slightly more responsive initial bite.

Common Pitfalls and Troubleshooting

• Soft Brake Pedal: After installation, if your brake pedal feels spongy or soft, it usually indicates air in the brake lines. You'll need to bleed the brake system to remove the air.
• Persistent Squealing: If the brakes continue to squeal after bedding in, it could be due to improper lubrication of the caliper pins or pad backing plates, or an issue with the anti-rattle clips. Re-check your grease application.
• Uneven Pad Wear: If one pad wears faster than the other, it could indicate a seized caliper piston or sticking guide pins. Ensure all moving parts are clean and well-lubricated.
• Vibrations: While new pads can sometimes temporarily cause minor vibrations during bedding in, persistent vibrations through the pedal often point to warped brake rotors. Consider having them machined or replaced.

Frequently Asked Questions (FAQs)

How long does it take to replace brake pads on a Honda CR-V?

For an experienced DIYer, replacing pads on one axle (two wheels) can take 1-2 hours. For a first-timer, allow 2-4 hours per axle, especially if you're taking your time and being meticulous with cleaning and lubrication.

Do I need to replace brake rotors every time I replace pads?

Not necessarily, but it's highly recommended if your rotors show signs of deep scoring, warping (causing vibrations), or if they are below the manufacturer's minimum thickness specification. Often, replacing both pads and rotors at the same time ensures optimal braking performance and extends the life of both components.

Can I replace just one wheel's brake pads?

No, you should always replace brake pads in pairs on an axle (e.g., both front wheels or both rear wheels). Replacing only one side will lead to uneven braking, which is dangerous and can cause handling issues.

What is 'bedding in' new brake pads, and why is it important?

Bedding in (or 'burnishing') is a process that gradually brings the new pads and rotors up to operating temperature, allowing for a layer of friction material from the pads to transfer onto the rotors. This process optimises braking performance, reduces noise, and helps prevent glazing of the pads. Skipping it can lead to reduced braking effectiveness and premature wear.

How often should I check my Honda CR-V's brake pads?

It's generally recommended to inspect your brake pads at least once a year or every 10,000 to 12,000 miles, whichever comes first. This can often be done during routine tyre rotations or other vehicle inspections.

Replacing your Honda CR-V's brake pads is a manageable and empowering DIY task. By following these detailed steps, prioritising safety, and using the correct tools, you can ensure your vehicle maintains its essential stopping power. Enjoy the satisfaction of a job well done and the peace of mind that comes with knowing your CR-V is stopping safely and efficiently.
